MAXHUB ND75CMD 75-inch 4K Meeting Room Display

Name: MAXHUB ND75CMD 75-inch 4K Meeting Room Display
Brand: Maxhub
SKU: maxhub-nd75cmd
Availability: InStock

Overview

The MAXHUB ND75CMD is a 75-inch 4K meeting room display with a VA panel, 300 cd/m2 typical brightness and a 178° viewing angle. It runs Android 11.0 and provides two HDMI 2.0 inputs, a front USB-C port with 65W power delivery and Wi-Fi 6. It suits boardrooms and large meeting rooms in West Bay, Lusail or Education City. Request a quote today.

A 75-inch 4K display for large meeting rooms

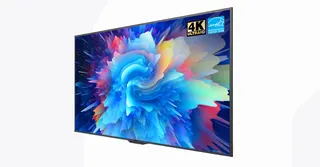

The MAXHUB ND75CMD is a 75-inch meeting room display with a 3840 × 2160 VA panel and a DLED backlight. Typical brightness is 300 cd/m2 and the typical contrast ratio is 5000:1, with a 178° viewing angle so the picture holds up for people seated off-centre. Its 6.5 ms response time and 60Hz refresh rate suit presentations, shared documents and video calls. Compared with the 65-inch ND65CMD, the display area is larger at 1650.24 × 928.26 mm, which makes it a better fit for a boardroom or a larger training room.

Connecting laptops, guests and room systems

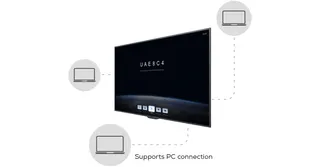

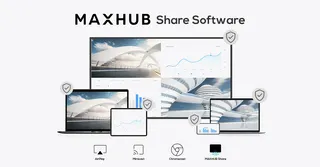

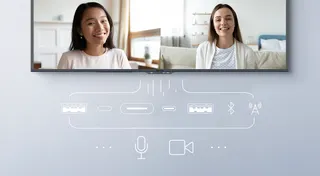

The panel is built around sharing. It has two HDMI 2.0 inputs, one USB 2.0 port, two front USB 3.0 ports and a front USB Type-C port that carries video, audio, touch and network signals with 65W power delivery for a laptop. Wireless sharing works through the MAXHUB Share software on Windows, macOS, iOS and Android, and the Wi-Fi 6 radio supports 2.4GHz and 5GHz bands alongside Bluetooth 5.2. For control, the RS232 port and IP protocol let a room system manage the display, while HDMI CEC and a one-key black screen help during presentations.

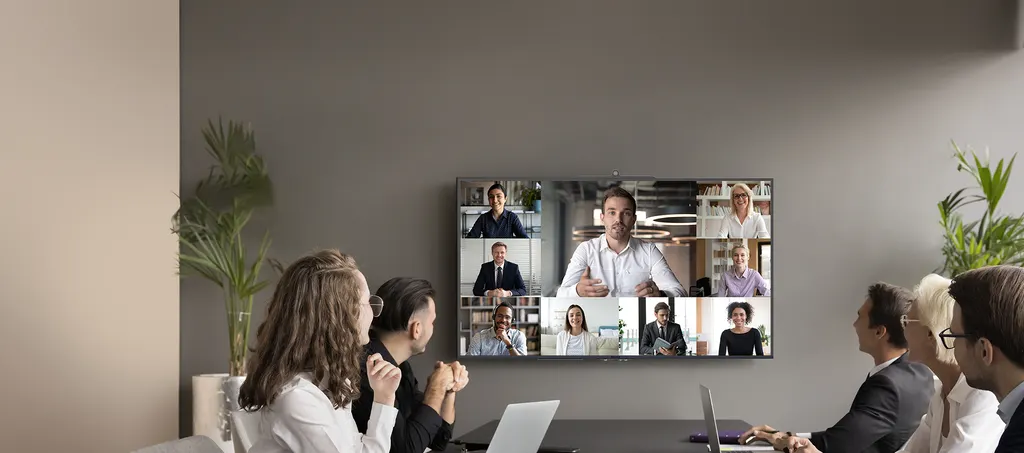

Meeting software can run on a laptop while the display supplies the screen and speakers, so staff keep their usual conferencing app. The data for this model does not list a built-in camera or microphone, so confirm any conferencing hardware with the SmartRooms Qatar team before you order.

Sound, power and Qatar's summer heat

Two 10W speakers in a bottom-gap design provide a 2.0 sound system. The power input accepts 100-240V at 50/60Hz, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 185W and the maximum is 295W, with standby at 0.5W or less. The operating range is 0°C to 40°C with 10% to 90% RH humidity. Summer temperatures in Doha, Al Khor or Mesaieed can exceed 45°C, so the display belongs in an air-conditioned room away from direct sunlight and exposed glass frontages. Ask the SmartRooms Qatar team to review the room climate before installation.

Planning the wall, weight and installation

The ND75CMD measures 1669 × 968.1 × 75.9 mm and weighs 25 kg net or 37 kg gross. It uses a 400 × 300 mm VESA pattern with M6 × 30 mm wall-hanging screws. With the WIB6540B wall mount listed in the data, the total thickness reaches 118.9 mm. Confirm that the wall can carry this weight before drilling. A free site survey from SmartRooms Qatar helps check the wall type, cable routes and access for the installer. Also reserve space for the packed unit, which measures 1825 × 225 × 1135 mm.

Quotes, purchase orders and warranty

Ordering from SmartRooms Qatar is by quotation, usually issued within one working day. We accept purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. The display carries a 3-year display warranty from the manufacturer and is certified under Energy Star. For a ministry, school or company buying several units, send the required quantity and a room list to our team and we will prepare a quotation. Request a quote today.

Highlights

75-inch 4K panel at 3840 × 2160 resolution
300 cd/m2 typical brightness and 178° viewing angle
Android 11.0 with 4GB RAM and 32GB storage
Two HDMI 2.0 inputs and a front USB-C port with 65W
Wi-Fi 6, Bluetooth 5.2 and RJ45 network input
Energy Star certified with a 3-year display warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

59 specifications · Source: manufacturer · checked Oct 2026

ND75CMD59

Display · Screen Size: 75"
Display · Panel Type: VA
Display · Backlight: DLED
Display · Display Area: 1650.24(H) × 928.26(V) mm
Display · Pixel Pitch: 0.42975 × 0.42975mm
Display · Resolution: 3840(H) × 2160(V)
Display · Contrast Ratio (Typ.): 5000:1
Display · Aspect Ratio: 16 : 9
Display · Refresh Rate: 60Hz
Display · Brightness (Typ.): 300 cd/m2
Display · Operation Hours (Day × Hours): 7 × 16H
Display · Life Time: ≥ 50000 Hours
Display · Display Color: 1.07B (8bit+FRC)
Display · Color Gamut (Typ.): NTSC 72%
Display · Viewing Angle (H × V): 178°
Display · Response Time: 6.5ms
System · System: Android 11.0
System · CPU: A73 × 4 + A53 × 4
System · GPU: Mali G52MP8
System · RAM: 4G
System · ROM: 32G
Speaker · Channel: 2.0
Speaker · Power: 2 × 10W
Power · Power Supply: 100-240V~50/60Hz
Power · Standby Power Consumption: ≤ 0.5W
Power · Power Consumption (Typ.): 185W
Power · Power Consumption (Max.): 295W
Features · HDMI CEC: Yes
Features · RS232/IP Protocol to control: Yes
Features · Built-In Media Player: Yes
Features · Device Management System: Yes
Features · Screen Share: Yes
Features · Channel memory: Yes
Features · One-key black screen: Yes
Connectivity · HDMI IN (2.0): 2
Connectivity · USB 2.0: 1
Connectivity · USB 3.0: 2 ( Front Panel )
Connectivity · USB Type-C: 1 ( PD 65W, Front Panel )
Connectivity · Touch 2.0: 1
Connectivity · AUDIO IN: 1
Connectivity · AUDIO OUT: 1
Connectivity · RS232: 1
Connectivity · RJ45 IN: 1
Connectivity · Wi-Fi: AP + STA Wi-Fi 6 Support 2.4GHz & 5GHz 802.11ac/b/g/n/a/ax
Connectivity · Bluetooth: 5.2
Mechanical Specification · Product Dimension (L×H×D): 1669 × 968.1 × 75.9mm
Mechanical Specification · Package Dimension (L×W×H): 1825 × 225 × 1135mm
Mechanical Specification · Thickness of machine and wall mount: 118.9 mm (WIB6540B)
Mechanical Specification · Net Weight: 25kg
Mechanical Specification · Gross Weight: 37kg
Mechanical Specification · VESA: 400 × 300mm
Mechanical Specification · Wall-hanging Screw Spec: M6 × 30mm
Environmental Conditions · Operation Temperature: 0°C - 40°C
Environmental Conditions · Operation Humidity: 10% - 90%RH
Environmental Conditions · Storage Temperature: -20°C - 60°C
Environmental Conditions · Storage Humidity: 10% - 90%RH
Environmental Conditions · Altitude: Below 5000 meters
Certification · Certification: Energy Star
Warranty · Display: 3 years warranty

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about ND75CMD

Who is the MAXHUB ND75CMD designed for?

It suits boardrooms, executive offices and large meeting rooms that need a 75-inch 4K screen for presentations and video calls. The 3840 × 2160 resolution and 178° viewing angle help attendees seated on both sides of a long table. This layout is common in ministry and corporate boardrooms in West Bay or Lusail, where a single display must serve every chair.

How does the ND75CMD differ from the ND65CMD?

The ND75CMD offers a 75-inch screen with a 1650.24 × 928.26 mm display area, compared with 65 inches for the ND65CMD. Its typical contrast ratio is 5000:1 against 6000:1, its typical power draw is 185W against 153W, and it uses a 400 × 300 mm VESA pattern instead of 400 × 200 mm. Choose the size according to room dimensions and wall structure.

Can staff share a laptop screen wirelessly?

Yes. The MAXHUB Share software supports Windows, macOS, iOS and Android, and the Wi-Fi 6 radio works on 2.4GHz and 5GHz bands. A wired option is also available through the front USB-C port, which carries video, audio, touch and network signals with 65W power delivery. Ask the SmartRooms Qatar team which accessories your order needs for your preferred sharing method.

Can we run our own video conferencing app through the display?

Yes. The display works with meeting software launched on a laptop, using its screen and two 10W speakers, so staff keep their usual app. The data for this model lists no built-in camera or microphone. The SmartRooms Qatar team should confirm the camera and microphone setup for your room before preparing a quotation.

What ports are on the panel?

The panel has two HDMI 2.0 inputs, one USB 2.0 port, two front USB 3.0 ports, one front USB Type-C port with 65W power delivery, one touch interface, audio input and output, one RS232 port and one RJ45 input. Plan cable routes so the room PC or network switch can reach these connections without long runs across the wall.

Can the display be controlled from a room control system?

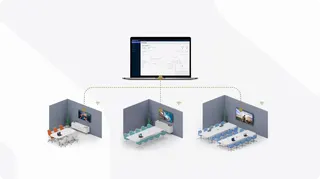

Yes. It supports control over RS232 and IP protocol, along with HDMI CEC and a one-key black screen function. A room controller can switch inputs and manage the panel from a single touch panel. The device management system and MAXHUB Pivot also let IT managers monitor, control and update units remotely across several meeting rooms.

Will a plasterboard wall in a Doha office take a 75-inch panel?

Check before you drill. The panel weighs 25 kg net and 37 kg gross, and its VESA pattern is 400 × 300 mm. Plasterboard usually needs a reinforced mounting frame or a fixing plan that reaches structural material behind the surface. A free site survey from SmartRooms Qatar checks the wall, cable runs and installer access before any work starts.

Can it go in a hot lobby or near a window in summer?

Not without climate control. The operating range is 0°C to 40°C with 10% to 90% RH humidity, while Doha summer temperatures can exceed 45°C. Place it in an air-conditioned room away from direct sunlight, such as a boardroom or training room, and ask the SmartRooms Qatar team to review the space before installation.

Does the power supply suit Qatar's mains supply?

The data gives an input range of 100-240V at 50/60Hz, which covers Qatar's 240 V, 50 Hz supply. Typical consumption is 185W and the maximum is 295W, with standby at 0.5W or less. Confirm the plug supplied with the unit against BS 1363 sockets with the team before installation, so the display can be connected safely on day one.

What warranty and certification does this model carry?

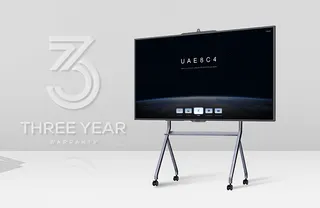

The display carries a 3-year display warranty from the manufacturer and is listed with Energy Star certification. Energy Star helps facilities teams compare power use across a school, ministry or company estate. Products sold by SmartRooms Qatar are covered by the manufacturer's warranty, and you can ask our team for warranty details alongside your quotation.

How do we buy several units for a school or ministry?

Send the quantity and a room list, and SmartRooms Qatar usually issues a quotation within one working day. We accept purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. We deliver to all eight municipalities of Qatar and offer professional installation, with a free site survey before wall work.

Are the processor and memory enough for the apps we need?

The unit runs Android 11.0 on an eight-core processor with 4GB RAM and 32GB storage. The built-in media player is part of the display's software. If you plan to run third-party applications, list them for the SmartRooms Qatar team before ordering so the configuration can be checked against your requirements.
