MAXHUB ND86CMB 86-inch 4K Commercial Display

Name: MAXHUB ND86CMB 86-inch 4K Commercial Display
Brand: Maxhub
SKU: maxhub-nd86cmb
Availability: InStock

Overview

The MAXHUB ND86CMB is an 86-inch 4K commercial display built for continuous operation, with 3840 × 2160 resolution, 500 nits typical brightness and a 178° viewing angle. It runs Android 14 with 4GB RAM and 32GB storage, has 2×16W stereo speakers and supports Wi-Fi 6 through a module slot. It suits boardrooms, lecture halls, lobbies and signage walls across Qatar. Request a quote.

What the ND86CMB is built for

The MAXHUB ND86CMB is an 86-inch commercial display from the CMB Series, designed to run for long periods and to show content to audiences rather than sit on a desk. Its 16:9 panel offers 3840 × 2160 resolution, so 4K video, slides and spreadsheets stay sharp at this size. It can be used in landscape or portrait orientation, which suits both meeting walls and vertical information boards.

The specifications that matter in a large room

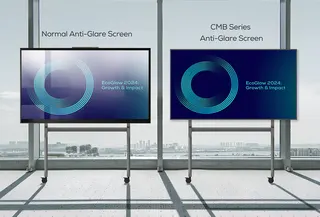

Typical brightness is 500 nits and the viewing angle is rated at 178° horizontally and vertically, so people seated at the edges of a boardroom or lecture hall see a picture close to the one seen from the centre. Colour is handled at 10-bit with 98% sRGB colour gamut coverage and a typical contrast ratio of 1,200:1. The display is rated for 24/7 operation. The listed haze is 25%, a figure to weigh when placing the screen near windows.

Built-in player, connectivity and control

Android 14 with a quad-core A73 processor at 1.8GHz, 4GB RAM and 32GB storage, running MAXHUB Signage OS V2.
Three HDMI inputs and one HDMI output, a USB-C port, two USB 2.0 ports and one USB 3.0 port.
RJ45 input and output for network connection, and RS232 for control from a room system.
A Wi-Fi module slot that takes the SI07B module, listed with Wi-Fi 6 support and Bluetooth 5.2.

Where the ND86CMB fits across Qatar

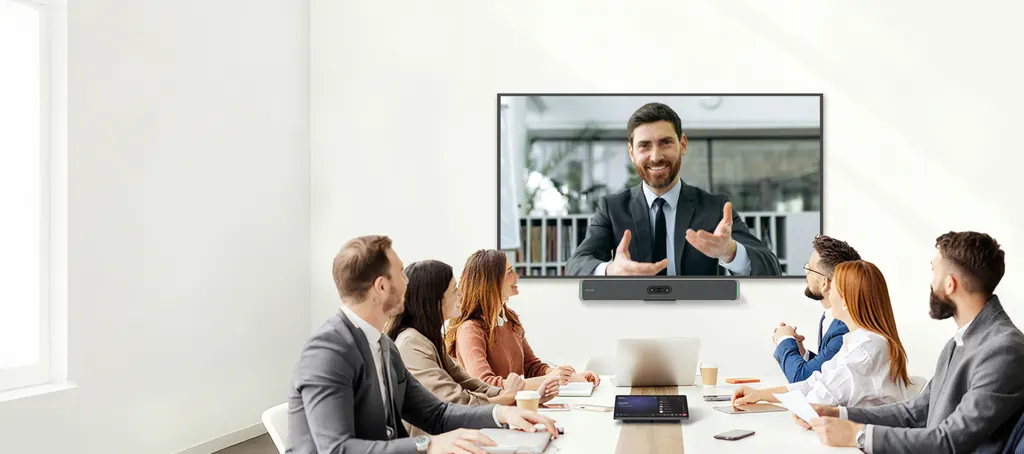

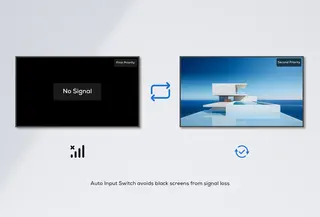

A consultancy in West Bay could mount one ND86CMB in its boardroom for video calls with colleagues abroad, connecting a laptop over USB-C and using the stereo speakers for conference audio. A university in Education City could use it as the main teaching screen in a lecture hall. A shopping centre in The Pearl could run repeating promotions on a wall of screens, as the manufacturer lists 5×5 video wall support for the series. A hotel in Lusail could show arrival information around the clock, using auto input change and Wake on LAN to keep the display on schedule.

What to plan before installation

At 1930.8 × 1101.7 × 68 mm and 40.80 kg (89.95 lb), this is a heavy panel. It uses a 600 × 400 mm VESA pattern, so the bracket, fixings and wall structure must be checked before delivery. SmartRooms Qatar offers free site surveys for exactly this reason. Check the room temperature and any sunlight from windows as well, because the published specifications for this model do not give an operating temperature range. The display carries a 3-year warranty, and SmartRooms Qatar delivers to all eight municipalities of Qatar with professional installation available.

To receive a quotation covering the ND86CMB, delivery and installation, request a quote from SmartRooms Qatar. Quotations usually arrive within one working day.

Highlights

86-inch 16:9 panel with 3840 × 2160 resolution
500 nits typical brightness and 178° viewing angles
Android 14 with quad-core A73 CPU, 4GB RAM and 32GB storage
Three HDMI inputs, RJ45 in and out, and RS232 control
2.0 speakers rated 2×12W output and 2×16W maximum
Dimensions 1930.8 × 1101.7 × 68 mm, net weight 40.80 kg

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

42 specifications · Source: manufacturer · checked Oct 2026

ND86CMB42

Display · Screen Size: 86"
Display · Aspect Ratio: 16:9
Display · Panel Type: ADS
Display · Brightness (Typ.): 500 nits
Display · Haze: 25%
Display · Resolution: 3840 × 2160
Display · Refresh Rate: 60 Hz
Display · Contrast Ratio (Typ.): 1,200:1
Display · Viewing Angle (H × V): 178° / 178°
Display · Color Gamut: 98% sRGB
Display · Display Orientation: Landscape / Portrait
Display · Operation Hour (Hour / Day): 24 / 7
Display · Display Color: 1.07B (10bit)
Built-in System · Operating System: Android 14.0
Built-in System · CPU: A73 × 4 1.8GHz
Built-in System · RAM: 4 GB
Built-in System · ROM: 32 GB
Connectivity · HDMI IN: × 3
Connectivity · USB 2.0: × 2
Connectivity · USB 3.0: × 1
Connectivity · USB Type-C: × 1
Connectivity · AUDIO IN: × 1
Connectivity · RS232: × 1
Connectivity · RJ45 IN: × 1
Connectivity · HDMI OUT: × 1
Connectivity · AUDIO OUT: × 1
Connectivity · SPDIF: × 1
Connectivity · RJ45 OUT: × 1
Connectivity · Wi-Fi Module Slot: Module slot × 1
Connectivity · Wi-Fi Module (SI07B): Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz
Connectivity · Bluetooth: 5.2
Audio · Sound Channel: 2.0
Audio · Speaker Power: 2×12W (Output) 2×16W (Maximum)
Feature · System OS: MAXHUB Signage OS V2
Feature · Screen Share: MAXHUB Share Support BYOD / Miracast / Airplay / Chromecast
Feature · Device Management: MAXHUB Pivot
Feature · Special Features: Screen rotation / Auto input change / Play via URL / Wake on LAN / Color Calibration
Physical Specification · Bezel Width: 15.9 mm / 0.63 inch (Even)
Physical Specification · Dimension (W × H × D): 1930.8 × 1101.7 × 68 mm 76.04 × 43.37 × 2.68 inch
Physical Specification · VESA: 600 × 400 mm
Physical Specification · Net Weight: 40.80 kg / 89.95 lb
Warranty · Display: 3 years warranty

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about ND86CMB

Who is the MAXHUB ND86CMB best suited for?

It suits rooms where one large shared screen does the work, such as a boardroom, executive meeting room or lecture hall. At 86 inches with 3840 × 2160 resolution, charts and text stay readable from the back of the room, and the 178° viewing angle helps people seated at the sides. Check room size and seating distances during a site survey before ordering.

Can it run continuously for signage in a mall or airport area?

The specification rates it for 24/7 operation, which is why it sits in the commercial display category. For a shopping centre in The Pearl or a waiting area near Hamad International Airport, combine it with the built-in player, auto input change and power scheduling. Ask SmartRooms Qatar to confirm your content and mounting plan before you request a quote.

How bright is the ND86CMB and can it sit near a window?

Typical brightness is 500 nits with a 25% haze rating. That suits indoor rooms with controlled lighting, but a screen facing a sunlit window in Doha can look washed out in afternoon light. Position it away from direct sun where possible, and use the site survey to check glare and room temperature, since the published specifications do not give an operating temperature range.

How heavy is the screen and how is it mounted?

The display weighs 40.80 kg (89.95 lb) and measures 1930.8 × 1101.7 × 68 mm. It uses a 600 × 400 mm VESA pattern, so the bracket and wall fixings must match that spacing. Because of its weight, a site survey is recommended to check the wall structure before installation, and SmartRooms Qatar can arrange professional installation once the survey is complete.

How do I connect a laptop or presentation source?

The ND86CMB has three HDMI inputs, a USB-C port, two USB 2.0 ports and one USB 3.0 port. The full-function Type-C port supports wired BYOD, so a laptop can connect with a single cable. Wireless sharing works through MAXHUB Share and supports Miracast, AirPlay and Chromecast. The Wi-Fi module slot takes the SI07B module listed for this model, which offers Wi-Fi 6.

Does it work in a Microsoft Teams Rooms setup?

The manufacturer states that the display has a dedicated Meeting Mode, wakes and sleeps in step with a Teams Rooms system, and can be managed from that console. This suits a boardroom in West Bay where the room system powers the screen on before a call starts. Confirm compatibility with your existing room system and IT team before placing the order.

Can I build a video wall from several ND86CMB units?

The CMB Series is listed with 5×5 video wall support, letting several panels act as one canvas. This model has a 15.9 mm bezel, so the screens merge with a narrow frame. A wall of this size in a lobby or control room needs structural planning, matching units and a mounting system that suits the 600 × 400 mm VESA pattern. Request a quote that states the number of units and layout.

How are several displays managed centrally?

MAXHUB Pivot handles device control and content scheduling from one interface. The manufacturer also states compatibility with more than 20 CMS tools, including Appspace. For an organisation with screens in several buildings, such as a ministry with offices in Doha and Al Khor, this lets facilities teams update content and monitor units from one place. Confirm which platform your team already uses before ordering.

What does the speaker system deliver in a large room?

The built-in 2.0 stereo system is rated at 2×12W output and 2×16W maximum, with an 84dB sound pressure level listed in the manufacturer's features. That is suitable for conference calls and presentations in a boardroom or mid-sized lecture hall. A large auditorium in Lusail or Education City may still need external audio, so test room acoustics during the site survey.

What warranty comes with the ND86CMB?

The display carries a 3-year warranty as listed in the source specification, covered by the manufacturer's warranty. It can be ordered through SmartRooms Qatar with delivery to all eight municipalities of Qatar and professional installation. Ask for the full warranty terms in writing with your quotation, and keep the serial number and purchase order for any future claim.

Can I buy this through an LPO or a government tender?

Yes. SmartRooms Qatar supplies on purchase orders (LPOs) and government tenders, including Monaqasat. A school in Al Rayyan fitting out an Arabic-curriculum classroom could order a single unit on an LPO, while a public authority can list the ND86CMB against a tender line. Payment is accepted by bank transfer, cheque or purchase order, and quotations usually arrive within one working day.

How does the ND86CMB compare with the 98-inch model in this series?

The 98-inch model is larger and heavier, at 53.90 kg, and has a wider 17.9 mm bezel compared with 15.9 mm here. The 86-inch unit is easier to fit to a boardroom or medium-sized lecture wall, at 40.80 kg. Choose this model if the room is medium to large and the wall structure has been checked for this weight. Request a quote for either size.
