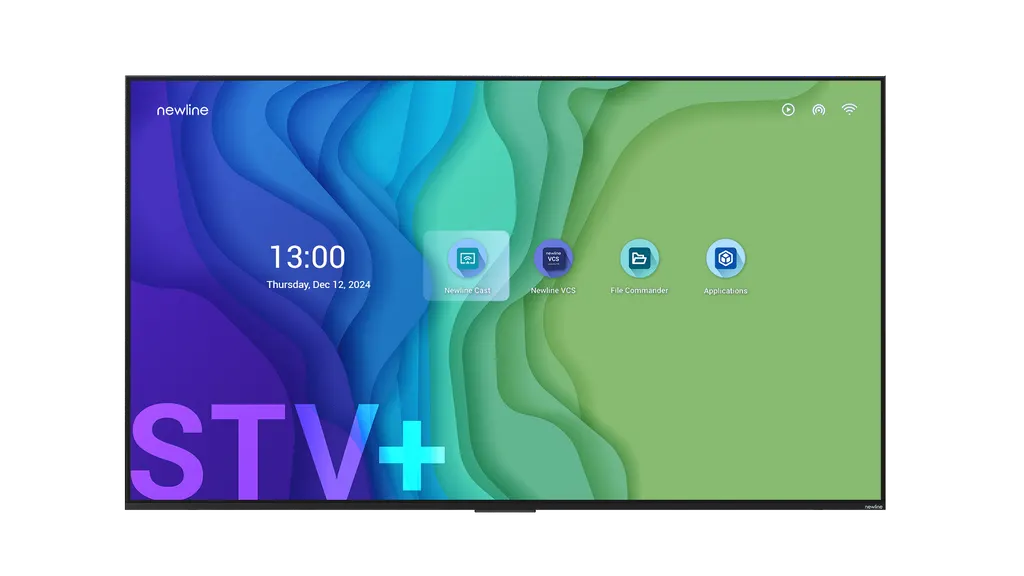

Newline 43" STV+ Commercial Display

Name: Newline 43" STV+ Commercial Display
Brand: Newline
SKU: newline-stv-plus-43
Availability: InStock

Overview

The Newline 43" STV+ is a 43-inch 4K UHD non-touch commercial display with a 178° viewing angle, Android 14 and an ultra-thin bezel. It supports Wake-on-LAN, RS232 and IP control for remote management, and at 6.4 kg it is the lightest model in the STV+ range. Suited to classrooms, meeting rooms and reception screens across Doha, Lusail and Al Sadd. Request a quote from SmartRooms Qatar.

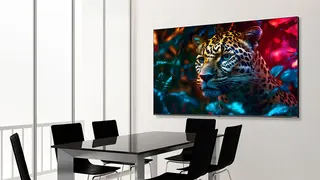

A 43-inch 4K display for rooms that need close, clear viewing

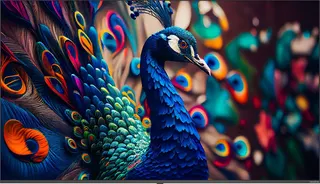

The Newline 43" STV+ is a non-touch commercial display with a 43-inch screen and an active display area of 941 x 529 mm. Its 3840 x 2160 panel delivers 4K UHD resolution, and a 178° viewing angle keeps the picture readable for people seated at the side of a room. The ultra-thin bezel gives the panel a clean edge that suits walls in offices and reception areas.

Embedded Android 14 and wireless sharing without an external PC

The display runs Android 14 on an embedded system with 4 GB RAM and 16 GB storage, so apps and signage playlists run on the screen itself. Newline Cast+ lets users share content from Windows PCs, Macs, Android phones and iPhones. The manufacturer lists a Fast Boot mode that powers up in 2 seconds, and an auto power on and off schedule can have the screen ready before the first lesson or meeting.

Remote management and connectivity for IT teams

The back panel offers three HDMI inputs, one USB-A 3.0 port, one USB-A 2.0 port, an RJ45 LAN port, an RS232 port, an AV input, an audio line out and an S/PDIF output. Wake-on-LAN and Wake-on-WiFi let staff power the screen remotely, while IP control and RS232 allow external control systems to send commands. Wi-Fi 5 and Bluetooth 5.0 are built in, the display can act as a hotspot on 2.4 GHz and 5 GHz bands, and firmware can be updated over the air. Display Management Plus adds a secure web portal for deploying apps, changing settings and broadcasting messages.

Display area: 941 x 529 mm
Net weight: 6.4 kg
Outline dimensions: 957 x 559 x 86 mm
VESA mounting pattern: 300 x 300 mm
Operating temperature: 0°C to 40°C, humidity 20% to 80% non-condensing
Power input: 100-240 V, 50/60 Hz

Where a 43-inch STV+ fits in Qatar

In Education City, a training centre fitting out a small seminar room can use a 43-inch panel where a trainer and a few students sit close to the screen, and the 6.4 kg weight keeps wall installation straightforward. In West Bay, a clinic or serviced apartment reception can run a looped playlist of notices and wayfinding through Newline Signage Pro, managed centrally from one portal. An office in Al Sadd where teams in Doha work alongside colleagues abroad can use one screen to show presentations cast from laptops and phones.

What to plan before ordering

Plan the wall first. The VESA pattern is 300 x 300 mm and the wall-hanging screws are M6 x 10 mm, so confirm the mounting hardware and wall structure before ordering. SmartRooms Qatar offers free site surveys, which help with corridors and lobbies where screen position affects glare and sightlines. Keep the display in air-conditioned rooms: its operating range is 0°C to 40°C, while Qatar summer temperatures outdoors can exceed 45°C, so confirm any unconditioned location with our team first.

Ordering several units for a school or government office? Multiple units can be raised on one purchase order or LPO, and the power cord is supplied by region, so confirm the plug type on your quotation. Request a quote from SmartRooms Qatar with your room sizes and quantities, and we will usually respond with a quotation within one working day.

Highlights

43-inch 4K UHD panel with 941 x 529 mm display area
178° viewing angle and ultra-thin bezel
Embedded Android 14 with 4 GB RAM and 16 GB storage
Wake-on-LAN, Wake-on-WiFi, IP control and RS232 support
Operating range 0°C to 40°C; net weight 6.4 kg
Non-touch display with 300 x 300 mm VESA pattern

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

8 specifications · Source: manufacturer · checked Oct 2026

43" STV+8

General · Screen Size: 43″
General · Display Area (mm): 941 x 529
General · Net Weight(kg): 6.4
General · Resolution: 4K UHD
General · Viewing Angle: 178°
General · Embedded Operating System: Android 14
General · RAM: 4 GB
General · VESA Mount Pattern(mm): 300 x 300

Downloads

0 files from the manufacturer

No downloadable files are listed for this model yet. Ask us and we will send the datasheet.

Questions about 43" STV+

Who is the Newline 43" STV+ designed for?

It is designed for smaller rooms where people sit close to the screen, such as classrooms, huddle rooms and meeting rooms. The 43-inch panel has a 941 x 529 mm display area and 4K UHD resolution, so text and detail stay sharp at close range. Its 6.4 kg net weight makes wall mounting less demanding than heavier models, which suits a meeting room in Msheireb or a classroom in Al Wakrah.

Is the Newline 43" STV+ a touch screen?

No. The Newline 43" STV+ is a non-touch display, so presenters usually connect a laptop or PC by HDMI or share content wirelessly. Newline Cast+ supports Windows, Mac, Android and iPhone devices, so presenters can start sharing without touching the screen. If your room needs touch-based interaction, tell the SmartRooms Qatar team when you request a quote so we can confirm the right model.

Can it be installed in a room without air conditioning?

The display is rated for an operating range of 0°C to 40°C, with non-condensing humidity from 20% to 80%. Qatar summer temperatures outdoors can exceed 45°C, so install it in an air-conditioned room away from direct sunlight and from windows that let in dust during storms. For corridors, store rooms or covered outdoor areas, confirm the environment with the SmartRooms Qatar team before ordering.

Can IT staff switch it on and manage it remotely?

Yes. Wake-on-LAN and Wake-on-WiFi allow the display to be started over the network, and IP control and RS232 allow external control systems to send commands. Display Management Plus is a secure web portal for deploying apps, changing settings and broadcasting messages to all screens. An organisation with several sites can manage its screens from one place and set auto power schedules so they switch off when rooms are empty.

What operating system and software does it run?

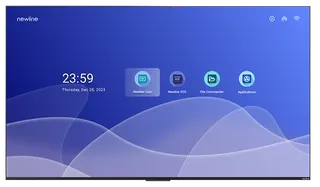

The 43-inch STV+ runs Android 14 on an embedded system with 4 GB RAM and 16 GB storage. Its software ecosystem includes Newline Cast+, Newline Broadcast, an app store, Display Management Plus and Newline Signage Pro. Because apps run on the display itself, a meeting room or classroom may not need a separate computer for everyday presentations, though a laptop can still be connected by HDMI when needed.

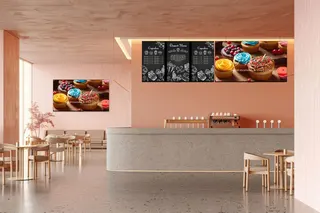

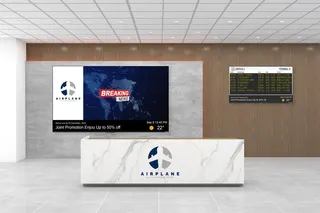

Can it run digital signage in a hotel lobby or clinic waiting area?

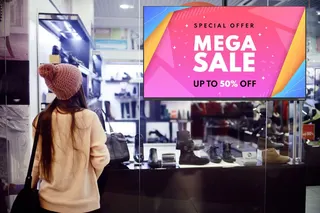

Yes. The display is compatible with Newline Signage Pro, a digital broadcast network for schools and businesses that lets you schedule content and deliver it to multiple screens. A serviced apartment reception in West Bay, a clinic waiting area in Al Rayyan or a retail entrance in a Doha mall could use it for announcements and wayfinding. Check with the SmartRooms Qatar team whether the lobby suits the heat and dust conditions.

Does it work on Qatar's 240 V mains supply?

The manufacturer lists a power input of 100-240 V at 50/60 Hz, which covers the 240 V, 50 Hz supply used in Qatar. Standby power is 0.5 W. The power cord is supplied by region, so confirm the plug type that comes with each unit on the quotation, especially when ordering screens for several rooms with different sockets.

How is it mounted, and how much space does it need?

The VESA mounting pattern is 300 x 300 mm and the wall-hanging screws are M6 x 10 mm. The outline size is 957 x 559 x 86 mm, so allow room for cable routing behind the panel. SmartRooms Qatar offers free site surveys, and we recommend one before mounting so the wall type, mounting height and sightlines can be checked. Professional installation can also be arranged through our team.

How does it compare with the 55-inch model?

The 43-inch model has a 941 x 529 mm display area against 1210 x 680 mm for the 55-inch, and a net weight of 6.4 kg against 10.8 kg. Its VESA pattern is 300 x 300 mm, while the 55-inch uses 400 x 300 mm, so the mounting hardware differs. Both share 4K UHD resolution, a 178° viewing angle and Android 14. Choose the 43-inch for smaller rooms and the 55-inch for larger meeting spaces.

Is it suitable for a classroom where the teacher uses a laptop?

Yes, provided the laptop connects by HDMI or shares content wirelessly from Windows, Mac, Android or iPhone devices. The 178° viewing angle helps students seated at the sides of the room see the same content. A private school in Al Sadd fitting out one classroom can mount a single unit on the wall and set the auto power schedule to start the screen before the first lesson of the day.

Is it covered by warranty, and can we buy it through a government tender?

Products are covered by the manufacturer's warranty. SmartRooms Qatar supplies the 43-inch STV+ on quotation, accepts purchase orders (LPOs) and government tenders, including those on Monaqasat, and accepts payment by bank transfer, cheque or purchase order. Delivery covers all 8 municipalities of Qatar. Send the tender reference and quantity with your request, and we will usually issue the quotation within one working day.
