Panasonic TH-43EQ2 43-inch 4K Professional Display

Name: Panasonic TH-43EQ2 43-inch 4K Professional Display
Brand: Panasonic
SKU: panasonic-th-43eq2
Availability: InStock

Overview

The Panasonic TH-43EQ2 is a 43-inch class 4K display with 500 cd/m² brightness and an anti-glare panel for brightly lit rooms. It runs in landscape or portrait. Three HDMI inputs, a USB-C port with up to 60 W power delivery and a built-in 4K media player make it a fit for small meeting rooms, classrooms and reception screens in Qatar. Request a quote from SmartRooms Qatar.

What the TH-43EQ2 is built for

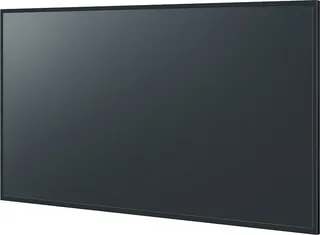

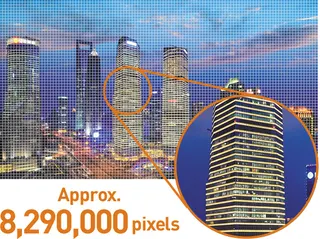

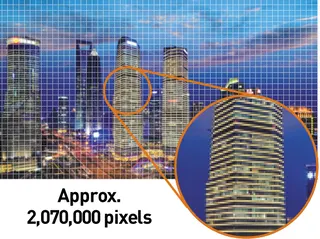

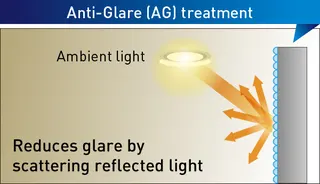

The Panasonic TH-43EQ2 is a 43-inch class commercial display from the EQ2 Series, which spans 43 to 86 inches. Its 3840 x 2160 panel carries roughly four times the pixels of a Full HD screen, so text on a shared slide or a detailed signage graphic stays sharp at close viewing distance. A 500 cd/m² brightness rating and an anti-glare surface with 25% haze help the picture stay legible where daylight or ceiling lights would wash out a glossy screen.

Connectivity for meeting rooms and signage

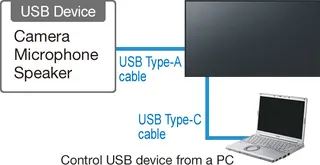

Three HDMI inputs with HDCP 2.2 support let a laptop, a media player and a conferencing device share one display, and a PC input and a 3.5 mm audio input cover older sources. The USB Type-C port carries video, data and charging of up to about 60 W over a single cable, which suits a laptop that must stay powered during a long meeting. USB Type-A ports pass control from a connected PC to a camera, speakerphone or microphone fixed in the room, so a meeting can start from one laptop connection.

Expansion slot and network control

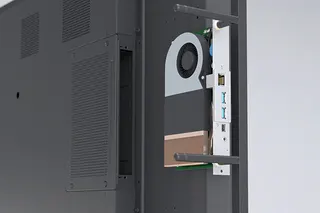

The SDM-S and SDM-L slot accepts Intel SDM function boards, including the receiver board for Panasonic's PressIT wireless presentation system and optional 12G-SDI or DIGITAL LINK terminal boards. Third-party boards are sold separately and Panasonic does not guarantee their operation, so check compatibility before ordering. The display can be controlled over LAN or RS-232C, works with AMX and Crestron systems, and supports SNMP versions 1 to 3 for network monitoring.

Where it fits in Qatar and what to plan for

Classroom in Al Wakrah: a wall-mounted 43-inch panel for students seated close to the board, with 20 W built-in speakers and the whiteboard function for annotation.
Reception in West Bay: portrait installation for wayfinding content, scheduled from a USB memory stick without a PC.

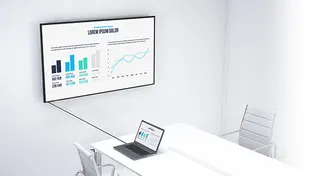

Small meeting room in Doha: one laptop connected by USB-C, with the room camera and speakerphone controlled from the same connection.

The display is rated for 0 to 40 °C with 20 to 80% humidity, non-condensing, up to 1400 m altitude. Qatar summer temperatures can exceed 45 °C, so install it in an air-conditioned room rather than a sun-exposed terrace or unconditioned corridor. It draws 225 W in use, is rated for up to 18 hours of operation per day, weighs 11.7 kg and measures 973 x 562 x 65 mm. Mounting uses VESA 200 x 200 mm holes, and the tilt range is 0 to 20 degrees in either orientation.

SmartRooms Qatar offers a free site survey to check wall construction, viewing distances and cable routes before mounting, and supplies, delivers and installs across all eight municipalities. Quotations usually follow within one working day, and we accept purchase orders and government tenders. Request a quote today and our team will confirm lead time with your quotation.

Highlights

3840 x 2160 4K resolution on a 43-inch class panel
500 cd/m² brightness with anti-glare panel (Haze 25%)
Three HDMI inputs with HDCP 2.2 support
USB Type-C port with up to 60 W power delivery
Built-in 4K USB media player, no PC required
Operating range 0 to 40 °C, up to 1400 m altitude

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

30 specifications · Source: manufacturer · checked Oct 2026

Display Panel9

Screen Size: 43-inch (42.5" / 1079.8 mm)
Aspect Ratio: 16:9
Effective Display Area (W x H): 941.1 x 529.4 mm (37.05" x 20.84")
Resolution (H x V): 3840 × 2160
Brightness (Typ): 500 cd/m²
Contrast Ratio: 1200:1
Response Time (G to G): 8 ms (G to G)
Viewing Angle (Horizontal/Vertical): 178°/178° (CR>10)
Panel Surface Treatment: Anti-glare treatment (Haze 25 %)

Terminals7

HDMI In: TYPE A Connector x 3 (HDCP2.2 supported)
PC In/Audio In (L/R): Mini D-sub 15-pin x 1 (DDC2B)/Stereo Mini Jack (Φ3.5mm) x 1
Serial: D-sub 9-pin x 1, RS-232C Compatible
Audio Out: Stereo Mini Jack (Φ3.5mm) x 1
LAN: RJ45 x 1 compatible with PJLink™ RJ45 10BASE-T/100BASE-TX
USB: Type A: DC 5 V/1 A, USB 3.0 is supported, Type A: DC 5 V/2 A, USB 2.0 is supported, Type C: max ~60W (Power Delivery compatible), USB2.0 is supported, DisplayPort Alternate mode compatible
SLOT: SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A

Audio1

Built-in Speaker: 20W [10W + 10W]

Electrical4

Power Requirements: AC 110 - 240 V 50 Hz / 60 Hz
Power Consumption: 225 W
Power off condition: Approx. 0.3 W
Stand-by Conditions: Approx. 0.5 W

Mechanical4

Dimensions (W x H x D): 973 x 562 x 65 mm (38.31" x 22.10" x 2.56")
Weight: 11.7 kg (25.8 lbs.)
Bezel Width: 13.9 mm (0.55") (T/R/L/B)
Wall-hanging Pitch: VESA Compliant 200 x 200 mm (7.9" x 7.9"), M6 Screw hole depth 16 mm (0.63")

Installation Requirement 12

Orientation: Landscape/Portrait
Tilting Angle: 0-20 degrees forward/backward with landscape/portrait setting

Environment3

Operating Time 2: 18 h/day
Operating environment: Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude. Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft)
Regional Spec Sheets: Americas, Europe, Asia, Oceania, Middle East, Africa: TH-43EQ2W

Downloads

6 files from the manufacturer

PDF Datasheets TH-43EQ2_Spec_Sheet_Americas, Europe, Asia, Oceania, Middle East, Africa.pdf 1.1 MB PDF Manuals & guides sq2hw_eq2w_manual_en.pdf 8.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_ar.pdf 1.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_eng.pdf 2.2 MB PDF Brochures EQ2_series.pdf 689 KB URL Drawings & CAD · Opens on manufacturer site #eq2

Questions about TH-43EQ2

Is the TH-43EQ2 suitable for a classroom in Al Wakrah?

A 43-inch panel suits a classroom in Al Wakrah where students sit close to the board. The 4K resolution keeps text sharp, the anti-glare surface reduces reflections from windows, and the built-in 20 W speakers (10 W + 10 W) play sound without external speakers. For a larger hall, ask the SmartRooms Qatar team whether a bigger model in the EQ2 Series fits the room better.

Will the screen be readable in a bright reception area in West Bay?

Yes, the panel is rated at 500 cd/m² and has an anti-glare surface with 25% haze, which reduces reflections from windows and overhead lights. That helps content stay legible in a bright West Bay lobby. Position the screen away from direct sunlight where possible, and confirm the spot during the free site survey before mounting.

Can a Doha office use it as a huddle room display?

A 43-inch panel suits a huddle room where a few people share one laptop. Connect the laptop by USB-C, which carries video, data and charging of up to about 60 W over one cable. The built-in whiteboard function lets attendees annotate the screen and zoom with a mouse, which keeps short meetings moving.

Can it be installed in a Qatar summer without overheating?

The rated operating range is 0 to 40 °C with 20 to 80% humidity, non-condensing, up to 1400 m altitude. Qatar summer temperatures can exceed 45 °C, so place the display in an air-conditioned room, not on a sun-exposed terrace, outdoor canopy or unconditioned corridor. Confirm the room climate with the SmartRooms Qatar team before installation.

Can a school buy several units on a purchase order for a classroom refit?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and supplies, delivers and installs across all eight municipalities. When refitting several classrooms, send the quantity, room sizes and wall types with your request so the team can quote the units together after a site survey.

Can it run in portrait mode for vertical signage?

Yes. The display can be installed in landscape or portrait, and the tilt range is 0 to 20 degrees forward or backward in either orientation. Panasonic also describes a portrait zoom feature that splits content from image sources, though picture quality may degrade when the image is enlarged. Confirm mounting height and cable routing during the site survey.

How many HDMI inputs does it have and what does USB-C do?

The display has three HDMI inputs with HDCP 2.2 support, plus a PC input and a 3.5 mm audio input. The USB Type-C port carries 4K video, data and charging of up to about 60 W with Power Delivery, so one cable can power a laptop. USB Type-A ports pass control from a connected PC to cameras, speakers or microphones.

Can it play content from a USB stick without a PC?

Yes. Insert a USB memory stick holding saved content and playback starts automatically, with 4K compatibility and no PC or set-top box required. Content can also be switched over LAN or run across multiple displays. Some files will not play even in a supported format, so test your files before deployment and check the operation manual for restrictions.

Can the display be controlled over a network?

Yes. It can be controlled via LAN or RS-232C serial, and it is compatible with AMX and Crestron Connected. Crestron XiO Cloud is supported with main software Ver. 2.61 or later. SNMP versions 1 to 3 are also supported for network monitoring. Confirm your control system version with the SmartRooms Qatar team before ordering.

What is the SDM expansion slot used for?

The SDM-S and SDM-L slot takes Intel SDM function boards. Panasonic lists the receiver board for its PressIT wireless presentation system and optional 12G-SDI and DIGITAL LINK terminal boards. Third-party boards are sold separately, Panasonic cannot guarantee their operation, and the signal into the slot must be HDMI. Check compatibility with your chosen board before requesting a quote.

Does it run on Qatar's 240 V, 50 Hz supply?

The rated power input is AC 110 to 240 V at 50/60 Hz, so Qatar's 240 V, 50 Hz supply falls within that range. It consumes 225 W in use, about 0.3 W when powered off and about 0.5 W in standby. The plug type and any adapter are not stated in the product data, so the SmartRooms Qatar team will confirm the connection with your quotation.

What size, weight and mounting details should I plan for?

The panel measures 973 x 562 x 65 mm and weighs 11.7 kg, with a 13.9 mm bezel. It uses VESA 200 x 200 mm mounting holes with an M6 screw hole depth of 16 mm. Check that the wall or frame can carry this weight and that the bracket matches the hole pattern. The free site survey from SmartRooms Qatar covers these checks before installation.
