Panasonic TH-43SQ2H 43-inch 4K Professional Display

Name: Panasonic TH-43SQ2H 43-inch 4K Professional Display
Brand: Panasonic
SKU: panasonic-th-43sq2h
Availability: InStock

Overview

The Panasonic TH-43SQ2H is a 43-inch 4K display with a 3840 x 2160 panel, 700 cd/m² typical brightness and an anti-glare surface that stays readable near windows. It is rated for 24-hour operation, accepts HDMI, USB Type-C and LAN control, and includes a built-in 4K USB media player. It suits small meeting rooms, huddle spaces and compact retail signage across Qatar. Request a quote from SmartRooms Qatar.

A 43-inch 4K display sized for focused rooms

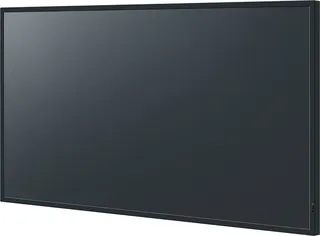

The Panasonic TH-43SQ2H is the smallest member of the SQ2H family, a professional display built for round-the-clock use. Its 3840 x 2160 panel carries roughly four times the pixels of a Full-HD screen, so spreadsheets, floor plans and small text stay sharp at close range. At 43 inches it suits a huddle space, a small meeting room or a compact retail window, where a larger panel would overwhelm the room.

Brightness and anti-glare treatment for lit rooms

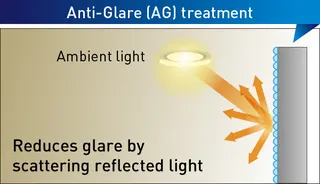

Sunlit offices and atriums can wash out a dim screen. This model has a typical brightness of 700 cd/m², a contrast ratio of 1200:1 and a 178 degree viewing angle both horizontally and vertically. Its anti-glare surface, rated at 25 percent haze, scatters light from windows and ceiling fittings, so the image remains readable where people actually sit. Check the path of the sun during working hours before fixing the panel beside a window.

Connections and control for everyday rooms

Three HDMI inputs with HDCP2.2 support for laptops, set-top boxes and media players
USB Type-C input with DP Alt Mode, supplying up to 60 W to a connected PC
Two USB Type-A ports for cameras, microphones and speakers, controllable from a PC connected over USB Type-C
LAN and RS-232C serial control, compatible with PJLink, AMX and Crestron systems
Intel SDM slot for an interface or computer board sold separately

Where it fits across Qatar

In a corporate office in Msheireb or West Bay, the display can sit in a four-person room where a team joins a call with colleagues abroad. In a private school in Al Wakrah, two 43-inch panels can serve a language lab or a staff room for sharing lesson plans. Retailers in The Pearl or a Lusail shopping arcade can loop promotions from a USB stick without a dedicated computer, since the built-in media player handles 4K content.

Planning the installation

The unit measures 973 x 562 x 65 mm without handles and weighs 11.5 kg. It uses a 200 x 200 mm VESA pattern with M6 fixings, and it tilts 20 degrees forward and backward. It can also be rotated to portrait for vertical menus. Plan a dedicated power point and a clean route for HDMI or USB-C cables. SmartRooms Qatar offers a free site survey before wall mounting, covering wall construction, sightlines and cable routes. The unit accepts 110 to 240 V at 50 or 60 Hz and draws 85 W in standard picture mode.

Planning a meeting room or signage project around this model? Request a quote from SmartRooms Qatar. We usually reply with a quotation within one working day and can supply against a purchase order (LPO) or a government tender.

Highlights

43-inch class with 3840 x 2160 4K resolution
700 cd/m² typical brightness with 25 percent haze anti-glare panel
Rated for 24-hour-per-day operation
Three HDMI inputs and USB Type-C with 60 W power delivery
Built-in 20 W (10 W + 10 W) speakers
Tilts 20 degrees forward and backward, rotates to portrait

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

27 specifications · Source: manufacturer · checked Oct 2026

Panel6

Panel size: 43-inch (1079.8 mm)
Pixels (H x V): 3840 x 2160
Brightness (typ.): 700 cd/m²
Contrast: 1200:1
Viewing angle [(T/B)/(L/R)]: 178°/178° (Typ.)
Panel surface treatment: Anti-glare treatment (Haze 25 %)

Terminals9

HDMI™ IN: HDMI™ x 3 (compatible with HDCP2.2)
PC IN: mini D-sub 15 pin
USB: USB Type A x 1 (DC 5V / Max. 1 A, USB 3.0 is supported), USB Type A x 1 (DC 5V / Max. 2 A, USB 2.0 is supported), USB Type C x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible)
Serial IN: D-sub 9 pin RS-232C Compatible
IR IN/OUT: Stereo mini jack (φ3.5 mm) x 1/x 1
LAN: RJ45 x 1 compatible with PJLink™ 10BASE-T/100BASE-TX
Slot: Intel ® SDM standard (SDM-S / SDM-L, 3.3 V / Max. 1.1 A, 12V / Max. 5.5 A)
Audio IN: Stereo mini jack (φ3.5 mm) x 1
Audio OUT: Stereo mini jack (φ3.5 mm) x 1

Installation Environment2

Operating time 1: 24 h/day
Tilting Angle: Yes / 20 degrees forward and backward with landscape/portrait setting

Audio1

Built-in speaker: 20 W [10 W + 10 W]

Electrical5

Power supply: AC 110-240 V 50 Hz/60 Hz, 2.4 A-1.2 A
Power consumption: 93 W (Shipping Condition)
On mode average power consumption 2: 85 W (Picture Mode: [Standard])
Power off condition: Approx. 0.3 W
Stand-by condition: Approx. 0.5 W

Mechanical4

Dimension (WxHxD) (Excluding handles): 973 x 562 x 65 mm (38.31" x 22.10" x 2.56")
Weight: 11.5 kg/25.29 lbs
Wall-hanging pitch: 200 x 200 mm (VESA compliant) M6
Regional Spec Sheets: Global: TH-43SQ2HW

Downloads

6 files from the manufacturer

PDF Datasheets TH-43SQ2H_Spec_Sheet_Global.pdf 1.1 MB PDF Manuals & guides sq2hw_eq2w_manual_en.pdf 8.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_ar.pdf 1.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_eng.pdf 2.2 MB PDF Brochures SQ2H_series.pdf 800 KB URL Drawings & CAD · Opens on manufacturer site #sq2h

Questions about TH-43SQ2H

Who is the Panasonic TH-43SQ2H designed for?

It suits small and mid-sized spaces where a 43-inch screen is the right size, such as huddle rooms, small meeting rooms and compact shop windows. The 3840 x 2160 panel shows detail at close range, and its 700 cd/m² typical brightness helps the picture stay visible in lit spaces. If your room needs a larger screen, the same SQ2H Series includes bigger sizes, and our team can compare them with you before you request a quote.

Will the screen stay readable beside a window in a Doha office?

Yes, under typical daytime conditions. The panel has 700 cd/m² typical brightness and an anti-glare surface with 25 percent haze, which diffuses sunlight and ceiling light. Its 178 degree viewing angle keeps the image clear from the side of the room. Even so, check where the sun falls during working hours, because west-facing windows can produce strong glare in the afternoon. A site visit helps confirm the best position.

Can it run 24 hours a day in a lobby or for signage?

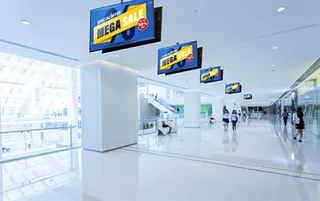

Yes. The TH-43SQ2H is rated for 24 hours a day of operation. The manufacturer recommends moving images for long display periods, because a still image left on screen for hours can leave image retention, which fades when moving content is shown. Build your playlist around video or animated slides for a clinic waiting area, office lobby or retail window, and keep motion on screen during opening hours.

Which video inputs and ports does it have?

It provides three HDMI inputs with HDCP2.2 support, a PC input on a mini D-sub 15-pin connector and a USB Type-C input with DP Alt Mode. It also has two USB Type-A ports, one USB 3.0 at up to 1 A and one USB 2.0 at up to 2 A, plus stereo audio input and output and IR in and out. Compare these connections with the devices you plan to connect before placing your order.

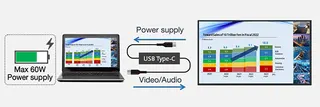

Can one USB-C cable connect a laptop and charge it?

Yes. The USB Type-C input supports DP Alt Mode and can supply up to 60 W to a connected PC. This suits a meeting room where a presenter plugs in once for video, audio and charging. When the USB-C connection powers the PC, the Intel SDM slot cannot be used, and the slot's maximum supply is 5 V at 1.5 A. USB 2.0 is supported on that port.

Can it be controlled from a room system or a central network?

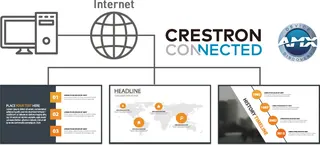

Yes. It can be controlled over LAN with PJLink or through RS-232C serial, and it is compatible with AMX, Crestron Connected and Crestron XiO Cloud. Crestron XiO Cloud requires main software version 2.61 or later. For several rooms, the free Multi Monitoring and Control software can monitor display status across an intranet. Ask our team to confirm the control system version before you approve a multi-room order.

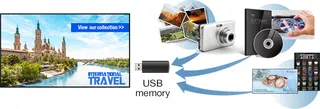

Can it play signage from a USB stick without a PC?

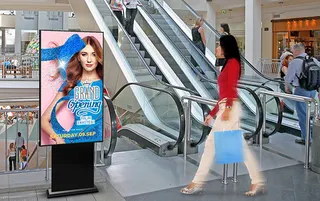

Yes. Insert a USB memory stick holding saved content and playback starts automatically, with 4K content supported and no PC or set-top box needed. Some files may not play even in a supported format, so test your files first and check the operation manual for restrictions. A retailer in The Pearl or Msheireb could loop promotions this way, and a USB extension cable helps where the port is hard to reach after mounting.

How should I plan wall mounting for this 43-inch panel?

The unit measures 973 x 562 x 65 mm without handles and weighs 11.5 kg, with 200 x 200 mm VESA holes using M6 fixings. Confirm the wall can carry this weight and that the chosen position allows the 20 degree tilt. SmartRooms Qatar offers a free site survey before installation, covering wall type, sightlines, cable routes and the location of the power point.

Can the panel be used in portrait orientation?

Yes. The panel can be rotated to portrait, and the 20 degree forward and backward tilt applies in both landscape and portrait settings. Portrait suits vertical menus, queue information or directory boards in a corridor, pharmacy or shop entrance. Tell our team the intended orientation when you request a quote so the mounting plan matches the layout of the space.

Does it run on Qatar's 240 V mains supply?

Yes. The power supply is rated for AC 110 to 240 V at 50 or 60 Hz, which covers Qatar's 240 V, 50 Hz supply. Power consumption is 93 W in shipping condition and 85 W in standard picture mode, with about 0.5 W in standby and 0.3 W when powered off. Plan a power point near the mounting position and confirm the socket type with our team before installation.

Does it have speakers for a small room?

Yes. It has 20 W built-in speakers arranged as 10 W plus 10 W, so a small room or training corner can play video with sound without external speakers. Lecture halls or large boardrooms with a lively acoustic may still need an external sound system. Share the room size and seating layout when you request a quote so we can advise on audio needs.

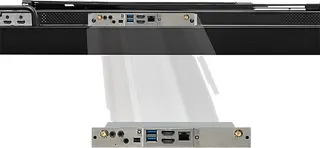

Can it take an Intel SDM computer module?

Yes. It has an Intel SDM slot that supports SDM-S and SDM-L modules, rated at 3.3 V with a maximum of 1.1 A and 12 V with a maximum of 5.5 A. Compatible SDM-specified function boards are sold separately, and Panasonic cannot guarantee the operation of third-party devices. The signal to the slot must come over HDMI, so confirm that your board works with this series before buying.
