TH-43SQ3

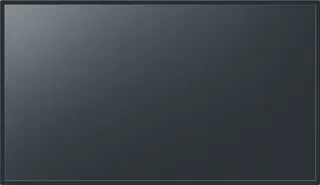

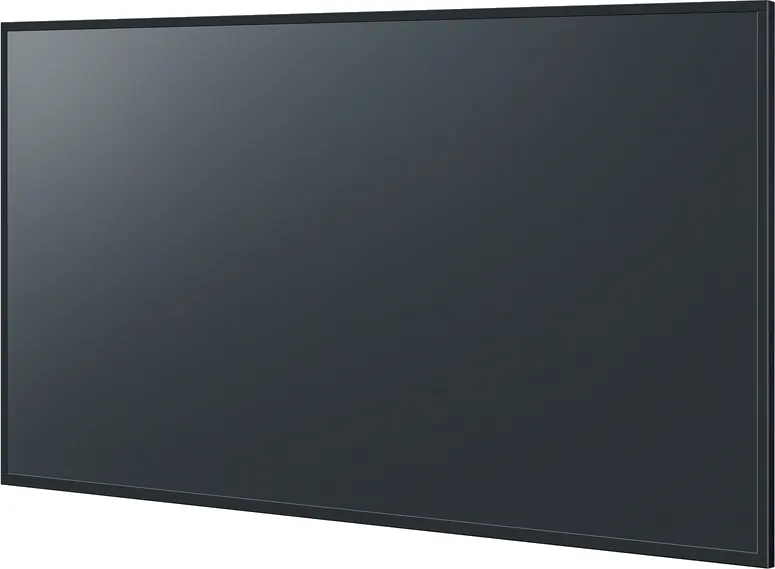

Panasonic TH-43SQ3 43-inch 4K Professional Display

Screen size: 43-inch class (42.51-inch /…
Resolution: 3840 x 2160
Brightness: 500 cd/m2
Contrast: 1200:1

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Panasonic TH-43SQ3 is a 43-inch class 4K professional display for meeting rooms, classrooms, retail areas and public spaces. Its 500 cd/m² panel uses an anti-glare surface to limit reflections from bright light, it runs 24 hours a day, and it plays 4K content from a USB memory stick. For Qatar offices and schools needing a screen for a huddle room or reception wall, request a quote.

A 43-inch 4K display for rooms that work hard

The Panasonic TH-43SQ3 belongs to the SQ3 Series of professional displays built for commercial use. At 43 inches (42.51-inch actual diagonal) it is the smallest screen in the series, sized for huddle rooms, small classrooms, reception walls and retail corners. The 3840 x 2160 resolution gives roughly four times the pixels of a Full-HD panel, so spreadsheets, floor plans and fine print stay sharp when viewed up close.

Panel facts that matter in bright Qatari rooms

500 cd/m² typical brightness keeps content readable in rooms with ambient light.

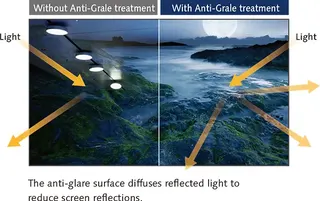

Anti-glare surface with 25% haze reduces reflections from bright light.
1200:1 typical contrast and 8.0 ms typical response time, G to G.
178° horizontal and vertical viewing angle keeps the image visible from seats off to the side.

Connectivity and control for mixed AV setups

Three HDMI inputs with HDCP 2.2 support sit alongside a PC input, a USB Type-A port and a stereo audio input, with two RCA audio outputs. Network control uses an RJ45 LAN port compatible with PJLink, and an RS-232C terminal allows serial control from a control system. HDMI-CEC passes basic power functions to compatible devices, although control of every device is not guaranteed, so test your own media player or codec before deploying several units.

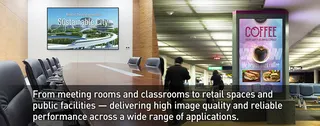

Where it fits across Qatar

A huddle room in a Doha office in Msheireb, where a laptop connects by HDMI for short calls with teams abroad.
A classroom in a private school in Al Wakrah, showing lesson material and playing timetable loops from a USB stick.

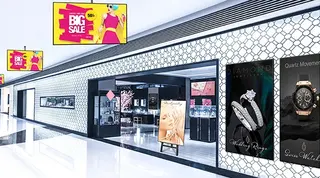

A shop front or hotel lobby in Lusail or The Pearl, running digital signage through the working day and into the evening.

Planning the installation

Measure the wall and decide the orientation first: landscape for presentations, portrait for menus and wayfinding. The panel tilts up to 20 degrees forward or backward and uses a 200 x 200 mm VESA pattern with M6 screws. At approximately 10.7 kg, the bracket must be rated for the load. Keep the room within the 0 to 40 °C operating range and check power points, since the power supply accepts AC 110-240 V at 50/60 Hz.

Request a quote from SmartRooms Qatar with your room type, quantity and mounting plan. We supply across all 8 municipalities of Qatar, can arrange professional installation, and offer a free site survey before any bracket is fixed to a wall.

Highlights

43-inch class 16:9 panel with 3840 x 2160 resolution
500 cd/m² typical brightness with 25% haze anti-glare surface
Three HDMI inputs with HDCP 2.2, PC input and RS-232C control
4K content playback from USB memory stick without a PC
Landscape or portrait mounting with 0 to 20 degree tilt
Rated for continuous operation 24 hours a day

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

39 specifications · Source: manufacturer · checked Oct 2026

Display Panel10

Screen Size: 43-inch class (42.51-inch / 1079.8 mm)
Brightness (typ.): 500 cd/m2
Aspect ratio: 16:9
Effective Display Area (W x H): 941.1 x 529.4 mm (37.05" x 20.84")
Resolution: 3840 x 2160
Contrast Ratio (typ.): 1200:1
Response Time (typ.): 8.0 ms（G to G）
Viewing Angle(H / V): 178°/178° (CR＞10)
Panel Surface Treatment: Anti-glare type
Haze: 25%

Connection Terminal7

HDMI™ IN: HDMITM Type A Connector x 3 (HDCP 2.2 supported)
PC IN: Mini D-sub 15-pin x 1 (DDC2B)
SERIAL IN: External control terminal D-sub 9-pin x 1 (Male), RS232C Compatible
AUDIO 1 IN (L / R): Stereo Mini Jack (φ3.5 mm) x 1
AUDIO OUT (L / R): RCA Pin Jack x 2
LAN: RJ45 x 1 compatible with PJLinkTM, 10BASE-T/100BASE-TX
USB TYPE A: USB Connector Type A x 1 (DC 5 V / 2 A, USB 2.0 is supported)

Audio1

Built in Speaker: 20 W [10 W+10 W]

Electrical7

Power Supply: AC 110 - 240 V 50 Hz / 60 Hz
Power Consumption: 93 W(Shipping Condition)
On Mode Average Power Consumption *1: 90 W
Power Off Condition: Approx. 0.3 W
Stand-by Condition: Approx. 0.5 W
Apparent power: 137 VA
Energy efficiency class for Europe: G

Mechanical9

Dimension(W): 973 mm (38.31")
Dimension(H): 562 mm (22.10")
Dimension(D): 65 mm (2.56")
Weight: Approx. 10.7 kg (23.6 lbs.)
Bezel Width(T): 13.9 mm (0.55")
Bezel Width(B): 13.9 mm (0.55")
Bezel Width(L): 13.9 mm (0.55")
Bezel Width(R): 13.9 mm (0.55")
Pitch for Wall-Hanging / Screw / Screw hole depth: VESA Compliant 200 x 200 mm (7.9" x 7.9") / M6 / 16 mm (0.63")

Installation3

Orientation *3: Landscape / Portrait
Tilting Angle: 0 - 20 degrees forward / backward with landscape / portrait setting
Operating Time *4: 24h /day

Environment1

Operating Environment(Temperature): 0°C to 40°C (32°F to 104°F) : for up to 0-1400 m (4593 ft) altitude0°C to 35°C (32°F to 95°F): for between 1400 m (4593 ft) and 2800 m (9186 ft) altitude

Environmental1

Operating Environment(Humidity) (No condensation): 20% to 80%

Downloads

12 files from the manufacturer

PDF Datasheets TH-43SQ3_Spec_Sheet_Global.pdf 497 KB PDF Datasheets th-43sq3w_spec_en.pdf 497 KB PDF Manuals & guides sq3w_eq3w_basic_en.pdf 4.3 MB PDF Manuals & guides sq3w_eq3w_manual_en.pdf 9.3 MB PDF Manuals & guides sq3w_eq3w_manual_en.pdf 9.3 MB PDF Drawings & CAD 43sq3+ty-st43pe9_cad_en.pdf 206 KB PDF Drawings & CAD th_43sq3_cad_en.pdf 380 KB URL Drawings & CAD · Opens on manufacturer site #sq3 ZIP Drawings & CAD · Opens on manufacturer site 43sq3+ty-st43pe9_cad_en.zip PNG Certificates & compliance TH-43SQ3W_EU Energy Label.png 41 KB PNG Certificates & compliance TH-43SQ3W_UK Energy Label.png 39 KB PDF Other documents SQ3_Command_List_en.pdf 120 KB

Questions about TH-43SQ3

What is the Panasonic TH-43SQ3 used for?

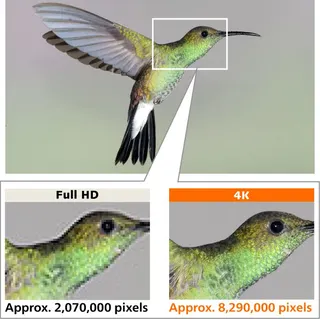

The TH-43SQ3 is a 43-inch class 4K display for professional and commercial use. It suits meeting rooms, classrooms, retail spaces and public areas where a wall screen must run every day. Its 3840 x 2160 panel shows about 8,290,000 pixels, roughly four times Full-HD, so it works for both detailed slides and digital signage loops.

How bright is the screen, and can it be read in a room with lots of daylight?

The panel has a typical brightness of 500 cd/m² and an anti-glare surface with 25% haze that reduces reflections from bright light. This helps in rooms with large windows, such as a majlis-style reception in Doha or an office facing the afternoon sun. The surface does not remove glare completely, so place the panel away from direct sunlight. SmartRooms Qatar can advise on placement when you request a quote.

Is the 43-inch size right for a huddle room or small classroom in Qatar?

Yes. It is the smallest size in the SQ3 range, which the manufacturer positions for small corners as well as conference rooms. In a private school in Al Rayyan fitting out a small classroom, or a meeting room for four to six people in West Bay, a 43-inch panel gives clear content at normal viewing distances. For a larger room, the bigger sizes in the series are the better choice.

Can it run 24 hours a day in a reception area or a mall shop?

The manufacturer rates the display for 24 hours a day operation and describes it for busy public spaces such as rail hubs, airports and shopping centres, as well as control rooms. A shop front in a Doha mall or a hotel lobby in The Pearl can run continuous signage loops. The manufacturer recommends showing moving images, because a still picture left on screen for a long time can leave image retention that fades when moving content plays.

Which inputs does it have for laptops, PCs and media players?

It has three HDMI inputs with HDCP 2.2 support, a PC input on a Mini D-sub 15-pin connector, a stereo mini jack audio input and a USB Type-A port rated DC 5 V / 2 A for USB 2.0 devices. Two RCA jacks provide audio output. The built-in speakers deliver 20 W (10 W + 10 W), so content with sound plays without external speakers.

Can it be controlled over a network or from a control system?

Yes. It has an RJ45 LAN port compatible with PJLink at 10BASE-T/100BASE-TX, and an RS-232C external control terminal on a 9-pin D-sub connector. Both allow external control from a building management or meeting room control system. Before ordering, check that your system supports PJLink or RS-232C commands, and SmartRooms Qatar can confirm the setup when responding to your request.

How does USB playback work, and what are its limits?

Insert a USB memory stick holding saved content and playback starts automatically, with no PC or set-top box required. The unit is 4K compatible. Still images and videos cannot be mixed on the same stick, and some files will not play even in a supported format. The operation manual lists the restrictions. For automatic playback, numbered files must be stored in advance in a folder named AUTO_PLAYBACK.

Does HDMI-CEC let the display remote control my media player?

HDMI-CEC lets compatible devices connected by HDMI cable have basic functions, such as power on and off, controlled from the display's remote control. The manufacturer does not guarantee control of all devices, so test your specific media player or video conferencing codec before rolling out several units in the same building.

What operating temperature does it need during a Qatari summer?

The rated operating range is 0 °C to 40 °C with 20% to 80% humidity, non-condensing, up to 1400 m altitude. Temperatures in Qatar can exceed 45 °C in summer, so install the display in an air-conditioned room that keeps conditions within this range. Do not mount it in an open corridor, an unconditioned lobby or a spot exposed to direct sun. Confirm the environment with SmartRooms Qatar when you request a quote.

How do I mount it, and can it be used in portrait orientation?

It supports landscape and portrait orientation, with forward and backward tilt from 0 to 20 degrees. Wall mounting uses a VESA 200 x 200 mm pattern with M6 screws and a 16 mm screw hole depth. The panel weighs approximately 10.7 kg and is 65 mm deep. Before mounting in a boardroom or lobby, SmartRooms Qatar offers a free site survey to check the wall, bracket and cable route.

Will it run on Qatar's mains power?

The power supply is rated AC 110-240 V at 50/60 Hz, which covers the 240 V, 50 Hz supply used in Qatar. Power consumption is 90 W average in on mode, approximately 0.5 W in standby and approximately 0.3 W when powered off, with an apparent power of 137 VA. These figures help when planning circuits and power points for a school or office fitting out several units.

Can we buy several units for a school or government entity on a purchase order?

Yes. SmartRooms Qatar delivers to all 8 municipalities of Qatar and accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Send the quantity, a room list and the mounting type, and the team usually prepares a quotation within one working day. Products are covered by the manufacturer's warranty.
