Panasonic TH-50SQ2H 50-inch 4K Professional Display

Name: Panasonic TH-50SQ2H 50-inch 4K Professional Display
Brand: Panasonic
SKU: panasonic-th-50sq2h
Availability: InStock

Overview

The Panasonic TH-50SQ2H is a 50-inch 4K display built for meeting rooms, classrooms and in-store signage. Its 700 cd/m² panel and anti-glare surface keep content readable near windows and under bright lighting, while three HDMI inputs, a USB-C port and built-in 20 W speakers simplify connection. Qatari schools, offices and retailers with compact rooms or corridors can request a quote from SmartRooms Qatar.

What the TH-50SQ2H is built to do

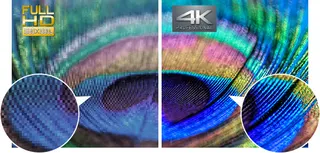

The TH-50SQ2H is a 50-inch (1257.3 mm) panel in Panasonic's SQ2H range, designed for meeting rooms, stores and public signage. It runs 24 hours a day and offers a 3840 x 2160 resolution, which packs roughly 8.3 million pixels into the screen, about four times what a Full HD display offers. It suits spaces where the screen is viewed up close, such as a huddle room or a classroom with a few rows of seats.

Brightness and glare control for well-lit rooms

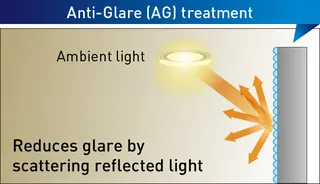

The panel is rated at 700 cd/m² typical brightness with a 4000:1 contrast ratio and a 178° viewing angle horizontally and vertically. Its anti-glare surface (haze 25%) diffuses light from windows and ceiling fittings, so content stays legible when the room is bright. This matters in Doha, where a lobby or office may have large glazed walls facing strong sunlight.

Connections and control for managed rooms

Video inputs: three HDMI inputs with HDCP 2.2, a mini D-sub 15-pin PC input and a USB Type-C input.

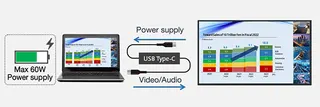

USB-C: supports DP Alt Mode and up to 60 W Power Delivery, so a compatible laptop can charge while it displays.
Control: RJ45 LAN with PJLink, RS-232C serial and IR in/out, with compatibility noted for AMX and Crestron systems when main software is version 2.61 or later.

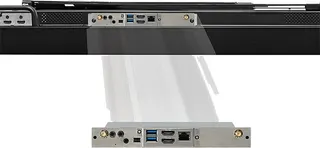

Slot: an Intel SDM slot (SDM-S and SDM-L) for compatible interface or PC boards, which are sold separately.

Where it fits in Qatar

A private school in Al Wakrah fitting out new classrooms can wall-mount the panel for lessons and announcements, using its built-in speakers instead of external units. A corporate office in West Bay holding meetings with teams abroad can connect a laptop through USB-C for both video and charging. A clinic or retail outlet in Msheireb or The Pearl can loop 4K content from a USB memory stick through the built-in media player, without a PC.

What to plan before ordering

At 15.5 kg and 1129 x 649 x 66 mm, the panel mounts on a 400 x 400 mm VESA pattern with M6 holes, so check that your wall bracket matches. It tilts 20 degrees forward and backward and can be rotated for vertical content. Power draw is 125 W in shipping condition and 114 W in standard picture mode, with an AC 110-240 V, 50/60 Hz supply. The source data does not state an operating temperature range, so confirm the installation environment with the SmartRooms Qatar team before placing the panel near glass or outdoors. SmartRooms Qatar offers free site surveys, which are useful before fixing a panel to a wall.

Send the room size, the mounting wall and the number of units, and SmartRooms Qatar will return a quotation, usually within one working day. Request a quote for the Panasonic TH-50SQ2H today.

Highlights

50-inch (1257.3 mm) 3840 x 2160 4K panel
700 cd/m² typical brightness with anti-glare surface
Three HDMI inputs and a USB Type-C port with 60 W Power Delivery
Built-in 20 W speakers (10 W + 10 W)
24 h/day operation with 20-degree forward and backward tilt
VESA 400 x 400 mm mounting, 15.5 kg weight

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

27 specifications · Source: manufacturer · checked Oct 2026

Panel6

Panel size: 50-inch (1257.3 mm)
Pixels (H x V): 3840 x 2160
Brightness (typ.): 700 cd/m²
Contrast: 4000:1
Viewing angle [(T/B)/(L/R)]: 178°/178° (Typ.)
Panel surface treatment: Anti-glare treatment (Haze 25 %)

Terminals9

HDMI™ IN: HDMI™ x 3 (compatible with HDCP2.2)
PC IN: mini D-sub 15 pin
USB: USB Type A x 1 (DC 5V / Max. 1 A, USB 3.0 is supported), USB Type A x 1 (DC 5V / Max. 2 A, USB 2.0 is supported), USB Type C x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible)
Serial IN: D-sub 9 pin RS-232C Compatible
IR IN/OUT: Stereo mini jack (φ3.5 mm) x 1/x 1
LAN: RJ45 x 1 compatible with PJLink™ 10BASE-T/100BASE-TX
Slot: Intel ® SDM standard (SDM-S / SDM-L, 3.3 V / Max. 1.1 A, 12V / Max. 5.5 A)
Audio IN: Stereo mini jack (φ3.5 mm) x 1
Audio OUT: Stereo mini jack (φ3.5 mm) x 1

Installation Environment2

Operating time 1: 24 h/day
Tilting Angle: Yes / 20 degrees forward and backward with landscape/portrait setting

Audio1

Built-in speaker: 20 W [10 W + 10 W]

Electrical5

Power supply: AC 110-240 V 50 Hz/60 Hz, 2.8 A-1.4 A
Power consumption: 125 W (Shipping Condition)
On mode average power consumption 2: 114 W (Picture Mode: [Standard])
Power off condition: Approx. 0.3 W
Stand-by condition: Approx. 0.5 W

Mechanical4

Dimension (WxHxD) (Excluding handles): 1129 x 649 x 66 mm (44.43" x 25.56" x 2.60")
Weight: 15.5 kg/34.02 lbs
Wall-hanging pitch: 400 x 400 mm (VESA compliant) M6
Regional Spec Sheets: Global: TH-50SQ2HW

Downloads

6 files from the manufacturer

PDF Datasheets TH-50SQ2H_Spec_Sheet_Global.pdf 1.6 MB PDF Manuals & guides sq2hw_eq2w_manual_en.pdf 8.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_ar.pdf 1.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_eng.pdf 2.2 MB PDF Brochures SQ2H_series.pdf 800 KB URL Drawings & CAD · Opens on manufacturer site #sq2h

Questions about TH-50SQ2H

Who is the Panasonic TH-50SQ2H designed for?

The TH-50SQ2H suits rooms where a 50-inch screen is the right size: huddle rooms, small meeting rooms, classrooms and compact retail or reception areas. Panasonic positions the SQ2H range for meeting rooms, stores and public signage, and this model's 1257.3 mm panel with 3840 x 2160 resolution gives sharp text at close viewing distances. For a larger lecture hall or boardroom, a bigger size in the same series would be a better match. Ask SmartRooms Qatar to confirm viewing distance before you order.

Can it run 24 hours a day for signage in a mall or airport?

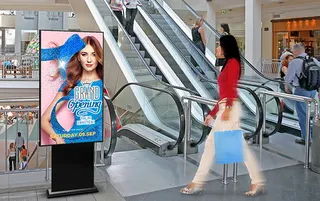

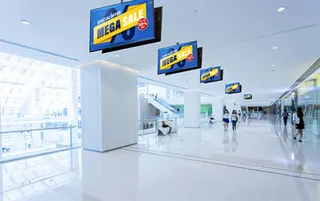

Yes, the source data lists 24 h/day operation, and the series is described for continuous use in public spaces such as train stations, airports and shopping malls. Panasonic recommends moving images for long display periods, because still images left on screen for extended periods can leave image retention. In a Doha mall or lobby, a looping video playlist is the safer choice for a display running all day. Request a quote and we will advise on playlist planning.

How bright is the screen next to a window in a Doha office?

The panel is rated at 700 cd/m² typical brightness and has an anti-glare surface with 25% haze. Panasonic says the diffusing surface suppresses reflections from sunlight and ceiling lights, so a display placed beside a window or in a well-lit reception stays readable. Direct sun on the screen still limits visibility, so position the panel away from direct light where possible. A free site survey from SmartRooms Qatar helps check glare before mounting.

What inputs does the TH-50SQ2H have for a laptop and a PC?

It has three HDMI inputs with HDCP 2.2 support, a mini D-sub 15-pin PC input and a USB Type-C input that supports DP Alt Mode and up to 60 W Power Delivery. A compatible laptop can show its screen over USB-C and charge at the same time. Two USB Type-A ports, one at 5 V/1 A with USB 3.0 and one at 5 V/2 A with USB 2.0, handle USB devices and media sticks.

Can it be controlled from a building management or AV control system?

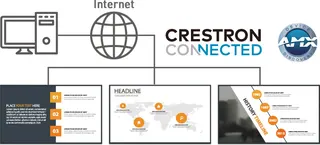

Yes. The display can be controlled through its RJ45 LAN port with PJLink support or through RS-232C serial, and Panasonic lists compatibility with AMX, Crestron Connected and Crestron XiO Cloud, provided the main software is version 2.61 or later. IR in and out jacks are also fitted. In a lecture room in Education City, this lets the AV team switch power and inputs from a central control panel. Confirm the control protocol and software version with SmartRooms Qatar before ordering.

Is a 50-inch panel suitable for a classroom in Al Wakrah with a wall-mounted screen?

Yes, a 50-inch panel suits many classrooms. It measures 1129 x 649 x 66 mm and weighs 15.5 kg, and it mounts on a 400 x 400 mm VESA pattern with M6 holes. The built-in 20 W speakers can carry lesson audio without external speakers, and 4K resolution keeps text readable from the front rows. Plan for two people to lift the panel safely, and ask SmartRooms Qatar for a free site survey covering the wall, bracket and cable route.

Can it be mounted in portrait or tilted for signage?

Yes. The source data says the panel can be rotated to support vertical content and tilted 20 degrees forward and backward in landscape or portrait setting. Panasonic also describes forward inclination up to 20 degrees for mounting in high places. In a pharmacy or shop in Msheireb, portrait mounting suits service lists and queue information, while the tilt improves viewing when the display sits above eye level. Ask for a site survey to measure the mounting height before fixing the bracket.

How does the built-in USB media player work without a PC?

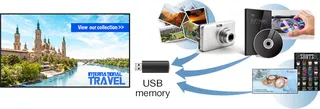

Insert a USB memory stick holding supported 4K content and playback starts automatically, without a PC or set-top box. Panasonic notes that some files may not play even when the format is supported, so check the operation manual for restrictions. Content can also be switched over LAN or multiple displays operated with the free Multi Monitoring and Control Software. If the USB port is hard to reach after installation, a commercially available extension cable can help. Test your file on this model before ordering several units.

What power does it need and how much does it use?

The power supply is rated at AC 110-240 V, 50/60 Hz, which covers Qatar's 240 V mains. Power consumption is 125 W in shipping condition and 114 W in standard picture mode, with about 0.5 W in standby and 0.3 W when powered off. A display running 24 hours in a school or office should sit on a circuit that can take its load, and SmartRooms Qatar can advise on this while the quotation is prepared.

Can a school or government office order several units through SmartRooms Qatar?

Yes. SmartRooms Qatar supplies organisations across Qatar, accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. A school fitting out several classrooms can send the number of units, room sizes and mounting walls, and the team returns a quotation, usually within one working day. Products are covered by the manufacturer's warranty.

Can one PC send content to several displays at once?

Yes. The source data notes compatibility with Screen Transfer Ver. 2.3, which shows a PC screen on up to 64 displays over wired LAN. A school leader could send an announcement from one PC to classrooms across several blocks, and a ministry office could use the priority distribution function to push an emergency message. Check software versions and the LAN layout during the quotation.
