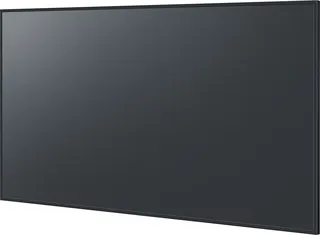

Panasonic TH-65EQ2 65-inch 4K Professional Display

Name: Panasonic TH-65EQ2 65-inch 4K Professional Display
Brand: Panasonic
SKU: panasonic-th-65eq2
Availability: InStock

Overview

The Panasonic TH-65EQ2 is a 65-inch 4K professional display from the EQ2 Series, built for digital signage and meeting rooms. It offers 500 cd/m² brightness and an anti-glare panel for brightly lit reception areas and classrooms, plus three HDMI inputs, USB Type-C with power delivery and a built-in USB media player. It suits Doha offices, schools and retail spaces that need a dependable screen for daily use.

What the Panasonic TH-65EQ2 is designed for

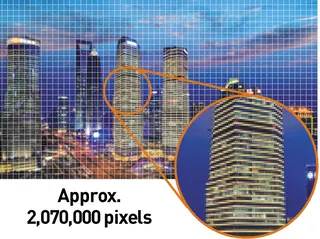

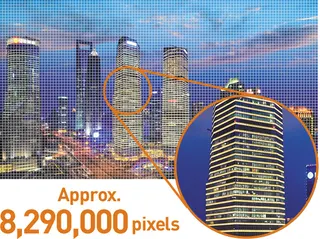

The TH-65EQ2 is a 65-inch class professional display in Panasonic's EQ2 Series, a range of 4K screens aimed at digital signage and meeting spaces. Its 3840 x 2160 panel carries about four times the pixels of a Full-HD screen, so menus, floor plans and fine text stay sharp when viewed up close. The 65-inch size sits between a huddle room display and a large boardroom screen, which makes it practical for classrooms, training rooms and reception areas.

Brightness and glare control in busy rooms

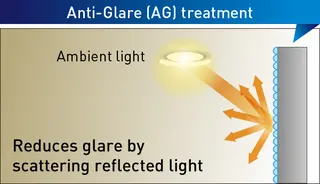

Rated at 500 cd/m² with a 1200:1 contrast ratio, the panel is built to stay readable in rooms with daylight or strong overhead lighting. Its anti-glare surface, specified at a haze of 25 percent, reduces reflections from windows and ceiling lights, which matters in classrooms and lobbies where people view the screen from different angles. The listed viewing angle is 178 degrees horizontally and vertically, and the 8 ms G-to-G response time suits moving content.

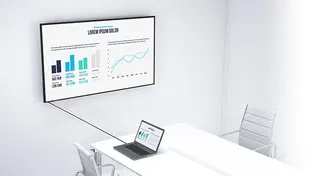

Connectivity for mixed sources and meeting rooms

Three HDMI inputs with HDCP2.2 support for laptops and media players
USB Type-C port carrying video and data, with power delivery up to about 60 W
USB Type-A port for a camera, speakerphone or microphone fixed in the room
RJ45 LAN port supporting PJLink, plus RS-232C serial control
Built-in whiteboard annotation operated with a mouse
Built-in 20 W speakers for content with sound

The built-in USB media player plays 4K content from a memory stick without a PC or set-top box, which suits a school that refreshes its notice loop each week. Free Content Management Software on a PC can schedule playlists and power on and off times, and playlists can be synced to several displays over USB or LAN. The source lists compatibility with AMX and Crestron control systems when the main software is version 2.61 or later.

Planning the installation

At 29.7 kg, with a 1463 x 838 x 94 mm footprint including handles, the TH-65EQ2 needs a wall that can carry its weight. It uses a VESA 400 x 400 mm mounting pattern with M8 holes 20 mm deep, and it can be mounted in landscape or portrait with a forward or backward tilt of up to 20 degrees. Book a site survey before drilling, particularly for a partition wall in a new fit-out in Lusail or Msheireb. The unit draws 340 W in operation and about 0.5 W on standby.

Where it fits in Qatar

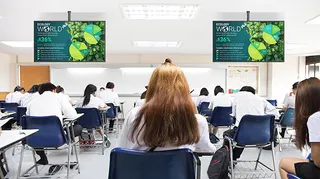

In a private school in Al Wakrah fitting out new classrooms, the panel can sit portrait-mounted in a corridor to show timetables and announcements, or landscape-mounted inside a classroom as a teaching display fed by a laptop over HDMI. A hotel lobby in West Bay could use several units in portrait to build a taller wayfinding display. The manufacturer states that three units stacked vertically create a 112-inch equivalent, though picture quality may degrade when the image is enlarged this way. The listed operating range is 0 to 40 degrees Celsius, and Doha summer temperatures can exceed 45 degrees, so keep the display in a conditioned space and confirm the location with the SmartRooms Qatar team.

Next steps

Send the SmartRooms Qatar team your room size, wall type, number of units and the sources you need to connect, and we will prepare a quotation, usually within one working day. Organisations ordering several units can raise a purchase order or LPO, and government buyers can work through Monaqasat tenders. Request a quote for the Panasonic TH-65EQ2 and we will confirm the details and next steps with you.

Highlights

65-inch class 4K panel at 3840 x 2160 resolution
500 cd/m² brightness with 25 percent haze anti-glare surface
Landscape or portrait installation with 0 to 20 degree tilt
Three HDMI inputs and USB Type-C with up to about 60 W
Built-in USB media player and 20 W speakers
Rated for 18 hours of operation per day

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

30 specifications · Source: manufacturer · checked Oct 2026

Display Panel9

Screen Size: 65-inch (64.5" / 1638.9 mm)
Aspect Ratio: 16:9
Effective Display Area (W x H): 1428.4 x 803.5 mm (56.23" x 31.63")
Resolution (H x V): 3840 × 2160
Brightness (Typ): 500 cd/m²
Contrast Ratio: 1200:1
Response Time (G to G): 8 ms (G to G)
Viewing Angle (Horizontal/Vertical): 178°/178° (CR>10)
Panel Surface Treatment: Anti-glare treatment (Haze 25 %)

Terminals7

HDMI In: TYPE A Connector x 3 (HDCP2.2 supported)
PC In/Audio In (L/R): Mini D-sub 15-pin x 1 (DDC2B)/Stereo Mini Jack (Φ3.5mm) x 1
Serial: D-sub 9-pin x 1, RS-232C Compatible
Audio Out: Stereo Mini Jack (Φ3.5mm) x 1
LAN: RJ45 x 1 compatible with PJLink™ RJ45 10BASE-T/100BASE-TX
USB: Type A: DC 5 V/1 A, USB 3.0 is supported, Type A: DC 5 V/2 A, USB 2.0 is supported, Type C: max ~60W (Power Delivery compatible), USB2.0 is supported, DisplayPort Alternate mode compatible

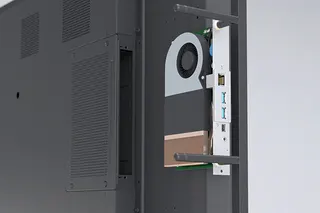

SLOT: SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A

Audio1

Built-in Speaker: 20W [10W + 10W]

Electrical4

Power Requirements: AC 110 - 240 V 50 Hz / 60 Hz
Power Consumption: 340 W
Power off condition: Approx. 0.3 W
Stand-by Conditions: Approx. 0.5 W

Mechanical4

Dimensions (W x H x D) Including handles: 1463 x 838 x 94 mm (57.58" x 32.97" x 3.68")
Weight: 29.7 kg (65.5 lbs.)
Bezel Width: 14.9 mm (0.59") (T/R/L/B)
Wall-hanging Pitch: VESA Compliant 400 x 400 mm (15.8" x 15.8"), M8 Screw hole depth 20 mm (0.8")

Installation Requirement 12

Orientation: Landscape/Portrait
Tilting Angle: 0 - 20 degrees forward/backward with landscape/portrait setting

Environment3

Operating Time 2: 18 h/day
Operating environment: Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude. Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft)
Regional Spec Sheets: Americas, Europe, Asia, Oceania, Middle East, Africa: TH-65EQ2W

Downloads

6 files from the manufacturer

PDF Datasheets TH-65EQ2_Spec_Sheet_Americas, Europe, Asia, Oceania, Middle East, Africa.pdf 2.0 MB PDF Manuals & guides sq2hw_eq2w_manual_en.pdf 8.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_ar.pdf 1.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_eng.pdf 2.2 MB PDF Brochures EQ2_series.pdf 689 KB URL Drawings & CAD · Opens on manufacturer site #eq2

Questions about TH-65EQ2

Who is the Panasonic TH-65EQ2 designed for?

It suits organisations that need a 65-inch 4K screen for digital signage or a mid-sized meeting room, such as a classroom at a school in Education City or a training room in the Industrial Area. The 16:9 panel with 3840 x 2160 resolution shows fine detail for menus, floor plans and presentations, and the 65-inch size suits rooms where a 75 or 86-inch screen would be too large.

How well does the screen cope with bright rooms?

The panel is rated at 500 cd/m² brightness with a 1200:1 contrast ratio and an anti-glare surface at haze 25 percent, which reduces reflections from windows and ceiling lights. This suits a reception area in West Bay with daylight, or an open classroom where students sit at different angles. The listed viewing angle is 178 degrees both horizontally and vertically.

Can the TH-65EQ2 be mounted in portrait orientation?

Yes. The display can be installed in landscape or portrait, with a forward or backward tilt of 0 to 20 degrees in either orientation. Portrait mounting suits corridors, wayfinding boards and queue information at a narrow entrance. Check the wall position and cable route on site first, because the unit weighs 29.7 kg and the wall must be able to carry it.

Which inputs can I connect laptops, cameras and media players to?

The display has three HDMI inputs with HDCP2.2 support, a PC input through a Mini D-sub 15-pin connector with a stereo mini jack for audio, and a USB Type-C port that carries video and data. A USB Type-A port is also provided. Connect a media player to HDMI, and connect a laptop to USB Type-C to control USB devices attached to the display.

Can it play signage content without a PC?

Yes. The built-in USB media player starts playing 4K content automatically when a USB memory stick is inserted, with no PC or set-top box needed. Some files may not play even if their format is supported, so check the operation manual. Free Content Management Software on a PC can schedule playlists and power on and off times, and sync them across several displays.

Does it work with video conferencing equipment?

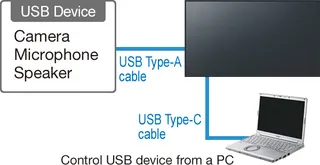

It supports HDMI-CEC, so basic functions such as power on and off can be controlled from the display's remote. USB pass-through lets a PC connected to the USB Type-C port control cameras, speakers and microphones fixed in a meeting room. The source also lists connection to Cisco devices with firmware 2.42 or later. Total USB cable length should not exceed 4 m.

How is it controlled over a network?

The RJ45 LAN port supports PJLink over 10BASE-T and 100BASE-TX networks, and the display can also be controlled through RS-232C serial. The source lists compatibility with AMX, Crestron Connected and Crestron XiO Cloud when the main software is version 2.61 or later. SNMP versions 1 to 3 are supported for network monitoring, and a screen monitor function lets you view the output in a web browser.

What wall mount and space do I need?

The unit measures 1463 x 838 x 94 mm including handles and weighs 29.7 kg. It uses a VESA 400 x 400 mm pattern with M8 holes 20 mm deep, and the bezel is 14.9 mm on all four sides. SmartRooms Qatar offers a free site survey to check wall load, clearance and cable routes before supply, which is useful for a partition wall in a new fit-out in Lusail.

What power does it need in Qatar?

The source lists an AC supply range of 110 to 240 V at 50 or 60 Hz, which covers Qatar's 240 V, 50 Hz mains. Power consumption is 340 W in operation, about 0.5 W on standby and about 0.3 W when powered off. Plan a dedicated socket for each display and check the cable routing during installation.

Can it run in Doha's summer heat?

The listed operating range is 0 to 40 °C, with 20 to 80 percent humidity without condensation, up to 1400 m altitude. Doha summer temperatures can exceed 45 °C, so the display should sit in an air-conditioned room, not an outdoor or unventilated space. Ask the SmartRooms Qatar team to confirm the location before quoting, particularly for a window-facing lobby.

Is the 65-inch size right compared with other EQ2 models?

The EQ2 Series is offered from 43 to 86 inches, and the 65-inch model sits in the middle of that range. It suits classrooms, training rooms and medium meeting rooms where viewers sit at a comfortable distance. Choose a larger size for a lecture hall and a smaller one for a huddle room, and compare room depth and viewing distance before deciding.

Can I order through an LPO or a government tender?

Yes. SmartRooms Qatar supplies on quotation and accepts purchase orders (LPOs) and government tenders, including Monaqasat. Payment is by bank transfer, cheque or purchase order. A school ordering several TH-65EQ2 units for its classrooms can issue one LPO covering all of them, and quotations are usually provided within one working day. Products are covered by the manufacturer's warranty.
