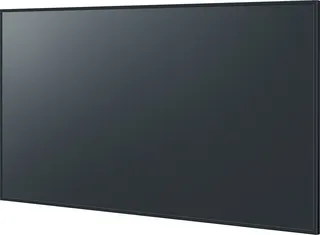

Panasonic TH-65SQ2H 65-inch 4K Professional Display

Name: Panasonic TH-65SQ2H 65-inch 4K Professional Display
Brand: Panasonic
SKU: panasonic-th-65sq2h
Availability: InStock

Overview

The Panasonic TH-65SQ2H is a 65-inch 4K display with a 700 cd/m² anti-glare panel, built for rooms with windows and bright lighting. It has three HDMI inputs, a USB-C port that can power a connected PC, built-in 20 W speakers and a slot for Intel SDM modules. Suited to classrooms, meeting rooms and in-store signage across Qatar. Request a quote.

What the TH-65SQ2H is built for

The TH-65SQ2H is the 65-inch model in Panasonic's SQ2H range, which runs from 43 to 98 inches. The panel offers 3840 x 2160 pixels, the 4K standard that gives about four times the detail of a Full-HD screen. At 65 inches it suits a classroom, a huddle room, a reception wall or an in-store display where people read content from several metres away.

Brightness and glare control for rooms with daylight

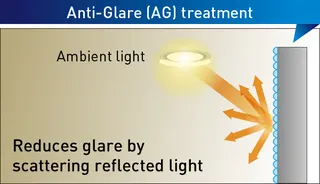

The panel has a typical brightness of 700 cd/m², a contrast ratio of 1200:1 and a viewing angle of 178 degrees both horizontally and vertically. Its anti-glare surface, with a haze rating of 25 percent, reduces reflections from windows and ceiling lights. That matters in a room where blinds cannot always be closed, such as a classroom overlooking a courtyard or a lobby with large glazing.

Connections for teaching, meetings and signage

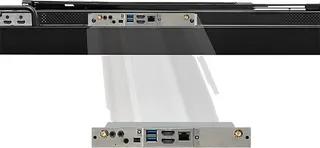

The display has three HDMI inputs with HDCP 2.2, a mini D-sub 15-pin PC input and two USB Type-A ports. Its USB Type-C port supports DP Alt Mode and can supply up to 60 W to a connected computer. Control is possible through an RJ45 LAN port compatible with PJLink, an RS-232C serial port and IR in and out, and stereo audio in and out is included. The Intel SDM slot takes a compatible interface or PC module. Panasonic notes that it cannot guarantee third-party modules, and that the slot cannot be used while the USB Type-C port powers a computer at 60 W.

Where it fits in Qatar

Three situations suit this model well:

A primary school in Al Wakrah fitting out classrooms, where teachers show lessons from a laptop or play timetable content from a USB stick.
A boardroom in Msheireb where Arabic and English slides share one screen while the team connects with colleagues abroad through a video conferencing system fed from an HDMI input.
A hotel lobby in The Pearl running looping information displays, with 4K playback from USB and schedules built on a PC.

What to plan before you order

The panel weighs 28.2 kg and measures 1463 x 838 x 69 mm excluding handles. It mounts on a 400 x 400 mm VESA pattern with M8 fixings, and it can be tilted up to 20 degrees forward and backward in landscape or portrait. Average consumption is 158 W in standard picture mode, 175 W in shipping condition and about 0.5 W in standby. The power input is 110 to 240 V at 50/60 Hz, which covers Qatar's 240 V 50 Hz supply.

Because this model is heavy and usually wall mounted, SmartRooms Qatar offers a free site survey to check the wall, bracket and cable route before installation. The source data does not give an operating temperature range, so confirm the environment with our team before placing the display in a non-air-conditioned or outdoor space, where summer temperatures above 45°C and dust are common.

Schools and government bodies can order through a purchase order or tender, and quotations are usually issued within one working day. Request a quote for the TH-65SQ2H and we will confirm the mounting, cabling and estimated lead time with you.

Highlights

65-inch 4K panel with 3840 x 2160 resolution
700 cd/m² typical brightness with anti-glare surface (haze 25%)
Three HDMI inputs and USB Type-C with 60 W power delivery
Built-in 20 W (10 W + 10 W) speakers
Intel SDM slot and 4K-compatible USB media player
Rated for 24-hour daily operation

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

28 specifications · Source: manufacturer · checked Oct 2026

Panel6

Panel size: 65-inch (1638.9 mm)
Pixels (H x V): 3840 x 2160
Brightness (typ.): 700 cd/m²
Contrast: 1200:1
Viewing angle [(T/B)/(L/R)]: 178°/178° (Typ.)
Panel surface treatment: Anti-glare treatment (Haze 25 %)

Terminals9

HDMI™ IN: HDMI™ x 3 (compatible with HDCP2.2)
PC IN: mini D-sub 15 pin
USB: USB Type A x 1 (DC 5V / Max. 1 A, USB 3.0 is supported), USB Type A x 1 (DC 5V / Max. 2 A, USB 2.0 is supported), USB Type C x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible)
Serial IN: D-sub 9 pin RS-232C Compatible
IR IN/OUT: Stereo mini jack (φ3.5 mm) x 1/x 1
LAN: RJ45 x 1 compatible with PJLink™ 10BASE-T/100BASE-TX
Slot: Intel ® SDM standard (SDM-S / SDM-L, 3.3 V / Max. 1.1 A, 12V / Max. 5.5 A)
Audio IN: Stereo mini jack (φ3.5 mm) x 1
Audio OUT: Stereo mini jack (φ3.5 mm) x 1

Installation Environment2

Operating time: 24 h/day
Tilting Angle: Yes / 20 degrees forward and backward with landscape/portrait setting

Audio1

Built-in speaker: 20 W [10 W + 10 W]

Electrical5

Power supply: AC 110-240 V 50 Hz/60 Hz, 3.6 A-1.8 A
Power consumption: 175 W (Shipping Condition)
On mode average power consumption 2: 158 W (Picture Mode: [Standard])
Power off condition: Approx. 0.3 W
Stand-by condition: Approx. 0.5 W

Mechanical5

Dimension (WxHxD) (Excluding handles): 1463 x 838 x 69 mm (57.58" x 32.97" x 2.72")
Dimension (WxHxD) (Including handles): 1463 x 838 x 94 mm (57.58" x 32.97" x 3.68")
Weight: 28.2 kg/62.17 lbs
Wall-hanging pitch: 400 x 400 mm (VESA compliant) M8
Regional Spec Sheets: Global: TH-65SQ2HW

Downloads

6 files from the manufacturer

PDF Datasheets TH-65SQ2H_Spec_Sheet_Global.pdf 2.0 MB PDF Manuals & guides sq2hw_eq2w_manual_en.pdf 8.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_ar.pdf 1.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_eng.pdf 2.2 MB PDF Brochures SQ2H_series.pdf 800 KB URL Drawings & CAD · Opens on manufacturer site #sq2h

Questions about TH-65SQ2H

What is the Panasonic TH-65SQ2H best used for?

It suits medium-sized rooms that need one large, clearly readable screen, such as a classroom at a private school in Doha or a meeting room in a government building in Msheireb. With a 65-inch 3840 x 2160 panel and 700 cd/m² typical brightness, it works for teaching, meetings and information displays. The panel is rated for 24-hour daily operation, and Panasonic recommends moving content when it runs for long periods.

How bright is the screen, and will it work near windows?

The typical brightness is 700 cd/m², and the anti-glare surface has a haze rating of 25 percent. The source data notes that the display can be used even next to a window in a classroom or conference room. Direct sunlight on the screen will still reduce contrast, so position the panel away from the strongest light where possible, for example in a classroom facing Education City's open courtyards.

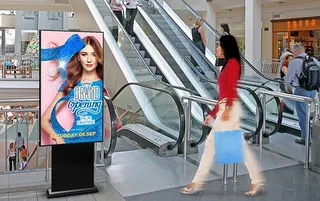

Can the display be mounted in portrait orientation for signage?

Yes. The display can be rotated into portrait orientation and tilted up to 20 degrees forward and backward. Panasonic states that three TH-65SQ2H models placed vertically create a display equivalent to 112 inches, and the content can be split and enlarged without a special processor. Image quality may degrade when the picture is enlarged, so test the layout before committing to a full installation.

What are the wall mounting specifications?

The display uses a 400 x 400 mm VESA pattern with M8 fixings. It weighs 28.2 kg and measures 1463 x 838 x 69 mm excluding handles, so you need a bracket suited to that weight and a wall that can carry it. SmartRooms Qatar offers a free site survey before installation to check the wall, fixing points and cable route.

Can a laptop connect to the display with a single cable?

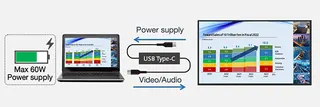

Yes. The USB Type-C port supports DP Alt Mode and can supply up to 60 W to a connected PC, and Panasonic states that USB 2.0 is supported on that port. While the port powers a computer this way, the Intel SDM slot cannot be used. Plan your connections before ordering, and we will discuss any cables you need when you request a quote.

Which control systems does the TH-65SQ2H support?

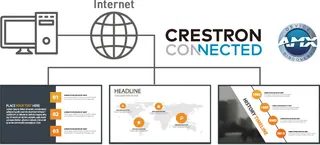

The display can be controlled over LAN using PJLink, through an RS-232C serial port, or by IR. It is also compatible with AMX, Crestron Connected and Crestron XiO Cloud, with main software version 2.61 or later supported. Simultaneous control and centralised management across a network are possible, which helps facilities teams running several screens in one building.

Does the display need a PC to play content?

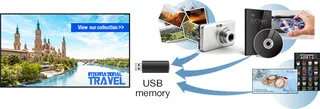

No. It includes a 4K-compatible USB media player, and playback starts automatically when a USB memory stick with saved content is inserted. Schedules can be built on a PC with the free Content Management Software, and playlists can be transferred by USB or LAN. Some files may not play even when they are in a supported format, so check the operation manual before loading content.

Are the built-in speakers enough for a classroom?

The built-in speakers are rated at 20 W (10 W + 10 W), which is enough for video with sound in a classroom or small meeting room without external speakers. Large lecture halls or event venues in Qatar usually need a separate audio system, and we can discuss that requirement in your quotation.

What electrical supply does the display need in Qatar?

The power input is rated at 110 to 240 V and 50/60 Hz, which covers Qatar's 240 V 50 Hz mains. Consumption averages 158 W in standard picture mode, 175 W in shipping condition and about 0.5 W in standby. Have an electrician provide a BS 1363 Type G socket within reach of the mounting point.

Can the TH-65SQ2H be installed outdoors or in a non-air-conditioned area?

The source data does not give an operating temperature range for this model, so we cannot confirm outdoor or unconditioned use. Summer temperatures in Qatar regularly exceed 45°C and dust storms are common, so request a quote and we will confirm the right environment for this display before you order.

Is this model suitable for a school ordering several units?

Yes. A school can order several displays on one purchase order, and we can arrange a site survey to confirm mounting heights, wall types and power points for each classroom. Quotations are usually issued within one working day, and payment can be made by bank transfer, cheque or purchase order.

How does the 65-inch model compare with other SQ2H sizes?

The SQ2H series runs from 43 to 98 inches across seven sizes, and the 65-inch model sits between the 55-inch and 75-inch versions. Choose it for a classroom or meeting room where a mid-sized panel must be read clearly from several seats. Larger lecture halls or boardrooms may need 75 or 86 inches, while smaller huddle rooms may suit 43 or 50 inches.
