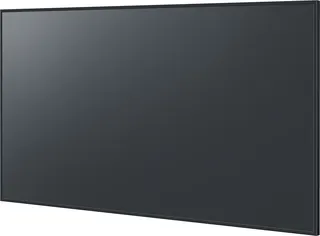

Panasonic TH-75EQ2 75-inch 4K Professional Display

Name: Panasonic TH-75EQ2 75-inch 4K Professional Display
Brand: Panasonic
SKU: panasonic-th-75eq2
Availability: InStock

Overview

The Panasonic TH-75EQ2 is a 75-inch class 4K display built for well-lit rooms. It delivers 500 cd/m² brightness, an anti-glare panel with 25% haze and up to 18 hours of daily operation, and it can be mounted landscape or portrait. Three HDMI inputs, a USB Type-C port with up to 60W power delivery and built-in speakers suit classrooms, boardrooms and reception areas across Qatar. Request a quote.

A 75-inch 4K panel for bright Qatari rooms

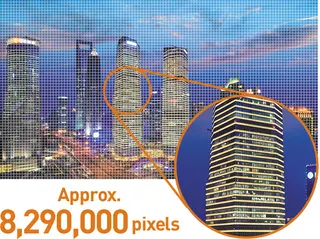

The Panasonic TH-75EQ2 is the 75-inch class model in the EQ2 Series of professional displays. Its 3840 x 2160 panel gives an active area of 1649.6 x 927.9 mm, enough room for dense slides, spreadsheets and detailed floor plans to stay legible without scaling. Because it can be installed in landscape or portrait, the same unit serves presentation walls and vertical content alike.

Brightness and glare control for well-lit rooms

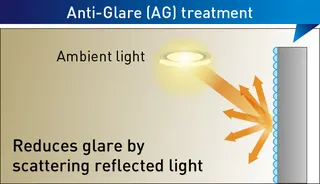

Many offices and schools in Qatar have large windows or strong ceiling lighting, and a washed-out screen wastes the meeting. The TH-75EQ2 has a typical brightness of 500 cd/m² and an anti-glare panel with 25% haze that softens reflections from lamps and daylight. Its 178-degree horizontal and vertical viewing angles keep content readable for people seated toward the edges of the room.

Connectivity for meetings and signage

Three HDMI inputs with HDCP 2.2 support let a laptop, a set-top box and a media player stay connected at once. The USB Type-C port carries video, charges a connected laptop with up to about 60 W of Power Delivery and supports USB 2.0. Where a camera, speakerphone or microphone is permanently installed, USB Type-A ports keep those devices powered, and a PC connected by USB Type-C can control them so a meeting starts with one cable. A PC input on a mini D-sub 15-pin connector, a LAN port with PJLink, an RS-232C serial port and an SDM-S/SDM-L slot for optional function boards complete the connections.

For multi-room rollouts, the display can be managed over LAN or serial and is compatible with AMX and Crestron control systems. Screen Transfer software distributes images to up to 64 displays over wired LAN, and the built-in 4K-compatible USB media player loops content from a memory stick without a PC.

Where the TH-75EQ2 fits in Qatar

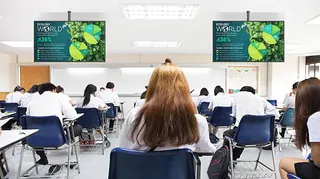

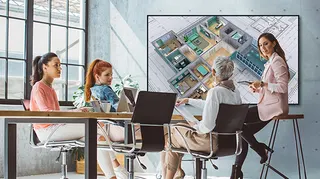

Classrooms: a secondary classroom in an international school in Education City or Al Wakrah, where the screen reaches the back row and the built-in whiteboard lets teachers annotate with a mouse.

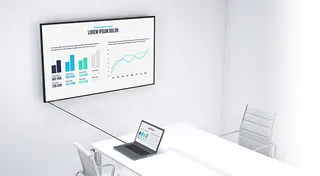

Boardrooms: a meeting room in West Bay or Msheireb that connects Doha-based laptops and conferencing peripherals to teams abroad through one USB Type-C cable.
Reception and information: a lobby in Doha or a shopping mall in Lusail that runs looped information in portrait or landscape for up to 18 hours a day.

Planning the installation and operating environment

At 37.3 kg and 1684 x 962 x 96 mm including handles, the display needs a wall and bracket rated for its weight. It uses a VESA 600 x 400 mm mounting pattern with M8 holes 20 mm deep, and it can be tilted 0 to 20 degrees forward or backward in either orientation. A free site survey with SmartRooms Qatar lets us check wall structure, viewing distance and cable routes before the unit arrives.

The rated operating range is 0 to 40 °C with 20 to 80% humidity (non-condensing) up to 1400 m altitude. Qatar summer temperatures can exceed 45 °C, so install the TH-75EQ2 in an air-conditioned room, away from direct sunlight and dust, and our team will confirm site conditions before the quotation is finalised. Typical power consumption is 385 W, standby draws about 0.5 W, and the power input accepts 110 to 240 V at 50/60 Hz.

Send us your room dimensions, mounting wall and quantity, and we will prepare a quotation for the Panasonic TH-75EQ2. Quotations are usually issued within one working day, and we accept purchase orders (LPOs) and government tenders. Request a quote today.

Highlights

75-inch class 4K panel at 3840 x 2160 resolution
500 cd/m² typical brightness with 25% haze anti-glare panel
Landscape or portrait installation with 0 to 20 degree tilt
Operating time rated up to 18 hours per day
Three HDMI inputs and USB Type-C with up to 60W
Built-in 20W speakers and 4K-compatible USB media player

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

30 specifications · Source: manufacturer · checked Oct 2026

Display Panel9

Screen Size: 75-inch (74.5" / 1892.7 mm)
Aspect Ratio: 16:9
Effective Display Area (W x H): 1649.6 x 927.9 mm (64.94" x 36.53")
Resolution (H x V): 3840 × 2160
Brightness (Typ): 500 cd/m²
Contrast Ratio: 1200:1
Response Time (G to G): 8 ms (G to G)
Viewing Angle (Horizontal/Vertical): 178°/178° (CR>10)
Panel Surface Treatment: Anti-glare treatment (Haze 25 %)

Terminals7

HDMI In: TYPE A Connector x 3 (HDCP2.2 supported)
PC In/Audio In (L/R): Mini D-sub 15-pin x 1 (DDC2B)/Stereo Mini Jack (Φ3.5mm) x 1
Serial: D-sub 9-pin x 1, RS-232C Compatible
Audio Out: Stereo Mini Jack (Φ3.5mm) x 1
LAN: RJ45 x 1 compatible with PJLink™ RJ45 10BASE-T/100BASE-TX
USB: Type A: DC 5 V/1 A, USB 3.0 is supported, Type A: DC 5 V/2 A, USB 2.0 is supported, Type C: max ~60W (Power Delivery compatible), USB2.0 is supported, DisplayPort Alternate mode compatible

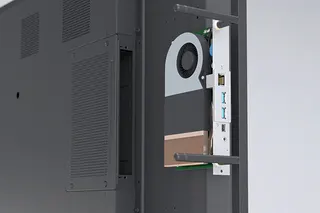

SLOT: SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A

Audio1

Built-in Speaker: 20W [10W + 10W]

Electrical4

Power Requirements: AC 110 - 240 V 50 Hz / 60 Hz
Power Consumption: 385 W
Power off condition: Approx. 0.3 W
Stand-by Conditions: Approx. 0.5 W

Mechanical4

Dimensions (W x H x D) Including handles: 1684 x 962 x 96 mm (66.28" x 37.87" x 3.76")
Weight: 37.3 kg (82.2 lbs.)
Bezel Width: 14.9 mm (0.59") (T/R/L/B)
Wall-hanging Pitch: VESA Compliant 600 x 400 mm (23.6" x 15.8"), M8 Screw hole depth 20 mm (0.8")

Installation Requirement 12

Orientation: Landscape/Portrait
Tilting Angle: 0 - 20 degrees forward/backward with landscape/portrait setting

Environment3

Operating Time 2: 18 h/day
Operating environment: Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) altitude. Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft)
Regional Spec Sheets: Americas, Europe, Asia, Oceania, Middle East, Africa: TH-75EQ2W

Downloads

6 files from the manufacturer

PDF Datasheets TH-75EQ2_Spec_Sheet_Americas, Europe, Asia, Oceania, Middle East, Africa.pdf 1.7 MB PDF Manuals & guides sq2hw_eq2w_manual_en.pdf 8.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_ar.pdf 1.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_eng.pdf 2.2 MB PDF Brochures EQ2_series.pdf 689 KB URL Drawings & CAD · Opens on manufacturer site #eq2

Questions about TH-75EQ2

Who is the Panasonic TH-75EQ2 designed for?

The TH-75EQ2 suits medium and large rooms where people need to read content from a distance, such as classrooms, meeting rooms and reception areas. Its 4K resolution, 500 cd/m² brightness and anti-glare surface make it a sound choice for offices and schools in Doha that rely on daylight and glass frontages. For much larger halls, our team can suggest a bigger model from the EQ2 range.

How bright is the TH-75EQ2, and will it work near windows?

The typical brightness is 500 cd/m², and the anti-glare panel with 25% haze reduces reflections from windows and ceiling lights. Direct sunlight falling on any screen still lowers contrast, so position the display away from direct sun where possible. Check the layout during the free site survey, especially for meeting rooms with glass walls facing west.

Can the TH-75EQ2 be mounted in portrait orientation?

Yes. The display can be installed in landscape or portrait and tilted 0 to 20 degrees forward or backward in either orientation. Portrait suits corridor signage in a shopping mall, directory boards in a hospital, or reading long documents in a boardroom. Confirm the orientation before ordering, because the bracket and cable routing depend on it.

What does the TH-75EQ2 weigh, and what kind of wall does it need?

The display weighs 37.3 kg and measures 1684 x 962 x 96 mm including handles. It uses a VESA 600 x 400 mm mounting pattern with M8 holes 20 mm deep. Plasterboard or light partition walls usually need specialist brackets, so SmartRooms Qatar offers a free site survey to check wall structure and load before installation.

What is the operating temperature, and can it go in a space without air conditioning?

The rated operating range is 0 to 40 °C with 20 to 80% humidity, non-condensing, up to 1400 m altitude. Summer temperatures in Qatar can exceed 45 °C, so the TH-75EQ2 should be installed in an air-conditioned room, away from direct sunlight and dust. Our team will confirm the site conditions before a quotation is issued.

Does it connect to laptops and video conferencing cameras?

It has three HDMI inputs with HDCP 2.2 support, a PC input on a mini D-sub 15-pin connector, and a USB Type-C port that carries video and provides up to about 60 W of Power Delivery to charge a laptop. USB Type-A ports can power a camera, speakerphone or microphone fixed in the room. Check that your conferencing camera or codec is compatible before purchase.

How does USB pass-through help in a boardroom?

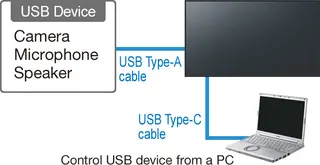

A camera, speakerphone and microphone can stay permanently connected to the USB Type-A ports, while the presenter connects one USB Type-C cable from a laptop. The display passes control of those devices to the PC, so a meeting can start quickly. The total length of the USB cables should not exceed 4 m, and not every USB cable is guaranteed to work, so plan cable runs during the survey.

Can several TH-75EQ2 displays be managed from one place?

Yes, through LAN or serial control. The display supports a LAN port with PJLink and an RS-232C serial port, and it is compatible with AMX and Crestron systems. Screen Transfer software can distribute images to up to 64 displays over wired LAN, which suits a school with many classrooms or a government body with several meeting rooms. Crestron XiO Cloud features need main software version 2.61 or later.

Can the built-in media player run digital signage without a PC?

Yes. Insert a USB memory stick containing the content and playback starts automatically, with 4K-compatible files and no PC or set-top box needed. Some files may not play even when the format is supported, so test them first. Scheduling can be handled with the free Content Management Software for PC, which suits a reception screen in a Lusail office or mall.

Does the TH-75EQ2 need external speakers?

The display includes two built-in 10 W speakers, giving 20 W in total, which is enough for short videos and presentations in small and medium rooms. Large lecture halls usually need a dedicated sound system, and it can be connected through the stereo mini jack audio output. Discuss audio needs with our team when planning the room.

How much power does it use, and does it suit Qatar's electrical supply?

The power input is rated for AC 110 to 240 V at 50/60 Hz, which covers the 240 V supply used in Qatar. Typical consumption is 385 W, with about 0.5 W in standby and 0.3 W when powered off. Plug type and socket outlets should be confirmed during installation, as Qatar uses BS 1363 sockets.

Can we buy the TH-75EQ2 for a school ordering several units?

Yes. SmartRooms Qatar supplies the TH-75EQ2 with delivery to all eight municipalities of Qatar, professional installation and a free site survey. Schools and government bodies can issue a purchase order (LPO) or take part in tenders, and payment can be made by bank transfer, cheque or purchase order. Send your room list to receive a quotation.
