Panasonic TH-75SQ2H 75-inch 4K Professional Display

Name: Panasonic TH-75SQ2H 75-inch 4K Professional Display
Brand: Panasonic
SKU: panasonic-th-75sq2h
Availability: InStock

Overview

The Panasonic TH-75SQ2H is a 75-inch 4K professional display from the SQ2H Series, suited to meeting rooms, retail and public signage. Its 700 cd/m² anti-glare panel suits spaces near windows and under bright lighting, and it runs 24 hours a day. A built-in 4K USB media player, an Intel SDM slot and a USB-C input with 60 W power delivery make it practical for Qatari offices and shops that want signage without a separate player.

What the 75-inch TH-75SQ2H panel delivers

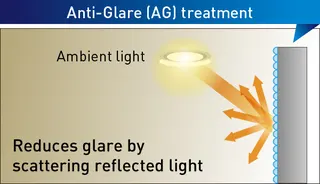

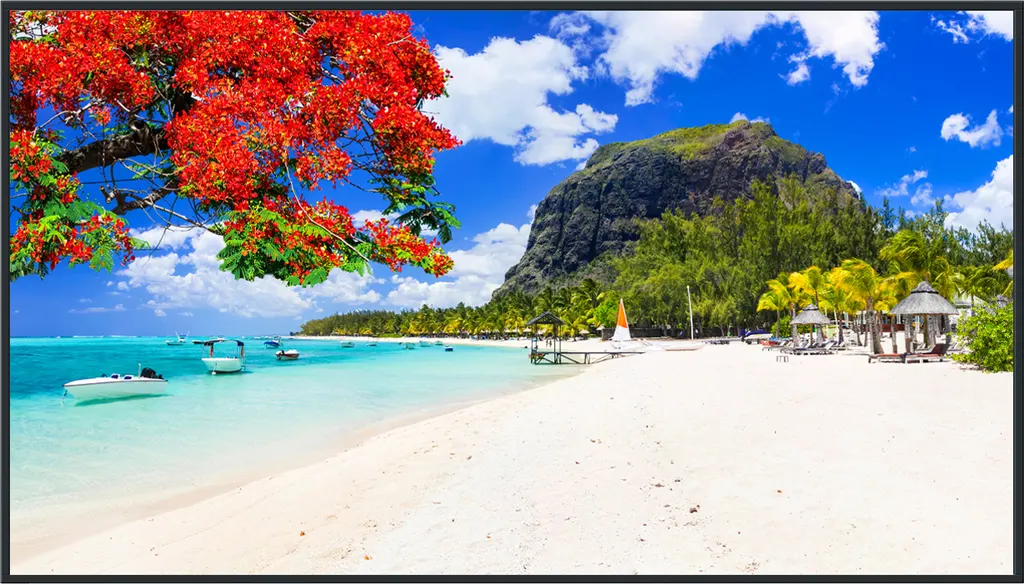

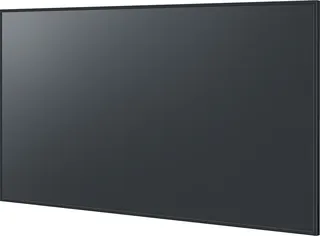

The Panasonic TH-75SQ2H is a 75-inch class display with a 1892.7 mm diagonal and a native resolution of 3840 x 2160, which gives roughly four times the pixels of a Full HD screen. The panel is rated at 700 cd/m² typical brightness, with a 1200:1 contrast ratio and 178° viewing angles both horizontally and vertically. Its anti-glare surface, specified at 25% haze, scatters light from windows and ceiling fittings so that content stays readable in rooms that cannot be dimmed.

Connectivity for meeting rooms and signage networks

Three HDMI inputs (HDCP 2.2 compatible), a mini D-sub 15-pin PC input and a USB Type-C port cover laptops, media players and room systems. The USB-C port supports DP Alt Mode and can deliver up to 60 W of power to a connected PC. Two USB Type-A ports serve cameras, microphones and speakers, and the USB Pass Through function lets a PC on USB-C control devices attached to those ports. An RJ45 LAN port with PJLink support, RS-232C serial and IR connections allow central control and monitoring.

An Intel SDM slot, built-in media player and speakers

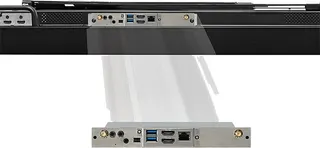

The Intel SDM slot accepts SDM-S and SDM-L modules, so a compatible PC or interface board can sit inside the display rather than beside it. When the USB-C port powers a connected PC, the slot cannot be used; with the slot in use, its maximum supply is 5 V/1.5 A, so plan the PC load carefully. Third-party SDM boards are sold separately and the manufacturer cannot guarantee their operation. The built-in USB media player plays 4K content from a memory stick without a PC or set-top box, while free content management software schedules playlists. Two 10 W speakers are built in.

Where a 75-inch display fits across Qatar

Mid-sized boardroom in West Bay or Lusail: the panel is large enough for clear video calls and presentations to Doha teams and overseas partners, without overwhelming a room sized for an 86-inch screen.

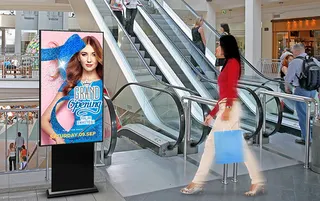

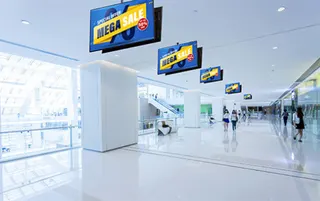

Retail or lobby display in Msheireb or Al Sadd: the portrait mode and 20-degree tilt suit shopfront and corridor signage, and 24-hour operation suits trading hours that run late.
Classroom or training room in Education City or Al Rayyan: a teacher can present from a laptop over USB-C and use the built-in speakers for lessons, while the LAN port lets the school IT team manage several rooms.

What to plan before you order

The display weighs 37.4 kg and mounts to a VESA 600 x 400 mm pattern with M8 fixings, so the wall or frame needs checking before installation. Overall size is 1684 x 962 x 70 mm excluding handles. Power use is 215 W in shipping condition and about 194 W in standard picture mode, with standby around 0.5 W. The input is rated at 110-240 V, 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. The display tilts 20 degrees forward and backward in landscape or portrait. The source data does not give an operating temperature range, so confirm the installation environment with the SmartRooms Qatar team before placing it near windows or in unconditioned areas, where summer temperatures can pass 45°C.

Request a quote from SmartRooms Qatar for supply, delivery to all eight municipalities and professional installation. We offer free site surveys, usually send quotations within one working day, and accept purchase orders (LPOs), government tenders through Monaqasat, and payment by bank transfer, cheque or purchase order. Products are covered by the manufacturer's warranty.

Highlights

75-inch class, 1892.7 mm diagonal, 3840 x 2160 native 4K resolution
700 cd/m² typical brightness with anti-glare panel (25% haze)
Specified for continuous operation 24 hours a day
Three HDMI inputs plus USB Type-C with 60 W Power Delivery
Intel SDM slot and built-in 4K USB media player
Two 10 W built-in speakers, 20 W in total

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

28 specifications · Source: manufacturer · checked Oct 2026

Panel6

Panel size: 75-inch (1892.7 mm)
Pixels (H x V): 3840 x 2160
Brightness (typ.): 700 cd/m²
Contrast: 1200:1
Viewing angle [(T/B)/(L/R)]: 178°/178° (Typ.)
Panel surface treatment: Anti-glare treatment (Haze 25 %)

Terminals9

HDMI™ IN: HDMI™ x 3 (compatible with HDCP2.2)
PC IN: mini D-sub 15 pin
USB: USB Type A x 1 (DC 5V / Max. 1 A, USB 3.0 is supported), USB Type A x 1 (DC 5V / Max. 2 A, USB 2.0 is supported), USB Type C x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible)
Serial IN: D-sub 9 pin RS-232C Compatible
IR IN/OUT: Stereo mini jack (φ3.5 mm) x 1/x 1
LAN: RJ45 x 1 compatible with PJLink™ 10BASE-T/100BASE-TX
Slot: Intel ® SDM standard (SDM-S / SDM-L, 3.3 V / Max. 1.1 A, 12V / Max. 5.5 A)
Audio IN: Stereo mini jack (φ3.5 mm) x 1
Audio OUT: Stereo mini jack (φ3.5 mm) x 1

Installation Environment2

Operating time: 24 h/day
Tilting Angle: Yes / 20 degrees forward and backward with landscape/portrait setting

Audio1

Built-in speaker: 20 W [10 W + 10 W]

Electrical5

Power supply: AC 110-240 V 50 Hz/60 Hz, 4.2 A-2.1 A
Power consumption: 215 W (Shipping Condition)
On mode average power consumption 2: 194 W (Picture Mode: [Standard])
Power off condition: Approx. 0.3 W
Stand-by condition: Approx. 0.5 W

Mechanical5

Dimension (WxHxD) (Excluding handles): 1684 x 962 x 70 mm (66.28" x 37.87" x 2.74")
Dimension (WxHxD) (Including handles): 1684 x 962 x 96 mm (66.28" x 37.87" x 3.76")
Weight: 37.4 kg/82.33 lbs
Wall-hanging pitch: 600 x 400 mm (VESA compliant) M8
Regional Spec Sheets: Global: TH-75SQ2HW

Downloads

6 files from the manufacturer

PDF Datasheets TH-75SQ2H_Spec_Sheet_Global.pdf 1.7 MB PDF Manuals & guides sq2hw_eq2w_manual_en.pdf 8.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_ar.pdf 1.9 MB PDF Manuals & guides sq2hw_eq2w_qsg_eng.pdf 2.2 MB PDF Brochures SQ2H_series.pdf 800 KB URL Drawings & CAD · Opens on manufacturer site #sq2h

Questions about TH-75SQ2H

Who is the Panasonic TH-75SQ2H designed for?

It suits organisations that need a large, bright 4K screen for meeting rooms, retail floors and public signage. In Qatar that could be a mid-sized boardroom in West Bay or a shopfront in Msheireb that must stay readable in daylight. The 75-inch size sits between the 65-inch and 86-inch models in the SQ2H Series, so it suits rooms where a smaller panel looks lost and a larger one dominates.

How bright is this model for rooms with windows?

The panel is rated at 700 cd/m² typical brightness and uses an anti-glare surface at 25% haze. Together these help content stay visible in rooms with daylight from windows or strong ceiling lighting, such as an office meeting room in Doha. For direct sun falling on the screen, a site survey will show whether blinds or repositioning are needed.

Can it run continuously in a lobby or control room?

Yes. The model is specified for 24 hours a day operation, which suits lobbies, reception areas and control rooms in hospitals or airports. The manufacturer recommends moving images for long display periods, because still images left on screen for extended times can leave image retention that fades gradually when moving content plays. Plan your content loops with that in mind.

How heavy is the TH-75SQ2H and what wall fixing does it need?

It weighs 37.4 kg and uses a VESA 600 x 400 mm mounting pattern with M8 fixings. A wall or frame in a Doha villa or office should be checked before installation, which is why SmartRooms Qatar offers free site surveys. Overall dimensions are 1684 x 962 x 70 mm excluding handles, so measure clearances around the panel before ordering a bracket.

Can the panel be mounted in portrait orientation or tilted?

Yes. The display can rotate to portrait for vertical content and tilts 20 degrees forward and backward in both landscape and portrait settings. Forward tilt helps when the screen is mounted high in a shop or atrium, because the angle keeps the image more legible from below. Confirm with your installer that the bracket supports both rotation and tilt.

Can a laptop connect with a single cable?

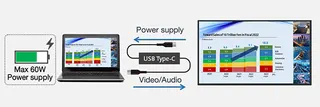

Yes, through the USB Type-C input. It supports DP Alt Mode for video and can deliver up to 60 W of power to a connected PC, so one cable can carry the picture and charge a laptop. When the USB-C port is powering a PC, the Intel SDM slot cannot be used.

Does the display need external speakers for presentations or signage?

Usually not for small and medium rooms. It has built-in speakers rated at 20 W in total (10 W + 10 W), which suit lessons, announcements and short presentation audio in classrooms and training rooms. For large halls or event spaces, an external audio system is still the better choice, and a site survey can confirm the room size.

Can several displays be controlled from one network in a school or ministry?

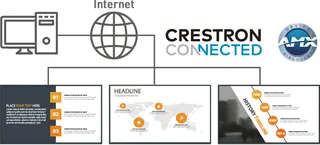

Yes. The LAN port supports PJLink, and the display can also be controlled through RS-232C serial. The source data lists compatibility with AMX, Crestron Connected and Crestron XiO Cloud, with Crestron features requiring main software version 2.61 or later. IT teams can manage rooms centrally once the control system is configured in advance.

Can it play digital signage without a PC?

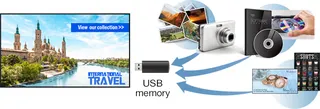

Yes. The built-in USB media player plays 4K content from a memory stick and starts playback automatically when the stick is inserted. Where the port is hard to reach because of the installation, a commercially available extension cable can be used. Some file types may not play, so test your content format before deployment. The content management software for PC is free.

Is it suitable near a window or outdoors during a Doha summer?

The source data does not state an operating temperature range, so suitability for hot or unconditioned spaces cannot be confirmed. Summer temperatures in Qatar regularly exceed 45°C, and direct sun and dust storms add further stress. Keep the display in air-conditioned indoor areas unless the SmartRooms Qatar team confirms the environment is suitable before installation.

How do we order this display for a government tender or school purchase?

Send your requirement and quantities to SmartRooms Qatar, and we usually return a quotation within one working day. We supply and deliver to all eight municipalities of Qatar, provide professional installation, and accept purchase orders (LPOs) and government tenders through Monaqasat. Payment can be made by bank transfer, cheque or purchase order. Lead times are confirmed with the quotation, based on stock.

Is 4K resolution worth it for a 75-inch meeting room display?

The panel shows 3840 x 2160 pixels, about 8.3 million in total and roughly four times a Full HD screen. This helps where attendees view spreadsheets, floor plans or detailed slides up close, such as in a conference room in Education City or a corporate office in Lusail. Text and fine graphics stay sharper than on a Full HD panel of the same size.
