TH-86EQ3

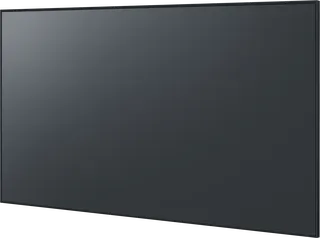

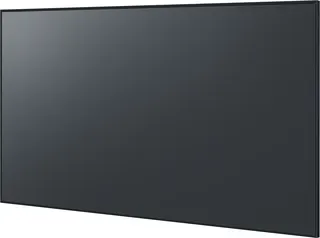

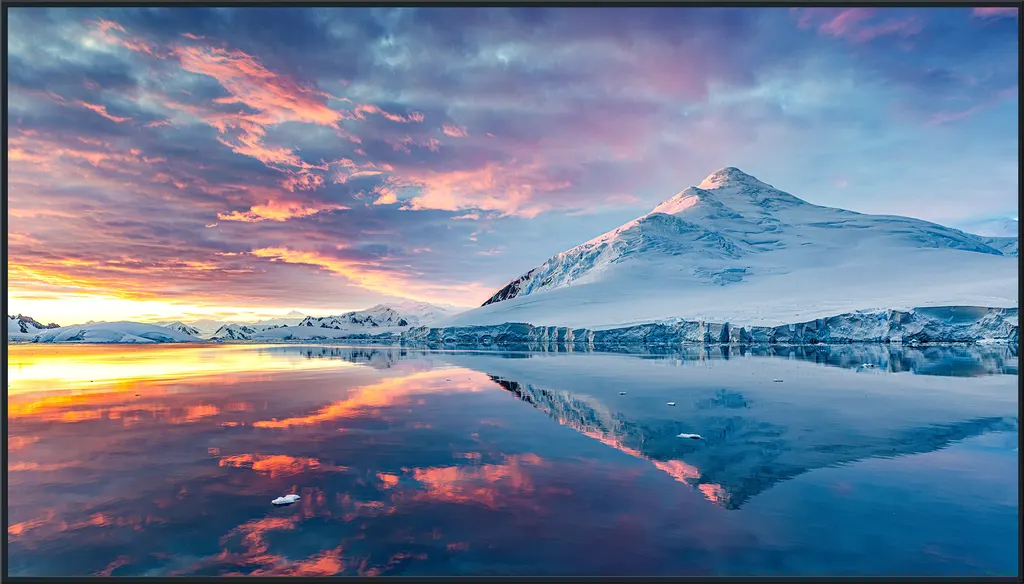

Panasonic TH-86EQ3 86-inch 4K Professional Display

Screen size: 86-inch class (85.6-inch /…
Resolution: 3840 x 2160
Brightness: 500 cd/m2
Contrast: 1200:1

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Panasonic TH-86EQ3 is an 86-inch class 4K display in the EQ3 Series, built for conference rooms, classrooms and digital signage. Its 3840 x 2160 panel delivers 500 cd/m² brightness with anti-glare treatment, keeping content readable near bright windows. A USB player runs 4K content without a PC, and the display is rated for 18 hours a day. Suits large boardrooms and lecture halls. Request a quote today.

What the TH-86EQ3 is built to do

The TH-86EQ3 is the largest model in Panasonic's EQ3 Series, which covers screen sizes from 43 to 86 inches for conference rooms, classrooms and digital signage. At 86 inches it fills a wide wall and suits rooms where many people need to read the same slide, spreadsheet or timetable from across the table.

Panel and picture facts that matter in Qatar

The panel resolves 3840 x 2160 pixels, roughly four times the pixels of a Full-HD display, so fine text and small chart labels stay sharp at close range. Typical brightness is 500 cd/m², and the anti-glare surface with 25% haze reduces reflections from windows and ceiling lights, a common challenge in daylit classrooms and office towers. The viewing angle is rated at 178 degrees horizontally and vertically, and typical contrast is 1200:1. Dynamic contrast and dynamic backlight control adapt the picture to the incoming signal and help reduce total power consumption.

Connections and control

Inputs: three HDMI inputs with HDCP 2.2 support, one PC input on a Mini D-sub 15-pin connector, and a USB Type-A port rated DC 5 V / 2 A.
Control: an RS-232C serial terminal and an RJ45 LAN port (10BASE-T/100BASE-TX) with PJLink support, suited to room control systems.
Audio: built-in 20 W speakers (10 W + 10 W), a stereo mini jack input and a pin jack audio output.
Broadcast: one F connector RF input.

Playback, operation and mounting

Content can be played from a USB memory stick. Playback starts automatically when numbered files are stored in a folder named AUTO_PLAYBACK, so a reception screen or wayfinding display can run without a PC or set-top box. Still images and videos cannot be mixed, and the operation manual lists file restrictions. HDMI-CEC lets compatible devices be switched on and off with the display remote, although control of all devices is not guaranteed. The rated operating time is 18 hours per day, and the EQ3 Series is described as impact resistant.

The unit measures 1929 x 1100 x 70 mm and weighs approximately 46.0 kg, with a 15.5 mm bezel on all four sides. It can be installed in landscape or portrait orientation, and in landscape it tilts 0 to 20 degrees forward. The wall-mount pattern is VESA 600 x 400 mm with M8 screws. The operating temperature range is 0°C to 40°C up to 1400 m altitude and 0°C to 35°C between 1400 m and 2800 m, with 20% to 80% humidity and no condensation.

Where it fits and what to plan for

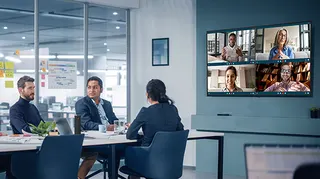

In a lecture room at a campus in Education City, the 500 cd/m² panel keeps slides legible for students in the back rows when daylight is present. In a boardroom in West Bay, the HDMI and PC inputs let a laptop or desktop connect quickly. In a private school in Al Wakrah fitting out new classrooms, USB playback can run morning announcements without a separate media player.

Plan the wall before ordering. At around 46 kg, the panel needs a wall or structure rated for its weight, and the bracket must match the VESA pattern. SmartRooms Qatar offers free site surveys to check the wall, power and cable routes before installation. Because the working week in Qatar runs Sunday to Thursday, agree installation windows early. Schools and ministries buying several units can issue a purchase order (LPO), and quotations are usually returned within one working day.

Request a quote from SmartRooms Qatar for the Panasonic TH-86EQ3. We will confirm the quotation, estimated lead time, delivery to any of Qatar's eight municipalities and installation options.

Highlights

3840 x 2160 resolution, about four times Full-HD pixels
500 cd/m² typical brightness with 25% haze anti-glare panel
Three HDMI inputs with HDCP 2.2, PC input and USB Type-A
RS-232C and LAN control with PJLink support
USB playback without a PC; rated 18 hours daily operation
20 W built-in speakers; AC 110-240 V, 50/60 Hz power input

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

38 specifications · Source: manufacturer · checked Oct 2026

Display Panel10

Screen Size: 86-inch class (85.6-inch / 2174.2 mm)
Brightness (typ.): 500 cd/m2
Aspect ratio: 16:9
Effective Display Area (W x H): 1895.0 x 1065.9 mm (74.60" x 41.96")
Resolution: 3840 x 2160
Contrast Ratio (typ.): 1200:1
Response Time (typ.): 8.0 ms (G to G)
Viewing Angle(H / V): 178°/178° (CR＞10)
Panel Surface Treatment: Anti-glare type
Haze: 25%

Connection Terminal8

HDMI™ IN: HDMITM Type A Connector x 3 (HDCP 2.2 supported)
PC IN: Mini D-sub 15-pin x 1 (Female)
SERIAL IN: D-sub 9-pin x 1, RS-232C Compatible
AUDIO 1 IN (L / R): Stereo Mini Jack (M3) x 1
AUDIO OUT (L / R): Pin Jack x 1
LAN: RJ45 x 1 10BASE-T/100BASE-TX
USB TYPE A: USB Connector Type A x 1 (DC 5 V / 2 A, USB 2.0 is supported)
RF In (ANTTENA / CABLE): F Connector x 1

Audio1

Built in Speaker: 20 W [10 W+10 W]

Electrical5

Power Supply: AC 110 - 240 V 50 Hz / 60 Hz
Power Consumption: 336 W
Power Off Condition: Approx. 0.3 W
Stand-by Condition: Approx. 0.5 W
On Mode Average Power Consumption *1: 180 W

Mechanical9

Dimension(W): 1929 mm (75.95")
Dimension(H): 1100 mm (43.31")
Dimension(D): 70 mm (2.74")
Weight: Approx. 46.0 kg (101.5 lbs.)
Bezel Width(T): 15.5 mm (0.61")
Bezel Width(B): 15.5 mm (0.61")
Bezel Width(L): 15.5 mm (0.61")
Bezel Width(R): 15.5 mm (0.61")
Pitch for Wall-Hanging / Screw / Screw hole depth: VESA Compliant 600 x 400 mm (23.6" x 15.8") / M8 / 20 mm (0.8")

Installation3

Orientation *3: Landscape / Portrait
Tilting Angle: 0 - 20 degrees forward with landscape setting
Operating Time *4: 18h /day

Environment1

Operating Environment(Temperature): 0°C to 40°C (32°F to 104°F) : for up to 0-1400 m (4593 ft) altitude0°C to 35°C (32°F to 95°F): for between 1400 m (4593 ft) and 2800 m (9186 ft) altitude

Environmental1

Operating Environment(Humidity) (No condensation): 20% to 80%

Downloads

9 files from the manufacturer

PDF Datasheets EQ3_series_leaflet_en.pdf 409 KB PDF Datasheets TH-86EQ3_Spec_Sheet_Americas, Europe, Asia, Oceania, Middle East, Africa.pdf 1.0 MB PDF Datasheets th-86eq3w_spec_en_4.pdf 1.0 MB PDF Manuals & guides 86_43eq3W_manual_en_2.pdf 3.3 MB PDF Manuals & guides 86_43eq3W_qsg_en_1.pdf 1.7 MB PDF Manuals & guides sq3w_eq3w_basic_en.pdf 4.3 MB PDF Manuals & guides sq3w_eq3w_manual_en.pdf 9.3 MB PDF Drawings & CAD th-86eq3+ty-wk98pv1_cad_en_1.pdf 212 KB URL Drawings & CAD · Opens on manufacturer site #eq3

Questions about TH-86EQ3

What rooms is the Panasonic TH-86EQ3 best suited for?

It suits conference rooms, classrooms and digital signage areas where one large screen must serve a group. The 86-inch screen with 3840 x 2160 resolution works well in a boardroom in West Bay or a lecture room in Education City, where people sit several metres away. For small huddle rooms, a smaller size in the same series may fit better, and sizes can be compared within your quotation.

Will the screen stay readable in a sunlit room in Doha?

Typical brightness is 500 cd/m², and the anti-glare panel with 25% haze reduces reflections from windows and ceiling lights. Direct sunlight on the screen still lowers contrast, however. Before ordering for a glazed room, check blind positions and screen placement during a free site survey, and keep the display out of direct sun where possible.

Can a school use it for digital signage without a PC?

Yes. Insert a USB memory stick with numbered files stored in a folder named AUTO_PLAYBACK and playback starts automatically. The display is 4K compatible, so a private school in Al Wakrah can show morning announcements or timetables without a set-top box. Still images and videos cannot be mixed, and some files may not play even in supported formats, so check the operation manual before publishing.

How much more detail does the 4K panel show than Full-HD?

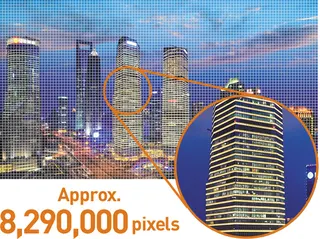

The panel has 3840 x 2160 resolution and approximately 8,290,000 pixels, about four times the pixels of a Full-HD display. That detail keeps fine text, spreadsheets and small chart labels sharp when viewers sit close to the screen. To use the full resolution, content should be 4K, while lower-resolution sources will be scaled up to fit.

Which connections does a laptop need in a West Bay boardroom?

The display has three HDMI inputs with HDCP 2.2 support, a PC input on a Mini D-sub 15-pin connector, and a USB Type-A port rated 5 V and 2 A. Most laptops connect over HDMI, while a desktop PC can use the PC input. Check your laptop's video output and any adaptors you need before installation day.

Can a room control system manage the display over the network?

Yes. The display has RS-232C serial control and an RJ45 LAN port (10BASE-T/100BASE-TX) compatible with PJLink, which allow external control from a room system. Ask your integrator which commands the system needs, and confirm that a network port is available at the mounting location before installation.

Does HDMI-CEC work with our existing set-top box or media player?

HDMI-CEC compatible devices connected by HDMI cable can have basic functions, such as power on and off, operated with the display's remote control. The manufacturer states that control of all devices cannot be guaranteed, so test your specific media player or set-top box before committing to a full order of units.

Will it run on Qatar's mains supply?

The power input is listed as AC 110-240 V at 50 Hz or 60 Hz, which covers Qatar's 240 V, 50 Hz mains. Power consumption is 336 W at shipping condition, with about 0.5 W in standby and about 0.3 W when powered off. Ask the SmartRooms Qatar team to confirm the power cord and socket arrangement for your site when you request a quote.

What wall space and mounting does an 86-inch panel need?

The panel measures 1929 x 1100 x 70 mm and weighs approximately 46.0 kg. It uses a VESA 600 x 400 mm wall pattern with M8 screws and a 20 mm screw hole depth. A wall in an office tower in Msheireb or a school corridor must be checked for load and alignment before fixing, so book a free site survey and have the installer confirm both first.

Can it be mounted in portrait orientation and tilted?

Yes. The TH-86EQ3 supports landscape or portrait orientation, and in landscape it tilts 0 to 20 degrees forward. Portrait suits digital signage columns and menu boards, while landscape suits presentations and meetings. Choose the orientation before fixing the wall, because the bracket and cable position depend on it.

Can it be placed in a lobby with glass doors or outdoors?

The rated operating range is 0°C to 40°C with 20% to 80% humidity and no condensation, and the product data does not rate it for outdoor use. Summer temperatures in Qatar regularly exceed 45°C and dust storms are common, so keep it inside air-conditioned spaces. For a lobby near glass doors, confirm the environment with the SmartRooms Qatar team before ordering.

How do we order several units for a school or ministry?

Send a quote request listing the quantity, room sizes and mounting locations. Ministries, government bodies and schools can issue a purchase order (LPO), and payment can be made by bank transfer, cheque or purchase order. Quotations are usually returned within one working day, and a free site survey can be arranged before delivery to any of Qatar's eight municipalities. The product is covered by the manufacturer's warranty, so ask for the warranty terms in writing.
