ACC-MB3500

Widening a menu board mount for larger screens

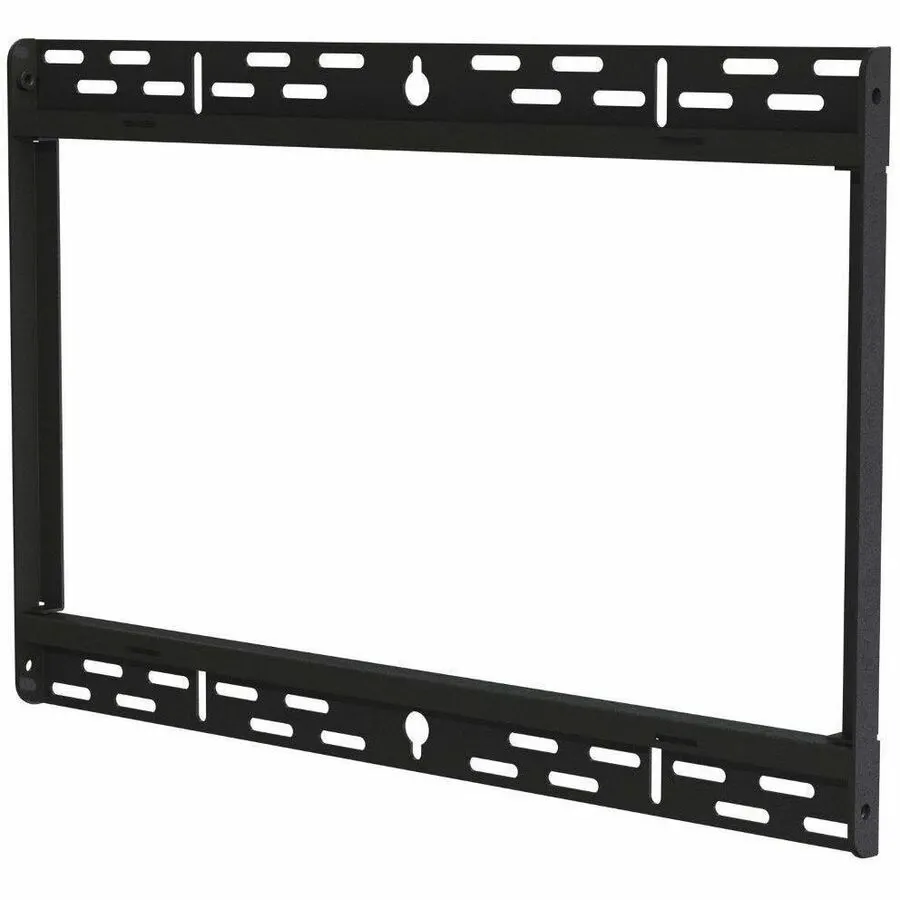

The Peerless-AV ACC-MB3500 is a wall plate accessory built for SmartMount menu board installations. Rather than replacing the mount, it adds width to the mounting area, so a compatible menu board setup can carry displays in the 40-inch to 48-inch range. Its listed maximum load capacity is 45.36 kg, and it is supplied as a single unit with the mounting hardware needed to fix it to the wall.

This approach is useful when a digital menu needs a wider screen than the original mount was sized for. Installers join the plate to a compatible menu board mount, and the two together form one wider mounting surface. The plate is finished in matte, powder-coated black, which helps the wall behind a display look tidy in a restaurant or café.

Dimensions, weight and what the plate adds

The plate measures 36.78 cm high, 88.90 cm wide and 1.90 cm deep, and weighs approximately 2.40 kg. These figures let planners check whether the plate fits the wall section they have in mind, and whether the wall can take the combined weight of the plate and the display.

• Height: 36.78 cm (14.48 inches)
• Width: 88.90 cm (35 inches)
• Depth: 1.90 cm (0.75 inches)
• Approximate weight: 2.40 kg

Compatibility and orientation

The product data lists compatibility with the DS-MBZ642L, DS-MBZ647L and DS-MBZ647P. Check the model number of your menu board against that list before ordering. The plate can be installed in landscape or portrait orientation, which matters when a menu runs as a tall column beside a counter rather than as a wide board.

The data lists displays and menu boards as supported devices. Assembly is required, so the installer should allow time for fixing the plate to the wall and joining it to the mount.

Where it fits in Qatar

A quick service restaurant in West Bay or Lusail upgrading to a wider digital menu can use the plate to take a 40-inch to 48-inch screen without redesigning the whole mounting arrangement. A café or food court in The Pearl or Msheireb may need a wider panel above a counter, where a standard mount would look too narrow. Shopping malls across Doha are another typical setting, where menus change often but the mount must stay in one fixed place.

The listed use is indoors. Qatar summer heat and dust matter for any equipment near a window or open entrance, and the data does not give an operating temperature range. Confirm the location with the SmartRooms Qatar team before fixing a display above a sunny or unconditioned area.

Planning the installation

Before ordering, measure the wall section and confirm where the mount will go. A free site survey can check the wall construction, whether it can carry the combined load, and the cable route to the display. Professional installation is available, and delivery covers all eight municipalities of Qatar.

• Confirm the menu board model appears on the compatibility list.
• Check that the display size falls within 40 to 48 inches.
• Add the plate's 2.40 kg to the display weight when assessing the wall.
• Chains ordering for several outlets can request quotations to be issued against purchase orders (LPO).

Send your display model and wall measurements with a quote request, and the SmartRooms Qatar team will confirm compatibility and availability in your quotation.
