Peerless CMAL · Price in Qatar

Name: Peerless-AV CMAL Round Column Mount for Digital Signage Displays
Brand: Peerless
SKU: peerless-cmal
Availability: InStock

Overview

The Peerless-AV CMAL is an indoor round column mount for digital signage displays, built to fit columns from 200 to 800 mm in diameter. It carries up to 102.06 kg, supports landscape and portrait orientation and uses straps that tighten with one bolt each. Its 5-year limited warranty and TAA compliance suit public-sector buyers fitting out stadium concourses, lobbies and atriums across Qatar.

What the CMAL does on a round column

The CMAL is a column mount, not a wall bracket. It wraps around a round column between 200 mm and 800 mm (7.9 to 31.5 inches) in diameter and gives a display a stable mounting point where a flat wall is not available. Round columns are common in stadium concourses, arenas, hotel foyers and shopping atriums across Doha, and this mount is designed for those structures.

Peerless-AV lists the CMAL as an indoor product. Build that limit into your plan: specify it for enclosed indoor spaces and confirm the environment with the SmartRooms Qatar team before using it near glazing or open loading areas.

Load, straps and adjustment

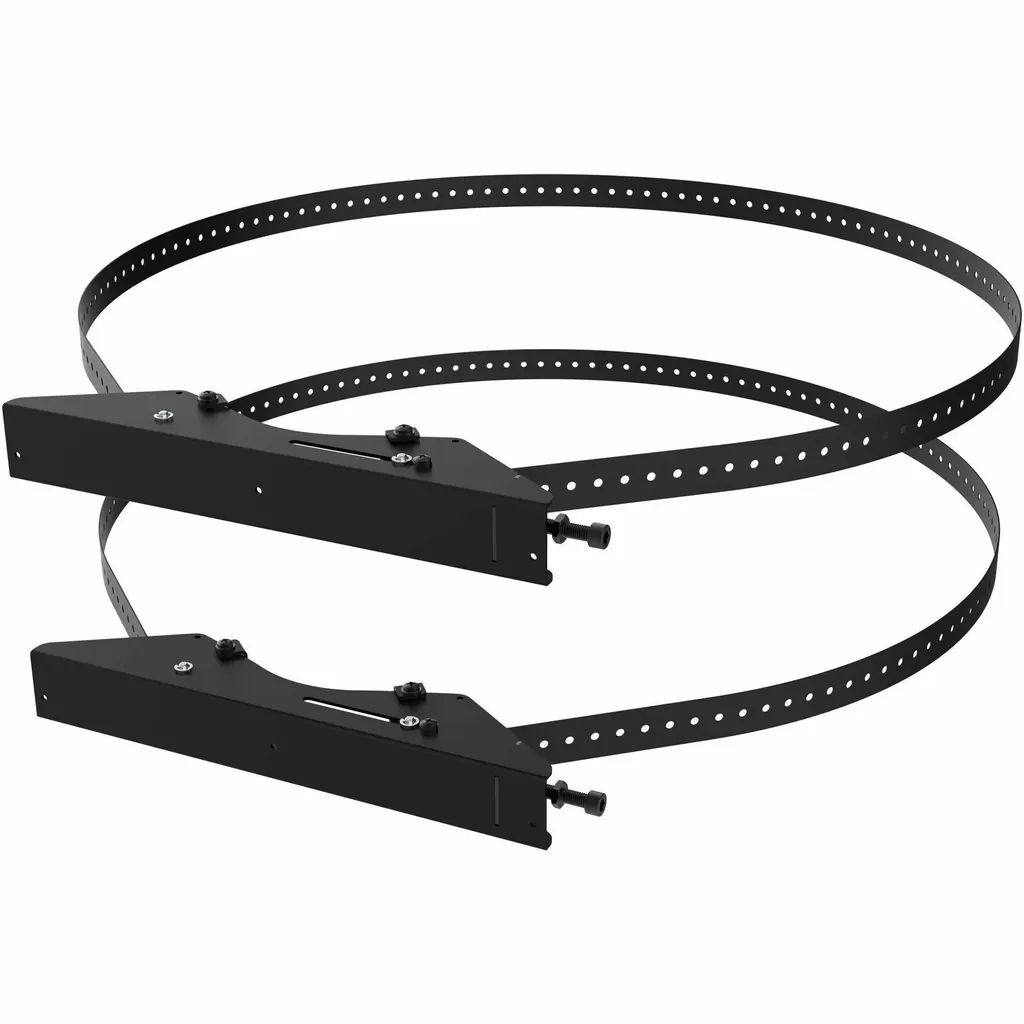

The mount is rated for a maximum load of 102.06 kg. Its two 18-gauge straps are each tightened with a single bolt, which keeps the on-site fixing work to a small number of steps. The straps can be cut in the field to match the column circumference, and the bracket interface self-adjusts to the column diameter. Jam nuts are fitted so the straps stay tight over time.

Column range: 200 to 800 mm diameter
Rated load: 102.06 kg maximum
Approximate weight: 5.90 kg
Finish: black powder-coated finish

Compatibility with SmartMount brackets and display models

The source data states that the CMAL works with nearly all Peerless-AV SmartMount products, including flat, tilt, articulating and portrait mounts, and supports both landscape and portrait mounting. The compatibility list includes SF16D, ST16D, SF640(P) through SF680(P), ST640(P) through ST680(P), SP740P, SP746P, SA740P, SA752PU, SA761PU, SA771PU, SFP680 and STP680. Check your display model against this list before ordering, and send us the model code so we can confirm the matching bracket within the quotation.

Where it fits in Qatar

Three situations where this mount makes sense:

A stadium concourse in Lusail, where displays on round support columns guide fans to entry gates, food outlets and seating sections.

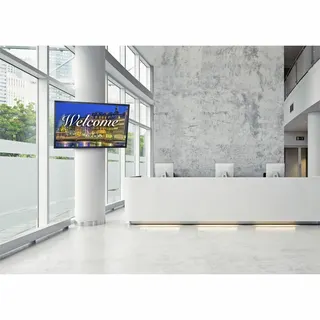

A hotel foyer in West Bay, where a round pillar can carry a portrait display for wayfinding without taking up wall space.
A university building in Education City, where a round column in a central atrium can show timetables and event notices.

What to plan before ordering

Measure the column diameter first, at the planned mounting height, because the mount is specified for 200 to 800 mm. Add the display weight to the bracket weight and check the total against 102.06 kg. The mount itself is approximately 5.90 kg, and its overall size is 80.26 cm high, 86.82 cm wide and 27.41 cm deep. Leave room for the display and bracket to tilt or swing, and confirm the fixings for your column. SmartRooms Qatar offers free site surveys, which are useful for column installations where the diameter, height and access need checking on site before the quotation is final.

Warranty and supply in Qatar

The CMAL carries a 5-year limited warranty from the manufacturer. Its certifications include RoHS and TAA compliance, which matter for public tenders and procurement files that request these declarations. SmartRooms Qatar delivers to all eight municipalities of Qatar, accepts purchase orders (LPOs), and takes payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day.

Request a quote for the CMAL with your display model and column diameter, and we will confirm the matching SmartMount bracket and fixing plan.

Highlights

Fits round columns from 200 to 800 mm diameter
102.06 kg maximum load capacity
Supports landscape and portrait mounting
Two straps, each tightened with a single bolt
Indoor use; RoHS and TAA compliant
5-year limited manufacturer warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

33 specifications · Source: manufacturer · checked Oct 2026

General Information9

Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: CMAL
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: Peerless-AV®
Product Series: CMAL
Product Model: CMAL
Product Name: Round Column Mount for Digital Signage Displays
Packaged Quantity: 1 Unit
Product Type: Column Mount

Product Information7

Device Supported: Digital Signage Display
Maximum Load Capacity: 102.06 kg
Features: Easy to Install
Orientation: Landscape/Portrait
Shape: Round
Mount Function: Articulating; Flat; Tilt
Mount Surface: Round Column

Physical Characteristics8

Color Family: Black
Product Color: Black
Finishing: Powder Coated
VESA Mount Compatible: Yes
Height: 80.26 cm (31.60")
Width: 86.82 cm (34.18")
Depth: 27.41 cm (10.79")
Weight (Approximate): 5.90 kg

Miscellaneous8

Package Contents: Round Column Mount for Digital Signage Displays; 2 x Straps; Mounting Hardware
Application/Usage: Stadium
Indoor/Outdoor: Indoor
Compatibility: SF16D; SF640(P); SF650(P); SF660(P); SF670(P); SF680(P); ST16D; ST640(P); ST650(P); ST660(P); ST670(P); ST680(P); SP740P; SP746P; SA740P; SA752PU; SA761PU; SA771PU; SFP680; STP680
Certifications & Standards: RoHS, TAA
Manufacturer Product Class: I-Beam and Column Mounts
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty1

Limited Warranty: 5 Year

Downloads

3 files from the manufacturer

PDF Datasheets CMAL_Product-Datasheet.pdf 480 KB PDF Manuals & guides CMAL_Assembly-Instructions.pdf 2.6 MB DWG Drawings & CAD · Opens on manufacturer site CMAL_CAD DRAWING.dwg

Questions about CMAL

Where would the Peerless-AV CMAL be used in Qatar?

The CMAL suits indoor round columns where a flat wall is unavailable, such as a stadium concourse in Lusail, an arena or a shopping atrium in Doha. Peerless-AV lists it for stadium use and it fits columns from 200 to 800 mm in diameter. It carries up to 102.06 kg and supports landscape and portrait orientation. Send us the column size and planned display, and we will confirm the setup in the quotation.

What column diameters does the CMAL fit?

The mount is designed for round columns from 7.9 inches to 31.5 inches, which is 200 mm to 800 mm in diameter. Each strap can be cut in the field to match the column circumference, and the brackets self-adjust to the diameter. Measure the column at the planned mounting height rather than at the base, because a column may vary in width along its length. A site survey can confirm these measurements before you order.

How much weight can the CMAL support?

The maximum load capacity is 102.06 kg. Add the weight of the display and its SmartMount bracket together and check the total against that figure before ordering. The mount itself weighs approximately 5.90 kg, and its overall size is 80.26 cm high, 86.82 cm wide and 27.41 cm deep. For a large display on a busy concourse column, we recommend a site survey so the fixing points and column strength are checked first.

Can the CMAL be installed outdoors or near a window in Qatar's summer?

No. Peerless-AV lists the CMAL as an indoor product, so do not specify it for outdoor columns, open colonnades or exposed loading areas. Qatar's summer temperatures above 45 degrees Celsius and dust storms make this limit practical to respect. If your column sits near an entrance or a glazed lobby, confirm the exact environment with the SmartRooms Qatar team and check the display's own operating range too.

Which display models are compatible with the CMAL?

The compatibility list includes SF16D, ST16D, SF640(P) to SF680(P), ST640(P) to ST680(P), SP740P, SP746P, SA740P, SA752PU, SA761PU, SA771PU, SFP680 and STP680. Check your exact model code against this list, because the bracket must match the display. The source data also states compatibility with nearly all Peerless-AV SmartMount flat, tilt, articulating and portrait products. Send your model code with the quote request and we will confirm the correct bracket.

Can a portrait display be fitted to a round pillar in a West Bay hotel?

Yes. The CMAL supports both landscape and portrait mounting, so a tall display on a round pillar can show directions or guest information in a West Bay hotel foyer without using wall space. Choose the orientation you need and confirm the matching SmartMount bracket for that display model. Because the mount is rated for indoor use, a lobby location away from direct sunlight and open doorways is the right type of site.

How is the CMAL fixed to the column?

Two 18-gauge straps wrap around the column, and each is tightened with a single bolt, which keeps alignment quick. Jam nuts help stop the straps loosening over time. The package includes the mount, two straps and mounting hardware. SmartRooms Qatar offers professional installation, so your facilities or IT team does not need to handle the strapping and alignment alone, particularly for a display mounted higher up the column.

What is included in the box?

The package lists one round column mount for digital signage displays, two straps and mounting hardware, sold as one unit. The display itself and any SmartMount bracket it needs are separate items, so confirm them in your quotation. Before ordering, check the column diameter, the display weight and the bracket model, so the delivered parts match the installation you have planned.

Is the CMAL suitable for a government tender in Qatar?

The CMAL is listed as RoHS and TAA compliant, and it carries a 5-year limited warranty from the manufacturer. Those declarations are often requested in procurement files for ministries and public bodies. SmartRooms Qatar works with government tenders, including Monaqasat, and accepts purchase orders and LPOs. State the model CMAL, the quantity and the column diameter in your request so the quotation matches the tender specification.

What warranty does the CMAL have?

The manufacturer provides a 5-year limited warranty on the CMAL. Keep your purchase records and product details with your asset register so that any claim can be handled quickly. SmartRooms Qatar supplies products covered by the manufacturer's warranty, and the quotation will confirm the details for your order. If your procurement team needs the warranty terms in writing, ask for them together with the quote.

How long does it take to receive a CMAL order in Qatar?

Lead times depend on stock and are confirmed in the quotation, which is usually issued within one working day. Delivery covers all eight municipalities of Qatar, including Al Khor, Al Wakrah and Mesaieed. To avoid delays, send the column diameter, display model and site location with your request, so the quote reflects the right configuration and the delivery address is correct from the start.

Do I need a site survey before mounting a CMAL on a Doha column?

A site survey is recommended for column installations. SmartRooms Qatar provides free site surveys, which check the column diameter at mounting height, the surface condition, access routes and where the display cable will run. This is useful in a Doha mall atrium or hotel foyer where a column has decorative cladding that affects how the mount can be fixed.
