Name: Peerless-AV DST940 Dual Display Ceiling Mount for 37-46 inch Screens
Brand: Peerless
SKU: peerless-dst940
Availability: InStock

Overview

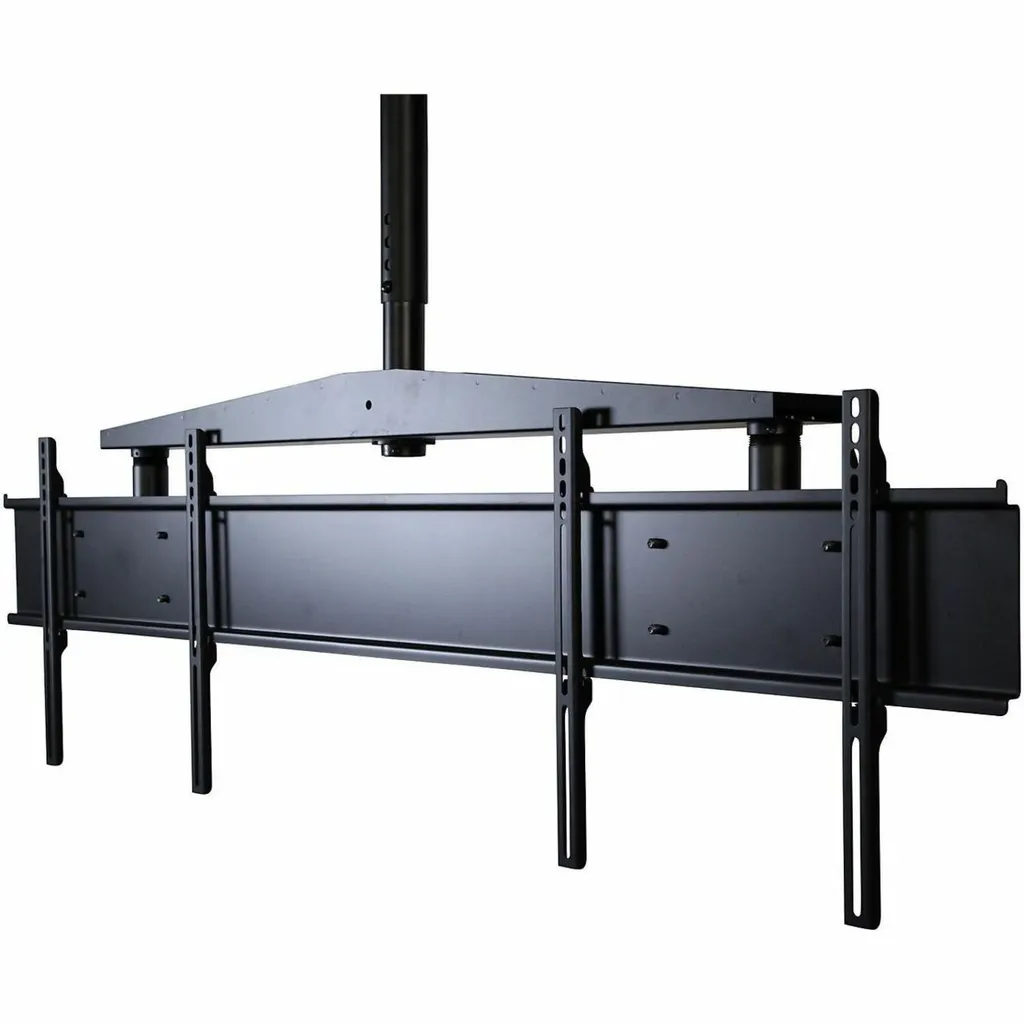

The Peerless-AV DST940 is a ceiling mount that carries two flat panel displays from 37 to 46 inches on one adaptor plate, so the screens sit on the same plane. Each display can slide horizontally and tilt up to 20 degrees. The system supports a load range of 34.02 kg to 68.04 kg and uses a 600 x 400 VESA pattern. It suits airport and restaurant menu board ceilings.

Two displays, one plane, one adaptor plate

The Peerless-AV DST940 is a ceiling mount designed to hold two flat panel displays measuring 37 to 46 inches side by side. A single adaptor plate runs behind both screens, which keeps their faces on the same plane. Each display rides on its own bracket, so the pair can be brought close together for a continuous-looking image or set apart to match the space above your counter, gate or entrance.

Because the brackets hook onto the plate, the displays do not have to be lifted and aligned one at a time against a fixed frame. Each screen can also slide horizontally and tilt up to 20 degrees, so an operator can angle the content toward the people who need to read it once the system is up.

Key figures to check against your displays

Confirm these numbers against the panels you plan to use and the ceiling structure above them.

Screen size: 37 inches (93.98 cm) to 46 inches (116.84 cm) per display
Load range: 34.02 kg minimum and 68.04 kg maximum
Tilt: up to 20 degrees
Mounting pattern: 600 x 400 VESA, with a minimum pattern of 100 x 100
Overall size: 171.45 cm wide, 47.09 cm high, 12.34 cm deep
Weight: approximately 23.59 kg for the mount system
Finish: black, powder coated

Where this system fits in Qatar

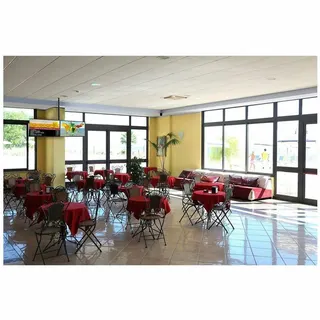

Three situations suit a ceiling-mounted pair of screens. At a concourse near Hamad International Airport, two displays hung side by side can show departures and arrivals to passengers walking beneath them. In a restaurant in West Bay or The Pearl, a pair of menu boards above the service counter lets guests read the menu while they queue, without a floor stand taking up walking space.

In a mall or department store entrance in Doha, twin screens can carry wayfinding and promotional content to visitors approaching from two directions. Because the manufacturer lists airport and restaurant menu board use, a retail entrance should be checked with the SmartRooms Qatar team before you commit to it.

What to plan before you install

The package includes two PLCM-2 mounts, two EXT006 poles, an adaptor plate, two cross supports, two adaptor bracket sets and assembly hardware. Assembly is required, so plan for a qualified installer to fix the rig to the ceiling and align both panels before they are powered. Confirm that the ceiling structure can carry the combined weight of the mount and both displays, keeping the 68.04 kg maximum in mind. Check that each display's rear holes match the 600 x 400 pattern.

The source data does not give an operating temperature range for this mount, so confirm the installation environment with the SmartRooms Qatar team before choosing a location. Areas near windows, open lobbies or outdoor-facing entrances need extra care, since summer temperatures in Qatar can exceed 45°C and dust storms are common.

The mount is covered by the manufacturer's 5-year limited warranty. SmartRooms Qatar offers a free site survey before ceiling work, professional installation, and delivery to all eight municipalities of Qatar. For organisations ordering several systems, we can process purchase orders (LPOs) and government tenders, including Monaqasat.

Send us your display models, ceiling height and installation address, and request a quote for the DST940. Our team usually replies with a quotation within one working day.

Highlights

Mounts two 37 to 46 inch flat panel displays on one adaptor plate
Horizontal sliding and tilt up to 20 degrees per display
Load range of 34.02 kg minimum to 68.04 kg maximum
600 x 400 VESA pattern with 100 x 100 minimum pattern
Includes poles, cross supports, bracket sets and assembly hardware
Manufacturer limited warranty of 5 years

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

37 specifications · Source: manufacturer · checked Oct 2026

General Information9

Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: DST940
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: Peerless-AV®
Product Series: DST940
Product Model: DST940
Product Name: Dual Display Ceiling Mount System For 37"-46" Flat Panel Displays
Packaged Quantity: 1 Unit
Product Type: Ceiling Mount

Product Information12

Device Supported: Flat Panel Display
Number of Displays Supported: 2
Minimum Load Capacity: 34.02 kg
Maximum Load Capacity: 68.04 kg
Minimum Screen Size Supported: 37" (93.98 cm)
Maximum Screen Size Supported: 46" (116.84 cm)
Features: Adjustable; Easy to Install; Gliding System; Horizontal Adjustment; Tilt
Mount Pattern Compatibility Type: Universal
Minimum Tilt Angle: 2°
Maximum Tilt Angle: 20°
Mount Function: Tilt
Mount Surface: Ceiling

Physical Characteristics11

Color Family: Black
Product Color: Black
Finishing: Powder Coated
VESA Mount Compatible: Yes
Mounting Pattern: 600 x 400
Minimum Mounting Pattern: 100 x 100
Form Factor: Ceiling Mountable
Height: 47.09 cm (18.54")
Width: 171.45 cm (67.50")
Depth: 12.34 cm (4.86")
Weight (Approximate): 23.59 kg

Miscellaneous4

Package Contents: Dual Display Ceiling Mount System For 37"-46" Flat Panel Displays; 2 x PLCM-2 Mounts,; 2 x EXT006 Poles; Adaptor Plate; 2 x Cross Support; 2 x Adaptor Bracket Sets; Assembly Hardware
Application/Usage: Airport; Restaurant Menu Board
Assembly Required: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty1

Limited Warranty: 5 Year

Downloads

4 files from the manufacturer

PDF Datasheets DST940_Product-Datasheet.pdf 192 KB PDF Manuals & guides DST940_Assembly-Instructions.pdf 1.3 MB DWG Drawings & CAD · Opens on manufacturer site DST940_CAD DRAWING.dwg URL Other documents · Opens on manufacturer site BIMobject

Questions about DST940

What is the Peerless-AV DST940 used for?

It is a ceiling mount that holds two flat panel displays from 37 to 46 inches on one shared adaptor plate, so both screens sit on the same plane. The manufacturer lists airport and restaurant menu board use, which makes it a fit for flight information areas and menu boards where two screens must show content side by side. Each display can be slid and tilted once the system is installed.

Which screen sizes and how many displays does it support?

The DST940 supports two flat panel displays, each from 37 inches (93.98 cm) to 46 inches (116.84 cm). Check each panel's diagonal and rear mounting holes before ordering, because the system is rated for that size range only. If your panels fall outside this range, send the models to the SmartRooms Qatar team before requesting a quote so the fit can be confirmed.

What load can the mount carry?

The DST940 is rated for a load range of 34.02 kg at the minimum to 68.04 kg at the maximum. The mount system itself weighs approximately 23.59 kg. Add the weight of both displays to check you are within the rated range, and ask a qualified installer to confirm that the ceiling structure can take the full combined load before fixing the system in place.

Can the displays be adjusted after they are mounted?

Yes. Both displays slide horizontally, so they can be brought together for a continuous-looking image or spaced apart for a different layout. Each display also tilts up to 20 degrees, letting you angle the screen toward a queue, a walkway or seated guests. This flexibility helps when footfall patterns or the menu change over time.

Is the DST940 suitable for flight information displays at an airport?

Airport use is one of the applications listed for this mount, so it suits flight information displays above a concourse or check-in area. Two panels on one plate can show departures and arrivals side by side for passengers walking beneath them. Before ordering, measure the ceiling height and viewing distance, and confirm your chosen displays match the 600 x 400 mounting pattern.

Can a restaurant in West Bay or The Pearl use it for menu boards?

Restaurant menu board is a listed application, so the DST940 is a good match for a restaurant in West Bay or The Pearl. Two displays above the service counter let guests read the menu while they queue, without a floor stand taking up space. Measure the distance from the counter to the screens and the ceiling height before requesting a quote.

Is it suitable for a retail entrance in Doha?

The manufacturer lists airport and restaurant menu board use for the DST940, so a retail entrance is a different setting that should be checked first. A mall or department store entrance in Doha could use two screens to show wayfinding and promotions to visitors approaching from two directions. Send the SmartRooms Qatar team your ceiling details and entrance layout so the fit and environment can be confirmed.

Is it compatible with VESA-pattern displays?

The mount is VESA mount compatible with a 600 x 400 mounting pattern and a minimum pattern of 100 x 100, and it is listed with universal pattern compatibility. Even so, check the rear holes of each display before ordering. Matching the pattern on both panels is the simplest way to avoid delays at installation, since the adaptor brackets must line up with each screen.

What is included in the box?

The package includes two PLCM-2 mounts, two EXT006 poles, an adaptor plate, two cross supports, two adaptor bracket sets and assembly hardware. Assembly is required, so check every part against this list on arrival, before the installer starts work. Keeping the list to hand makes it easier to confirm that the kit is complete.

Does the DST940 need a professional installer?

Assembly is required, and fixing a two-display system with a combined load of up to 68.04 kg into a ceiling is work for a qualified installer. SmartRooms Qatar offers professional installation and a free site survey, so the ceiling structure, cable routes and power supply points can be checked before anything is fixed. Requesting one quotation for supply and installation keeps both in one place.

Can the mount be installed in a sunny or dusty area?

The source data does not give an operating temperature range for the DST940, so this should not be assumed. Summer temperatures in Qatar can exceed 45°C, and dust storms are common, so areas near windows, open lobbies and outdoor-facing entrances need extra care. Ask the SmartRooms Qatar team to confirm the environment for your site before you choose the location and request a quote.

Does the mount have a warranty, and can we order for several sites?

The DST940 carries a 5-year limited warranty from the manufacturer. SmartRooms Qatar delivers to all eight municipalities of Qatar and accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, so send your details to get started.
