Peerless DST942-6 · Price in Qatar

Name: Peerless-AV DST942-6 Six-Display Ceiling Mount for 37 to 42-inch Screens
Brand: Peerless
SKU: peerless-dst942-6
Availability: InStock

Overview

The Peerless-AV DST942-6 is a ceiling mount that carries six displays between 37 and 42 inches on telescoping arms arranged in a circle. Each arm adjusts in depth to set the spacing, and each screen can be angled and turned independently for alignment. A bottom cover keeps cabling out of sight. It suits lobbies, control rooms and atriums in Doha where a multi-screen wall needs to hang overhead.

What the DST942-6 mounts overhead

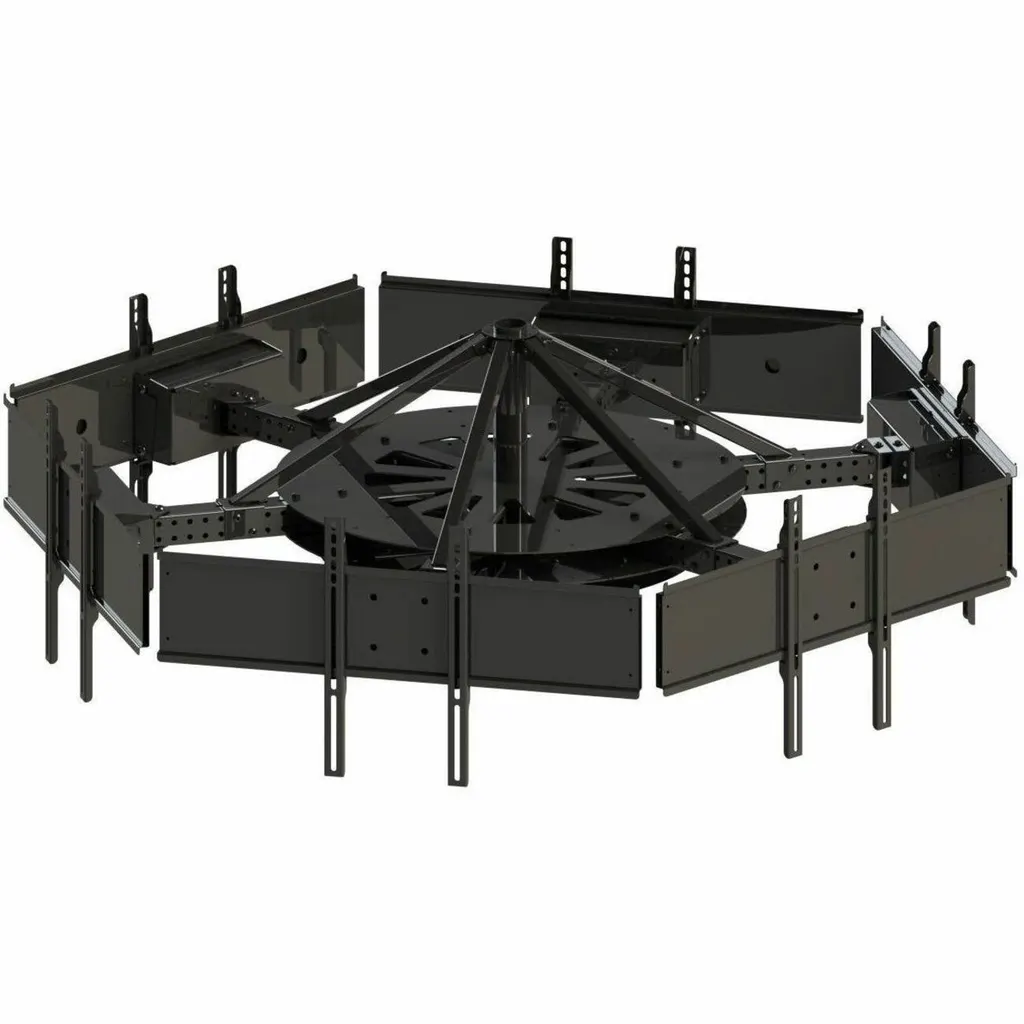

The Peerless-AV DST942-6 is a ceiling-mounted frame built for six displays at once. It is rated for screens from 37 to 42 inches, so one installation can show a single message across six panels or six separate feeds, such as queue information, sales figures or wayfinding content. The black, flat matte powder-coated finish sits quietly against dark ceiling tiles and exposed structure.

The package includes the multi-display frame, the telescoping arms, a universal adapter plate and mounting hardware. Assembly is required on site, so allow time for the installer to build the frame before the screens go up.

Telescoping arms set the spacing and angle

Each arm telescopes so the installer can set the gap between displays to suit the room, whether the screens sit close together as a tight wall or further apart as separate information points. Once fitted, the mount offers 0° to 20° of tilt and 360° of swivel for the whole assembly. Each display also swivels independently by up to 20° in either direction, which helps align several panels to the same viewing line.

Arm depth adjusts the spacing between each display
Tilt range of 0° to 20°, set at installation
Each screen swivels independently by ±20°
Bottom cover routes and hides cabling

Load, mounting pattern and weight to plan for

The mount accepts a total load between 36.29 kg and 217.72 kg, which should be checked against the combined weight of the six displays you intend to fit. Each display needs a VESA pattern up to 730 x 405 mm, with a minimum pattern of 100 x 100 mm. The frame itself weighs approximately 84.37 kg and measures 55.37 cm high and 143.26 cm across and deep. Because of that weight, have the ceiling structure assessed by a qualified person before fitting.

Where it fits in Qatar

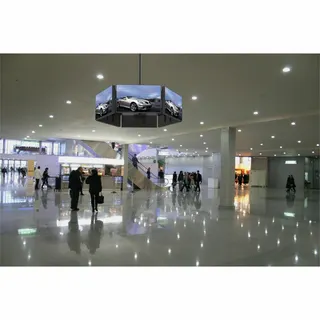

In a West Bay corporate lobby, six screens above the reception desk can show visitor information and company news without taking floor space. In Education City, a university atrium could use the same arrangement for course timetables and event listings. A hotel lobby in Msheireb or a retail atrium in Lusail might use it to display offers and wayfinding across a wide overhead area. This model is rated for indoor use, so it belongs in air-conditioned halls rather than covered outdoor areas, and you should confirm the environment with the SmartRooms Qatar team if you are unsure.

Before you order

Confirm the display model, its VESA pattern and its weight before ordering, and check that the ceiling can carry the frame and screens together. A site survey from SmartRooms Qatar lets the team check ceiling height, structure and cable routing before the job is scoped. Schools and government offices often buy several units under a purchase order, and quotations are usually issued within one working day. The mount carries the manufacturer's five-year limited warranty and is TAA and RoHS compliant. Request a quote for the DST942-6 and tell us your room layout, display models and ceiling type so we can confirm the right package.

Highlights

Holds six displays sized 37 to 42 inches on telescoping arms
Arm depth adjusts the spacing between each display
Tilt of 0° to 20° and 360° swivel set at installation
Each display swivels independently by ±20°
Load range of 36.29 kg to 217.72 kg
Mounting pattern up to 730 x 405 mm per display
Bottom cover hides cables; 5-year limited warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

40 specifications · Source: manufacturer · checked Oct 2026

General Information9

Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: DST942-6
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: Peerless-AV®
Product Series: DST942-6
Product Model: DST942-6
Product Name: Multi-Display Ceiling Mount with Six Telescoping Arms For 37" To 42" Displays
Packaged Quantity: 1 Unit
Product Type: Ceiling Mount

Product Information13

Device Supported: Display
Number of Displays Supported: 6
Minimum Load Capacity: 36.29 kg
Maximum Load Capacity: 217.72 kg
Minimum Screen Size Supported: 37" (93.98 cm)
Maximum Screen Size Supported: 42" (106.68 cm)
Features: 360° Swivel; Adjustable Arm; Adjustable Depth; Cable Management; Multiple Viewing Angle; Swivel; Telescoping; Tilt
Mount Pattern Compatibility Type: Universal
Minimum Tilt Angle: 0°
Maximum Tilt Angle: 20°
Maximum Swivel Angle: 360°
Mount Function: Cable Management; Swivel; Tilt
Mount Surface: Ceiling

Physical Characteristics11

Color Family: Black
Product Color: Black
Finishing: Flat Matte; Powder Coated
VESA Mount Compatible: Yes
Mounting Pattern: 730 x 405
Minimum Mounting Pattern: 100 x 100
Form Factor: Ceiling Mountable
Height: 55.37 cm (21.80")
Width: 143.26 cm (56.40")
Depth: 143.26 cm (56.40")
Weight (Approximate): 84.37 kg

Miscellaneous6

Package Contents: Multi-Display Ceiling Mount with Six Telescoping Arms For 37" To 42" Displays; Telescoping Arms; Universal Adapter Plate; Mounting Hardware
Indoor/Outdoor: Indoor
Manufacturer Product Class: Cart/Trolley
Assembly Required: Yes
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty1

Limited Warranty: 5 Year

Downloads

5 files from the manufacturer

PDF Datasheets DST942-6_Product-Datasheet.pdf 422 KB PDF Manuals & guides DST942-6_Assembly-Instructions.pdf 2.6 MB DWG Drawings & CAD · Opens on manufacturer site DST942-6_CAD DRAWING.dwg PDF Other documents DST942-6_Additional-pdf1.pdf 1.3 MB URL Other documents · Opens on manufacturer site BIMobject

Questions about DST942-6

What is the Peerless-AV DST942-6 used for?

It is a ceiling mount that holds six displays from 37 to 42 inches in one overhead arrangement. It suits lobbies, atriums and control rooms where several screens must share a ceiling space, such as a bank hall in Doha showing branch or queue information across six panels. The telescoping arms set the gap between screens, and each display can be angled once fitted.

Which screen sizes and how many displays does it support?

The mount supports six displays with screen sizes from 37 inches (93.98 cm) up to 42 inches (106.68 cm). Each display needs a VESA pattern between 100 x 100 mm and 730 x 405 mm. Before ordering, compare the size and mounting pattern of your panels with these figures, because a panel outside these limits is not covered by this model. Send your display list with a quote request and we will confirm compatibility.

How much weight can the ceiling mount carry?

The load range runs from 36.29 kg minimum to 217.72 kg maximum. The frame alone weighs approximately 84.37 kg, so add the weight of all six displays and confirm the total stays within the range. In a building with a concrete or suspended ceiling, the fixing points should be checked before installation. A free site survey from SmartRooms Qatar can help plan those fixing points.

How do the telescoping arms work?

Each arm telescopes to change the distance between displays. Closer spacing creates a tighter video-wall look, while wider spacing gives each screen its own area. The depth is adjusted during installation, so measure the room and agree the spacing before the arms are fixed. Accurate room measurements at the start reduce readjustment later.

What tilt and swivel angles are available?

The whole mount tilts from 0° to 20° and swivels 360° at the time of installation. Each display can also swivel independently by ±20° for final alignment. The tilt and swivel are set at installation, so decide the viewing angles beforehand, using the main viewing positions such as a meeting table or a reception desk.

Is the mount suitable for outdoor or very hot areas?

The product data lists this mount for indoor use only. It should not be fitted under open canopies, in exposed courtyards or anywhere exposed to dust storms. Summer temperatures in Qatar regularly exceed 45°C, which is a reason to keep displays in air-conditioned spaces. If you are unsure whether a partly covered area counts as indoor for your project, confirm the environment with the SmartRooms Qatar team before ordering.

How is cabling handled?

The mount includes a bottom cover that hides cables from view and provides cable management across the frame. Plan the cable routes before the screens are fitted so the cover closes neatly over the runs. Agree the entry point from the ceiling void or the equipment rack with the installer, because tidy routing makes later maintenance easier.

Does the mount need power, and does it work with Qatar 240 V sockets?

The product data gives no electrical rating for the mount itself, so the power requirement comes from the displays you attach to it. Qatar mains supply is 240 V at 50 Hz with BS 1363 (Type G) sockets. Confirm the supply specification of each display and plan socket and cable positions above the ceiling before the frame is installed.

What warranty comes with the DST942-6?

The DST942-6 carries a 5-year limited warranty from the manufacturer. Because it is a limited warranty, check the manufacturer's terms for coverage details before ordering. For a government tender or school budget, include the warranty period in your specification. Request a quote and the SmartRooms Qatar team will confirm what applies to your order.

Can schools and government offices order several units at once?

Yes. Ministries, authorities and schools buying more than one mount can order through a purchase order (LPO) or a government tender process. Each installation still needs its own ceiling assessment and load check, because the frame weighs approximately 84.37 kg. SmartRooms Qatar supplies, delivers to all eight municipalities of Qatar, installs, and usually issues quotations within one working day.

Would this suit a hotel lobby in West Bay or a mall atrium in Lusail?

Yes, it suits a hotel lobby in West Bay or a mall atrium in Lusail that needs six screens over a wide overhead area without using floor space. Measure the ceiling height, the distances between screens and the sightlines from walking positions before ordering. Because the frame is heavy, the ceiling structure should be assessed in advance. Send your room dimensions with your quote request.

How is installation handled, and is a site visit included?

SmartRooms Qatar offers professional installation and free site surveys. The DST942-6 requires on-site assembly, so the installer builds the frame and fits the arms before the displays are mounted. A survey before work starts lets the team check ceiling height and structure in a Doha office, school or hotel. Request a quote and include photos of the ceiling if you have them.
