Name: Peerless-AV DST970X2 Dual Display Ceiling Mount for 40-70-inch Displays
Brand: Peerless
SKU: peerless-dst970x2
Availability: InStock

Overview

The Peerless-AV DST970X2 is a ceiling mount that carries two digital signage displays from a single column, suited to screens from 40 to 70 inches. Each display has independent swivel and tilt for separate aiming. It supports 56.70 to 113.40 kg combined and patterns up to 600 x 400 mm. It suits lobbies, reception areas and concourses where two screens share one ceiling point.

One ceiling column for two signage displays

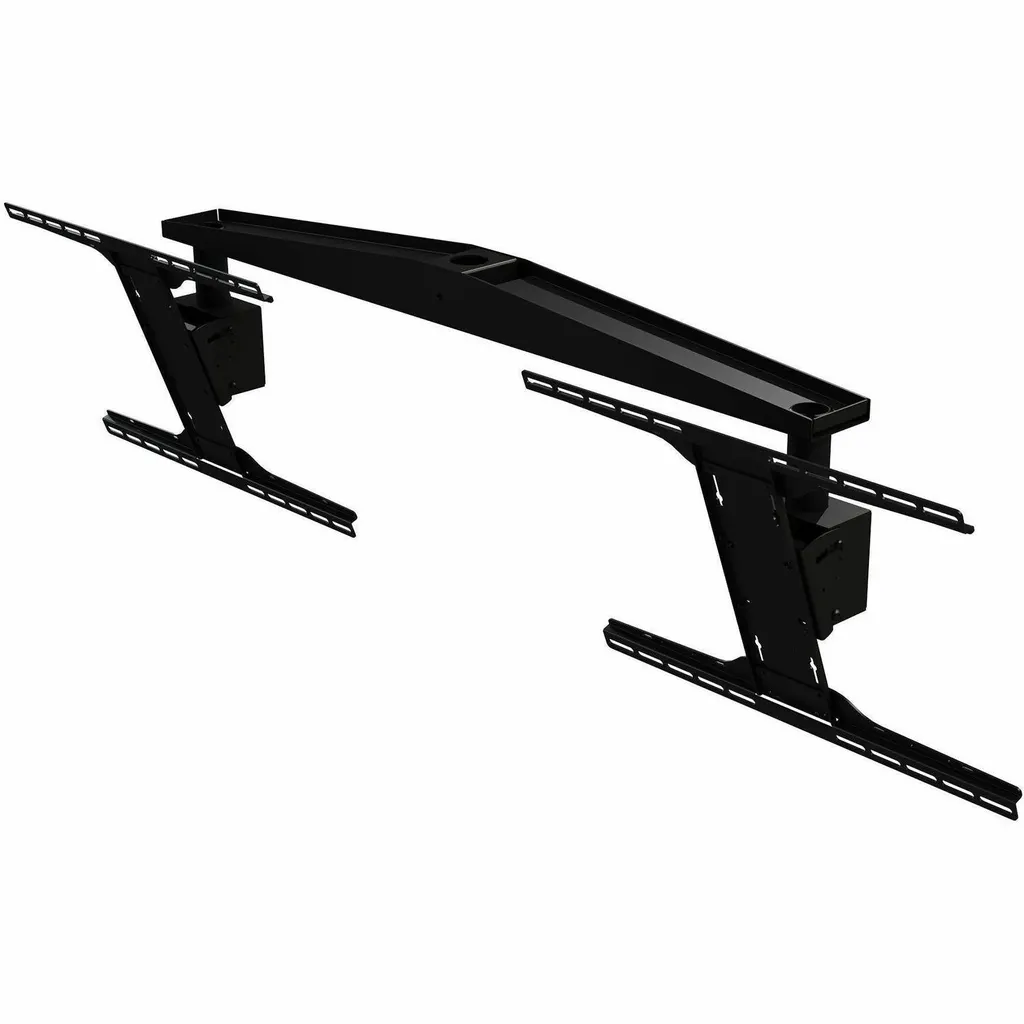

The DST970X2 is a ceiling mount built to hold two digital signage displays from one column instead of two separate fixings. Each display sits on its own adaptor and can be positioned independently, so one ceiling point can serve two sightlines. Peerless-AV lists the mount for screens from 40 inches (101.60 cm) to 70 inches (177.80 cm).

Specifications that shape your planning

Before ordering, check the figures below against your displays and ceiling structure:

Load range: 56.70 kg minimum and 113.40 kg maximum.
VESA pattern: adaptors accommodate patterns up to 600 x 400 mm, with a minimum pattern of 100 x 100.
Dimensions: 171.75 cm wide, 42.55 cm high and 11.23 cm deep.
Weight: approximately 22.68 kg for the mount itself.
Finish: powder-coated steel in black.

Add the weight of both displays together and confirm the total sits inside the rated range. The mount is only as suitable as the ceiling it is fixed to, so the structure should be assessed on site.

Aiming each screen and planning the width

Independent swivel and tilt on each side lets you point one display at a queue or entrance and the other at a seating area or wayfinding zone. The manufacturer notes one limit to plan around: when both displays face forward, display width is restricted to 44 inches. If your layout needs two forward-facing screens, measure the displays you intend to use before committing to the design.

Where it fits in Qatar

Hotel lobby in West Bay: two screens above a check-in area, one showing arrivals and one showing dining or event information.
Bank branch in Al Sadd: one display angled toward the teller queue and one toward the waiting seats, keeping the floor clear of stands.
Tall atrium in Lusail: a ceiling column that keeps two directional screens visible from both ends of a mall concourse.

Installation and what to plan for

Assembly is required. The package includes a dual cross support, two 6-inch extension columns, two tilt boxes, two universal adaptors and mounting hardware. The mount is compatible with Peerless-AV fixed length and adjustable extension columns, so confirm the column length needed for your ceiling height. The source data does not give an operating temperature range, so confirm the installation environment with the SmartRooms Qatar team before fitting it in a space that is not air-conditioned or sits close to windows exposed to summer heat and dust.

SmartRooms Qatar offers a free site survey, professional installation and delivery to all eight municipalities of Qatar. The mount is TAA compliant, meets RoHS requirements and carries a 5-year limited manufacturer warranty.

To request a quote for the DST970X2, share your display models, ceiling height and the planned location. Quotations are usually issued within one working day, and purchase orders and Monaqasat tender documents are welcome.

Highlights

Holds two displays from one ceiling column
Supports screens from 40 to 70 inches
Combined load range 56.70 kg to 113.40 kg
Independent swivel and tilt for each display
Adaptors accommodate VESA patterns up to 600 x 400 mm
Five-year limited manufacturer warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

37 specifications · Source: manufacturer · checked Oct 2026

General Information9

Manufacturer: Peerless Industries, Inc
Manufacturer Part Number: dst970x2
Manufacturer Website Address: http://www.peerless-av.eu.com
Brand Name: Peerless-AV®
Product Series: DST970X2
Product Model: DST970X2
Product Name: Dual Display Ceiling Mount for 40" to 70" Displays
Packaged Quantity: 1 Unit
Product Type: Ceiling Mount

Product Information10

Device Supported: Digital Signage Display
Number of Displays Supported: 2
Minimum Load Capacity: 56.70 kg
Maximum Load Capacity: 113.40 kg
Minimum Screen Size Supported: 40" (101.60 cm)
Maximum Screen Size Supported: 70" (177.80 cm)
Features: Adjustable; Hook; Multiple Viewing Angle; Swivel; Tilt
Mount Pattern Compatibility Type: Universal
Mount Function: Adjustable; Swivel; Tilt
Mount Surface: Ceiling

Physical Characteristics12

Color Family: Black
Product Color: Black
Finishing: Powder Coated
VESA Mount Compatible: Yes
Mounting Pattern: 600 x 400
Minimum Mounting Pattern: 100 x 100
Product Material: Steel
Form Factor: Ceiling Mountable
Height: 42.55 cm (16.75")
Width: 171.75 cm (67.62")
Depth: 11.23 cm (4.42")
Weight (Approximate): 22.68 kg

Miscellaneous5

Package Contents: Dual Display Ceiling Mount for 40" to 70" Displays; Dual Cross Support; 2 x 6" Extension Column; 2 x Tilt Box; 2 x Universal Adaptor; Mounting Hardware
Manufacturer Product Class: Ceiling Mount
Assembly Required: Yes
TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty1

Limited Warranty: 5 Year

Downloads

5 files from the manufacturer

PDF Datasheets DST970X2_Product-Datasheet.pdf 231 KB PDF Manuals & guides DST970X2_Assembly-Instructions.pdf 5.2 MB DWG Drawings & CAD · Opens on manufacturer site DST970X2_CAD DRAWING.dwg PDF Other documents DST970X2_Additional-pdf1.pdf 1.3 MB URL Other documents · Opens on manufacturer site BIMobject

Questions about DST970X2

What is the Peerless-AV DST970X2 used for?

It is a ceiling mount that holds two digital signage displays from one column, for screens between 40 and 70 inches. It suits places where two screens must share one ceiling point, such as a hotel lobby in West Bay or a reception area in Doha. Using one column reduces the number of ceiling fixings and gives both screens a consistent, tidy installation.

Which display sizes does the DST970X2 support?

The mount supports displays from 40 inches (101.60 cm) to 70 inches (177.80 cm). The universal adaptors accommodate mounting hole patterns up to 600 x 400 mm and are compatible with most displays in that range. Check the rear VESA pattern of your specific model, as the minimum supported pattern is 100 x 100.

What is the load capacity of the mount?

The stated load range is 56.70 kg minimum and 113.40 kg maximum. Add the weight of both displays together and confirm the total sits within this range. The mount itself weighs approximately 22.68 kg, so include that in your ceiling structural assessment. SmartRooms Qatar can review the ceiling on a free site survey before installation.

Can both displays face forward at the same time?

Yes, but the manufacturer notes that display width is limited to 44 inches when both displays face forward. Wider panels may therefore not fit in a forward-facing pair. For a concourse or mall atrium in Lusail where both screens face the same direction, measure your chosen displays first, or consider angling one screen to avoid the restriction.

Can each display be angled independently?

Yes. Each display has its own swivel and tilt, so you can aim them separately. In a bank branch in Al Sadd, for example, one screen can face the teller queue while the other points toward the waiting seats. This keeps both messages readable without changing the position of the column in the ceiling.

Does the mount need professional installation?

Assembly is required, and the package includes a dual cross support, two 6-inch extension columns, two tilt boxes, two universal adaptors and mounting hardware. SmartRooms Qatar offers professional installation and a free site survey. Given the combined weight of two displays and the ceiling loading involved, professional fitting is the safer route for most sites.

Is the mount compatible with extension columns?

Yes, the mount is compatible with Peerless-AV fixed length and adjustable extension columns. The package already includes two 6-inch extension columns. In a tall atrium, the column length determines the final display height, so confirm your ceiling height and the viewing height you need before ordering, and let the SmartRooms Qatar team match the column to your site.

Can I install it in a hot, sunlit area in Doha?

The source data does not give an operating temperature range or an outdoor rating for this mount. Before installing it near windows, in a covered outdoor area or in a space without air conditioning, confirm the environment with the SmartRooms Qatar team. Summer temperatures in Doha regularly exceed 45°C, so this check matters for the displays as well as the mount.

What warranty comes with the DST970X2?

The manufacturer provides a 5-year limited warranty on this mount. SmartRooms Qatar supplies the product with that manufacturer warranty. If you are buying for an organisation, include the warranty term in your procurement file alongside the quotation and any purchase order details.

Is the DST970X2 compliant with recognised standards?

The product is listed as TAA compliant and as meeting RoHS requirements for restriction of hazardous substances. These details are useful for procurement teams that need to document compliance in tender files, including government tenders in Qatar. Confirm any further compliance documents you need when requesting a quote.

How do I buy this mount through SmartRooms Qatar?

Request a quote by sending your display models, ceiling height and install location. Quotations are usually issued within one working day. SmartRooms Qatar accepts bank transfer, cheque or purchase order, and can work with LPOs and government tenders, including Monaqasat. Delivery covers all eight municipalities of Qatar.

Should I buy one mount for each pair of displays?

Yes. Each DST970X2 is designed for two displays from one column, so one unit serves one pair. A school or office fitting out several rooms or areas would order one unit per pair, and the quotation can cover multiple units on one purchase order. Ask the SmartRooms Qatar team to check the display models and ceiling heights for each location.
