IRTO55-XHB4
Peerless IRTO55-XHB4 55-inch IR Touch Overlay for Smart City Kiosk
- Screen size
- 55" (139.70 cm)
- Protection
- IP65
- Operating temp.
- -10°C to 40°C
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Peerless-AV IRTO55-XHB4 is an infrared touch overlay built for the 55-inch display of the KOP55XHB and KOP55XHB2 Smart City Kiosks. It reads up to ten simultaneous touch points with a 15 ms response, accepts a bare finger, a gloved finger or a stylus, and carries an IP65 rating in a powder-coated stainless steel housing. It suits public-facing kiosk projects in Qatar at councils, airports, hotels and malls.
What the overlay adds to a 55-inch kiosk

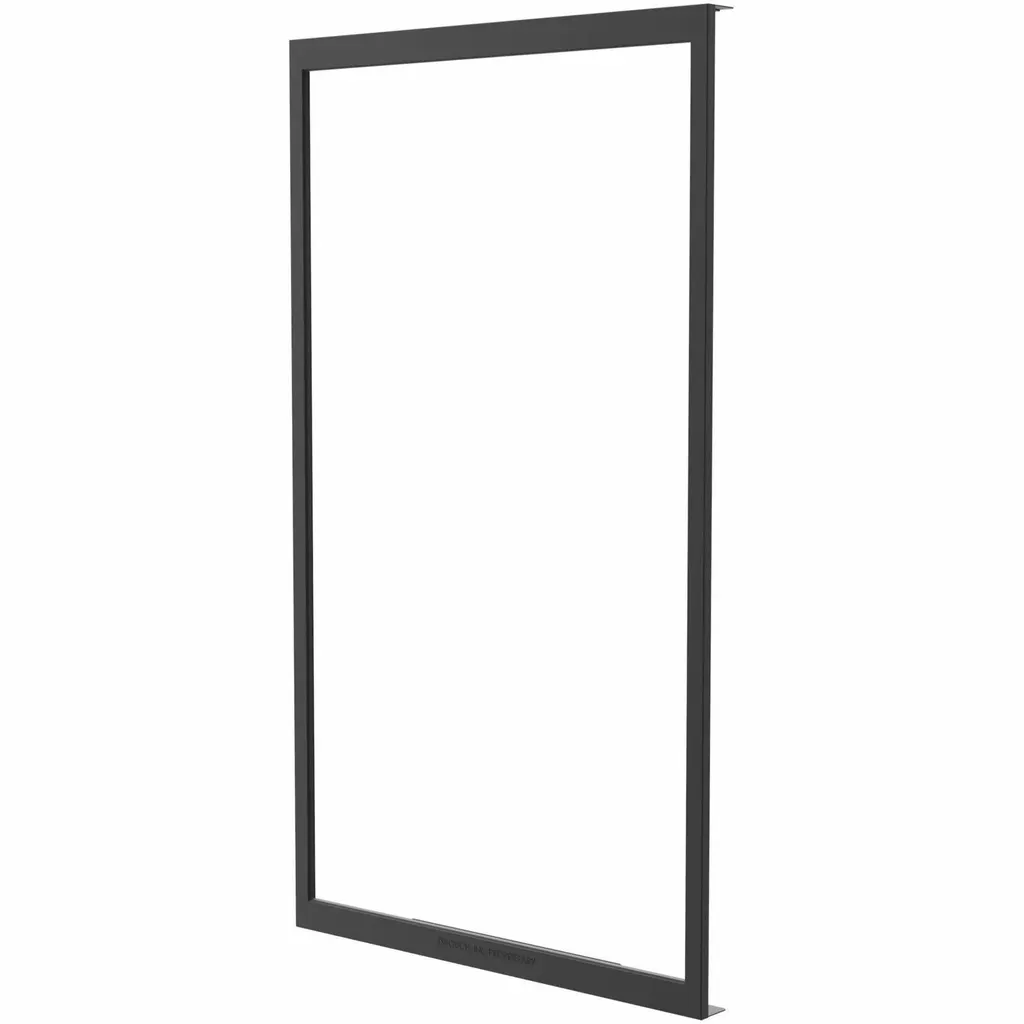

This is an infrared touch overlay that sits in front of a compatible kiosk display and turns the screen into a touch surface without replacing the panel. It is listed for the Peerless-AV KOP55XHB Smart City Kiosk and the dual-sided KOP55XHB2, both of which use a 55-inch display. Because the sensing is optical, the overlay does not depend on a coating laid over the glass, which keeps the existing screen in use.
Specifications that shape the purchase
Five figures matter most when a procurement team compares this unit with other touch options:
- Ten simultaneous touch points for multi-user content such as maps and directories.
- 15 ms touch response, which keeps gestures and taps feeling immediate.
- IP65 rating with a powder-coated stainless steel housing for dusty and humid sites.
- Operating range of -10°C to 40°C, which sets the limit for where the kiosk can stand.
- USB power at 5 V DC with a listed maximum consumption of 105 W, and a 304.80 cm (120 inches) USB cable in the box.
Where it fits in Qatar

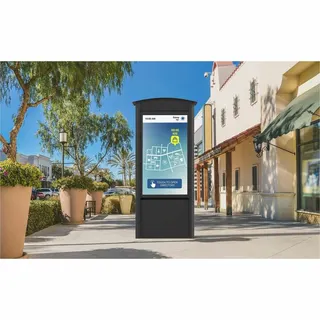

A government service centre in Doha might add touch wayfinding to a kiosk in its lobby, so visitors can find the right counter without queuing at the desk. A shopping mall in Lusail could place a kiosk in an air-conditioned atrium to show store directories and event schedules. A hotel in The Pearl could use one at the entrance for guest information. In each case the kiosk has to stay within its operating range, which is why the location matters as much as the overlay itself.
What to plan before you order
- Confirm the kiosk is a KOP55XHB or KOP55XHB2 with a 55-inch display.
- Check the overlay footprint: 130.61 cm high, 74.27 cm wide and 6.22 cm deep, plus the route through the lobby.
- Plan the USB cable route inside the cabinet and the power arrangement, since assembly is required.
- Check sun exposure and shade, because summer conditions in Qatar can exceed the 40°C upper limit.
- Confirm your operating systems: Android, ChromeOS, Linux, Mac OS and Windows are listed.
The overlay carries a 2-year limited warranty from the manufacturer. Request a quote from SmartRooms Qatar with your kiosk model, site location and quantity. Our team will confirm compatibility and installation scope with the quotation, with lead times based on stock.
Highlights
- Ten simultaneous touch points using infrared sensing
- 15 ms touch response time
- Finger, gloved finger or stylus input
- IP65 rating with powder-coated stainless steel
- Operating range from -10°C to 40°C
- Listed for KOP55XHB and KOP55XHB2 kiosks
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
35 specifications · Source: manufacturer · checked Oct 2026
General Information9
- Manufacturer
- Peerless Industries, Inc
- Manufacturer Part Number
- IRTO55XHB4
- Manufacturer Website Address
- http://www.peerless-av.eu.com
- Brand Name
- Xtreme™
- Product Series
- SC-IR-TOUCH-OVERLAY
- Product Model
- IRTO55-XHB4
- Product Name
- IR Touch Overlay for Stand Alone Install & Use With KOP55XHB(2)-EUK Kiosks
- Packaged Quantity
- 1
- Product Type
- Touchscreen Overlay
Technical Information9
- Display Type Supported
- LCD
- Maximum Screen Size Supported
- 55" (139.70 cm)
- Sensor Type
- Infrared (IrDA)
- Touch Response Time
- 15 ms
- Number of Touch Points
- 10-point
- Input Device Type
- Stylus
- Cable Length
- 304.80 cm (120")
- HID Compliant
- Yes
- Ingress Protection (IP) Rating
- IP65
Interfaces/Ports1
- Host Interface
- USB
Power Description3
- Input Voltage
- 5 V DC
- Power Source
- USB
- Maximum Power Consumption
- 105 W
Environmental Conditions1
- Operating Temperature Range
- -10°C to 40°C
Physical Characteristics7
- Color Family
- Black
- Finishing
- Powder Coated
- Product Color
- Black
- Product Material
- Stainless Steel
- Height
- 130.61 cm (51.42")
- Width
- 74.27 cm (29.24")
- Depth
- 6.22 cm (2.45")
Miscellaneous4
- Package Contents
- IR Touch Overlay for Stand Alone Install & Use With KOP55XHB(2)-EUK Kiosks; USB Cable; Instruction Manual; ACCD-ALS
- Operating System Compatibility
- Android; ChromeOS; Linux; Mac OS; Windows
- Compatibility
- Peerless-AV KOP55XHB Smart City Kiosk; Peerless-AV KOP55XHB2 Dual-Sided Smart City Kiosk
- Assembly Required
- Yes
Warranty1
- Limited Warranty
- 2 Year
Downloads
3 files from the manufacturerQuestions about IRTO55-XHB4
Which kiosks is the IRTO55-XHB4 designed for?
The overlay is listed for the Peerless-AV KOP55XHB Smart City Kiosk and the KOP55XHB2 dual-sided Smart City Kiosk. It is built around the integrated 55-inch display of those kiosks. Before ordering, confirm your kiosk model with the SmartRooms Qatar team, because a different cabinet or display size falls outside the listed compatibility. Include the kiosk model and quantity in your quote request.
Does it work with a display other than the kiosk's 55-inch screen?
The source data lists support for LCD displays up to 55 inches (139.70 cm). A larger screen, or a non-LCD panel, falls outside the stated specification, so a 65-inch LCD or an OLED screen should not be assumed to work. If you are retrofitting an existing display rather than buying a complete kiosk, send its make, model and size with your quote request so the team can confirm the match.
How does the touch sensing work?
It uses infrared (IrDA) sensing and reports up to ten simultaneous touch points with a response time of 15 ms. The overlay responds to a bare finger, a gloved finger and a stylus, which suits staff at a counter kiosk who wear gloves. Because the sensing is optical, touch registers on the screen surface without pressing into the glass.
Which operating systems are supported?
The listed operating system compatibility covers Android, ChromeOS, Linux, Mac OS and Windows. The overlay is HID compliant and connects through a USB host interface using the included USB cable. For a Windows-based kiosk in a hotel lobby or a Linux-based wayfinding terminal, ask the SmartRooms Qatar team to confirm that your kiosk software accepts a standard HID touch input.
What power does it need and how is it connected?
The overlay draws power over USB at 5 V DC, and the listed maximum power consumption is 105 W. The source data does not describe a separate mains adapter for the overlay, so confirm how the kiosk supplies power and USB connectivity before installation. The package includes a 304.80 cm (120 inches) USB cable and an instruction manual, which helps with planning cable routing inside the cabinet.
Can it run in Qatar's summer heat?
Its listed operating temperature range is -10°C to 40°C. Summer afternoons in Doha can go above 45°C, which is beyond that upper limit. Place the kiosk out of direct sun, in shade or in an air-conditioned lobby, and check cabinet ventilation during planning. A free site survey from SmartRooms Qatar lets the team assess sun exposure and airflow before the kiosk is fixed in position.
Is it suitable for outdoor sites affected by dust storms?
It carries an IP65 rating, which indicates a dust-tight enclosure with protection against water jets, and its housing is powder-coated stainless steel. That supports dust-prone locations such as a transport forecourt or an industrial area. The operating temperature limit still applies, so a kiosk in full sun in Mesaieed would need shade or a suitable enclosure, confirmed during the site survey.
How large is the overlay and what space should I allow?
The overlay measures 130.61 cm high, 74.27 cm wide and 6.22 cm deep. Check these figures against the kiosk footprint, the approach route and any doorway it must pass through on delivery. In a West Bay or Msheireb lobby, allow clear floor space in front of the screen so users can stand comfortably and a queue does not form around them.
Is assembly required, and who installs it?
Yes, the manufacturer lists assembly as required. SmartRooms Qatar offers professional installation and free site surveys, so the team can fit the overlay to a kiosk at your site in Doha, Lusail or Al Rayyan. Ask for installation to be included in the quotation, and confirm the cable route and power point before the installer arrives.
What warranty comes with it?
The manufacturer provides a 2-year limited warranty on the IRTO55-XHB4, and SmartRooms Qatar supplies the product with that manufacturer warranty. Keep the invoice with your asset records so the facilities team can link any warranty claim to the specific installed kiosk and its overlay.
Can a government body order it through an LPO or tender?
Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including those published on Monaqasat, and accepts payment by bank transfer, cheque or purchase order. A ministry or municipality adding touch kiosks across several sites can request one quote covering overlays, cable lengths and installation, so the purchase order matches the agreed scope.
Is it better to add the overlay to an existing kiosk or buy a new one?
It is worth considering if your site already has a compatible KOP55XHB or KOP55XHB2 Smart City Kiosk with a 55-inch display, because the overlay adds touch input without a new cabinet. If your kiosk is a different model or screen size, the overlay is not listed for it and a compatible kiosk is the safer route. Ask for both options in one quote so you can compare costs and lead times.
