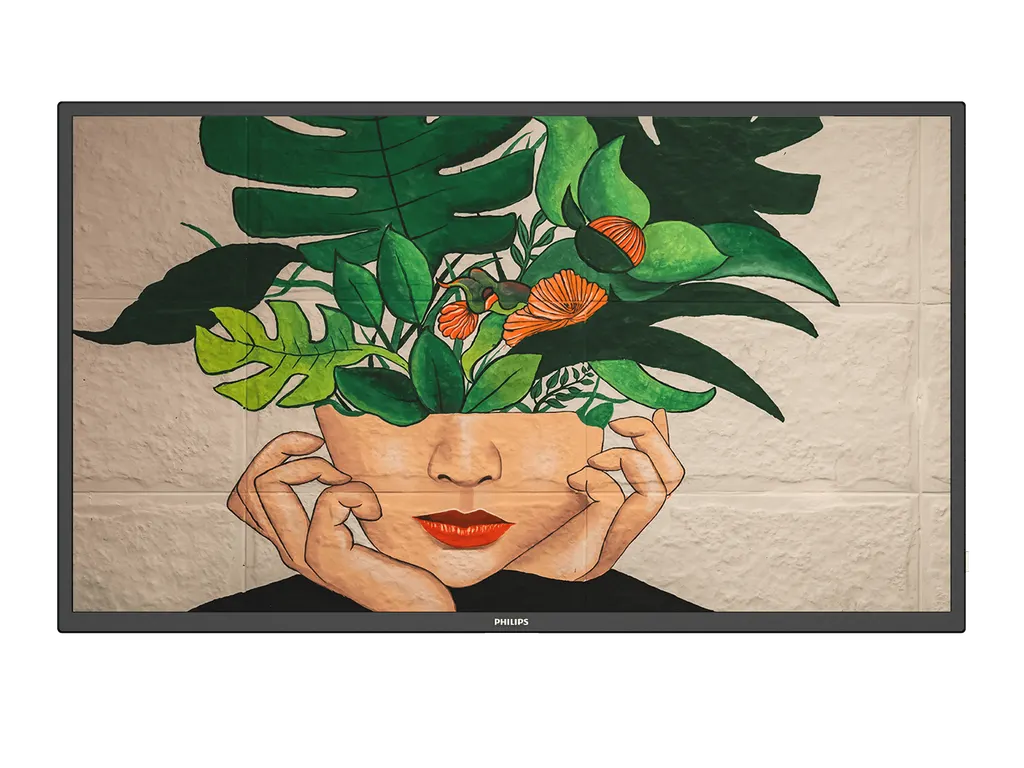

Philips 32BDL4550D/00 32-inch D-Line Signage Display

Name: Philips 32BDL4550D/00 32-inch D-Line Signage Display
Brand: Philips
SKU: philips-32bdl4550d-00
Availability: InStock

Overview

The Philips 32BDL4550D/00 is a 32-inch Full HD signage display running Android 8.0, with a 400 cd/m² IPS panel, built-in dual-band Wi-Fi and 32 GB internal storage for playback without an external player. It can run in landscape or portrait, and FailOver switches to a backup input if the primary source fails. Suited to clinics, hotels and retail counters in Doha that need on-screen information on a compact display.

A 32-inch signage display with its own player

The Philips 32BDL4550D/00 is a 32-inch display from the Signage 4000 Series D-Line range, built for continuous digital signage rather than meeting-room presentations. Its 1920 x 1080 IPS panel has a 16:9 aspect ratio and 400 cd/m² brightness, which suits hallway boards, queue screens, menu boards and wayfinding points where people pass at close range.

Panel performance includes a 1200:1 typical contrast ratio, 8 ms typical response time, 16.7 million colours and 178-degree horizontal and vertical viewing angles, so a message stays readable to people beside the screen as well as in front of it.

Android playback, scheduling and monitoring

The display runs Android 8.0 on an internal player with 3 GB of DDR memory and 32 GB of eMMC storage. Content can be loaded straight into internal memory for instant playback without a separate media box, and the same memory caches streamed content.

SmartBrowser: a Chromium-based HTML5 browser that shows online content in landscape or portrait at full HD, with picture-in-picture for streams.
FailOver: switches automatically to a secondary input if the primary source stops.
Proof of Play: periodic screenshots saved to internal memory, optionally sent by email.
CMND platform: drag-and-drop content creation, templates and fleet management over LAN or RF.

Connections, power and Qatar's summer heat

Inputs include two HDMI 2.0 ports, one DisplayPort 1.2, one DVI-I and two USB 2.0 ports, with DisplayPort and HDMI outputs for passing a signal on to a second screen. Wi-Fi is dual-band (2.4 GHz and 5 GHz), wired networking uses RJ45, RS232 and IR allow external control, and two 10 W RMS speakers are built in.

Typical power consumption is 44 W, with 85 W maximum and under 0.5 W on standby. The backlight can be preset to reduce power use by up to 50%. The mains input is 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V supply. The operating range is 0 to 40 °C, well below summer temperatures above 45 °C, so the display should sit in air-conditioned rooms or a properly cooled enclosure. Confirm the site with the SmartRooms Qatar team before fixing it near windows or in a hot lobby.

Where it fits in Qatar

Clinic and hospital waiting areas: a clinic in Al Sadd running queue numbers and health information in portrait mode, with screenshots confirming the content ran.
Hotel and serviced apartment lobbies: a property in The Pearl or West Bay showing arrival information and local directions, updated from one point across the network.
Government and bank service halls: a counter area in Msheireb showing queue information, with the on-screen menus set to Arabic.

Planning the mount and the order

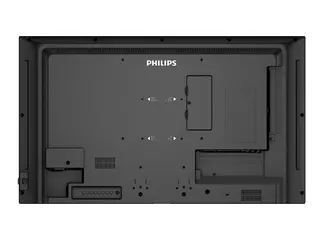

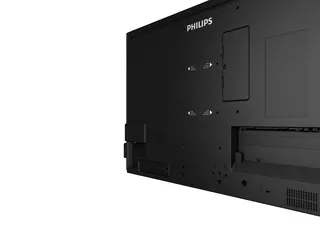

With a wall mount the set measures 726.5 mm wide, 425.4 mm high and 65.1 mm deep, and weighs 5.7 kg. VESA patterns are 100 x 100 mm and 200 x 200 mm (M4). The optional BM05911 stand is available separately. Side and top bezels are 11.9 mm and the bottom bezel is 17.2 mm, and the tiled matrix supports up to 10 by 15 units for larger walls. The box includes a remote control with AAA batteries, AC power cord, RS232 cable, 1.8 m IR sensor cable, quick start guide, screws and a USB cover.

The unit carries a 3-year warranty. SmartRooms Qatar provides a free site survey before any wall fixing, delivery to all eight municipalities of Qatar, professional installation, and quotations usually within one working day. Organisations can order by LPO or through government tenders including Monaqasat. Payment is by bank transfer, cheque or purchase order.

To check whether this 32-inch display suits your entrance, corridor or service counter, request a quote from SmartRooms Qatar and we will confirm the mounting option and accessories for your site.

Highlights

32-inch 1920 x 1080 IPS panel with 400 cd/m² brightness
Android 8.0 with 3 GB memory and 32 GB internal storage
FailOver switches to a backup input automatically
Dual-band Wi-Fi (2.4 GHz and 5 GHz) plus RJ45 networking
Typical power 44 W; backlight preset cuts use up to 50%
3-year warranty; 100 to 240 VAC, 50 to 60 Hz power input

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

66 specifications · Source: manufacturer · checked Oct 2026

Connectivity6

Audio output: 3.5 mm jack
Wi-Fi: dual aerial 2,4Ghz and 5Ghz
Audio input: 3.5 mm jack
External control: RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack
Video output: DisplayPort 1.2 (x 1); HDMI 2.0 (x 1)
Video input: Display Port1.2 (x 1); DVI-I (x 1); HDMI 2.0 (x 2); USB 2.0 (x 2)

Convenience8

Energy-saving functions: Smart Power
Tiled Matrix: Up to 10 x 15
Network controllable: RS232
Wi-Fi protocol: a b g n, 802.1x
Keyboard control: Hidden; Lockable
Placement: Landscape (24/7); Portrait (24/7)
Screen-saving functions: Pixel Shift, Low Bright
Signal loop through: RS232; IR Loop through; DisplayPort; HDMI

Accessories3

Stand: BM05911 (Optional)
Included Accessories: RS232 daisy-chain cable; Philips logo (x 1); USB Cover (x 1); Screws
Included accessories: Quick start guide; RS232 cable; AC Power Cord; IR sensor cable (1.8 M); Remote Control and AAA Batteries

Internal Player4

CPU: 2 x A53 + 2 x A73
Memory: 3 GB DDR
GPU: ARM Mali G51
Storage: 32 GB eMMc

Dimensions10

Wall Mount: 100 (H) x 100 (V) mm / 200 (H) x 200 (V) mm, M4
Set Width (inch): 28.60 inch
Set Width: 726.5 mm
Set Height: 425.4 mm
Product weight (lb): 12.57 lb
Product weight: 5.7 kg
Bezel width: 11.9 mm (T/L/R), 17.2 mm (B)
Set Depth (inch): 2.56 (@Wall mount)/ 2.72 (@AC) inch
Set Depth: 65.1 (@Wall mount)/ 69.1 (@AC) mm
Set Height (inch): 16.75 inch

Sound1

Built-in speakers: 2 x 10 W RMS

Power4

Energy Label Class: G
Consumption (Max): 85 W
Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical): 44 W

Multimedia Applications3

USB Playback Audio: AAC; HEAAC; MPEG
USB Playback Video: MPEG; H.263; H.264; H.265
USB Playback Picture: BMP; JPEG; PNG

Miscellaneous3

On-Screen Display Languages: English; French; German; Spanish; Polish; Turkish; Russian; Italian; Simplified Chinese; Traditional Chinese; Arabic; Japanese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish
Warranty: 3 year warranty
Regulatory approvals: CE; CCC; RoHS; BSMI; CB; VCCI; CU; EMF; EnergyStar 8.0; ETL; FCC, Class A; PSB

Operating conditions6

Temperature range (operation): 0 ~ 40 °C
Humidity range (storage) [RH]: 5–95% RH (No condensation)
Humidity range (operation)[RH]: 20–80% RH (No condensation)
MTBF: 50,000 hour(s)
Temperature range (storage): -20 ~ 60 °C
Altitude: 0 ~ 3000 m

Picture/Display16

Brightness: 400 cd/m²
Picture enhancement: 3/2 - 2/2 motion pull down; 3D Combfilter; Motion compens. deinterlacing; 3D MA deinterlacing; Dynamic contrast enhancement; Progressive scan
Display colours: 16.7 million
Diagonal screen size (metric): 81.28 cm
Panel technology: IPS
Operating system: Android 8.0
Response time (typical): 8 ms
Aspect ratio: 16:9
Viewing angle (horizontal): 178 degree
Dynamic contrast ratio: 500,000:1
Pixel pitch: 0.36375 (H) x 0.36375 (V) mm
Panel resolution: 1920 x 1080p
Contrast ratio (typical): 1200:1
Viewing angle (vertical): 178 degree
Diagonal screen size (inch): 32 inch
Optimum resolution: 1920 x 1080 @ 60 Hz

Supported Display Resolution2

Video formats: 1080i, 50, 60 Hz; 576i, 50 Hz; 576p, 50 Hz; 480p, 60 Hz; 480i, 60 Hz; 1080p, 50, 60 Hz; 720p, 50,60 Hz
Computer formats: 1920 x 1080, 60 Hz; 1024 x 768, 60 Hz; 1280 x 1024, 60 Hz; 1280 x 720, 60 Hz; 1440 x 900, 60 Hz; 1600 x 900, 60 Hz; 1680 x 1050, 60 Hz; 640 x 480, 60 Hz; 800 x 600, 60 Hz

Downloads

6 files from the manufacturer

PDF Datasheets 32BDL4550D_00_2021-06-07_02h56m25s.pdf 839 KB PDF Manuals & guides 32BDL4550D_dfu_V1_01_eng.pdf 17.9 MB PDF Manuals & guides · Opens on manufacturer site 1726687491-32bdl4550d_dfu_v1-01_ara-pdf.pdf PDF Manuals & guides · Opens on manufacturer site 1726687778-32bdl4550d_dfu_v1-01_ara-pdf.pdf PDF Drawings & CAD 32BDL4550D_Outline_Drawing_without_Stand_V1_0_20200908.pdf 335 KB PDF Certificates & compliance 32BDL4550D_Label_424903.pdf 91 KB

Questions about 32BDL4550D/00

What is the Philips 32BDL4550D/00 designed for?

It is a 32-inch display built for digital signage, so it suits continuous content loops rather than long presentations. Typical uses include queue screens, wayfinding, menu boards and information panels in hospitals, hotels, banks and retail. The 1920 x 1080 IPS panel with 400 cd/m² brightness and 178-degree viewing angles keeps messages readable from the side of a corridor as well as from the front. Its Android 8.0 internal player means content can run without a separate media box.

Can it play content without an external media player?

Yes. The display has 32 GB of eMMC storage and 3 GB of DDR memory, so you can load images, video and audio into internal memory for instant playback. Supported USB formats include MPEG, H.263, H.264 and H.265 video, AAC, HE-AAC and MPEG audio, and BMP, JPEG and PNG pictures. The same memory also acts as a cache for online streaming, which helps when content is delivered over the network.

Can it be used in portrait orientation for queue or wayfinding screens?

Yes. The data lists both landscape and portrait placement for continuous 24/7 operation, and the HTML5 browser can show full HD content in either orientation. This suits a tall sign at a hospital reception in Doha or a vertical directory beside a lift in an office tower in Lusail. Check that the bracket you choose supports portrait mounting before ordering, and confirm the layout with the SmartRooms Qatar team during the site survey.

What happens if the main video source fails?

FailOver switches the display automatically between a primary input and a list of secondary inputs when the primary source stops, so the screen does not go blank. You set the order of alternative inputs in advance. This matters in a hotel lobby or bank hall, where a blank screen can look like a service failure. The backup source might be a second media player on HDMI or a laptop on DisplayPort, depending on how your site is wired.

Is it suitable for hot or semi-exposed spaces in Qatar?

Its operating temperature range is 0 to 40 °C, with 20 to 80% relative humidity (non-condensing) and an altitude rating of 0 to 3,000 m. Summer temperatures in Qatar can exceed 45 °C, so install it in air-conditioned indoor areas, away from windows that face the sun and from unconditioned entrances. If you are unsure about a location, the SmartRooms Qatar team can review it during the free site survey before fixing.

Does it run on Qatar's 240 V mains supply?

The power input is rated 100 to 240 VAC at 50 to 60 Hz, which covers the 240 V, 50 Hz supply used across Qatar. An AC power cord is included in the box. Typical consumption is 44 W with a maximum of 85 W, and standby draw is under 0.5 W, which makes the load easy to plan for a school or office fitting several units. Ask your installer to confirm the socket type and circuit on site.

How do the narrow bezels and tiling options affect a video wall?

Side and top bezels are 11.9 mm and the bottom bezel is 17.2 mm, which keeps seams small when several units sit side by side. The tiled matrix supports up to 10 by 15 units. For a lobby video wall in a West Bay tower or an events hall, plan the grid around the bottom bezel, the mounting spacing and the cable runs before ordering, and request a layout review during the free site survey.

Which inputs and outputs does it have for laptops, players and control systems?

Video inputs are one DisplayPort 1.2, one DVI-I, two HDMI 2.0 and two USB 2.0 ports. DisplayPort and HDMI outputs allow the signal to loop through to a second display. For control, the unit offers RS232 in and out, IR in and out, and RJ45 networking. Audio has a 3.5 mm input and a 3.5 mm output, and two built-in 10 W RMS speakers may be enough for small rooms without a separate sound system.

How do we manage several displays across a school or hotel network?

The CMND platform manages a display network over a local LAN or RF connection, letting administrators update software and settings and monitor the status of each display from one place. Wi-Fi and RJ45 connectivity offer flexible network options, and RS232 supports network control. For a private school in Al Wakrah fitting out several classrooms, or a hotel with displays on multiple floors, this avoids visiting each unit to change content.

Does it include a stand or wall bracket, and what are the mount sizes?

A stand is not among the included items; the BM05911 stand is an optional accessory. For wall mounting, the VESA patterns are 100 x 100 mm and 200 x 200 mm with M4 fixings. The set weighs 5.7 kg and measures 65.1 mm deep in wall-mount configuration. Included items are screws, a USB cover, the remote control with AAA batteries, and the RS232 and IR cables. Because the weight is modest, a single installer can fix it, but the wall should still be checked for strength.

Do you offer a site survey before a wall installation in Doha?

Yes. SmartRooms Qatar offers a free site survey before wall-mounting. It is useful for a 32-inch display in a clinic corridor, a hotel lobby or a school hallway, where wall type, cable routes and sightlines all matter. Installation is handled professionally, and quotations are usually provided within one working day. Tell us the mounting height, the wall material and whether the screen faces a window, so the survey also covers heat exposure.

Can a government office or public school order this display through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and supplies against government tenders, including those published on Monaqasat. Payment can be made by bank transfer, cheque or purchase order. When buying several 32-inch units for classrooms or service halls, state the quantity, mounting type and delivery municipality in your request so the quotation covers the full order. The unit carries a 3-year manufacturer warranty.
