43BDL3650Q/00
Philips 43BDL3650Q 43-inch 4K Q-Line Digital Signage Display
- Screen size
- 2.50 inch
- Resolution
- 3840 x 2160
- Brightness
- 400 cd/m²
- System
- Android 10
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Philips 43BDL3650Q is a 43-inch 4K Ultra HD signage display for lobbies, corridors and classrooms that need content running for long hours. It has an internal Android 10 player with 16 GB storage, Wave-ready remote management, two HDMI 2.0 inputs and an RJ45 network port. With 400 cd/m² brightness, it suits indoor, air-conditioned spaces across Qatar. Request a quote from SmartRooms Qatar.
A 43-inch 4K display with its own Android player

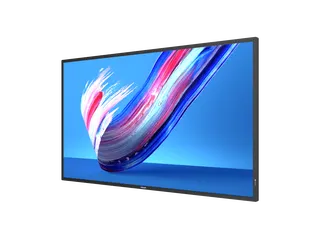

The Philips 43BDL3650Q combines a 43-inch panel at 3840 x 2160 resolution with an internal Android 10 player, so content can run from the screen itself without a separate media box. The panel uses ADS technology and a direct LED backlight, delivering 400 cd/m² brightness and a 1,200:1 typical contrast ratio. Viewing angles of 178 degrees both horizontally and vertically keep messages readable from the side of a corridor or a lobby.
The internal player runs a quad-core Cortex A55 processor with 16 GB of storage and 3 GB of DDR memory. Video files in H.264, H.265, MPEG, AVI, MP4 and VP8 play from USB, and images in BMP, JPEG and PNG formats are supported. Two 10 W RMS speakers provide built-in sound for short announcements in smaller rooms; larger halls will normally need a separate audio system.
Connectivity and control for networked screens

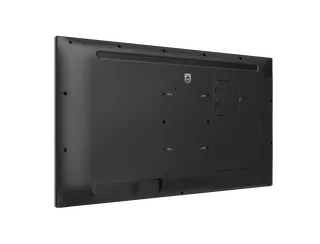

The rear panel offers two HDMI 2.0 inputs, one DVI-I input, two USB 2.0 ports, one USB 3.0 port, a micro SD slot and 3.5 mm audio input and output. For control, there is an RJ45 network connection, RS232C and IR ports with loop-through, so a control signal can pass from one screen to the next along a row.
The manufacturer describes the unit as Wave-ready for remote management. Remote and keyboard controls can be locked, and the keyboard can be hidden as well. Smart Power is included for energy saving, with standby draw below 0.5 W and a typical operating consumption of 84 W.
Where it fits in Qatar
Three situations show where this model earns its place:
- A reception lobby in West Bay, showing visitor information and company news in landscape. Because the unit is rated for indoor, air-conditioned use, it suits interior walls rather than the glass frontage.
- A private school in Al Wakrah fitting corridor wayfinding, where portrait placement helps show timetables and room directions on a narrow wall. Arabic on-screen menus are available for staff who work in Arabic.
- A clinic waiting area in Doha that needs a clear screen for appointment numbers and health messages, with lockable controls preventing changes by the public.
What to plan before ordering
- Check the environment: the operating range is 0 to 40 °C with 20 to 80% humidity, non-condensing. Qatar summer temperatures can exceed 45 °C, so keep the display in air-conditioned spaces, away from direct sunlight through glass and outside entrances, and confirm the location with the SmartRooms Qatar team.

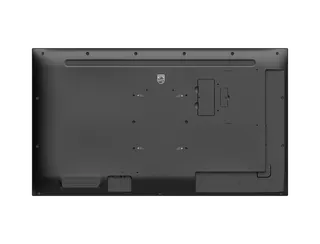

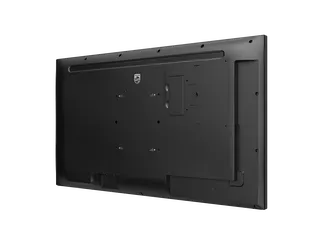

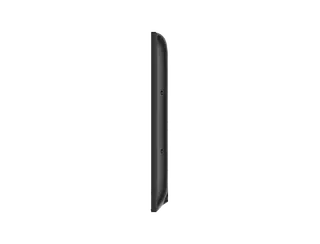

- Plan the wall: the mounting pattern is 200 x 200 mm (M6), the set measures 973.0 mm wide, 561.2 mm high and 63.5 mm deep, and it weighs 11.29 kg. A free site survey helps confirm the wall can carry the load.
- For video walls, the bezel is 13.9 mm and up to 3 x 3 units can be tiled.
- Power is rated 100 to 240 V at 50/60 Hz, which covers the 240 V supply used in Qatar.
The 3-year warranty stated in the manufacturer's data applies. Send SmartRooms Qatar your intended locations, mounting walls and number of screens, and request a quote. Quotations are usually issued within one working day, and purchase orders (LPOs) and government tenders are accepted.
Highlights
- 43-inch 4K Ultra HD panel at 3840 x 2160 resolution
- 400 cd/m² brightness with direct LED backlight
- Android 10 internal player with 16 GB storage and 3 GB DDR
- Two HDMI 2.0 inputs, DVI-I, USB and RJ45 connectivity
- Landscape or portrait placement, tileable up to 3 x 3
- 3-year manufacturer warranty and 0 to 40 °C operating range
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
62 specifications · Source: manufacturer · checked Oct 2026
Connectivity5
- External control
- RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack
- Audio input
- 3.5 mm jack
- Video input
- HDMI 2.0 (x 2); USB 2.0 (x 2); DVI-I (x 1); USB 3.0 (x1)
- Other connections
- micro SD
- Audio output
- 3.5 mm jack
Convenience7
- Remote control signal
- Lockable
- Placement
- Landscape (18/7); Portrait (18/7)
- Keyboard control
- Lockable; Hidden
- Signal loop through
- RS232; IR Loop through
- Tiled Matrix
- Up to 3 x 3
- Energy-saving functions
- Smart Power
- Network controllable
- RS232; RJ45
Accessories1
- Included Accessories
- IR sensor cable (1.8 m) (x 1); RS232 daisy-chain cable; Philips logo (x 1); AC Power Cord; AC Switch Cover; Quick start guide; Remote control and AAA batteries; RS232 cable; USB cover and screws; Wire Clamper (x 3)
Internal Player3
- Memory
- 16 GB; 3 GB DDR
- GPU
- G52 MC1
- CPU
- Quad-Core Cortex A55
Dimensions10
- Product weight (lb)
- 24.91 lb
- Set Depth (inch)
- 2.50 inch
- Product weight
- 11.29 kg
- Set Height (inch)
- 22.09 inch
- Set Depth
- 63.5 mm mm
- Set Width
- 973.0 mm
- Bezel width
- 13.9 mm (Even bezel)
- Set Width (inch)
- 38.31 inch
- Wall Mount
- 200 mm x 200 mm, M6
- Set Height
- 561.2 mm
Sound1
- Built-in speakers
- 2 x 10 W RMS
Power4
- Mains power
- 100–240 V~, 50/60 Hz
- Consumption (Typical)
- 84 W
- Energy Label Class
- G
- Power Saving Features
- Smart Power
Multimedia Applications3
- USB Playback Picture
- BMP; JPEG; PNG
- USB Playback Video
- H.264; MPEG; H.263; H.265; AVI; MP4; VP8
- USB Playback Audio
- AAC; HEAAC; MPEG
Miscellaneous3
- Regulatory approvals
- CE; CB; FCC, Class A; VCCI; RoHS; UL
- Warranty
- 3 year warranty
- On-Screen Display Languages
- English; French; German; Italian; Polish; Russian; Spanish; Turkish; Simplified Chinese; Traditional Chinese; Arabic; Japanese
Operating conditions6
- Temperature range (storage)
- -20 ~ 60 °C
- Altitude
- 0 ~ 3000 m
- MTBF
- 50,000 hour(s)
- Humidity range (storage) [RH]
- 5~95% RH (No condensation)
- Temperature range (operation)
- 0 ~ 40 °C
- Humidity range (operation)[RH]
- 20~80% RH (No condensation)
Picture/Display17
- Pixel pitch
- 0.2451 x 0.2451 mm
- Panel resolution
- 3840 x 2160
- Operating system
- Android 10
- Panel technology
- ADS
- Response time (typical)
- 8 ms
- Optimum resolution
- 3840 x 2160 @ 60 Hz
- Contrast ratio (typical)
- 1200:1
- Viewing angle (vertical)
- 178 degree
- Haze
- 2%
- Diagonal screen size (inch)
- 42.5 inch
- Viewing angle (horizontal)
- 178 degree
- Display colours
- 1.07 Billion
- Picture enhancement
- 3/2 - 2/2 motion pull down; Dynamic contrast enhancement; Progressive scan
- Aspect ratio
- 16:9
- Dynamic contrast ratio
- 500,000:1
- Diagonal screen size (metric)
- 108 cm
- Brightness
- 400 cd/m²
Supported Display Resolution2
- Computer formats
- 1024 x 768, 60, 70, 75 Hz; 1280 x 1024, 60 Hz; 1280 x 720, 60 Hz; 1280 x 800, 60 Hz; 1440 x 900, 60 Hz; 1600 x 1200, 60 Hz; 1680 x 1050, 60 Hz; 1920 x 1080, 60 Hz; 3840 x 2160, 60 Hz
- Video formats
- 1080p, 50, 60 Hz; 1080i, 50, 60 Hz; 720p, 50,60 Hz; 2160p, 50, 60 Hz
Downloads
4 files from the manufacturerQuestions about 43BDL3650Q/00
What is the Philips 43BDL3650Q designed for?
It is a 43-inch 4K Ultra HD digital signage display built to run content for long hours in public-facing indoor spaces. Typical uses include reception lobbies, corridors, waiting areas and retail back-of-house information points. Because the screen includes an Android 10 player, it can work as a standalone signage unit without a separate media box.
Does it need a separate media player?
No. The unit includes an internal Android 10 player with a quad-core Cortex A55 processor, 16 GB of storage and 3 GB of DDR memory. Content can also be loaded from USB, which supports H.264, H.265, MPEG, AVI, MP4 and VP8 video, plus BMP, JPEG and PNG images. A micro SD slot is provided for additional media.
What resolution does the panel deliver?
The panel has a native resolution of 3840 x 2160 at 60 Hz and supports 2160p video inputs at 50 and 60 Hz. Its 0.2451 mm pixel pitch keeps detailed content sharp when viewed up close. For example, a university in Education City could show campus maps on a reception screen and keep small text legible.
Can it be mounted in portrait orientation?
Yes. The data lists both landscape and portrait placement, which suits a narrow corridor in a school or ministry building where timetables, room numbers or directional signs run vertically. The wall mount uses a 200 x 200 mm pattern with M6 fixings, and the set weighs 11.29 kg. A site survey before installation confirms wall strength and cable routing.
How many units can I tile into one video wall?
The data gives a tiled matrix of up to 3 x 3, so nine units can form one display. The bezel measures 13.9 mm and is even on all sides, which keeps gaps between screens narrow. If a bank in Lusail plans a branch lobby wall, the survey should confirm the mounting frame and the source feeding each screen.
Can I install it near a window or outdoors during Qatar's summer?
The operating range is 0 to 40 °C with 20 to 80% relative humidity, non-condensing, at altitudes up to 3,000 m. Qatar summer temperatures can exceed 45 °C, so keep this model in air-conditioned indoor spaces, away from direct sun through glass and outside entrances. Confirm the exact position with the SmartRooms Qatar team before the quotation is finalised.
What control and connection options does it have?
It has an RJ45 network port, RS232C and IR control with loop-through, and a 3.5 mm audio input and output. Two HDMI 2.0 inputs, a DVI-I input, two USB 2.0 ports and a USB 3.0 port cover most sources. The remote control and keyboard can be locked, and the keyboard can also be hidden.
Can it be managed remotely across several sites?
The manufacturer describes the 43BDL3650Q as Wave-ready for remote management, so it can be administered over the network once connected. The data does not specify the management software or network settings required, so confirm these with SmartRooms Qatar and your IT team before ordering.
Does it show Arabic menus for staff in Qatar?
Yes. The on-screen display languages include Arabic alongside English, French, German, Spanish, Russian and others. This suits an Arabic-curriculum school in Al Rayyan or a government office where staff switch between Arabic and English during the same working day.
How much power does it draw, and what supply does it need?
It accepts 100 to 240 V at 50/60 Hz, which covers the 240 V, 50 Hz supply used in Qatar. Typical consumption is 84 W, standby is below 0.5 W, and the energy label class is G. A school fitting out many classrooms can use these figures to plan circuit loads, with an electrician confirming sockets on site.
What is included in the box?
The package includes a remote control with AAA batteries, a 1.8 m IR sensor cable, an RS232 cable, an RS232 daisy-chain cable, an AC power cord, an AC switch cover, a USB cover with screws, three wire clampers and a quick start guide. Wall-mounting brackets are not listed in the package, so confirm mounting hardware during the site survey.
How do I buy it through SmartRooms Qatar?
Send your room list, mounting locations and quantity, and SmartRooms Qatar will usually issue a quotation within one working day. We supply and deliver to all eight municipalities of Qatar, arrange professional installation, and accept purchase orders (LPOs) and government tenders, including Monaqasat. The unit is covered by the manufacturer's 3-year warranty.
