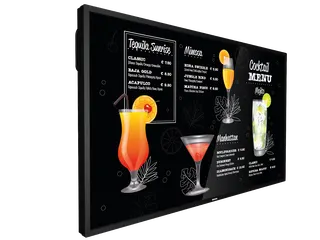

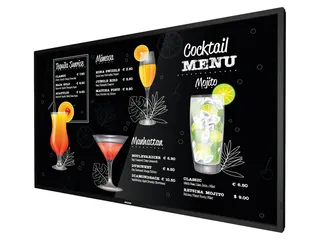

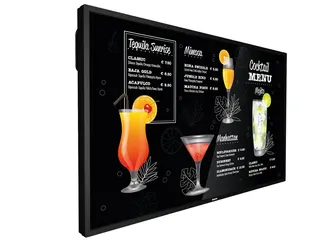

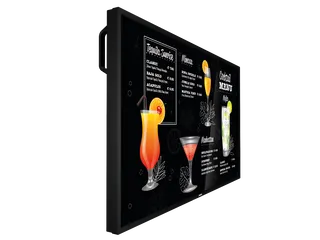

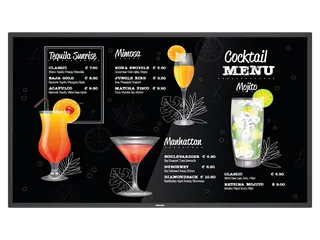

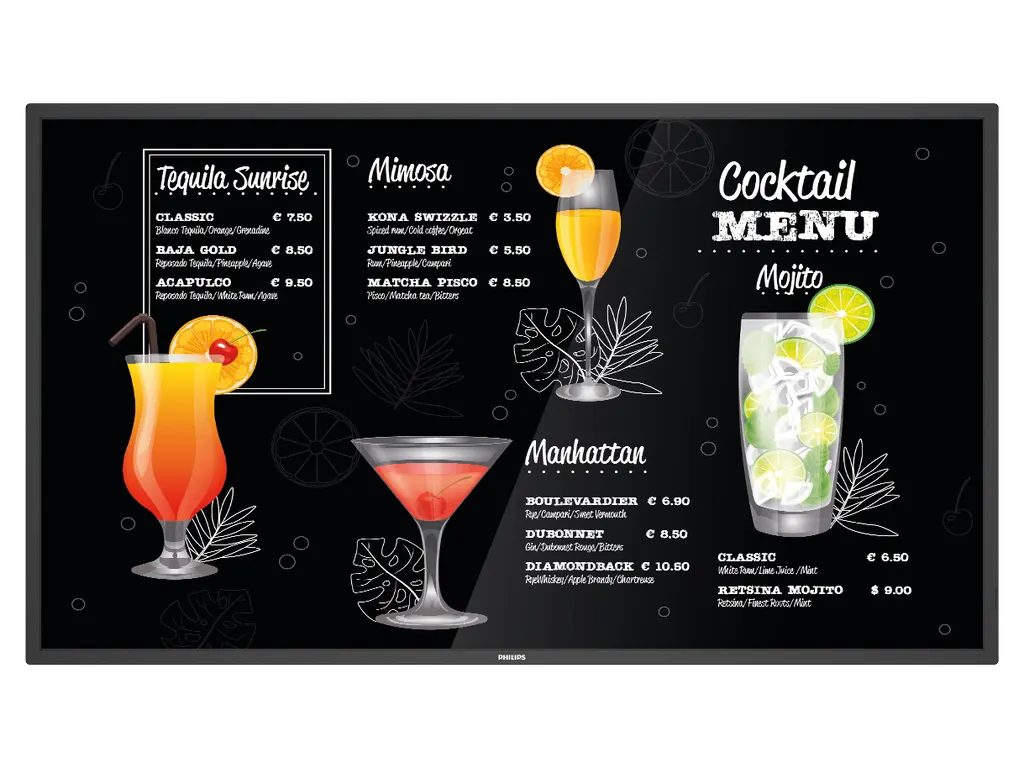

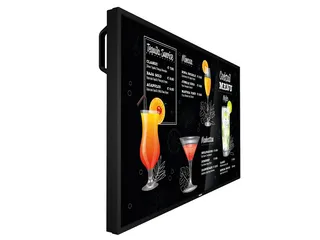

Philips 50BDL3117P/00 50-inch 4K UHD Signage Display

Name: Philips 50BDL3117P/00 50-inch 4K UHD Signage Display
Brand: Philips
SKU: philips-50bdl3117p-00
Availability: InStock

Overview

The Philips 50BDL3117P/00 is a 50-inch 4K UHD signage display from the P-Line range, built for continuous operation and rated at 750 cd/m² brightness. Its VA panel, DisplayPort and HDMI inputs, and RS232 and RJ45 control suit retail floors, airport concourses and food outlets in Doha, Lusail and beyond. Businesses can request a quote from SmartRooms Qatar.

What the 50BDL3117P/00 is built to do

The Philips 50BDL3117P/00 is a 50-inch display from the Signage 3000 Series, part of the P-Line range built for digital signage. It uses a 3840 x 2160 panel, giving 4K UHD resolution on a 16:9 screen with a diagonal of 49.5 inches (125.7 cm). The VA panel has a 178-degree viewing angle both horizontally and vertically, so people standing beside a wall or at a shop entrance can still read the content.

Brightness, contrast and running hours

Brightness is rated at 750 cd/m², which keeps content legible in well-lit lobbies and near windows. Contrast is listed at 4000:1 typical, with a dynamic contrast ratio of 500,000:1, and the panel shows 1.07 billion colours. The display is designed for 24/7 operation, and its Pixel Shift and Low Bright functions are screen-saving features for static content such as logos and menus. Smart Power is the energy-saving feature, with typical consumption of 110 W and a maximum of 260 W. The listed MTBF is 50,000 hours.

Connections, control and playback

Video inputs are one DisplayPort 1.2, one DVI-I, three HDMI 2.0 and one USB 2.0. Video outputs are one DisplayPort 1.2 and one HDMI 2.0, which can pass the signal on to a neighbouring screen. Control is available through RS232, RJ45 and IR, and the RS232 and IR connections also loop through. Content can play from a USB source in BMP, JPEG or PNG for pictures, H.264, Motion JPEG, MPEG1/2 or WMV3 for video, and AAC, MPEG or HEAAC for audio. The keyboard controls are hidden and lockable, and the on-screen menus include Arabic and English.

Where it fits in Qatar

Retail: a mall in West Bay or a store in Al Sadd showing promotional loops, mounted in landscape or portrait.
Transport: a waiting area or information point near Hamad International Airport, where the panel runs around the clock.

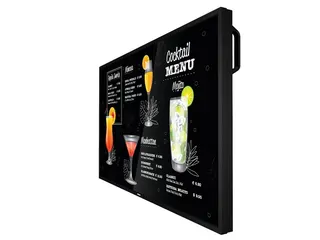

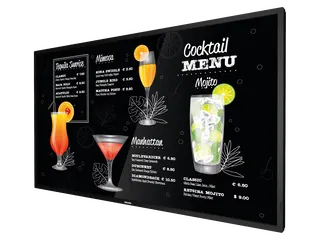

Food and drink: a café or restaurant in Msheireb displaying menus and daily offers on a wall inside the air-conditioned dining area.

Planning the installation

The set measures 1128.4 mm wide, 649 mm high and 76.80 mm deep, and weighs 17.3 kg. Its 14.90 mm even bezel and tiled matrix of up to 15 x 15 make it suitable for video walls, and two edge alignment kits are included to help line up panels. The wall-mount pattern is 400 x 400 mm with M6 fixings, and the optional BM05922 stand is sold separately. Three power cables, a 3 m RS232 cable, a daisy chain cable, a remote control with AAA batteries and three wire clampers come in the box.

The operating range is 0 to 40 °C with 20 to 80% relative humidity, non-condensing, and operation is rated up to 3000 m altitude. Qatar's outdoor summer temperatures can exceed 45 °C, so the panel should be placed in an air-conditioned interior and the room temperature confirmed before installation. The listed mains input is 100 to 240 VAC at 50 to 60 Hz. Given the weight of 17.3 kg, a site survey before wall fixing or multi-screen layout is a sensible first step.

Ordering from SmartRooms Qatar

The 50BDL3117P/00 carries a three-year warranty. SmartRooms Qatar delivers to all 8 municipalities of Qatar, provides professional installation and offers free site surveys. Public bodies and schools can order through a purchase order or a Monaqasat tender, and payment is by bank transfer, cheque or purchase order. Send your quantity, mounting location and screen count, and request a quote from the SmartRooms Qatar team; quotations are usually issued within one working day.

Highlights

50-inch 4K UHD panel at 3840 x 2160 resolution
750 cd/m² brightness for well-lit lobbies and storefronts
Designed for 24/7 operation in landscape or portrait
DisplayPort 1.2, HDMI 2.0 and DVI-I video inputs
RS232, RJ45 and IR control with loop-through
Operating range 0 to 40 °C; three-year warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

60 specifications · Source: manufacturer · checked Oct 2026

Connectivity6

Video output: DisplayPort 1.2 (x 1); HDMI 2.0 (x 1)
Audio input: 3.5 mm jack
External control: IR (in/out) 3.5 mm jack; RJ45; RS232C (in/out) 2.5 mm jack; Ambient Light Sensor
Other connections: Micro SD (x 1); SDM-L; Thermal sensor
Video input: Display Port1.2 (x 1); DVI-I (x 1); USB 2.0 (x 1); HDMI 2.0 (x 3)
Audio output: 3.5 mm jack

Convenience8

Keyboard control: Hidden; Lockable
Screen-saving functions: Pixel Shift, Low Bright
Placement: Landscape (24/7); Portrait (24/7)
Signal loop through: DisplayPort; RS232; HDMI; IR Loop through
Ease of installation: Carrying Handles
Network controllable: RS232; RJ45
Tiled Matrix: Up to 15 x 15
Energy-saving functions: Smart Power

Accessories2

Included Accessories: AC Switch Cover; Philips logo (x 1); Power cable (x 3); Quick start guide (x 1); Remote control and AAA batteries; RS232 cable (3 m) (x 1); RS232 daisy chain cable (x 1); USB Cover (x 1); Wire Clamper (x 3); Edge Alignment Kit (x 2)
Stand: BM05922(optional)

Dimensions10

Set Width (inch): 44.43 inch
Product weight: 17.3 kg
Product weight (lb): 38.14 lb
Set Depth (inch): 3.02 inch
Bezel width: 14.90 mm (Even bezel)
Set Height (inch): 25.55 inch
Set Height: 649 mm
Set Depth: 76.80 mm
Wall Mount: 400 x 400 mm, M6
Set Width: 1128.4 mm

Sound1

Built-in speakers: 2 x 10 W RMS

Power4

Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Max): 260 W
Consumption (Typical): 110 W
Energy Label Class: G

Multimedia Applications3

USB Playback Picture: BMP; JPEG; PNG
USB Playback Video: H.264; Motion JPEG; MPEG1/2; WMV3
USB Playback Audio: AAC; MPEG; HEAAC

Operating conditions6

Altitude: 0 ~ 3000 m
Temperature range (storage): -20 ~ 60 °C
MTBF: 50,000 hour(s)
Humidity range (operation)[RH]: 20~80% RH (No condensation)
Humidity range (storage) [RH]: 5~95% RH (No condensation)
Temperature range (operation): 0 ~ 40 °C

Miscellaneous3

Warranty: 3 year warranty
Regulatory approvals: CE; FCC, Class A; CB; BSMI; EAC; EMF; VCCI; PSB; ETL; EPA
On-Screen Display Languages: Arabic; Dutch; Danish; English; French; Finnish; German; Italian; Japanese; Norwegian; Polish; Portuguese; Russian; Spanish; Swedish; Simplified Chinese; Turkish; Traditional Chinese

Picture/Display15

Pixel pitch: 0.2854 x 0.2854 mm
Response time (typical): 8 ms
Panel technology: VA
Viewing angle (vertical): 178 degree
Contrast ratio (typical): 4000:1
Diagonal screen size (inch): 49.5 inch
Haze: 25%
Optimum resolution: 3840 x 2160 @ 60 Hz
Panel resolution: 3840 x 2160
Brightness: 750 cd/m²
Viewing angle (horizontal): 178 degree
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Diagonal screen size (metric): 125.7 cm
Display colours: 1.07 billion

Supported Display Resolution2

Video formats: 480p, 60 Hz; 576p, 50 Hz; 720p, 50, 60 Hz; 1080i, 50, 60 Hz; 1080p, 50, 60 Hz; 3840 x 2160, 30Hz; 3840 x 2160, 60 Hz
Computer formats: 640 x 480, 60, 67, 72, 75 Hz; 720 x 400, 70 Hz; 800 x 600, 56, 60, 72, 75 Hz; 1024 x 768, 60, 70, 75 Hz; 1152 x 864, 75 Hz; 1152 x 870, 75 Hz; 1280 x 720, 60 Hz; 1280 x 800, 60 Hz; 1280 x 1024, 60 Hz; 1440 x 900, 60 Hz; 1600 x 1200, 60 Hz; 1680 x 1050, 60 Hz; 1920 x 1080, 60 Hz

Downloads

5 files from the manufacturer

PDF Datasheets 50BDL3117P_00_2021-10-21_10h35m07s.pdf 394 KB PDF Manuals & guides Philips_43_50_55BDL3117P_English.pdf 10.7 MB PDF Drawings & CAD Outline_Drawing_Philips_50BDL3117P_V1_0_20211109.pdf 562 KB DWG Drawings & CAD · Opens on manufacturer site 1734522639-outline_drawing_philips_50bdl3117p_v1_0_20211109.dwg PDF Certificates & compliance 50BDL3117P_Label_1012910.pdf 70 KB

Questions about 50BDL3117P/00

What is the Philips 50BDL3117P/00 designed for?

It is a 50-inch 4K UHD display in the Signage 3000 Series (P-Line), made for digital signage that runs continuously. Its 750 cd/m² brightness suits busy settings such as retail, transport hubs and food and drink outlets, whether a shopping district in West Bay or a restaurant row in Msheireb. Buyers still need to decide how content reaches the panel, through a DisplayPort, HDMI or USB source.

Can it run 24/7 in a busy Qatar venue?

The display is designed for 24/7 operation, in either landscape or portrait orientation. Pixel Shift and Low Bright are screen-saving functions that help with static logos and menus left on screen for hours. Smart Power is the energy-saving feature, with a typical draw of 110 W and a maximum of 260 W, and standby consumption below 0.5 W.

What temperatures can it handle, and does that suit Qatar summers?

The listed operating range is 0 to 40 °C at 20 to 80% relative humidity, non-condensing, and storage ranges from -20 to 60 °C. Outdoor summer temperatures in Qatar can pass 45 °C, which is above the operating limit, so install it in an air-conditioned interior such as a mall concourse or hotel lobby. Confirm the room temperature with the SmartRooms Qatar team before fixing the panel.

Which video inputs and outputs does it have?

Video inputs are one DisplayPort 1.2, one DVI-I, three HDMI 2.0 and one USB 2.0. Video outputs are one DisplayPort 1.2 and one HDMI 2.0, which can pass the signal to a second screen. The panel also has a 3.5 mm audio input and a 3.5 mm audio output, so a wall of displays in a lobby can share a single source with the right cabling.

Can it play content from a USB drive without a computer?

The USB 2.0 port supports playback of pictures in BMP, JPEG and PNG, video in H.264, Motion JPEG, MPEG1/2 and WMV3, and audio in AAC, MPEG and HEAAC. Check that your planned files match these formats before ordering, particularly if a hotel or mall team already has content encoded in other codecs. Converting files before the first install avoids delays on opening day.

Can it be controlled over a network or from a building management system?

The data lists RJ45 and RS232 as network-controllable interfaces, and a 3 m RS232 cable and an RS232 daisy chain cable are included in the box. IR is also available for remote control. Confirm with your integrator which protocol your building management system uses, because the control method has to match the way your facilities team manages screens across several sites.

Is it suitable for a video wall, and what does the bezel mean?

It has a 14.90 mm even bezel, supports tiled matrices of up to 15 x 15, and includes two edge alignment kits. A narrow, even bezel reduces the visible gap between panels, which matters for a menu board or lobby wall where the eye follows one image across several screens. Plan the wall layout with a site survey before ordering the full quantity.

How much does it weigh and how should it be mounted?

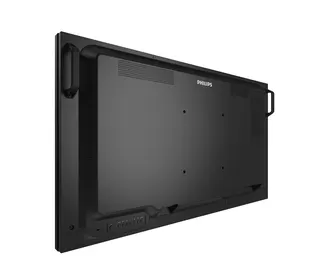

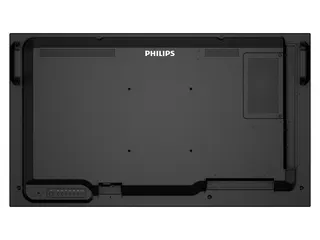

The set weighs 17.3 kg and measures 1128.4 mm wide, 649 mm high and 76.80 mm deep. It mounts on a 400 x 400 mm wall pattern with M6 fixings, and the optional BM05922 stand is available separately. The carrying handles help with handling during installation. A site survey is worth requesting when fixing to a hotel wall in Lusail or a shopping mall column in The Pearl.

What comes in the box?

The package includes three power cables, an AC switch cover, a Philips logo, a quick start guide, a remote control with AAA batteries, a 3 m RS232 cable, an RS232 daisy chain cable, a USB cover, three wire clampers and two edge alignment kits. The optional BM05922 stand is not included and must be ordered separately if your installation needs it.

Does it have built-in speakers, and can it display Arabic menus?

It has two 10 W RMS built-in speakers and 3.5 mm audio input and output. The on-screen display languages include Arabic and English, along with several other languages. For an office in Doha that works in Arabic and English side by side, this allows staff to set the display menus in the language they use, which is useful for shared reception or meeting room screens.

Which power figures should a facilities team plan for?

The display takes 100 to 240 VAC at 50 to 60 Hz, with a maximum consumption of 260 W, a typical consumption of 110 W and standby below 0.5 W. Its energy label class is G. When several units share a circuit, a facilities team in a school or office should add the maximum figure to the load calculation, not only the typical value, before confirming cable and socket planning.

How does ordering work for a school or government body, and what is the warranty?

The display carries a three-year warranty. SmartRooms Qatar supplies to all 8 municipalities, provides professional installation and offers free site surveys. Government bodies and schools can order with a purchase order (LPO) or through a Monaqasat tender, and pay by bank transfer, cheque or purchase order. Quotations are usually issued within one working day, so request one with your screen count and mounting locations.
