Philips 50BDL3650QE 50-inch 4K Signage Display

Name: Philips 50BDL3650QE 50-inch 4K Signage Display
Brand: Philips
SKU: philips-50bdl3650qe-00
Availability: InStock

Overview

The Philips 50BDL3650QE is a 50-inch 4K UHD digital signage display with a VA panel, direct LED backlight, 350 cd/m² brightness and an internal Android 10 player. It offers HDMI 2.0, DVI-I and USB inputs, tiles into video walls up to 15 x 15, and carries a 3-year manufacturer warranty. It suits Doha offices, schools and lobbies that need a dependable indoor screen. Request a quote.

What the 50BDL3650QE is built to do

The 50BDL3650QE is a 50-inch display from the Signage 3000 Series QE-Line, designed for public information, wayfinding, menu boards and promotional loops. Its 3840 x 2160 panel with a 16:9 aspect ratio shows 4K detail, and the internal player runs Android 10 on a quad-core Cortex A55 processor with 16 GB of storage and 3 GB of DDR memory. Content can be loaded and scheduled without an external media player on every screen.

Picture facts that matter on a wall

Signage is read from a distance, so brightness, contrast and viewing angle matter most. Key figures for this model:

Brightness: 350 cd/m² typical, best suited to indoor rooms with managed lighting.
Contrast: 4000:1 typical, with a 500,000:1 dynamic contrast rating.
Viewing angles: 178 degrees horizontal and vertical on a VA panel.
Response time: 8 ms typical, with 1.06 billion display colours.
Bezel: 14.9 mm even bezel, which keeps gaps small when screens are tiled.

Two built-in 10 W RMS speakers handle audio from video loops in smaller spaces.

Connections, control and video walls

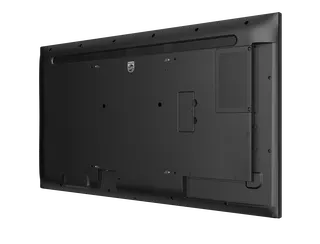

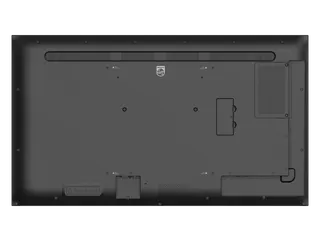

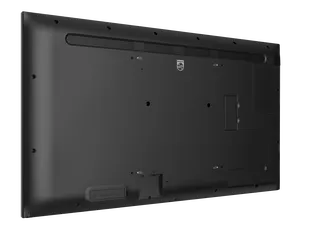

The rear panel offers two HDMI 2.0 inputs, one DVI-I input, two USB 2.0 and two USB 3.0 ports, a micro SD slot, and a 3.5 mm audio input and a 3.5 mm audio output. Control runs through RJ45, RS232C in and out, and IR in and out, with RS232 and IR loop-through so units can be daisy-chained. An optional CRD22 Wi-Fi dongle adds wireless connectivity. Lockable remote control and hidden, lockable keyboard controls keep settings out of visitors' hands. For video walls, the tiled matrix supports up to 15 x 15 units in landscape or portrait orientation.

Where it fits in Qatar

A private school in Al Wakrah refitting a corridor might use several 50-inch units in portrait for student achievement boards and bus notices, with content loaded from USB or managed through RS232 from a central office. A hotel lobby in West Bay can place landscape screens for check-in and event wayfinding in an air-conditioned space. A government reception in Doha or a training centre in Education City might show bilingual Arabic and English notices, using the Arabic on-screen menus and loading image or video files from USB or the network.

What to plan before ordering

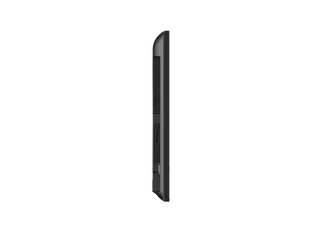

Set dimensions are 1128.4 mm wide, 649.0 mm high and 63.5 mm deep, and the unit weighs 14.25 kg. The wall mount pattern is 400 x 400 mm with M6 fixings, so confirm wall structure and fixing points before drilling. Power draw is 56 W typical and 103 W maximum, with standby below 0.5 W and an energy label of class E. The mains input accepts 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. The operating range is 0 to 40 °C and 20 to 80% relative humidity without condensation, at altitudes up to 3000 m. Qatar summers can pass 45 °C, so plan for air-conditioned rooms and keep the screen away from direct sun and dusty windows.

The box includes an 1.8 m IR sensor cable, RS232 daisy-chain and control cables, an AC power cord, an AC switch cover, two cable clips, a USB cover, a Philips logo and a quick start guide. The manufacturer's warranty is three years. Listed regulatory approvals include CE, FCC Class A and RoHS. For several units, SmartRooms Qatar offers a free site survey, delivery to all eight municipalities, professional installation, and support for purchase orders and government tenders.

Send the room size, number of screens, mounting wall and intended content to SmartRooms Qatar and request a quote. Quotations usually come within one working day.

Highlights

50-inch 4K UHD panel at 3840 x 2160 with 16:9 aspect ratio
Direct LED backlight with 350 cd/m² typical brightness
Internal Android 10 player with 16 GB storage
HDMI 2.0 x2, DVI-I, USB 2.0 and USB 3.0 inputs
Tiled video wall matrix up to 15 x 15, 14.9 mm bezel
3-year manufacturer warranty, 0–40 °C operating range

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

63 specifications · Source: manufacturer · checked Oct 2026

Connectivity6

Audio output: 3.5 mm jack
Optional WiFi functionality: CRD22 Wi-Fi dongle
Video input: HDMI 2.0 (x 2); DVI-I (x 1); USB 2.0 (x 2); USB 3.0 (x 2)
Other connections: micro SD
External control: RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack
Audio input: 3.5 mm jack

Convenience7

Remote control signal: Lockable
Placement: Landscape (18/7); Portrait (18/7)
Keyboard control: Lockable; Hidden
Signal loop through: RS232; IR Loop through
Network controllable: RS232; RJ45
Tiled Matrix: Up to 15 x 15
Energy-saving functions: Smart Power

Accessories1

Included Accessories: IR sensor cable (1.8 m) (x 1); RS232 daisy-chain cable; Philips logo (x 1); AC Power Cord; AC Switch Cover; Cable clip (x2); Quick start guide; RS232 cable; USB Cover (x 1)

Dimensions10

Set Width (inch): 44.43 inch
Set Height: 649.0 mm
Wall Mount: 400 mm x 400 mm, M6
Set Height (inch): 25.55 inch
Set Width: 1128.4 mm
Set Depth: 63.5 mm
Product weight (lb): 31.42 lb
Set Depth (inch): 2.50 inch
Product weight: 14.25 kg
Bezel width: 14.9 mm (Even bezel)

Internal Player3

CPU: Quad-Core Cortex A55
GPU: G52 MC1
Memory: 16 GB; 3 GB DDR

Sound1

Built-in speakers: 2 x 10 W RMS

Power5

Power Saving Features: Smart Power
Energy Label Class: E
Consumption (Typical): 56 W
Consumption (Max): 103 W
Mains power: 100–240 V~, 50/60 Hz

Multimedia Applications3

USB Playback Picture: JPEG; BMP; PNG
USB Playback Video: H.263; H.264; H.265; MPEG1/2; MPEG4; VP8; VP9
USB Playback Audio: AAC; HEAAC; MPEG

Miscellaneous3

On-Screen Display Languages: English; French; German; Italian; Polish; Russian; Spanish; Turkish; Simplified Chinese; Traditional Chinese; Arabic; Japanese
Regulatory approvals: CE; CB; BSMI; FCC, Class A; VCCI; J-Moss; ETL; RoHS
Warranty: 3 year warranty

Operating conditions6

Temperature range (storage): -20 ~ 60 °C
Altitude: 0 ~ 3000 m
Humidity range (storage) [RH]: 5~95% RH (No condensation)
Temperature range (operation): 0 ~ 40 °C
Humidity range (operation)[RH]: 20~80% RH (No condensation)
MTBF: 30,000 hour(s)

Picture/Display16

Brightness: 350 cd/m²
Diagonal screen size (metric): 125.7 cm
Panel resolution: 3840 x 2160
Pixel pitch: 0.2854 x 0.2854 mm
Optimum resolution: 3840 x 2160 @ 60 Hz
Contrast ratio (typical): 4000:1
Viewing angle (vertical): 178 degree
Diagonal screen size (inch): 49.5 inch
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Display colours: 1.06 Billion
Picture enhancement: 3/2 - 2/2 motion pull down; Dynamic contrast enhancement; Motion compens. deinterlacing; Progressive scan
Viewing angle (horizontal): 178 degree
Response time (typical): 8 ms
Operating system: Android 10
Panel technology: VA

Supported Display Resolution2

Video formats: 1080p, 50, 60 Hz; 1080i, 50, 60 Hz; 3840 x 2160p, 24, 25, 30, 60 Hz; 480i, 60 Hz; 480p, 60 Hz; 720p, 50,60 Hz
Computer formats: 832 x 624, 75 Hz; 1024 x 768, 60, 70, 75 Hz; 1152 x 864, 75 Hz; 1152 x 870, 75 Hz; 1280 x 1024, 60 Hz; 1280 x 720, 60 Hz; 1280 x 800, 60 Hz; 1440 x 900, 60 Hz; 1600 x 1200, 60 Hz; 1680 x 1050, 60 Hz; 1920 x 1080, 60 Hz; 3840 x 2160, 24, 25, 30, 60 Hz; 640 x 480, 60, 67, 72, 75 Hz; 720 x 400, 70 Hz; 800 x 600, 56, 60, 72, 75 Hz

Downloads

4 files from the manufacturer

PDF Datasheets 50BDL3650QE_00_2023-12-14_03h34m38s.pdf 890 KB PDF Manuals & guides 50_55_65BDL3650QE_English--0726.pdf 16.3 MB PDF Drawings & CAD Outline_Drawing_Philips_50BDL3650QE_V1_0_20230728.pdf 425 KB PDF Certificates & compliance PCF_Information_Sheet-MMD_Monitor-50BDL3650QE.pdf 215 KB

Questions about 50BDL3650QE/00

Who is the Philips 50BDL3650QE built for?

It is built for indoor public information: wayfinding in hotel lobbies, notices in schools, and menu or promotional screens in malls and clinic waiting areas. Its 50-inch 4K panel, 350 cd/m² typical brightness and internal Android 10 player let facilities teams schedule content without a separate PC. The 0 to 40 °C operating range points to air-conditioned rooms rather than semi-outdoor areas.

Is it suitable for a private school in Al Wakrah fitting out corridors with several screens?

Yes, it suits corridor and classroom-entrance displays. Each unit runs in landscape or portrait, so timetables can sit in landscape while student achievement boards run in portrait on the same model. Content can be loaded from USB, and RS232 and IR loop-through let staff chain several units to one controller. Confirm mounting heights and wall positions with a site survey first.

Do I need an external media player for each screen?

Not necessarily. The internal player runs Android 10 on a quad-core Cortex A55 processor, with 16 GB of storage and 3 GB of DDR memory. It plays JPEG, BMP and PNG images, plus H.264, H.265, VP9 and MPEG4 video from USB. For central control, the RJ45 and RS232C ports allow external management, and the optional CRD22 Wi-Fi dongle adds wireless connectivity if needed.

Can I build a video wall with this model in a Doha lobby?

Yes. The tiled matrix supports up to 15 x 15 units in landscape or portrait. The even 14.9 mm bezel keeps gaps between screens narrow, and RS232 and IR loop-through let one controller address the whole array. For a lobby wall in West Bay, request a site survey to check wall load, the 400 x 400 mm mount pattern and cable routing before placing the order.

Will it run on Qatar's 240 V mains supply?

The mains input is rated 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical consumption is 56 W and maximum is 103 W, with standby below 0.5 W. Confirm that the included AC power cord fits the BS 1363 Type G sockets in your building before installation, and have a qualified electrician check the circuit.

Can it be installed in a sun-facing entrance during Qatar summers?

The operating range is 0 to 40 °C with 20 to 80% relative humidity, without condensation. Qatar summer temperatures can pass 45 °C, which is above this rating, so an exterior or unconditioned space is not suitable. For a lobby with large sun-facing glass, place the screen away from direct sunlight, keep the room air-conditioned, and ask the SmartRooms Qatar team to review the exact location before quoting.

Which inputs and ports does it have?

It has two HDMI 2.0 inputs, one DVI-I input, two USB 2.0 and two USB 3.0 ports, and a micro SD slot. Audio input and output use 3.5 mm jacks. Control uses RJ45, RS232C in and out via a 2.5 mm jack, and IR in and out via a 3.5 mm jack. Laptops and media players with HDMI or DVI connect directly, while other sources need an adapter.

Does the on-screen menu support Arabic?

Yes, the on-screen display languages include Arabic, along with English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified and Traditional Chinese, and Japanese. How Arabic text appears inside slides depends on how the content is designed and saved. For bilingual Arabic and English notices, it is practical to create them as images or video in your design tool and load them from USB.

Is Wi-Fi built in?

Wi-Fi is listed as optional. The CRD22 Wi-Fi dongle is the add-on named in the specification, so wireless connection is not presented as a standard feature. Offices and schools that push content over the network can add the dongle to the quote or use the wired RJ45 port. SmartRooms Qatar can help confirm the network setup and access points on site before ordering.

How much wall space and mounting strength do I need?

Set dimensions are 1128.4 mm wide, 649.0 mm high and 63.5 mm deep, and the unit weighs 14.25 kg. The wall mount pattern is 400 x 400 mm with M6 fixings. Check that the wall or bracket is rated for that weight, and leave room behind the screen for cables and clips. SmartRooms Qatar offers a free site survey before mounting positions are fixed.

What accessories come in the box?

The box includes a 1.8 m IR sensor cable, an RS232 daisy-chain cable, a separate RS232 cable, an AC power cord, an AC switch cover, two cable clips, a USB cover, a Philips logo and a quick start guide. The CRD22 Wi-Fi dongle is listed as an optional extra. Check the contents on arrival, and confirm any additional mounting hardware you need within your quotation.

What warranty applies, and can a government ministry or school order through an LPO?

The Philips 50BDL3650QE carries the manufacturer's three-year warranty. Ministries, schools and companies in Qatar can order through a local purchase order (LPO) or a government tender. SmartRooms Qatar accepts payment by bank transfer, cheque or purchase order. Send the model code and quantity to request a quote, and quotations usually arrive within one working day.
