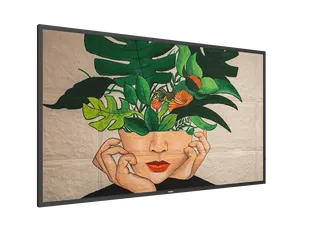

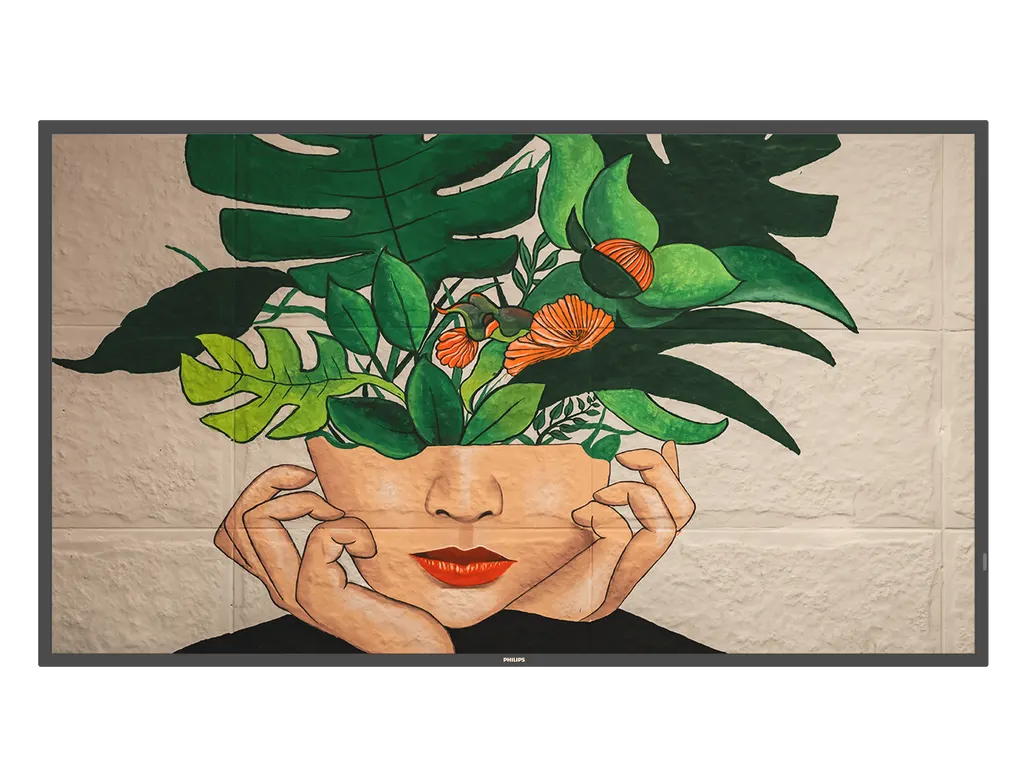

Philips 50BDL4550D/00 50-inch 4K UHD Signage Display

Name: Philips 50BDL4550D/00 50-inch 4K UHD Signage Display
Brand: Philips
SKU: philips-50bdl4550d-00
Availability: InStock

Overview

The Philips 50BDL4550D/00 is a 50-inch 4K UHD signage display with a 500 cd/m² panel, dual-band Wi-Fi and an Android 8.0 platform for running apps and playlists without an external media player. Its internal 32 GB storage keeps content playing if the network drops, and it runs in landscape or portrait around the clock. It suits shopping malls, hotel lobbies, clinics and corporate reception areas across Qatar. Request a quote from SmartRooms Qatar.

What this display delivers on the wall

The Philips 50BDL4550D/00 is a 50-inch member of the D-Line family in the Signage 4000 Series. Its 49.5-inch diagonal VA panel runs at 3840 x 2160 resolution and 60 Hz, with 500 cd/m² brightness, a 4000:1 typical contrast ratio and 178-degree horizontal and vertical viewing angles. These figures matter in lobbies and corridors, where people pass the screen at an angle rather than standing in front of it.

Playback that keeps running when the network does not

Much of the value of a signage screen shows up when something goes wrong. FailOver switches automatically to a list of alternative inputs if the primary source fails. The internal 32 GB eMMC storage with 3 GB of memory lets you load media for direct playback, and it also caches streamed online content so a stored copy plays if the network drops. Proof-of-play screenshots can be saved on the display and sent by email, giving you a record that the right content ran.

Connectivity and control

Inputs: one DisplayPort 1.2, one DVI-I, two HDMI 2.0 and two USB 2.0 ports
Outputs: one DisplayPort 1.2 and one HDMI 2.0 to pass the signal on to another screen
Network: dual-antenna Wi-Fi on 2.4 GHz and 5 GHz, RJ45, and mPCIe connectors for 4G/LTE antennas
Control: RS232C and IR in and out, with a tiled matrix of up to 10 x 15 displays

Where it fits in Qatar

In a shopping mall in West Bay or Lusail, a portrait-mounted unit at a store entrance can run promotions around the clock, managed over your local network with CMND and Control tools. In a private school in Al Wakrah or Al Rayyan, a landscape screen in the reception area can show timetables, events and announcements, and the on-screen menus are available in Arabic. In a clinic or hotel lobby in Doha or The Pearl, the display can show wayfinding and service information while its internal memory handles playback.

What to plan before you order

Confirm the environment first. The rated operating range is 0 to 40 °C with 20 to 80 percent humidity, non-condensing, so this display belongs in air-conditioned indoor spaces. Qatar summer temperatures regularly exceed 45 °C, so do not place it on an outdoor frontage, a sun-exposed window or an unconditioned loading bay without checking the conditions with the SmartRooms Qatar team. The set measures 1128.4 mm by 649.0 mm, is 63.5 mm deep and weighs 14.75 kg, so a wall mount needs solid fixings on a 400 by 400 mm pattern with M6 holes. The power input accepts 100 to 240 VAC at 50 to 60 Hz, typically draws 100 W and reaches a maximum of 132 W, and uses less than 0.5 W on standby. The optional BM05922 stand is available for floor or table mounting. A free site survey checks the wall, cable routes and power point before installation. The manufacturer warranty is three years.

Ordering from SmartRooms Qatar

SmartRooms Qatar supplies and delivers to all eight municipalities of Qatar and arranges professional installation. Quotations are usually issued within one working day. Schools and government bodies can order against a purchase order or LPO, and government tenders through Monaqasat are supported. Payment is by bank transfer, cheque or purchase order. Request a quote from SmartRooms Qatar with your quantity, mounting location and content plan, and we will confirm lead time against current stock.

Highlights

50-inch 4K UHD panel at 3840 x 2160 resolution
500 cd/m² brightness with 178-degree viewing angles
Android 8.0 platform with 32 GB internal storage
FailOver switches to alternative inputs automatically
Dual-band Wi-Fi, RJ45 and 4G/LTE antenna connectors
Landscape or portrait operation 24/7 with 3-year warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

67 specifications · Source: manufacturer · checked Oct 2026

Connectivity7

Video input: Display Port1.2 (x 1); DVI-I (x 1); HDMI 2.0 (x 2); USB 2.0 (x 2)
Audio input: 3.5 mm jack
Audio output: 3.5 mm jack
Wi-Fi: dual aerial 2,4Ghz and 5Ghz
Video output: DisplayPort 1.2 (x 1); HDMI 2.0 (x 1)
External control: RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack
4G/LTE antenna connectors: mPCIe

Convenience8

Screen-saving functions: Pixel Shift, Low Bright
Placement: Landscape (24/7); Portrait (24/7)
Energy-saving functions: Smart Power
Wi-Fi protocol: a b g n, 802.1x
Network controllable: RS232
Tiled Matrix: Up to 10 x 15
Keyboard control: Hidden; Lockable
Signal loop through: RS232; IR Loop through; DisplayPort; HDMI

Accessories3

Included accessories: Quick start guide; RS232 cable; AC Power Cord; IR sensor cable (1.8 M); Remote Control and AAA Batteries
Included Accessories: RS232 daisy-chain cable; Philips logo (x 1); AC Switch Cover; USB Cover (x 1); Screws
Stand: BM05922(Optional)

Internal Player4

CPU: 2 x A53 + 2 x A73
Memory: 3 GB DDR
Storage: 32 GB eMMc
GPU: ARM Mali G51

Dimensions10

Set Width (inch): 44.43 inch
Set Depth (inch): 2.50 inch
Product weight: 14.75 kg
Set Height: 649.0 mm

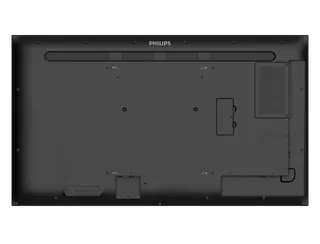

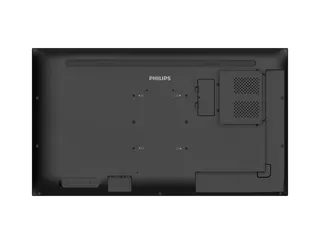

Wall Mount: 400 (H) x 400 (V) mm, M6
Set Width: 1128.4 mm
Product weight (lb): 32.52 lb
Bezel width: 14.9 mm (Even bezel)
Set Depth: 63.5 mm
Set Height (inch): 25.55 inch

Sound1

Built-in speakers: 2 x 10 W RMS

Power4

Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Energy Label Class: G
Consumption (Max): 132 W
Consumption (Typical): 100 W

Multimedia Applications3

USB Playback Video: MPEG; H.263; H.264; H.265
USB Playback Picture: BMP; JPEG; PNG
USB Playback Audio: AAC; HEAAC; MPEG

Picture/Display16

Optimum resolution: 3840 x 2160 @ 60 Hz
Panel technology: VA
Response time (typical): 8 ms
Brightness: 500 cd/m²
Diagonal screen size (metric): 125.7 cm
Display colours: 1.07 Billion
Picture enhancement: 3/2 - 2/2 motion pull down; 3D Combfilter; Motion compens. deinterlacing; 3D MA deinterlacing; Dynamic contrast enhancement; Progressive scan
Pixel pitch: 0.2854 x 0.2854 mm
Panel resolution: 3840 x 2160
Operating system: Android 8.0
Aspect ratio: 16:9
Diagonal screen size (inch): 49.5 inch
Contrast ratio (typical): 4000:1
Viewing angle (vertical): 178 degree
Viewing angle (horizontal): 178 degree
Dynamic contrast ratio: 500,000:1

Miscellaneous3

Regulatory approvals: CE; CCC; RoHS; BSMI; CB; VCCI; CU; EMF; EnergyStar 8.0; ETL; FCC, Class A; PSB
On-Screen Display Languages: English; French; German; Spanish; Polish; Turkish; Russian; Italian; Simplified Chinese; Traditional Chinese; Arabic; Japanese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish
Warranty: 3 year warranty

Operating conditions6

Altitude: 0 ~ 3000 m
Temperature range (operation): 0 ~ 40 °C
Humidity range (storage) [RH]: 5–95% RH (No condensation)
Humidity range (operation)[RH]: 20–80% RH (No condensation)
Temperature range (storage): -20 ~ 60 °C
MTBF: 50,000 hour(s)

Supported Display Resolution2

Video formats: 1080i, 50, 60 Hz; 576i, 50 Hz; 576p, 50 Hz; 480p, 60 Hz; 480i, 60 Hz; 1080p, 50, 60 Hz; 2160p, 24, 30, 60 Hz; 720p, 50,60 Hz
Computer formats: 1920 x 1080, 60 Hz; 1024 x 768, 60 Hz; 1280 x 1024, 60 Hz; 1280 x 720, 60 Hz; 1440 x 900, 60 Hz; 1600 x 900, 60 Hz; 1680 x 1050, 60 Hz; 3840 x 2160, 30, 60 Hz; 640 x 480, 60 Hz; 800 x 600, 60 Hz

Downloads

6 files from the manufacturer

PDF Datasheets 50BDL4550D_00_2021-06-07_03h09m59s.pdf 799 KB PDF Manuals & guides 43_50_55BDL4550D_dfu_V1_01_eng.pdf 18.2 MB PDF Manuals & guides · Opens on manufacturer site 1726681364-43_50_55bdl4550d_dfu_v1-01_ara-pdf.pdf PDF Manuals & guides · Opens on manufacturer site 1726681659-43_50_55bdl4550d_dfu_v1-01_ara-pdf.pdf PDF Drawings & CAD 50BDL4550D_Outline_Drawing_without_Stand_V1_1_20200811.pdf 398 KB PDF Certificates & compliance 50BDL4550D_Label_394208.pdf 93 KB

Questions about 50BDL4550D/00

Is the Philips 50BDL4550D/00 right for a clinic waiting room or a mall entrance in Doha?

Yes, it suits waiting rooms, reception areas and mall entrances because it runs 24/7 in landscape or portrait and plays content from its own storage. The 500 cd/m² panel handles well-lit rooms, and 4K resolution keeps service information and menus sharp at close reading distance. Confirm an indoor, air-conditioned position, since its rated operating range is 0 to 40 °C.

Does a hotel in The Pearl need a separate media PC to run this display?

Not for routine playback. The unit runs Android 8.0 on a 2 x A53 + 2 x A73 processor with 3 GB DDR memory and 32 GB eMMC storage, so you can upload media and run apps directly. Playlists can be built with the HTML5 browser over Wi-Fi or RJ45, and the display plays them without a separate computer. Check your software needs with SmartRooms Qatar before ordering.

What happens to playback when the network or the main source fails at a school in Al Rayyan?

If the main source fails, FailOver switches automatically to the alternative inputs you have listed, so the screen keeps showing content. If the network drops, the internal memory plays a cached copy of streamed content. Load key announcements and timetables into internal storage in advance so playback continues during a connection problem.

Can it run in portrait at a lift lobby in a West Bay office tower?

Yes. Both landscape and portrait placement are rated for 24/7 operation, so the panel can be mounted tall beside a lift lobby. The HTML5 browser can show content in portrait at full HD resolution, which suits directory boards and wayfinding. Measure the wall and fixing points before ordering, because the 14.75 kg unit needs a solid wall mount.

Can I install it in a sunlit lobby in Al Khor or Mesaieed?

No, not in direct sun. The rated operating range is 0 to 40 °C with 20 to 80 percent non-condensing humidity, and Qatar summer temperatures often pass 45 °C. A lobby with sunlight through large glass areas can push conditions beyond that range, so install this display in air-conditioned indoor spaces only. Speak to the SmartRooms Qatar team before choosing the position and request a free site survey.

What Wi-Fi and network options does it include?

The display has dual-antenna Wi-Fi on 2.4 GHz and 5 GHz, supporting 802.11 a/b/g/n and 802.1x authentication. It also has an RJ45 port for wired Ethernet and mPCIe connectors for 4G/LTE antennas. For an office on a managed corporate network, confirm the authentication method with your IT team before installation.

How do I manage several units across a Doha office or campus?

CMND and Control runs over a local LAN or RF connection and lets you update software and settings and monitor each display's status from one place. The tiled matrix supports up to 10 x 15 displays, and RS232 and IR connections can link units. For a campus in Education City or an office in Doha, plan the cabling and network segment for all units before installation, and request a quote for the full set.

Which inputs and outputs do I need for laptops, media players and a second screen?

Inputs are one DisplayPort 1.2, one DVI-I, two HDMI 2.0 and two USB 2.0 ports, plus a 3.5 mm audio input. Outputs are one DisplayPort 1.2 and one HDMI 2.0 for passing the signal to a second screen, plus a 3.5 mm audio output. The built-in speakers are 2 x 10 W RMS. Check the output type on your laptop or player before ordering so you choose the right cable.

How much power does it draw, and how much can Smart Power save?

Maximum consumption is 132 W and typical consumption is 100 W, with standby below 0.5 W. Smart Power lets the system pre-set backlight intensity to reduce power use by up to 50 percent, which lowers running costs for a display that operates around the clock. The power input accepts 100 to 240 VAC at 50 to 60 Hz, so confirm the plug type with your installer for local sockets.

What comes in the box, and is the stand included?

The box includes a quick start guide, RS232 cable, AC power cord, 1.8 m IR sensor cable, remote control with AAA batteries, RS232 daisy-chain cable, a Philips logo, AC switch cover, USB cover and screws. The BM05922 stand is optional and is not included. Ask SmartRooms Qatar to add it to your quotation if you need a floor or table mount.

What warranty and service terms apply when I buy from SmartRooms Qatar?

The manufacturer warranty for this display is three years. SmartRooms Qatar supplies and delivers to all eight municipalities of Qatar and can arrange professional installation after a free site survey. Quotations are usually issued within one working day. Government buyers can order using purchase orders or LPOs and tenders through Monaqasat, and payment is by bank transfer, cheque or purchase order.
