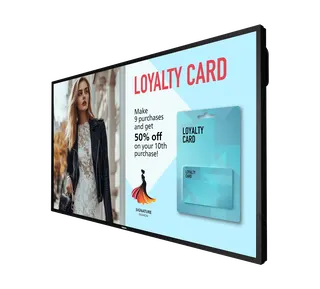

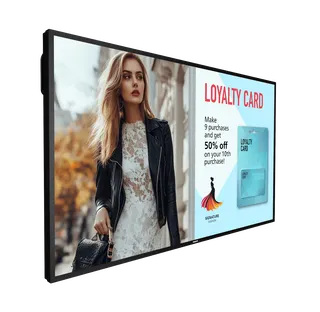

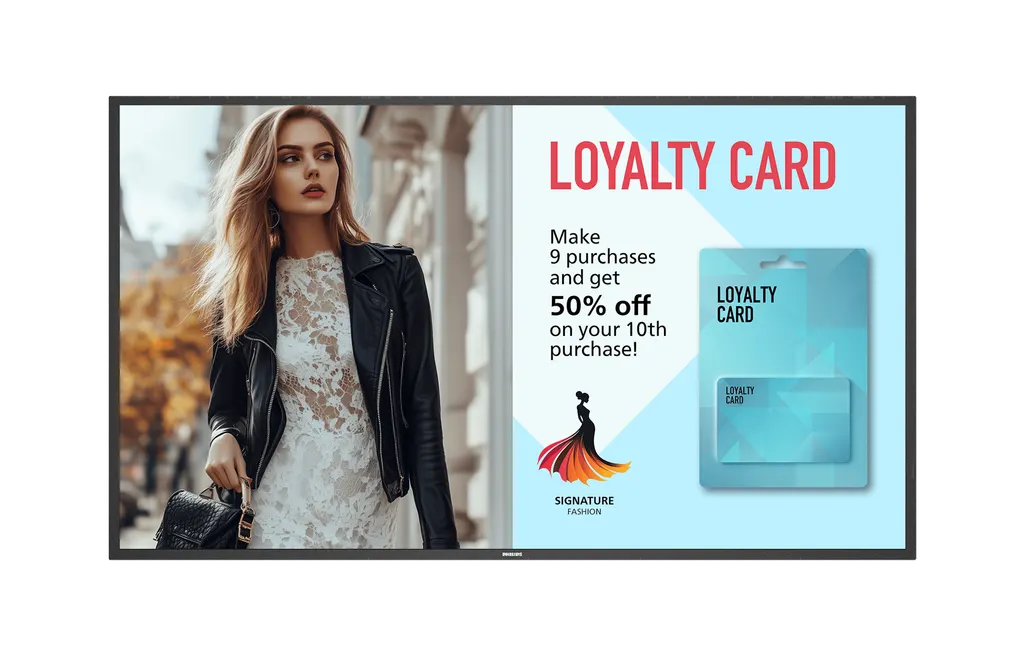

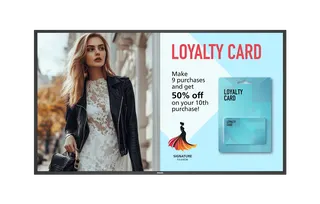

Philips 50BDL6017P/00 50-inch 4K Signage Display

Name: Philips 50BDL6017P/00 50-inch 4K Signage Display
Brand: Philips
SKU: philips-50bdl6017p-00
Availability: InStock

Overview

The Philips 50BDL6017P/00 is a 50-inch 4K signage display from the Signage 6000 Series, built for continuous use in landscape or portrait. Its 800 cd/m² panel stays readable in bright lobbies, retail frontages and food counters, while the OPS slot and RS232 or RJ45 control suit managed networks. It fits airports, hotels, schools and retail venues across Qatar that need a dependable screen running most of the day.

What this 50-inch Philips signage display is built for

The Philips 50BDL6017P/00 is a 50-inch member of the Signage 6000 Series, designed to run for long periods as an information screen, menu board, wayfinding display or promotional panel. It has a 4K UHD panel at 3840 x 2160 resolution, VA panel technology and 800 cd/m² brightness, so content stays clear where daylight or strong ambient lighting reaches the screen. The 24/7 rating covers both landscape and portrait placement, which suits wide corridor walls as well as tall menu and directory displays.

Image and power figures that shape the decision

Brightness and contrast: 800 cd/m², 4000:1 typical contrast and a 500,000:1 dynamic contrast ratio.
Response and viewing: 8 ms typical response time and 178-degree horizontal and vertical viewing angles.
Power: 171 W maximum and 104 W typical consumption, standby below 0.5 W and energy label class G.
Mains supply: 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V supply.

Brightness is the figure buyers most often underestimate. A panel rated at 800 cd/m² holds its presence near a window or in a lobby far better than a standard indoor display. The unit also includes an ambient light sensor. The typical draw of 104 W per screen is useful when you calculate the electrical load for a corridor or wall of several panels.

Connectivity, control and video wall planning

Video inputs include three HDMI 2.0 ports, one DisplayPort 1.2 and one DVI-I, with DisplayPort 1.2 and HDMI 2.0 outputs for passing a signal to the next screen. An OPS slot sits alongside two USB 2.0 ports, 3.5 mm audio input and output, and two 10 W RMS built-in speakers. Control options include RS232 in and out, RJ45 for network management, and IR in and out. An optional Philips Wave remote management add-on is available for managing units across a site.

For video walls, the tiled matrix supports up to 15 x 15 units, and the even bezel measures 14.90 mm. Two Edge Alignment Kits are included to help line up tiled panels. The on-screen display supports Arabic and English, among other languages, which helps bilingual Qatari offices and schools configure the menus in the language their staff use.

Where it fits in Qatar

A hotel in West Bay could mount a landscape unit beside its reception desk to show arrival information, guest services and the day's events. A clinic in Msheireb might use a portrait unit beside the lift lobby to direct patients to departments in Arabic and English. A shopping centre in Lusail could place portrait screens along a walkway as vertical directories or promotional loops. Each of these uses depends on continuous operation and a bright, legible image.

The operating range is 0 to 40 °C, with 20 to 80% relative humidity, non-condensing. Qatar summers regularly exceed 45 °C, so this display belongs in air-conditioned indoor spaces, not in unconditioned areas, outdoor kiosks or spots in direct sunlight. The IP5X rating indicates dust protection only and is not a water rating. Ask the SmartRooms Qatar team to confirm your location before you order.

What to plan before installation

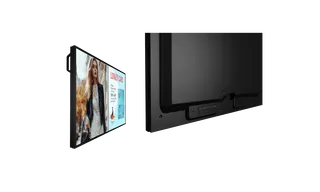

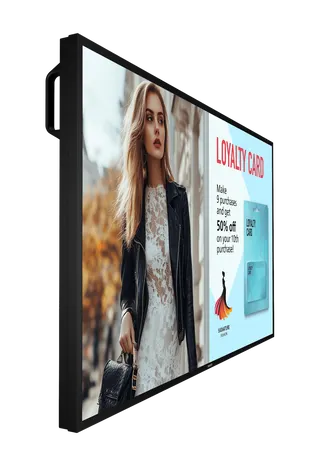

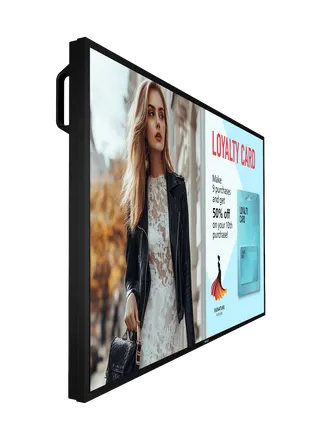

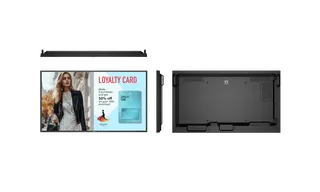

The set measures 1128.4 mm (44.43 inch) wide, 649 mm (25.55 inch) high and 64.0 mm deep at the wall mount, or 76.8 mm at the handle. It weighs 17.45 kg, so plan the wall structure before ordering. The wall mount pattern is 400 x 400 mm with M6 fixings, and carrying handles are included to help with handling. The BM05922 stand is an optional accessory. Three power cables, a 3 m RS232 cable, an RS232 daisy chain cable and a remote control with AAA batteries are included in the box.

Request a quote from SmartRooms Qatar for one unit or a multi-screen order. We supply and deliver to all eight municipalities of Qatar, and quotations usually arrive within one working day. Public bodies and schools can order by purchase order (LPO) or through a government tender, and the unit carries a 3-year manufacturer warranty.

Highlights

50-inch 4K UHD (3840 x 2160) VA panel
800 cd/m² brightness for bright lobbies and counters
24/7 operation in landscape or portrait placement
Tiled video wall matrix up to 15 x 15
OPS slot with RS232, RJ45 and IR control
3-year manufacturer warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

60 specifications · Source: manufacturer · checked Oct 2026

Connectivity6

Audio input: 3.5 mm jack
External control: IR (in/out) 3.5 mm jack; RJ45; RS232C (in/out) 2.5 mm jack; Ambient Light Sensor
Video output: DisplayPort 1.2 (x 1); HDMI 2.0 (x 1)
Video input: Display Port1.2 (x 1); DVI-I (x 1); HDMI 2.0 (x 3)
Audio output: 3.5 mm jack
Other connections: USB 2.0 (x 2); OPS; Thermal sensor

Convenience7

Network controllable: RS232; RJ45
Tiled Matrix: Up to 15 x 15
Energy-saving functions: Smart Power
Screen-saving functions: Pixel Shift, Low Bright
Placement: Landscape (24/7); Portrait (24/7)
Ease of installation: Carrying Handles; Conformal Coating; Edge Alignment Kit
Signal loop through: DisplayPort; RS232; HDMI; IR Loop through

Accessories2

Included Accessories: AC Switch Cover; Philips logo (x 1); Power cable (x 3); Quick start guide (x 1); Remote control and AAA batteries; RS232 cable (3 m) (x 1); RS232 daisy chain cable (x 1); USB Cover (x 1); Edge Alignment Kit (x 2)
Stand: BM05922(optional)

Dimensions10

Set Depth (inch): 3.02 inch (at handle), 2.52 (at wall mount) inch
Product weight (lb): 38.47 lb
Bezel width: 14.90 mm (Even bezel)
Product weight: 17.45 kg
Set Depth: 76.80 mm (at handle), 64.0 mm (at wall mount) mm
Set Width: 1128.4 mm
Set Width (inch): 44.43 inch
Set Height: 649 mm
Wall Mount: 400 x 400 mm, M6
Set Height (inch): 25.55 inch

Sound1

Built-in speakers: 2 x 10 W RMS

Power4

Consumption (Max): 171 W
Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical): 104 W
Energy Label Class: G

Multimedia Applications3

USB Playback Picture: BMP; JPEG; PNG
USB Playback Video: H.264; H.265; Motion JPEG; MPEG1/2; WMV3
USB Playback Audio: AAC; MPEG; HEAAC

Miscellaneous3

Regulatory approvals: CE; FCC, Class A; CB; BSMI; EAC; EMF; VCCI; PSB; ETL; EPA
On-Screen Display Languages: Arabic; Dutch; Danish; English; French; Finnish; German; Italian; Japanese; Norwegian; Polish; Portuguese; Russian; Spanish; Swedish; Simplified Chinese; Turkish; Traditional Chinese
Warranty: 3 year warranty

Operating conditions7

Temperature range (storage): -20 ~ 60 °C
MTBF: 50,000 hour(s)
Temperature range (operation): 0 ~ 40 °C
Humidity range (storage) [RH]: 5~95% RH (No condensation)
Humidity range (operation)[RH]: 20~80% RH (No condensation)
Ingress protection: IP5X
Altitude: 0 ~ 5000 m

Picture/Display15

Response time (typical): 8 ms
Panel technology: VA
Pixel pitch: 0.2854 x 0.2854 mm
Panel resolution: 3840 x 2160
Viewing angle (horizontal): 178 degree
Aspect ratio: 16:9
Dynamic contrast ratio: 500,000:1
Display colours: 1.07 billion
Optimum resolution: 3840 x 2160 @ 60 Hz
Brightness: 800 cd/m²
Diagonal screen size (metric): 125.7 cm
Diagonal screen size (inch): 49.5 inch
Contrast ratio (typical): 4000:1
Viewing angle (vertical): 178 degree
Haze: 25%

Supported Display Resolution2

Computer formats: 640 x 480, 60, 67, 72, 75 Hz; 720 x 400, 70 Hz; 800 x 600, 56, 60, 72, 75 Hz; 1024 x 768, 60, 70, 75 Hz; 1152 x 864, 75 Hz; 1152 x 870, 75 Hz; 1280 x 720, 60 Hz; 1280 x 800, 60 Hz; 1280 x 1024, 60 Hz; 1440 x 900, 60 Hz; 1600 x 1200, 60 Hz; 1680 x 1050, 60 Hz; 1920 x 1080, 60 Hz
Video formats: 480p, 60 Hz; 576p, 50 Hz; 720p, 50, 60 Hz; 1080i, 50, 60 Hz; 1080p, 50, 60 Hz; 3840 x 2160, 30Hz; 3840 x 2160, 60 Hz

Downloads

6 files from the manufacturer

PDF Datasheets 50BDL6017P_00_en_AA_b2c_GLL.pdf 429 KB PDF Manuals & guides · Opens on manufacturer site 1756185415-43_50_55bdl6017p_arabic.pdf PDF Manuals & guides · Opens on manufacturer site 43_50_55BDL6017P_Traditionalch.pdf 11.1 MB PDF Manuals & guides · Opens on manufacturer site 43_50_55BDL6017P__eng.pdf 10.1 MB PDF Drawings & CAD Outline_Drawing_Philips_50BDL6017P_V0_1_20241122.pdf 561 KB PDF Certificates & compliance PCF-50BDL6017P.pdf 189 KB

Questions about 50BDL6017P/00

What is the Philips 50BDL6017P/00 designed for?

It is a 50-inch 4K signage display in the Signage 6000 Series, built for continuous commercial use such as menu boards, wayfinding, corporate information and promotional content. Its 800 cd/m² brightness and 24/7 rating in both landscape and portrait suit lobbies, corridors and retail floors. Hotels, schools and offices in Doha that need a screen running most of the day are typical buyers.

Can it run in portrait for a menu board or directory?

Yes. The manufacturer lists both landscape and portrait placement at 24/7 operation, so one unit can work as a tall directory in a mall in Lusail or a vertical menu board in a café. Content must be built for portrait orientation, and the wall mount uses a 400 x 400 mm M6 pattern. Confirm the mounting height with your installer before ordering.

How bright is it, and does that matter in Qatar?

The panel is rated at 800 cd/m², with 4000:1 typical contrast. In a glazed lobby in Msheireb or West Bay, where daylight reaches the screen, that headroom keeps text and images legible. Direct sun falling on the glass should still be avoided, because brightness alone does not solve glare. A site survey helps you position the screen away from the worst reflections.

What is the operating temperature, and can it go outdoors or in an unshaded area?

The operating range is 0 to 40 °C, with 20 to 80% relative humidity, non-condensing. Qatar summers regularly exceed 45 °C, so the display should sit in air-conditioned indoor spaces. The IP5X rating gives dust protection only. It is not designed for outdoor kiosks or unshaded spots, so ask the SmartRooms Qatar team to confirm the environment before you order.

Which inputs and outputs does it have?

Video inputs are three HDMI 2.0 ports, one DisplayPort 1.2 and one DVI-I. Outputs are one DisplayPort 1.2 and one HDMI 2.0 for passing a signal to the next screen. The unit also has an OPS slot, two USB 2.0 ports, and 3.5 mm audio input and output. Built-in speakers are 2 x 10 W RMS, so it can play sound without an external amplifier.

Can I build a video wall with several of these units?

Yes. The tiled matrix supports up to 15 x 15 units, and the even bezel measures 14.90 mm. Two Edge Alignment Kits are included to help line up the panels. Signal loop-through is available on DisplayPort, HDMI, RS232 and IR, so a single source can run a chain of screens. A hotel lobby or control room in Doha can plan the wall layout before purchase.

How is it controlled and managed across several screens?

Control options include RS232 in and out on a 2.5 mm jack, RJ45 for network control, and IR in and out on a 3.5 mm jack. A 3 m RS232 cable and an RS232 daisy chain cable are included. Energy-saving Smart Power and the Pixel Shift and Low Bright screen-saving functions help manage long runtimes. The optional Philips Wave remote management add-on is available if you need central management.

Does the on-screen menu support Arabic?

Yes. The on-screen display languages include Arabic and English, among 18 languages in total. This suits government offices, schools and clinics in Qatar that work in both Arabic and English side by side. Your staff can set the menu language during commissioning, and the choice applies to the screen's own settings, not to the content you show.

How much power does it draw, and what electrical planning is needed?

Maximum consumption is 171 W and typical consumption is 104 W, with standby below 0.5 W and energy label class G. It accepts 100 to 240 VAC at 50 to 60 Hz, and three power cables are included in the box. A school fitting out a long corridor with several units should add the typical draw of each screen when checking circuit capacity with its electrician.

What are the physical dimensions and weight?

The set measures 1128.4 mm wide and 649 mm high, with a depth of 64.0 mm at the wall mount and 76.8 mm at the handle. It weighs 17.45 kg. Before mounting, check that the wall or frame can carry this weight and that it matches the 400 x 400 mm M6 mount pattern. SmartRooms Qatar offers a free site survey before wall-mounting a unit of this size.

Is there a warranty, and how do I request a quote?

The unit carries a 3-year manufacturer warranty. Request a quote from SmartRooms Qatar with the number of units, the mounting location and whether you need a video wall. Quotations usually arrive within one working day. We deliver to all eight municipalities of Qatar and accept bank transfer, cheque or purchase order, including LPOs and government tenders.
