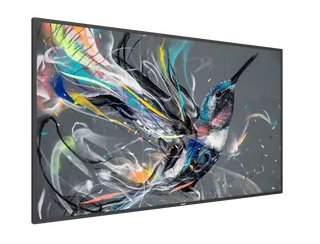

Philips 55BDL3510Q 55-inch 4K Q-Line Signage Display

Name: Philips 55BDL3510Q 55-inch 4K Q-Line Signage Display
Brand: Philips
SKU: philips-55bdl3510q-00
Availability: InStock

Overview

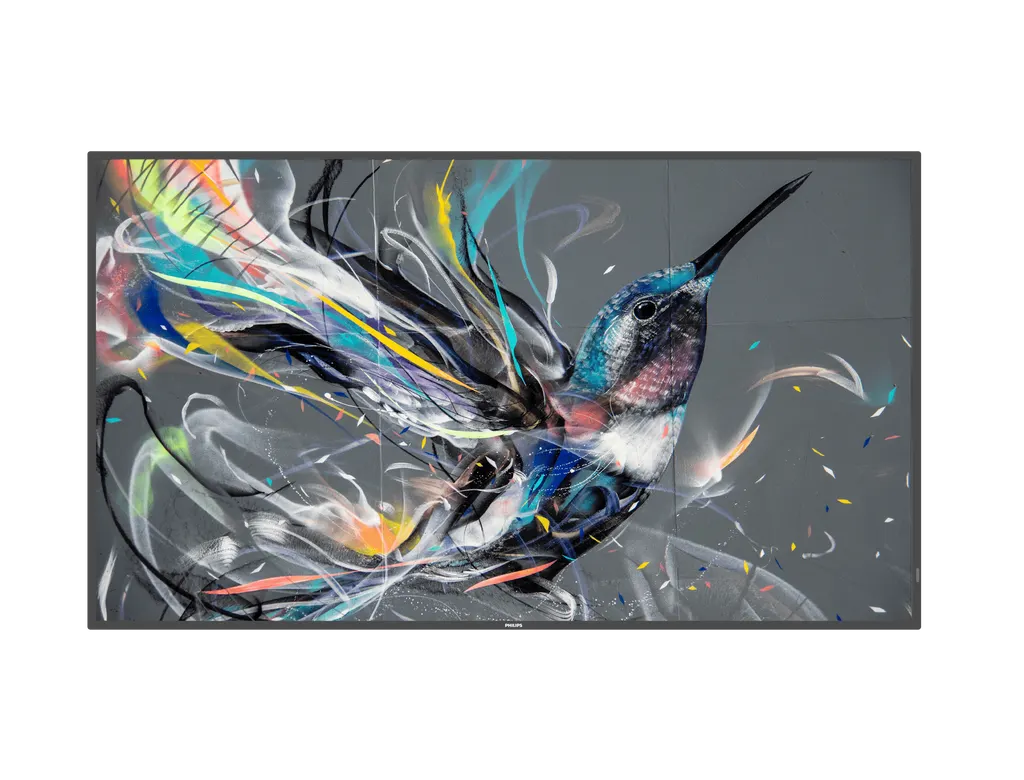

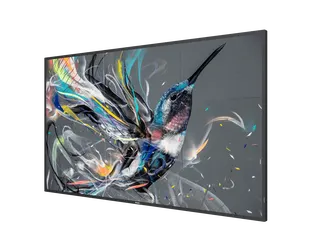

The Philips 55BDL3510Q is a 55-inch 4K Ultra HD signage display from the Q-Line range, with an IPS panel, 400 cd/m² brightness and a direct LED backlight. It plays content from USB or internal memory, runs HTML5 content over Wi-Fi or an RJ45 cable, and switches to a backup input if the main source fails. Suited to reception areas, clinic waiting rooms and school corridors across Qatar, it is quoted on request.

What the Philips 55BDL3510Q is built to do

The Philips 55BDL3510Q is a 55-inch Ultra HD display from the Q-Line family, built for information screens, promotional loops and wayfinding in public-facing spaces. Its 3840 x 2160 IPS panel carries four times the pixels of Full HD, and the 16:9 picture is rated at 400 cd/m² brightness with a direct LED backlight. The IPS technology keeps the image readable when viewers stand well off-centre, with a 178-degree viewing angle both horizontally and vertically.

Playing content without a dedicated PC

Several built-in routes let the display run its own content, so a site does not need a separate media player at every screen:

USB playback: load video, audio or pictures on a USB 2.0 stick, build a playlist from the on-screen menu and schedule it.
Internal memory: store media in the display and play it to a timetable. The display wakes from standby for each slot and returns to standby afterwards.
Online content: the Chromium-based HTML5 browser connects over Wi-Fi or an RJ45 cable and can show streamed content in a picture-in-picture window at full HD resolution.
Cached playback: if the network drops, the display plays a cached copy of streamed content from its own memory.

Connections, control and running costs

The display offers one DVI-I input, two HDMI 2.0 inputs and two USB 2.0 ports, with 3.5 mm audio input and output, RJ45, RS232C in and out, and IR in and out. FailOver lets the display move automatically between a primary input and a list of backup inputs, so a screen in a waiting room does not go blank if its main source fails. Built-in speakers deliver 2 x 10 W RMS. Typical power draw is 120 W and maximum draw is 180 W, with standby below 0.5 W. The SmartPower feature can reduce backlight power consumption by up to 50%, and the energy label class is G.

Where it fits in Qatar

A 55-inch panel suits spaces where people read the screen from a few steps away rather than from a theatre-style distance. Three realistic examples include:

A private school in Al Wakrah fitting out corridors with timetables, events and announcements, loaded from USB or scheduled from internal memory.
A clinic in Msheireb with a busy waiting area, showing health information playlists, where FailOver keeps the screen live during a network fault.
An office lobby in Lusail or The Pearl where the facilities team manages several screens from one place using CMND and Control over a local network.

The on-screen menu also supports Arabic, which helps teams working in Arabic and English side by side.

Planning the installation

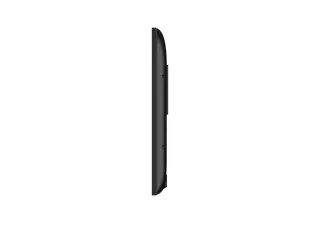

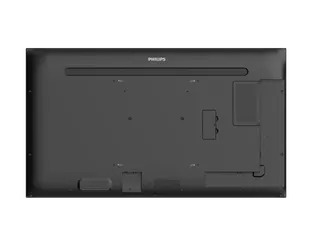

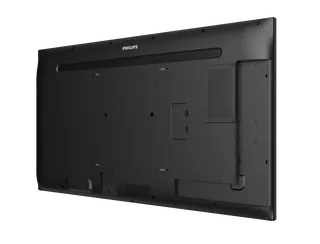

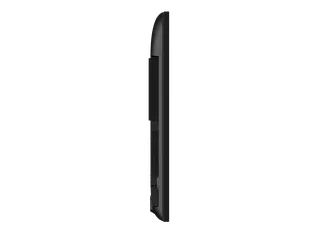

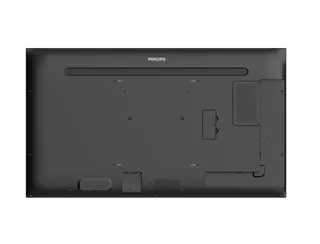

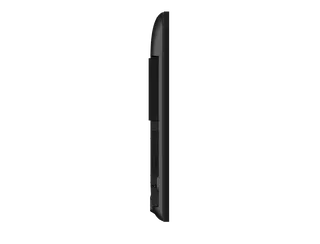

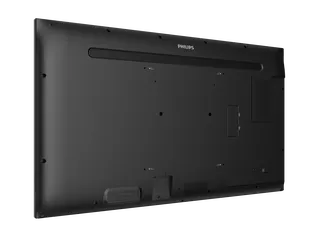

The set measures 1241.8 mm wide, 712.6 mm high and 63.6 mm deep, weighs 16.6 kg and has a 13.9 mm bezel. Wall mounting uses a 400 x 400 mm pattern with M6 fixings. The optional BM05922 stand is sold separately. The box includes an AC power cord, RS232 cable, remote control with batteries, quick start guide, 1.8 m IR sensor cable, RS232 daisy-chain cable, Philips logo and USB cover with screws. The operating range is 0 to 40 °C at 20 to 80% relative humidity, non-condensing, up to 3000 m altitude. Qatari summer temperatures can exceed 45 °C, so keep the display in an air-conditioned room rather than outdoors or in an unconditioned loading area, and confirm the room conditions with the SmartRooms Qatar team. SmartRooms Qatar offers free site surveys to check wall condition, cable routes and glare before mounting.

Request a quote from SmartRooms Qatar for the Philips 55BDL3510Q. Quotations are usually issued within one working day, and we deliver to all eight municipalities of Qatar, install professionally and accept LPOs and government tenders.

Highlights

55-inch 4K Ultra HD panel at 3840 x 2160 resolution
400 cd/m² brightness with 178-degree viewing angles
USB, internal memory and HTML5 browser playback
FailOver and MemoryCache keep screens running during faults
SmartPower can reduce backlight power consumption by up to 50%
3-year manufacturer warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

62 specifications · Source: manufacturer · checked Oct 2026

Connectivity4

Audio output: 3.5 mm jack
Video input: DVI-I (x 1); HDMI 2.0 (x 2); USB 2.0 (x 2)
Audio input: 3.5 mm jack
External control: RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack

Convenience9

Tiled Matrix: Up to 15 x 15
Network controllable: RS232; RJ45
Energy-saving functions: Smart Power
Start-up window: enable/disable Philips logo
Remote control signal: Lockable
Placement: Landscape; Portrait
Start-up: Switch on delay; Switch on status; Boot on source
Signal loop through: RS232; IR Loop through
Keyboard control: Lockable; Hidden

Accessories3

Stand: BM05922(optional)
Included accessories: AC Power Cord; RS232 cable; Remote Control; Batteries for remote control; Quick start guide
Included Accessories: IR sensor cable (1.8 m) (x 1); RS232 daisy-chain cable; Philips logo (x 1); USB Cover and screw (x 2)

Dimensions10

Set Depth: 63.6 mm
Set Width: 1241.8 mm
Wall Mount: 400 mm x 400 mm, M6
Set Height: 712.6 mm
Set Width (inch): 48.89 inch
Product weight: 16.6 kg
Set Depth (inch): 2.50 inch
Product weight (lb): 36.60 lb
Bezel width: 13.9 mm (Even bezel)
Set Height (inch): 28.06 inch

Sound1

Built-in speakers: 2 x 10 W RMS

Power5

Consumption (Typical): 120 W
Energy Label Class: G
Power Saving Features: Smart Power
Consumption (Max): 180 W
Mains power: 100 ~ 240 VAC

Multimedia Applications3

USB Playback Audio: AAC; HEAAC; MPEG; WMA
USB Playback Video: H.264; JPEG; MPEG; WMV3
USB Playback Picture: JPEG; BMP; PNG

Miscellaneous3

On-Screen Display Languages: English; French; German; Italian; Polish; Turkish; Russian; Simplified Chinese; Spanish; Traditional Chinese; Arabic; Japanese
Regulatory approvals: CE; CB; BSMI; CU; EPA; ETL; FCC, Class A; VCCI
Warranty: 3 year warranty

Operating conditions6

MTBF: 50,000 hour(s)
Humidity range (storage) [RH]: 5~95% RH (No condensation)
Humidity range (operation)[RH]: 20~80% RH (No condensation)
Temperature range (storage): -20 ~ 60 °C
Altitude: 0 ~ 3000 m
Temperature range (operation): 0 ~ 40 °C

Picture/Display16

Viewing angle (horizontal): 178 degree
Aspect ratio: 16:9
Dynamic contrast ratio: 500,000:1
Display colours: 1.07 Billion
Brightness: 400 cd/m²
Diagonal screen size (metric): 138.7 cm
Panel resolution: 3840 x 2160
Pixel pitch: 0.372 x 0.372 mm
Clinical image: D-Image preset (dicom part 14 compatible)
Optimum resolution: 3840 x 2160 @ 60 Hz
Response time (typical): 9 ms
Panel technology: IPS
Picture enhancement: 3/2 - 2/2 motion pull down; 3D Combfilter; 3D MA deinterlacing; Dynamic contrast enhancement; Motion compens. deinterlacing; Progressive scan
Viewing angle (vertical): 178 degree
Contrast ratio (typical): 1300:1
Diagonal screen size (inch): 54.6 inch

Supported Display Resolution2

Video formats: 3840 x 2160, 60 Hz; 3840 x 2160, 30Hz; 720p, 60 Hz; 480i, 60 Hz; 480p, 60 Hz; 576i, 50 Hz; 576p, 50 Hz; 1080i, 50, 60 Hz; 1080p, 50, 60 Hz
Computer formats: 1920 x 1080, 60 Hz; 1600 x 1200, 60 Hz; 1440 x 900, 60 Hz; 1280 x 1024, 60 Hz; 1280 x 720, 60 Hz; 1280 x 800, 60 Hz; 1024 x 768, 60, 70, 75 Hz; 720 x 400, 70 Hz; 640 x 480, 60, 67, 72, 75 Hz; 1152 x 870, 75 Hz; 1680 x 1050, 60 Hz; 800 x 600, 56, 60, 72, 75 Hz; 1152 x 864, 75 Hz; 832 x 624, 75 Hz

Downloads

6 files from the manufacturer

PDF Datasheets 55BDL3510Q_00_2021-03-01_11h25m59s.pdf 436 KB PDF Manuals & guides 43_50_55BDL3510Q_dfu_V1_01_eng.pdf 9.6 MB PDF Manuals & guides · Opens on manufacturer site 1726689102-43_50_55bdl3510q_dfu_v1-01_ara-pdf.pdf PDF Manuals & guides · Opens on manufacturer site 1726689121-43_50_55bdl3510q_dfu_v1-01_ara-pdf.pdf PDF Drawings & CAD Outline_Drawing_Philips_55BDL3510Q_V1_0_20200314.pdf 384 KB PDF Certificates & compliance 55BDL3510Q_Label_395508.pdf 66 KB

Questions about 55BDL3510Q/00

What is the Philips 55BDL3510Q best used for?

It is a 55-inch 4K display for public-facing screens that show information, promotions or wayfinding. In Qatar it suits a reception area in a Doha office, a school corridor in Al Wakrah or a clinic waiting room in Msheireb. Its 400 cd/m² brightness and 178-degree viewing angles keep content readable for people passing by. It is designed for indoor, air-conditioned locations.

Can I run content without a PC?

Yes. Load video, audio or pictures onto a USB 2.0 stick and the display plays them through its SmartPlayer function, with playlists built from the on-screen menu. You can also store media in the internal memory and schedule it, and the display wakes from standby for each slot. This removes the need for a separate media player at each screen, which suits a school with several classrooms.

What happens if the network or the main input goes down?

FailOver switches automatically to a list of backup inputs you set, so the screen keeps playing if the primary source fails. MemoryCache plays a cached copy of streamed online content from the display's memory if the network drops. Together these features help a waiting room or lobby screen stay live during an outage. Keep your backup content loaded on a source the display can reach.

Which connections does the display have?

The display has one DVI-I input, two HDMI 2.0 inputs and two USB 2.0 ports. Audio uses 3.5 mm jacks for input and output. Control options include RJ45, RS232C in and out, and IR in and out, with RS232 and IR loop-through. When you specify cabling for a multi-screen project, plan the RS232 daisy-chain and IR routes at the same time as your power and data outlets.

Can I manage several displays from one place?

Yes. CMND and Control runs over a local LAN or RF connection and lets you update software and settings and monitor display status across a fleet. The display can also be controlled over RJ45 or RS232. Tiled matrix configurations of up to 15 x 15 are supported, so a multi-screen wall can be managed as one set. Confirm your network layout with the SmartRooms Qatar team before the quotation is finalised.

Will the display cope with Qatar's summer heat?

The stated operating range is 0 to 40 °C with 20 to 80% relative humidity, non-condensing, up to 3000 m altitude. Summer temperatures in Qatar can exceed 45 °C, so the display should sit in an air-conditioned room, not outdoors, in a sunlit glass atrium or in an unconditioned loading bay. Confirm the room temperature and airflow with the SmartRooms Qatar team before installation.

What power does it need in Qatar?

The display accepts 100 to 240 VAC mains and ships with an AC power cord. Typical consumption is 120 W, with a maximum of 180 W and standby below 0.5 W. The energy label class is G. SmartPower can reduce backlight power consumption by up to 50%, which helps when a school or office runs screens for long hours. Plan outlet positions and cable routes during the site survey.

How heavy is it and how is it mounted?

The set weighs 16.6 kg and measures 1241.8 mm wide, 712.6 mm high and 63.6 mm deep. It has a 400 x 400 mm wall mount pattern with M6 fixings. The wall type and its load capacity should be checked before drilling. SmartRooms Qatar offers a free site survey that covers wall condition, cable routes and the position of the screen relative to glare and seating.

Is a stand included?

No. The BM05922 stand is listed as optional and is sold separately. You can wall mount the display using the 400 x 400 mm pattern, or add the stand for a freestanding setup in a lobby. The box includes an AC power cord, RS232 cable, remote control with batteries, quick start guide, a 1.8 m IR sensor cable, an RS232 daisy-chain cable, a Philips logo and a USB cover with screws. Ask for the stand in your quotation if you need it.

What warranty applies to the 55BDL3510Q?

The display carries a 3-year warranty from the manufacturer, and SmartRooms Qatar supplies it under that manufacturer warranty. The rated MTBF is 50,000 hours. If you are buying several units for a school or ministry, ask that the quotation list the model for each unit so your asset register matches the purchase order. Any warranty terms beyond the manufacturer's statement are confirmed in the quotation.

Can a government or school buyer order through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, and payment by bank transfer, cheque or purchase order. Send the tender specification, or the quantity and list of sites, and we will quote the Philips 55BDL3510Q for each location. Quotations are usually issued within one working day, and delivery covers all eight municipalities of Qatar.

Does the on-screen menu support Arabic?

Yes. The on-screen display languages include English, French, German, Italian, Polish, Turkish, Russian, Simplified and Traditional Chinese, Spanish, Japanese and Arabic. Staff can set up the display menus in Arabic, which helps teams working in Arabic and English side by side in Doha offices and schools. Request a quote from SmartRooms Qatar to confirm the configuration you need for your site.
