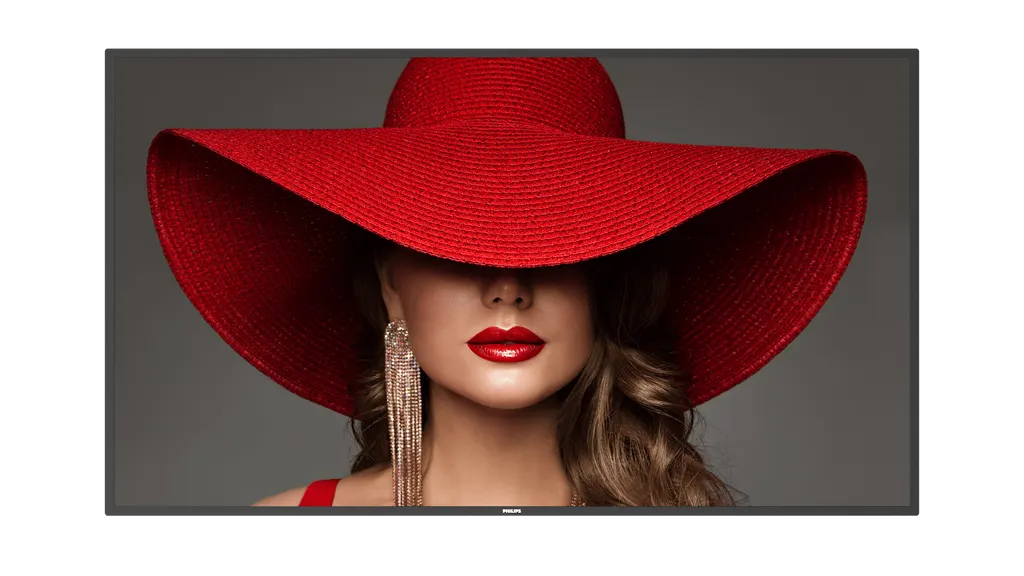

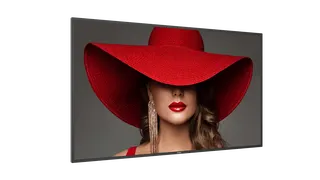

Philips 55BDL4650D 55-inch 4K Android Signage Display

Name: Philips 55BDL4650D 55-inch 4K Android Signage Display
Brand: Philips
SKU: philips-55bdl4650d-00
Availability: InStock

Overview

The Philips 55BDL4650D is a 55-inch signage display with a 3840 x 2160 VA panel, 500 cd/m² brightness and Android 11 built in, so many installations need no separate media player. It offers two HDMI 2.0 inputs, DisplayPort 1.4 in and out, USB 3.0 playback and a slide-in Wi-Fi 6 module. It suits retail corridors, clinic waiting areas and corporate lobbies across Qatar. Request a quote from SmartRooms Qatar to confirm configuration and quantity.

What the Philips 55BDL4650D is built for

The Philips 55BDL4650D is a 55-inch display from the Signage 4000 series (D-Line), made for playing promotions, wayfinding, menus and information loops in public-facing spaces. It runs in landscape or portrait around the clock, and its internal Android 11 player means many installations can run content without a separate media box.

Picture and brightness that hold up in busy spaces

The VA panel delivers 3840 x 2160 pixels at 60 Hz across a 54.6-inch diagonal, with 500 cd/m² brightness and a typical contrast ratio of 5000:1. The 178-degree horizontal and vertical viewing angles keep text legible for people standing beside a corridor or seated in a waiting area. The 8 ms typical response time keeps motion video clear, and the panel is rated for 1.07 billion colours. A 25% haze rating softens reflections, which matters near windows and skylights.

Connections and the built-in player

Inputs cover two HDMI 2.0 ports, one DisplayPort 1.4, one DVI-I and two USB 3.0 ports, and a DisplayPort 1.4 output passes the signal on to the next screen. The internal player combines 32 GB of eMMC storage, 4 GB of RAM and a six-core processor. Wi-Fi 6 and Bluetooth 5.2 arrive through a slide-in module, and an external 4G mPCIe slot with antenna connectors is provided for cellular connectivity. RJ45, RS232C and IR ports allow central control, and the keyboard controls can be hidden and locked.

Where it fits across Qatar

Shopping centres in West Bay or Lusail: a portrait screen beside a lift lobby showing a store directory and current offers, looped from one playlist through the day.
Clinics and hospital waiting areas in Al Sadd or Doha: a landscape display showing queue information and health messages, with on-screen menus available in Arabic.
Corporate lobbies and government reception areas: a visitor welcome panel showing meeting schedules and building directions, managed over the network.

Planning the installation

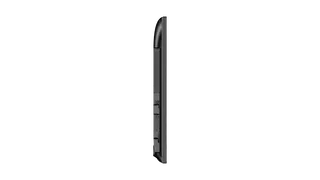

The set measures 1241.8 mm wide, 712.6 mm high and 63.6 mm deep, weighs 16.6 kg, and uses a 400 x 400 mm M6 wall mount pattern. Before fixing, a free site survey from SmartRooms Qatar can confirm wall strength, cable routes and mounting height. The unit is rated for operation between 0 and 40 °C at 20 to 80% relative humidity without condensation, up to 3000 m altitude. Summer temperatures in Qatar can exceed 45 °C, so mount it in an air-conditioned, ventilated area away from direct sunlight and hot-air exhausts.

The mains input is 100 to 240 VAC at 50 to 60 Hz, which covers the 240 V, 50 Hz supply used in Qatar. Typical consumption is 112 W and standby draw is 0.5 W. The box includes an AC power cord, remote control with AAA batteries, a Wi-Fi module, RS232 and IR sensor cables and wire clamps. The manufacturer's 3-year warranty applies.

SmartRooms Qatar supplies the 55BDL4650D across all eight municipalities, installs it professionally and accepts purchase orders (LPOs), government tenders, and payment by bank transfer, cheque or purchase order. Request a quote and our team will confirm stock and timing with your quotation, usually within one working day.

Highlights

55-inch 4K UHD panel at 3840 x 2160 resolution
500 cd/m² brightness with 178-degree viewing angles
Built-in Android 11 player with 4 GB RAM and 32 GB storage
Two HDMI 2.0 inputs, DisplayPort 1.4 in and out, USB 3.0
Wi-Fi 6 and Bluetooth 5.2 via slide-in module
Landscape or portrait placement, 24/7; 3-year warranty

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

66 specifications · Source: manufacturer · checked Oct 2026

Connectivity7

External control: RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack
Audio input: 3.5 mm jack
Video output: DisplayPort 1.4 (x 1)
Video input: DVI-I (x 1); DisplayPort 1.4 (x 1); HDMI 2.0 (x 2); USB 3.0 (x 2); VGA (via DVI)
Other connections: 4G/LTE antenna connectors; Micro USB (x 1) (OTG); USB 2.0 (x 1)
Audio output: 3.5 mm jack
Wi-Fi: Wi-Fi 6 + Bluetooth 5.2 (slide-in module)

Convenience8

Wi-Fi protocol: a b g n, 802.11 ax, 802.11 ac
Network controllable: RS232; External 4G mPCIe slot; RJ45; Wi-Fi
Tiled Matrix: Up to 10 x 15
Energy-saving functions: Smart Power
Placement: Landscape (24/7); Portrait (24/7)
Screen-saving functions: Pixel Shift
Keyboard control: Hidden; Lockable
Signal loop through: IR Loop through; DisplayPort; RS232

Accessories1

Included Accessories: RS232 daisy-chain cable; Philips logo (x 1); AC Switch Cover; USB Cover (x 1); Screws; AC Power Cord; IR sensor cable (1.8 m) (x 1); Quick start guide; Remote control and AAA batteries; RS232 cable; Wi-Fi module; Wire Clamper (x 3)

Internal Player4

Storage: 32 GB eMMc
GPU: ARM Mali-T860 MP4
Memory: 4 GB RAM
CPU: 2 x A72 + 4 x A53

Dimensions10

Product weight: 16.6 kg
Product weight (lb): 36.60 lb
Bezel width: 13.9 mm (Even bezel)
Set Depth (inch): 2.50 inch
Set Depth: 63.6 mm
Set Width: 1241.8 mm
Set Width (inch): 48.89 inch
Set Height (inch): 28.20 inch
Wall Mount: 400 (H) x 400(V) mm, M6
Set Height: 712.6 mm

Sound1

Built-in speakers: 2 x 10 W RMS

Power4

Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical): 112 W
Energy Label Class: G
Standby power consumption: 0.5 W

Multimedia Applications3

USB Playback Picture: BMP; JPEG; PNG
USB Playback Video: MPEG; H.263; H.264; H.265; AVI; MP4; MPEG4; VP8; VP9; WEBM
USB Playback Audio: AAC; HEAAC; MPEG

Miscellaneous3

Regulatory approvals: CE; RoHS; CB; FCC, Class A; EMF; Energy Star 8.0; UL
Warranty: 3 year warranty
On-Screen Display Languages: English; French; German; Spanish; Polish; Turkish; Russian; Italian; Simplified Chinese; Traditional Chinese; Arabic; Japanese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish

Operating conditions6

Temperature range (storage): -20 ~ 60 °C
MTBF: 50,000 hour(s)
Temperature range (operation): 0 ~ 40 °C
Humidity range (operation)[RH]: 20–80% RH (No condensation)
Humidity range (storage) [RH]: 5–95% RH (No condensation)
Altitude: 0 ~ 3000 m

Picture/Display17

Operating system: Android 11
Panel technology: VA
Response time (typical): 8 ms
Pixel pitch: 0.315 × 0.315 mm
Panel resolution: 3840 x 2160
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Viewing angle (horizontal): 178 degree
Display colours: 1.07 Billion
Picture enhancement: 3/2 - 2/2 motion pull down; Dynamic contrast enhancement; Motion compens. deinterlacing; Progressive scan
Optimum resolution: 3840 x 2160 @ 60 Hz
Contrast ratio (typical): 5000:1
Haze: 25%
Diagonal screen size (inch): 54.6 inch
Viewing angle (vertical): 178 degree
Brightness: 500 cd/m²
Diagonal screen size (metric): 138.7 cm

Supported Display Resolution2

Computer formats: 1920 x 1080, 60 Hz; 1680 x 1050, 60 Hz; 1600 x 900, 60 Hz; 1024 x 768, 60 Hz; 1280 x 1024, 60 Hz; 1280 x 720, 60 Hz; 1440 x 900, 60 Hz; 3840 x 2160, 30, 60 Hz; 640 x 480, 60 Hz; 800 x 600, 60 Hz
Video formats: 1080i, 50, 60 Hz; 576p, 50 Hz; 576i, 50 Hz; 480p, 60 Hz; 480i, 60 Hz; 1080p, 50, 60 Hz; 720p, 50,60 Hz; 2160p, 50, 60 Hz

Downloads

5 files from the manufacturer

PDF Datasheets 55BDL4650D_00_2023-06-22_04h12m29s.pdf 347 KB PDF Datasheets 55BDL4650D_00_en_AA_b2c_PSS.pdf 332 KB PDF Manuals & guides · Opens on manufacturer site 1726686045-43-50-55bdl4650d_dfu_v1-00_ara-pdf.pdf PDF Manuals & guides · Opens on manufacturer site 43_50_55BDL4650D_dfu_V1_01_eng.pdf 19.4 MB PDF Drawings & CAD Outline_Drawing_Philips_55BDL4650D_V1_0_20230410.pdf 390 KB

Questions about 55BDL4650D/00

What is the Philips 55BDL4650D best suited for?

It suits organisations that need one screen for promotions, wayfinding, menus or information loops, such as a retail corridor in West Bay, a clinic waiting room in Al Sadd or a corporate lobby in Lusail. Its 55-inch 4K panel with 500 cd/m² brightness stays readable from several metres, and it is rated for 24/7 operation in landscape or portrait.

Do I need a separate media player?

Not always. The display has an internal Android 11 player with a six-core processor, 4 GB RAM and 32 GB eMMC storage, and it plays files from USB, including BMP, JPEG, PNG, MP4, WEBM and other listed formats. If you already run a media box, HDMI 2.0, DisplayPort 1.4 or DVI-I inputs accept an external source instead.

How sharp is the picture and how bright is it?

The panel is 3840 x 2160, which is four times the pixel count of Full HD, and it runs at 60 Hz. Rated brightness is 500 cd/m², with a typical contrast ratio of 5000:1 and a 178-degree viewing angle. These figures suit mall corridors and lobbies where people view the screen from the side or from a few metres away.

Can it be mounted in portrait orientation in a lift lobby?

Yes, the specification lists both landscape and portrait placement for 24/7 operation. A portrait mount suits a lift lobby in Msheireb or a corridor directory showing floor listings. The wall mount pattern is 400 x 400 mm with M6 fixings, and the set weighs 16.6 kg, so confirm wall strength with a site survey before fixing.

How many units can be tiled into a video wall?

The tiled matrix is rated up to 10 x 15 units. The bezel is 13.9 mm and even on all sides, which keeps gaps between tiles narrow. For a wall at an event venue or a control room, plan the layout with SmartRooms Qatar, since the wall also needs a suitable video source and controller for your content.

Which wireless and mobile connections are included?

Wi-Fi 6 and Bluetooth 5.2 come through a slide-in module, and the Wi-Fi module is listed among the included accessories. The product has an external 4G mPCIe slot and 4G/LTE antenna connectors, but the data does not list a 4G module in the box. Confirm cellular hardware in your quotation if you need mobile connectivity at the site.

Are the on-screen menus available in Arabic?

Yes. The on-screen display languages include Arabic alongside English, French, German and many others. This suits a reception desk in Doha where staff work in Arabic and English side by side. The language of your content is separate and depends on the files you load into the player.

Can it be installed in a sun-facing lobby or an outdoor area?

No. The rated operating range is 0 to 40 °C, while summer temperatures in Qatar can exceed 45 °C. Install it indoors in an air-conditioned space, away from direct sunlight, windows and hot-air exhausts. If you are unsure about a site, ask the SmartRooms Qatar team to review the environment before you request a quotation.

Is it suitable for a hospital or clinic waiting area?

It suits waiting areas because the keyboard controls can be hidden and locked, which keeps the settings away from visitors. Pixel Shift helps reduce image retention on static content, and Smart Power supports energy saving. Typical consumption is 112 W with 0.5 W standby, and the RJ45 and RS232C ports allow central control across several screens.

How would a school in Al Wakrah or Education City use it?

A school can place portrait units in corridors to show notices, timetables and event schedules, and landscape units in entrance areas for visitor information. When a school orders several units, it can issue a purchase order (LPO) against a single quotation. SmartRooms Qatar can supply across all eight municipalities and confirm installation scope during the site survey.

How much power does it draw and what supply does it need?

The mains input is 100 to 240 VAC at 50 to 60 Hz, which covers the 240 V, 50 Hz supply used in Qatar. Typical consumption is 112 W, standby draw is 0.5 W and the energy label class is G. An AC power cord is included in the box. Plan a dedicated socket near the mount for each display in your cable design.

What warranty applies and what is included in the box?

The source data lists a 3-year warranty from the manufacturer. The box includes a remote control with AAA batteries, a Wi-Fi module, an RS232 daisy-chain cable and RS232 cable, a 1.8 m IR sensor cable, an AC power cord, three wire clamps, a USB cover, screws and a quick start guide. Request a quote and confirm any additional mounting parts with your order.
