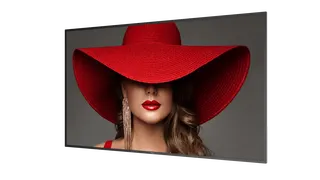

Philips 65BDL4650D 65-inch 4K Digital Signage Display

Name: Philips 65BDL4650D 65-inch 4K Digital Signage Display
Brand: Philips
SKU: philips-65bdl4650d-00
Availability: InStock

Overview

The Philips 65BDL4650D is a 65-inch 4K UHD signage display built on Android 11, with 500 cd/m² brightness and a 14.9 mm even bezel for tiled video walls. It includes a slide-in Wi-Fi 6 module, two HDMI 2.0 inputs, DisplayPort in and out, and a 3-year warranty. Suited to Doha retail entrances, hotel lobbies and university corridors needing content running around the clock. Request a quote from SmartRooms Qatar.

What the Philips 65BDL4650D does

The Philips 65BDL4650D is a 65-inch commercial display built for digital signage. It shows menus, wayfinding, promotions, announcements and information loops in lobbies, corridors and retail areas. Its 3840 x 2160 panel delivers 4K UHD resolution across a 163.8 cm diagonal, and the 16:9 format matches the content most organisations produce for their screens.

Android 11 runs on the internal player, so signage apps can be installed and managed without a separate media PC. The player has 4 GB of RAM and 32 GB of eMMC storage, which allows content to be held locally on the display.

Connectivity and control details that matter on site

The panel offers the inputs that most AV rooms and signage networks already use:

Video: two HDMI 2.0 inputs, one DisplayPort 1.4 input, one DisplayPort 1.4 output for passing the signal to a second screen, and DVI-I
Media: two USB 3.0 ports and one USB 2.0 port, with USB playback of common picture, video and audio formats
Control: RJ45, RS232 and IR, with IR and RS232 loop-through for multi-screen setups
Wireless: Wi-Fi 6 and Bluetooth 5.2 through a slide-in module, plus 4G/LTE antenna connectors

Brightness is rated at 500 cd/m². The 1,200:1 typical contrast ratio and 178-degree viewing angles keep images readable from the side of a corridor. Pixel Shift is a screen-saving function that moves the image slightly over time to reduce burn-in risk. Smart Power handles energy saving, with typical consumption of 155 W and standby below 0.5 W.

Where it fits in Qatar

Three typical deployments show how the 65-inch size is used:

A shopping mall in West Bay or The Pearl, with a screen at a store entrance or atrium showing promotions and directions in an air-conditioned space.
A private school in Al Wakrah or Al Rayyan fitting out reception and corridors with announcements. The on-screen menus support 18 languages, including Arabic and English.
A ministry lobby in Msheireb displaying visitor information in Arabic and English, where staff work Sunday to Thursday and the screen must run reliably through busy weekday mornings.

Planning the installation

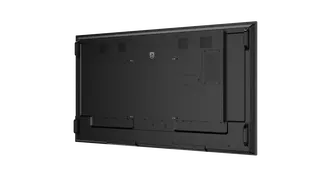

At 28.1 kg and 1462.3 mm wide, this panel needs a solid wall or a rated mount. The wall-mount pattern is 400 x 400 mm with M8 fixings, and the depth is 68.9 mm on a wall mount or 89.9 mm with the handle fitted. SmartRooms Qatar offers free site surveys, which help confirm wall construction, cable routes and the position of power and network points before installation.

Environment matters in Qatar. The operating range is 0 to 40 °C with 20 to 80% relative humidity, non-condensing, at altitudes up to 3000 m. Summer temperatures can pass 45 °C, so mount the display indoors in an air-conditioned space rather than an unconditioned entrance or enclosure. The mains input is 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V supply. The model carries energy label class G, and the listed approvals include CB, CE, FCC Class A, RoHS, Energy Star 8.0 and UL. Mean time between failures is rated at 50,000 hours, and the warranty is 3 years.

Tell the SmartRooms Qatar team how many screens you need, which rooms they will occupy and the mounting you have in mind. Quotations are usually issued within one working day. Purchase orders (LPOs) and government tenders, including Monaqasat, are accepted, and payment can be made by bank transfer, cheque or purchase order. Request a quote for the Philips 65BDL4650D today.

Highlights

65-inch 4K UHD panel at 3840 x 2160 resolution
500 cd/m² brightness and 178-degree viewing angles
Android 11 internal player with 4 GB RAM, 32 GB storage
Two HDMI 2.0 inputs and DisplayPort 1.4 daisy-chain output
Wi-Fi 6 and Bluetooth 5.2 through slide-in module
3-year warranty and 0 to 40 °C operating range

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

65 specifications · Source: manufacturer · checked Oct 2026

Connectivity7

External control: RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack
Audio input: 3.5 mm jack
Video output: DisplayPort 1.4 (x 1)
Video input: DVI-I (x 1); DisplayPort 1.4 (x 1); HDMI 2.0 (x 2); USB 3.0 (x 2); VGA (via DVI)
Other connections: 4G/LTE antenna connectors; Micro USB (x 1) (OTG); USB 2.0 (x 1)
Audio output: 3.5 mm jack
Wi-Fi: Wi-Fi 6 + Bluetooth 5.2 (slide-in module)

Convenience8

Wi-Fi protocol: a b g n, 802.11 ax, 802.11 ac
Network controllable: RS232; External 4G mPCIe slot; RJ45; Wi-Fi
Tiled Matrix: Up to 10 x 15
Energy-saving functions: Smart Power
Placement: Landscape (24/7); Portrait (24/7)
Screen-saving functions: Pixel Shift
Keyboard control: Hidden; Lockable
Signal loop through: IR Loop through; DisplayPort; RS232

Accessories1

Included Accessories: RS232 daisy-chain cable; Philips logo (x 1); AC Switch Cover; USB Cover (x 1); Screws; AC Power Cord; IR sensor cable (1.8 m) (x 1); Quick start guide; Remote control and AAA batteries; RS232 cable; Wi-Fi module; Wire Clamper (x 3)

Internal Player4

Storage: 32 GB eMMc
GPU: ARM Mali-T860 MP4
Memory: 4 GB RAM
CPU: 2 x A72 + 4 x A53

Dimensions10

Product weight: 28.1 kg
Bezel width: 14.9 mm (Even bezel)
Set Depth (inch): 3.54 (D@Handle)/ 2.71 (D@Wall mount) inch
Product weight (lb): 61.95 lb
Set Depth: 89.9 (D@Handle)/ 68.9 (D@Wall mount) mm
Set Width: 1462.3 mm
Set Width (inch): 57.57 inch
Set Height (inch): 32.96 inch
Set Height: 837.3 mm
Wall Mount: 400 mm(H) x 400 mm(V), M8

Sound1

Built-in speakers: 2 x 10 W RMS

Power3

Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical): 155 W
Energy Label Class: G

Multimedia Applications3

USB Playback Picture: BMP; JPEG; PNG
USB Playback Video: MPEG; H.263; H.264; H.265; AVI; MP4; MPEG4; VP8; VP9; WEBM
USB Playback Audio: AAC; HEAAC; MPEG

Miscellaneous3

Regulatory approvals: CB; CE; FCC, Class A; RoHS; EMF; Energy Star 8.0; UL
Warranty: 3 year warranty
On-Screen Display Languages: English; French; German; Spanish; Polish; Turkish; Russian; Italian; Simplified Chinese; Traditional Chinese; Arabic; Japanese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish

Operating conditions6

Temperature range (storage): -20 ~ 60 °C
MTBF: 50,000 hour(s)
Temperature range (operation): 0 ~ 40 °C
Humidity range (storage) [RH]: 5–95% RH (No condensation)
Humidity range (operation)[RH]: 20–80% RH (No condensation)
Altitude: 0 ~ 3000 m

Picture/Display17

Operating system: Android 11
Response time (typical): 8 ms
Panel technology: ADS
Pixel pitch: 0.372 x 0.3 72 mm
Panel resolution: 3840 x 2160
Viewing angle (horizontal): 178 degree
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Display colours: 1.07 Billion
Picture enhancement: 3/2 - 2/2 motion pull down; Dynamic contrast enhancement; Motion compens. deinterlacing; Progressive scan
Optimum resolution: 3840 x 2160 @60 Hz
Diagonal screen size (inch): 64.5 inch
Contrast ratio (typical): 1200:1
Viewing angle (vertical): 178 degree
Haze: 25%
Diagonal screen size (metric): 163.8 cm
Brightness: 500 cd/m²

Supported Display Resolution2

Computer formats: 1920 x 1080, 60 Hz; 1680 x 1050, 60 Hz; 1600 x 900, 60 Hz; 1024 x 768, 60 Hz; 1280 x 1024, 60 Hz; 1280 x 720, 60 Hz; 1440 x 900, 60 Hz; 3840 x 2160, 30, 60 Hz; 640 x 480, 60 Hz; 800 x 600, 60 Hz
Video formats: 1080i, 50, 60 Hz; 576p, 50 Hz; 576i, 50 Hz; 480p, 60 Hz; 480i, 60 Hz; 1080p, 50, 60 Hz; 720p, 50,60 Hz; 2160p, 50, 60 Hz

Downloads

5 files from the manufacturer

PDF Datasheets 65BDL4650D_00_2023-06-22_04h12m54s.pdf 343 KB PDF Datasheets 65BDL4650D_00_en_ZA_b2c_PSS.pdf 335 KB PDF Manuals & guides 65_75_86BDL4650D_DFU_V1_02_eng.pdf 22.4 MB PDF Manuals & guides · Opens on manufacturer site 1726686092-65_75_86bdl4650d_dfu_v1-00_ara-pdf.pdf PDF Drawings & CAD Outline_Drawing_Philips_65BDL4650D_V1_0_20230410.pdf 1017 KB

Questions about 65BDL4650D/00

Which Qatar sites suit the Philips 65BDL4650D?

This is a 65-inch 4K display built for digital signage. It suits lobbies, corridors, reception areas and retail entrances where menus, wayfinding, promotions or announcements need to run through the working day. With 500 cd/m² brightness and a 3840 x 2160 panel, it stays legible in bright indoor spaces. If you need an interactive display for meeting-room video calls, a different category of screen is the better fit.

Do I need a separate media player for this display?

No. The display has an internal player running Android 11, with 4 GB of RAM and 32 GB of eMMC storage. Signage apps can be installed and content stored locally, without a separate media PC. Before ordering, agree with the SmartRooms Qatar team on how much content and how many playlists you plan to hold, because local storage is 32 GB.

What inputs are available for connecting a PC or media box?

The panel has two HDMI 2.0 inputs, one DisplayPort 1.4 input and one DVI-I input, plus a DisplayPort 1.4 output for passing the signal to a second screen. It also has two USB 3.0 ports, one USB 2.0 port, and 3.5 mm audio input and output jacks. Use HDMI for a standard PC or media box, and the DisplayPort output where several screens are chained together.

Does it support Wi-Fi and 4G connectivity?

Yes. Wi-Fi 6 and Bluetooth 5.2 are provided through a slide-in module, which is included with the display. The panel also has 4G/LTE antenna connectors and an external 4G mPCIe slot, and a wired RJ45 network port is available. Wireless connectivity helps where running a network cable to a mall atrium or a remote part of a building is difficult.

How can a government office manage several screens from one control room?

The display supports RS232, IR and RJ45 control, and network control is also available over Wi-Fi. RS232 and IR loop-through, plus an RS232 daisy-chain cable, are included. The keyboard controls can be hidden and locked. An IT team in a Doha ministry can therefore manage several screens from one control PC, while the supplied remote and AAA batteries handle local adjustments.

Can this display run in a non-air-conditioned entrance during Qatar's summer?

Not recommended. The stated operating range is 0 to 40 °C with 20 to 80% relative humidity, non-condensing. Qatari summer temperatures can exceed 45 °C, so install the display in a lobby, classroom or office with air conditioning, and keep it away from outdoor entrances, rooftops and unventilated enclosures. Confirm the room conditions with the SmartRooms Qatar team before installation.

Is the power supply suitable for Qatar's 240 V mains?

Yes. The mains input is rated 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V supply. Typical consumption is 155 W, and standby consumption is below 0.5 W. An AC power cord is included, but confirm that it suits the BS 1363 (Type G) socket at the installation point before mounting the display.

Can a school in Al Wakrah mount this display on a corridor wall?

Yes, provided the wall can carry 28.1 kg safely and the mount matches the 400 x 400 mm pattern with M8 fixings. The set is 1462.3 mm wide and 837.3 mm high, and the depth is 68.9 mm on a wall mount. The box includes three wire clampers and a 1.8 m IR sensor cable. A free site survey will confirm the wall, cable route and power point before fixing.

Can several units be combined into a video wall for a West Bay hotel lobby?

The specifications list a tiled matrix of up to 10 x 15 displays, and the 14.9 mm even bezel keeps the seams narrow. The actual layout depends on the control system, mounting method and cable plan, so confirm the configuration with SmartRooms Qatar before ordering. In a lobby, plan the wall width, cable runs and ventilation around each panel, not just the number of screens.

Does the on-screen menu support Arabic?

Yes. The on-screen display offers 18 languages in total, including Arabic and English. This suits offices that work in both languages side by side, such as government entities and private schools. Arabic content on the screen, however, depends on the signage software you use, so test your Arabic text on the display before the rollout.

What warranty comes with the display, and how do public bodies buy it?

The model carries a 3-year manufacturer warranty, and its rated mean time between failures is 50,000 hours. Warranty terms are set by the manufacturer, so request the written conditions with your quotation. Public bodies can order through a purchase order (LPO) or a Monaqasat tender, and payment can be made by bank transfer, cheque or purchase order.
