Philips Digital Signage Current

65BDL5050D/00

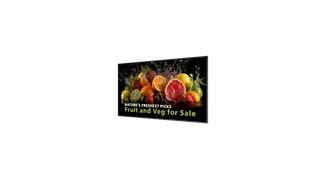

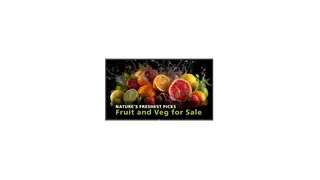

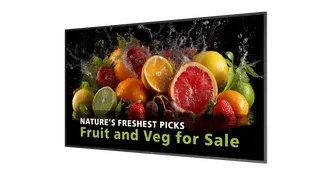

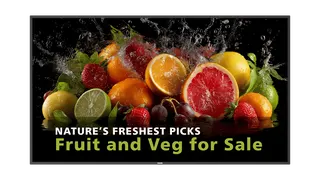

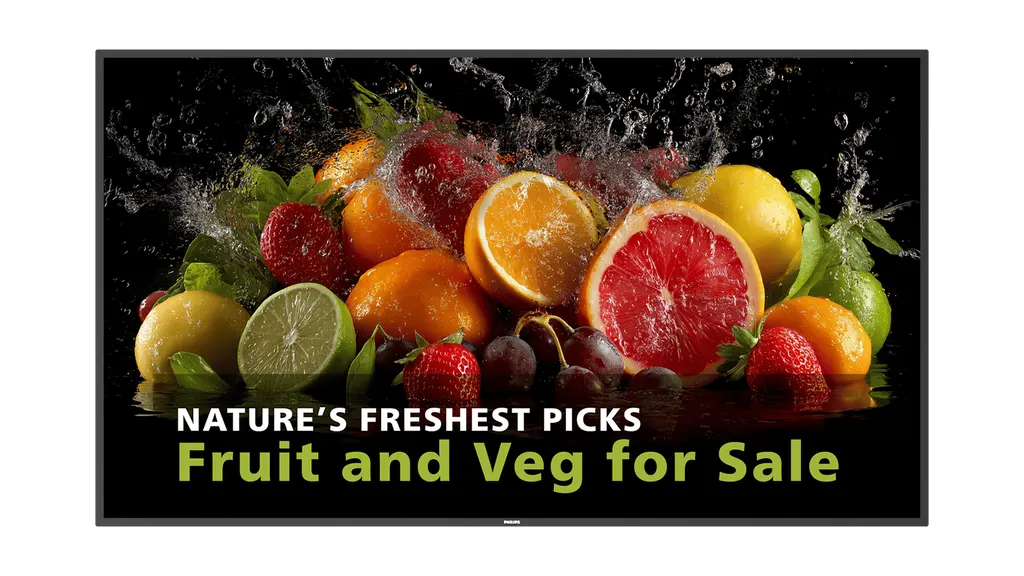

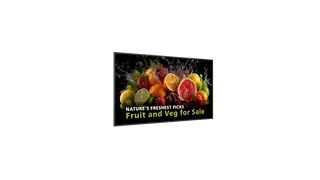

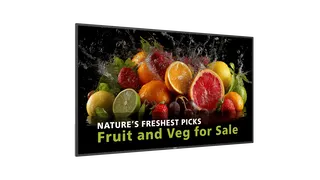

Philips 65BDL5050D/00 65-inch Digital Signage Display

Screen size: 32.96 inch
Resolution: 3840 x 2160
Brightness: 600 cd/m²
System: Android 14

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Philips 65BDL5050D/00 is a 65-inch member of the Signage 5000 (D-Line) range. It combines a 3840 x 2160 panel rated at 600 cd/m2 with a built-in Android 14 player, and it is rated for 24/7 operation in landscape or portrait. The display suits lobbies, corridors and meeting areas in Doha, Lusail and Al Rayyan that need reliable indoor information screens. Request a quote from SmartRooms Qatar.

A 65-inch 4K display with its own Android 14 player

The Philips 65BDL5050D/00 is a 65-inch digital signage display from the Signage 5000 (D-Line) series, built to show content for long hours in public-facing and back-of-house areas. Its 64.5-inch diagonal screen uses a 3840 x 2160 panel with a 16:9 aspect ratio and is rated at 600 cd/m2 brightness, which keeps menus, wayfinding and announcements readable under typical indoor lighting.

Picture quality and the built-in player

The panel offers 1,200:1 typical contrast, a dynamic contrast rating of 500,000:1, 1.07 billion displayable colours and an 8 ms typical response time. Viewing angles are 178 degrees both horizontally and vertically. Because Android 14 runs on the display itself, the unit can play content from its internal 32 GB storage, backed by 4 GB of RAM and an eight-core processor with an ARM Mali G52 MC3 graphics unit, without a separate media player for simple playlists.

Inputs: DisplayPort 1.4, two HDMI 2.0 inputs and a USB-C input rated at 4.5 W
Outputs: HDMI 2.0 output for loop-through, plus an audio output on a 3.5 mm jack
USB: two USB 3.0 ports and a Micro USB OTG port
Control and network: RJ45, RS232C and IR in and out, Wi-Fi 6, and Bluetooth 5.2 through the included CRD32 module
Expansion: an external 4G mPCIe slot with antenna connectors for cellular connectivity

Pixel shift helps reduce image retention on static content, and the Smart Power function lowers consumption when the screen is idle. The display supports landscape and portrait placement for 24/7 operation, and up to 10 by 15 units can be tiled into a larger matrix. Its even bezel measures 14.9 mm, which keeps the seams between tiled panels narrow.

Where it fits in Qatar

Government counters in Doha: wayfinding and queue information near service desks, with on-screen menus available in Arabic and English.
Private schools in Al Wakrah: corridor and reception screens showing timetables, events and announcements, mounted in air-conditioned areas.
Hotel lobbies in West Bay: portrait-oriented guest information and transport updates running around the clock.
Shopping malls in Lusail: several units tiled into a compact video wall for promotional content.

Planning the installation and room conditions

At 29 kg with a 1462.3 mm by 837.3 mm footprint and a 68.9 mm depth on the wall mount, the display needs a solid, level wall and a 400 x 400 mm M8 mounting pattern. A free site survey by SmartRooms Qatar helps confirm the wall, cable routing and viewing height before installation. The operating range is 0 to 40 degrees C with 20 to 80% humidity, non-condensing, and the display carries an IP5X rating. Qatar summers can exceed 45 degrees C, so keep the unit in air-conditioned indoor spaces and do not place it in unconditioned or sun-exposed areas. Mains input is 100 to 240 VAC at 50 to 60 Hz, typical consumption is 98 W, and standby power is under 0.5 W. The package includes an AC power cord, RS232 cable, IR sensor cable, remote control and the CRD32 Wi-Fi and Bluetooth module, and the product is covered by a 3-year manufacturer warranty.

Request a quote from SmartRooms Qatar for the Philips 65BDL5050D/00, including delivery to any of Qatar's 8 municipalities, professional installation and a site survey. Quotations are usually issued within one working day, and we accept purchase orders and tender documents.

Highlights

65-inch panel, 64.5-inch diagonal, 3840 x 2160 resolution
600 cd/m2 brightness with 1,200:1 typical contrast
Built-in Android 14 player with 32 GB storage and 4 GB RAM
Rated for 24/7 operation in landscape or portrait
Wi-Fi 6, RJ45, RS232C and IR control, plus 4G expansion slot
3-year manufacturer warranty, 0 to 40 degrees C operating range

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

63 specifications · Source: manufacturer · checked Oct 2026

Connectivity5

Audio output: 3.5 mm jack
Other connections: 4G/LTE antenna connectors; Micro USB (x 1) (OTG); USB 3.0 (x 2)
Video output: HDMI 2.0
Video input: DisplayPort 1.4 (x 1); HDMI 2.0 (x 2); USB-C (4.5 W)
External control: RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack; Wi-Fi 6; Bluetooth 5.2 (via CRD32)

Convenience7

Signal loop through: RS232; IR Loop through; HDMI1; HDMI 2; Android SoC
Keyboard control: Hidden; Lockable
Energy-saving functions: Smart Power
Network controllable: RS232; External 4G mPCIe slot; RJ45
Tiled Matrix: Up to 10 x 15
Screen-saving functions: Pixel Shift
Placement: Landscape (24/7); Portrait (24/7)

Accessories1

Included Accessories: RS232 daisy-chain cable; Philips logo (x 1); AC Switch Cover; USB Cover (x 1); Screws; AC Power Cord; IR sensor cable (1.8 m) (x 1); Quick start guide; Remote control and AAA batteries; RS232 cable; CRD32 Wi-Fi and BT module

Internal Player4

Storage: 32 GB
Memory: 4 GB RAM
CPU: 4 x A72 + 4 x A53 RK3576 + MT9800
GPU: ARM Mali G52 MC3

Dimensions10

Wall Mount: 400 (H) x 400 (V) mm, M8
Set Height: 837.3 mm
Set Height (inch): 32.96 inch
Set Width: 1462.3 mm
Set Depth (inch): 3.68(D@Handle) / 2.71(D@Wall mount) inch
Set Width (inch): 57.57 inch
Set Depth: 93.4 (D@Handle)/68.9 (D@Wall mount) mm
Product weight (lb): 63.93 lb
Product weight: 29 kg
Bezel width: 14.9 mm (Even bezel)

Sound1

Built-in speakers: 2 x 10 W RMS

Power3

Energy Label Class: F
Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption: EEI lot5 98 W

Multimedia Applications3

USB Playback Picture: BMP; JPEG; PNG
USB Playback Video: MPEG; H.263; H.264; H.265; AVI; MP4; MPEG4; VP8; VP9; WEBM
USB Playback Audio: AAC; HEAAC; MPEG

Operating conditions7

Temperature range (storage): -20 ~ 60 °C
Humidity range (storage) [RH]: 5–95% RH (No condensation)
Humidity range (operation)[RH]: 20–80% RH (No condensation)
Temperature range (operation): 0 ~ 40 °C
MTBF: 50,000 hour(s)
Ingress protection: IP5X
Altitude: 0 ~ 3000 m

Picture/Display17

Diagonal screen size (metric): 163.8 cm
Viewing angle (vertical): 178 degree
Diagonal screen size (inch): 64.5 inch
Haze: 25%
Contrast ratio (typical): 1200:1
Panel resolution: 3840 x 2160
Pixel pitch: 0.372 x 0.372 mm
Picture enhancement: 3/2 - 2/2 motion pull down; Motion compens. deinterlacing; Dynamic contrast enhancement; Progressive scan
Display colours: 1.07 Billion
Brightness: 600 cd/m²
Aspect ratio: 16:9
Viewing angle (horizontal): 178 degree
Dynamic contrast ratio: 500,000:1
Optimum resolution: 3840 x 2160 @ 60 Hz
Response time (typical): 8 ms
Operating system: Android 14
Panel technology: ADS

Miscellaneous3

On-Screen Display Languages: English; French; German; Spanish; Polish; Turkish; Russian; Italian; Simplified Chinese; Traditional Chinese; Arabic; Japanese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish
Warranty: 3 year warranty
Regulatory approvals: CE; RoHS; CB

Supported Display Resolution2

Video formats: 1080p, 50, 60 Hz; 1080i, 50, 60 Hz; 480p, 60 Hz; 576i, 50 Hz; 576p, 50 Hz; 720p, 50,60 Hz; 480i, 60 Hz
Computer formats: 1024 x 768, 60 Hz; 1280 x 1024, 60 Hz; 1280 x 720, 60 Hz; 1440 x 900, 60 Hz; 1600 x 900, 60 Hz; 1680 x 1050, 60 Hz; 1920 x 1080, 60 Hz; 640 x 480, 60 Hz; 800 x 600, 60 Hz

Downloads

9 files from the manufacturer

PDF Datasheets 65BDL5050D_00_aen_AA_b2c_GLL.pdf 411 KB PDF Manuals & guides · Opens on manufacturer site 1768521774-65_75_86bdl5050d_dfu_v1_00_ara.pdf PDF Manuals & guides · Opens on manufacturer site 65_75_86BDL5050D_DFU_V1_00_eng.pdf 18.3 MB PDF Manuals & guides · Opens on manufacturer site Q41G75M181361A_65_75_86BDL5050D_WW--S.pdf 3.1 MB PDF Drawings & CAD Outline_Drawing_Philips_65BDL5050D_V0_1_20250408.pdf 724 KB PDF Certificates & compliance 65BDL5050D_Label_2463480_65.pdf 69 KB PDF Certificates & compliance PCF_Information_Sheet-MMD_Monitor-65BDL5050D.pdf 195 KB PDF Certificates & compliance Q40G005781301A__65BDL5050D_Lot5_EEI(贴前框).pdf 1.5 MB PDF Certificates & compliance Q40G005781302A__65BDL5050D__Lot5_EEI(贴纸箱）.pdf 1.5 MB

Questions about 65BDL5050D/00

What is the Philips 65BDL5050D/00 designed for?

It is a 65-inch signage display for information, wayfinding and promotional content that must run for long periods. The source data rates it for 24/7 operation in landscape or portrait. It suits lobbies, reception areas, corridors and meeting spaces in Doha, Lusail and Al Rayyan where a dependable indoor screen is needed for daily messages.

Can it run continuously, and can I mount it in portrait orientation?

Yes. The display is listed for 24/7 operation in both landscape and portrait placement, which suits a hotel lobby information stand or a corridor directory. Portrait mounting works well for schedules and guest information. Confirm the chosen orientation and wall position during the free site survey before fixing the 29 kg unit.

How bright is the screen for a lobby with windows?

The screen is rated at 600 cd/m2 brightness with 1,200:1 typical contrast. That suits typical indoor lighting in offices, schools and hotel lobbies. If the screen faces a window or a strongly lit atrium, ask the SmartRooms Qatar team to review glare during the site survey before you finalise the position.

Can I install it in a hot space or outdoors in Qatar?

No. The operating temperature range is 0 to 40 degrees C with 20 to 80% humidity, non-condensing, and Qatar summers can exceed 45 degrees C. Install it in air-conditioned indoor areas only. The IP5X rating covers dust protection, but it does not make the unit suitable for outdoor or unconditioned locations.

Does it work with Qatar mains power?

The source data lists mains input of 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz supply. Typical consumption is 98 W and standby power is under 0.5 W. The package includes an AC power cord, and SmartRooms Qatar can confirm the plug type on the quotation before installation.

Which devices can I connect to it?

Inputs include one DisplayPort 1.4, two HDMI 2.0 ports and a USB-C input rated at 4.5 W. An HDMI 2.0 output allows loop-through to another display. For a media player, laptop or conferencing codec, these ports cover most common sources without an adapter, so list your devices in the quotation request.

Can I manage it from a central control system?

Yes. The display supports RS232C and IR in and out, plus RJ45 network control. Wi-Fi 6 and Bluetooth 5.2 are available through the included CRD32 module. A 4G mPCIe slot with antenna connectors is also provided for cellular connectivity where a wired network is not available at the installation point.

Can it play content from a USB drive?

Yes. USB playback supports BMP, JPEG and PNG images, MPEG, H.263, H.264, H.265, AVI, MP4, MPEG4, VP8, VP9 and WEBM video, and AAC, HEAAC and MPEG audio. This is useful for a school or ministry that updates content on a memory stick between events without a network connection.

Can several units be tiled into a video wall?

Yes, the matrix can be tiled up to 10 units by 15 units. The even bezel measures 14.9 mm, which keeps seams narrow across a wall. A shopping mall in Lusail or a government lobby in Doha could combine units for a larger promotional or wayfinding display. Plan the wall structure and power routing during the site survey.

What is included in the box?

The package includes an AC power cord, RS232 cable, RS232 daisy-chain cable, IR sensor cable of 1.8 m, a remote control with AAA batteries, the CRD32 Wi-Fi and Bluetooth module, wall mounting screws, a USB cover, an AC switch cover, a quick start guide and a Philips logo badge. Accessories are listed on the quotation.

What warranty applies to this model?

The source data lists a 3-year manufacturer warranty. SmartRooms Qatar supplies the display with that warranty. Keep your purchase order or invoice with the unit serial number, and ask the team to confirm the warranty start and claim process as part of the quotation before the order is placed.

We are a school ordering several units for corridors. Can we pay by purchase order?

Yes. SmartRooms Qatar accepts purchase orders (LPOs), government tenders including Monaqasat, bank transfer, cheque and purchase order payment. A school fitting out several corridors in Al Wakrah or Doha can send one LPO covering all units, and the quotation will list each unit, its accessories and installation, delivered to any of Qatar's 8 municipalities.
