70BFL2114/12

What the Philips 70BFL2114/12 is designed to do

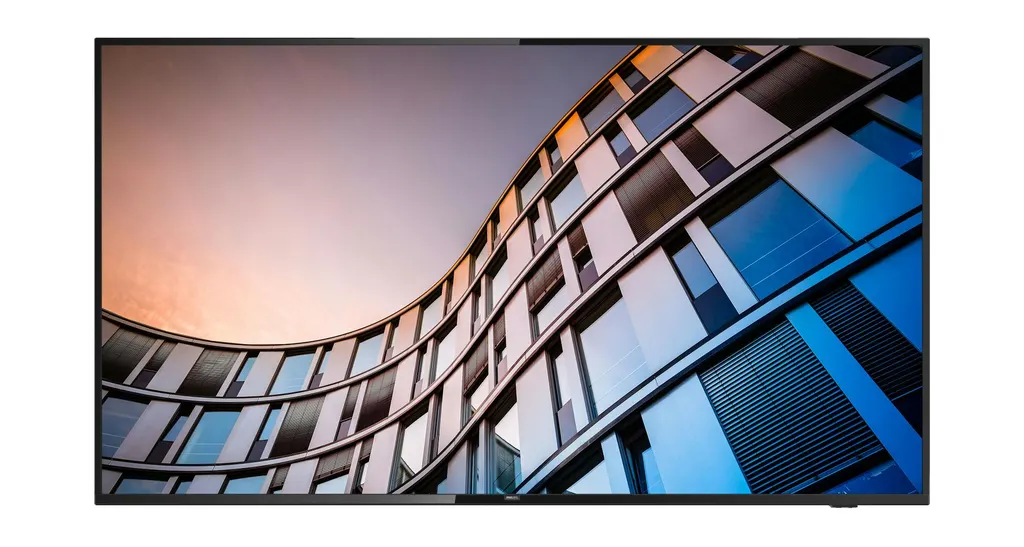

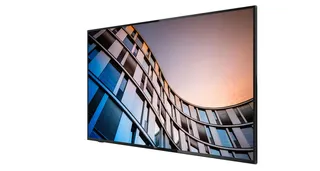

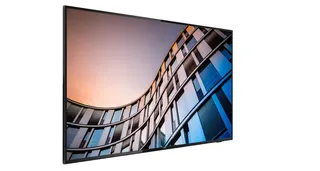

The Philips 70BFL2114/12 is a 70-inch signage display from the Signage 2000 Series, part of the B-Line range. It pairs a 4K Ultra HD LED panel with Android TV 9 (Pie), so apps, corporate messages and scheduled content can run on the screen itself without a separate media player. The black casing and the 16/7 operating rating in landscape orientation point to fixed installations that run through the working day, such as reception areas, corridors and meeting spaces.

Picture, brightness and resolution

The panel has a native resolution of 3840 x 2160, which keeps small text on timetables, floor plans and dashboards readable at typical lobby viewing distances. Brightness is rated at 350 cd/m² and typical contrast at 5000:1. For a space with large windows or strong daylight, brightness is the first figure to check, and a site survey from SmartRooms Qatar will show whether the screen position needs adjusting.

Connectivity and control for managed networks

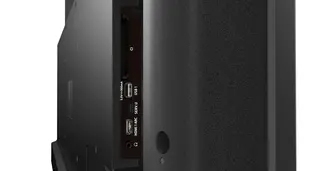

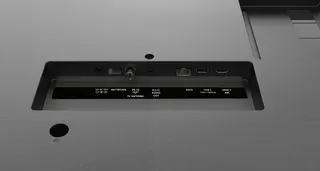

Wireless sharing uses Chromecast built in, Wi-Fi Direct and 802.11ac Wi-Fi, so people can send presentations from Windows, Apple and Android devices. Wired sources connect through two HDMI 2.0 ports with HDCP 2.2, USB 3.0 and USB 2.0 ports, and an RJ-45 Ethernet port. For building or IT control, the display supports Crestron Connected (v2), Extron and Neets systems, as well as CMND IP remote management and an RJ-48 external control port with IR in and out.

• Signage tools: CMND&Create, a scheduler and banners keep content current without staff touching the screen.
• Locked settings: installation menu lock, menu lock and volume limitation stop users changing the set-up.
• Power behaviour: auto power on, auto power off and auto input selection help the display follow a daily routine.

Where it fits in Qatar

A government office in Doha might place one unit in a public waiting area to show service schedules and announcements, managed centrally from the network. A shopping mall in Lusail could use a 70-inch panel at a retail entrance for promotions scheduled by time of day, with the Weather Forecast feature adding local information. A private school in Al Wakrah fitting out a corridor or assembly area could display timetables and event notices, and a company in Msheireb with several sites could manage content for all of them from one network.

Planning the installation

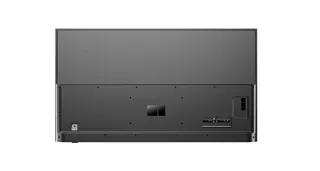

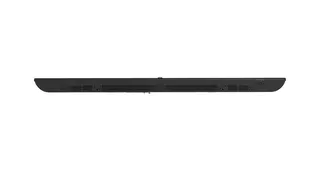

The set weighs 23.4 kg and measures 1584 mm wide and 888 mm high, with a depth of 66 mm to 88 mm. The wall-mount pattern is 400 x 200 mm with M8 fixings, so the wall, bracket and fixings must be checked before the panel arrives. The operating ambient range is 0 °C to 40 °C. Qatar summers can exceed 45 °C outdoors, so this model belongs in an air-conditioned interior; if the planned location is near a window or a loading area, confirm conditions with the SmartRooms Qatar team first.

The unit runs on AC 220-240 V at 50-60 Hz, which covers the 240 V, 50 Hz mains supply used in Qatar. It carries an EU Energy Label class G, with 122 W label power, 180 kW·h annual energy consumption and standby power below 0.3 W. Eco mode is available as a power-saving feature.

SmartRooms Qatar offers a free site survey before wall mounting, professional installation across Qatar's eight municipalities, and quotations usually within one working day. Purchase orders and government tenders are accepted, and the product is covered by the manufacturer's warranty. Request a quote with your room size, mounting wall and quantity, and our team will return a quotation for the 70BFL2114/12 with the accessories you need.
