70BFL2214/12

What the 70-inch 4K panel offers

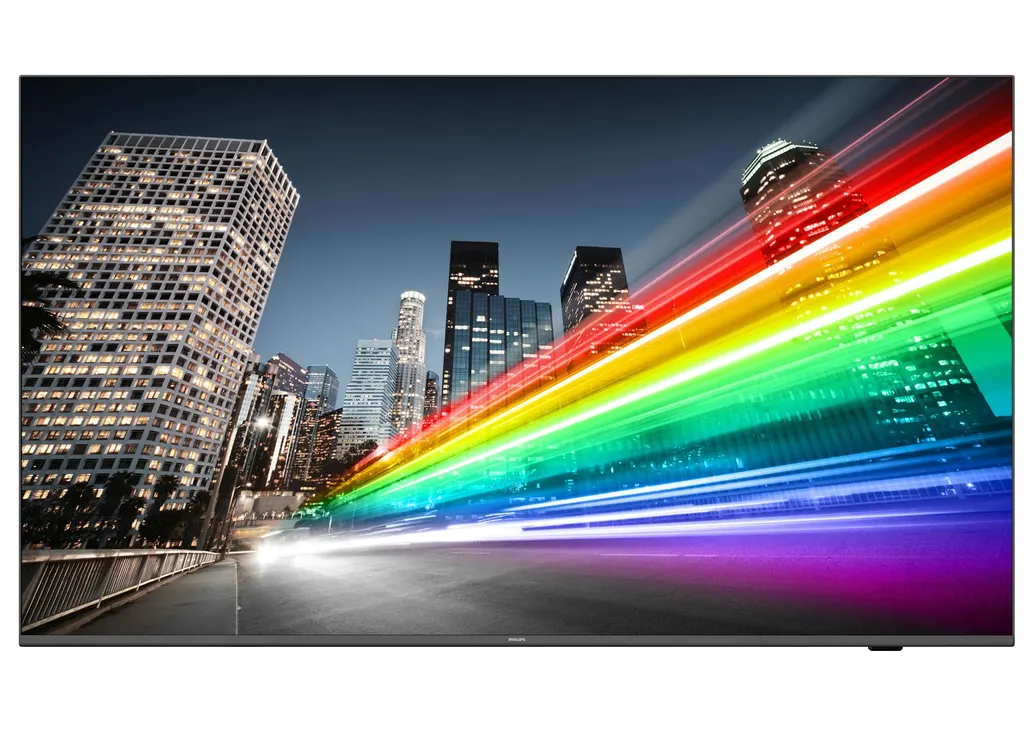

The Philips 70BFL2214/12 is a 70-inch signage display from the B-Line range in the Signage 2000 Series. Its 4K Ultra HD LED panel resolves 3840 x 2160 pixels and is rated at 350 cd/m² brightness with a typical contrast ratio of 5000:1. The Anthracite Grey housing is set up for landscape installation, so it fits corporate reception walls, boardroom ends and training rooms where one large screen carries both presentations and scheduled information.

Video and image support covers HEVC up to 2160p60 on the digital tuner and over USB and LAN, with H.264, MPEG4 and VP9 playback and JPG, PNG, BMP and GIF pictures. That breadth covers most common file types used for looping welcome messages, adverts and floor plans.

Connectivity for laptops, media players and networks

Chromecast built-in lets staff share presentations wirelessly from Windows, Apple and Android devices, and the panel also supports 802.11ac Wi-Fi and Wi-Fi-Direct. Wired connections are covered by:

• Three HDMI 2.0 ports with HDCP 2.2, one on the side and two at the bottom
• A USB 3.0 port on the side and a USB 2.0 port at the bottom
• An RJ-45 Ethernet port for network connection

Sound comes from 2.0 down-firing speakers rated at 20 W (2x10), with DTS-HD, Dolby Atmos Compatible and DTS Studio Sound listed among the audio features.

Remote management and control for IT teams

Android TV 9 (Pie) runs the panel, with 16 GB of flash memory and YouTube and Google Play apps pre-installed. For networked estates, CMND&Create, Scheduler and Banners help administrators build and time content, while network-managed sharing and secure sharing control how presentations reach the screen. Integration options include Crestron Connected (v2), Extron, Neets and SICP over IP, plus IP remote management and API-based control for custom applications.

Where it fits across Qatar

• Corporate reception in West Bay or Lusail: scheduled welcome messages, visitor information and company news running during the Sunday to Thursday working week.
• Boardroom or training room in Doha: a 70-inch screen for a mid-sized room, with wireless sharing so visiting speakers can present from their own devices.
• Multi-site signage in Al Rayyan or the Industrial Area: the same Scheduler and remote management tools used to update several screens from one office.

Planning the installation: weight, wall and heat

The panel measures 1572 x 877 mm, is 68/85 mm deep and weighs 24.6 kg. It uses a 300 x 300 mm wall-mount pattern with M8 fixings, so the wall structure and bracket must be checked before the panel arrives. SmartRooms Qatar offers a free site survey to confirm wall type, cable routes and sightlines. The rated ambient range is 0 °C to 40 °C, while Qatar summer temperatures can exceed 45 °C, so install the panel in an air-conditioned room and confirm the environment with the SmartRooms Qatar team before fixing it.

Power is AC 220-240 V at 50-60 Hz, with an EU energy label power of 100 W, energy label class F and standby consumption below 0.3 W. The package includes the remote control, two AAA batteries, a power cord and an RJ48 to DB9 adapter, and the Setup RC 22AV9574A/12 is available as an option.

Quotations are usually issued within one working day. SmartRooms Qatar supplies and delivers to all eight municipalities of Qatar, arranges professional installation, and accepts purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. The product is covered by the manufacturer's warranty. Request a quote for the 70BFL2214/12 today, and include the number of units and the room or location in your request.
