75BDL4650D/00
Philips 75BDL4650D/00 75-inch 4K Android Signage Display
- Screen size
- 3.61 (D@Handle)/ 2.74 (D@Wall…
- Resolution
- 3840 x 2160
- Brightness
- 500 cd/m²
- System
- Android 11

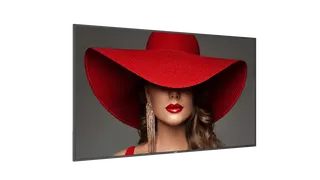

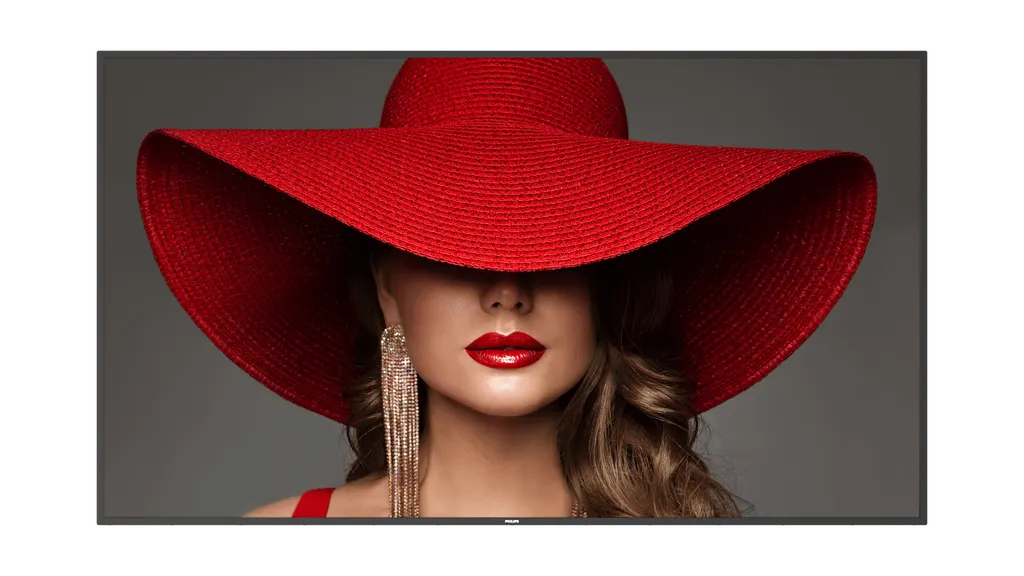

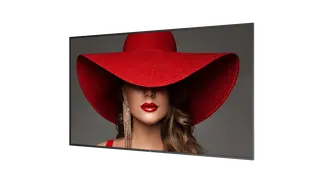

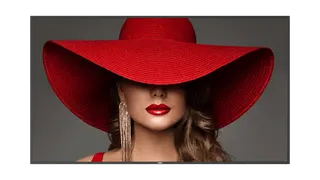

The Philips 75BDL4650D/00 is a 75-inch 4K signage display from the 4000 Series D-Line, running Android 11 on an internal player so content can play straight from the screen. It offers 500 cd/m² brightness, 1200:1 typical contrast and 178-degree viewing angles, with HDMI, DisplayPort and USB inputs. It suits lobbies, retail floors and reception areas in Doha and Lusail. Request a quote from SmartRooms Qatar.
A 75-inch 4K display with an internal Android player
The Philips 75BDL4650D/00 belongs to the Signage 4000 Series D-Line range. Its 74.5-inch panel delivers 3840 x 2160 resolution in a 16:9 format, and an internal player running Android 11 with 4 GB RAM and 32 GB eMMC storage lets the screen handle content on its own. Brightness is rated at 500 cd/m², typical contrast at 1200:1, and typical response time at 8 ms, with 178-degree horizontal and vertical viewing angles so messages stay readable from the side of a corridor or a seated waiting area.
Inputs, control and network options

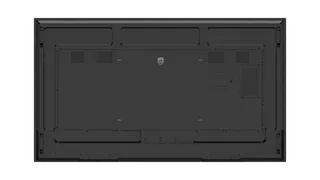

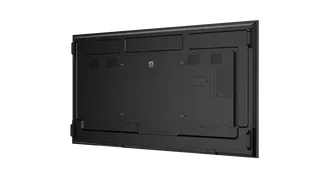

The panel provides two HDMI 2.0 inputs, a DisplayPort 1.4 input and output, a DVI-I input, and two USB 3.0 ports. RS232C and IR connections work in both directions, which allows several units to be chained together for control. An RJ45 port supports network control. Wi-Fi 6 and Bluetooth 5.2 arrive as a slide-in module, and a 4G mPCIe slot with LTE antenna connectors suits sites that lack a fixed cable connection. Playback covers common formats including MP4, WEBM and H.265 video, and JPEG and PNG images from USB.
Where it fits in Qatar
- Hotel lobbies in West Bay or The Pearl that need event schedules and guest information shown in Arabic and English.
- Outpatient waiting areas in Doha where clear wayfinding and queue information reduce front-desk questions.
- Shopping mall and retail frontages in Lusail or Al Wakrah that rotate promotions on screens facing the main walkway.
What to plan before ordering

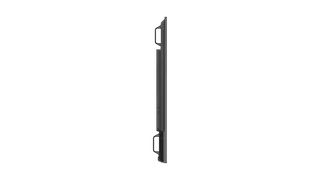

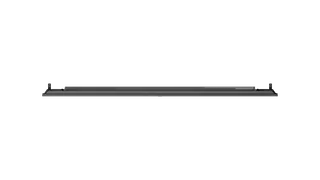

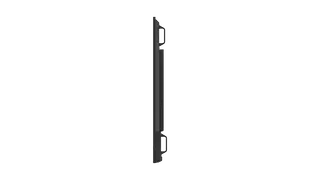

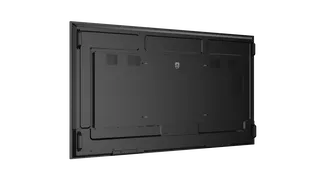

The set weighs 36.3 kg and measures 1683.5 mm wide and 961.7 mm high. It mounts on an M8 wall bracket with a 600 x 400 mm pattern, and the depth is 69.5 mm on the wall or 91.8 mm with the handle. Because of its weight, we recommend a site survey to check the wall structure before fixing, and SmartRooms Qatar offers free site surveys. Operating conditions are 0 to 40 °C and 20 to 80% relative humidity without condensation, up to 3000 m altitude. Summer outdoor temperatures in Qatar regularly pass 45 °C, so the display should sit in an air-conditioned space, and we will confirm the environment with you before installation. Mains input is 100 to 240 VAC at 50 to 60 Hz, with a typical consumption of 187 W and standby below 0.5 W. The energy label class is G. The unit is covered by the manufacturer's 3-year warranty and is supplied with a remote control, IR sensor cable, RS232 cables, a Wi-Fi module and wire clamps.
Request a quote
If you are specifying one 75-inch display for a reception area or several for a mall, a school or a government service centre, request a quote from SmartRooms Qatar. We supply to all eight municipalities, install professionally, and can issue purchase orders, LPOs or Monaqasat tender documents, with quotations usually within one working day.
Highlights
- 75-inch 4K UHD panel at 3840 x 2160 resolution
- 500 cd/m² brightness with 178-degree viewing angles
- Internal Android 11 player with 4 GB RAM and 32 GB storage
- Two HDMI 2.0 inputs plus DisplayPort 1.4 input and output
- Wi-Fi 6 and Bluetooth 5.2 via slide-in module
- Covered by the manufacturer's 3-year warranty
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Connectivity7
- External control
- RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack
- Audio input
- 3.5 mm jack
- Video output
- DisplayPort 1.4 (x 1)
- Video input
- DVI-I (x 1); DisplayPort 1.4 (x 1); HDMI 2.0 (x 2); USB 3.0 (x 2); VGA (via DVI)
- Wi-Fi
- Wi-Fi 6 + Bluetooth 5.2 (slide-in module)
- Audio output
- 3.5 mm jack
- Other connections
- 4G/LTE antenna connectors; Micro USB (x 1) (OTG); USB 2.0 (x 1)
Convenience8
- Wi-Fi protocol
- a b g n, 802.11 ax, 802.11 ac
- Network controllable
- RS232; External 4G mPCIe slot; RJ45; Wi-Fi
- Tiled Matrix
- Up to 10 x 15
- Energy-saving functions
- Smart Power
- Screen-saving functions
- Pixel Shift
- Placement
- Landscape (24/7); Portrait (24/7)
- Signal loop through
- IR Loop through; DisplayPort; RS232
- Keyboard control
- Hidden; Lockable
Accessories1
- Included Accessories
- RS232 daisy-chain cable; Philips logo (x 1); AC Switch Cover; USB Cover (x 1); Screws; AC Power Cord; IR sensor cable (1.8 m) (x 1); Quick start guide; Remote control and AAA batteries; RS232 cable; Wi-Fi module; Wire Clamper (x 3)
Internal Player4
- Storage
- 32 GB eMMc
- GPU
- ARM Mali-T860 MP4
- Memory
- 4 GB RAM
- CPU
- 2 x A72 + 4 x A53
Dimensions10
- Product weight (lb)
- 80.0 lb
- Set Depth (inch)
- 3.61 (D@Handle)/ 2.74 (D@Wall mount) inch
- Bezel width
- 14.9 mm (Even bezel)
- Product weight
- 36.3 kg
- Set Depth
- 91.8 (D@Handle)/69.5 (D@Wall mount) mm
- Set Width
- 1683.5 mm
- Set Width (inch)
- 66.28 inch
- Wall Mount
- 600 (H) x 400 (V) mm, M8
- Set Height
- 961.7 mm
- Set Height (inch)
- 37.86 inch
Sound1
- Built-in speakers
- 2 x 10 W RMS
Power3
- Mains power
- 100 ~ 240 VAC, 50 ~ 60 Hz
- Consumption (Typical)
- 187 W
- Energy Label Class
- G
Multimedia Applications3
- USB Playback Video
- MPEG; H.263; H.264; H.265; AVI; MP4; MPEG4; VP8; VP9; WEBM
- USB Playback Picture
- BMP; JPEG; PNG
- USB Playback Audio
- AAC; HEAAC; MPEG
Miscellaneous3
- Regulatory approvals
- CE; RoHS; CB; EMF; FCC, Class A; Energy Star 8.0; UL
- On-Screen Display Languages
- English; French; German; Spanish; Polish; Turkish; Russian; Italian; Simplified Chinese; Traditional Chinese; Arabic; Japanese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish
- Warranty
- 3 year warranty
Operating conditions6
- Temperature range (storage)
- -20 ~ 60 °C
- MTBF
- 50,000 hour(s)
- Humidity range (storage) [RH]
- 5–95% RH (No condensation)
- Temperature range (operation)
- 0 ~ 40 °C
- Humidity range (operation)[RH]
- 20–80% RH (No condensation)
- Altitude
- 0 ~ 3000 m
Picture/Display17
- Response time (typical)
- 8 ms
- Panel technology
- ADS
- Operating system
- Android 11
- Panel resolution
- 3840 x 2160
- Pixel pitch
- 0.4296 x 0.4296 mm
- Viewing angle (horizontal)
- 178 degree
- Aspect ratio
- 16:9
- Dynamic contrast ratio
- 500,000:1
- Picture enhancement
- 3/2 - 2/2 motion pull down; Motion compens. deinterlacing; Dynamic contrast enhancement; Progressive scan
- Display colours
- 1.07 Billion
- Optimum resolution
- 3840 x 2160 @60 Hz
- Brightness
- 500 cd/m²
- Diagonal screen size (metric)
- 189.3 cm
- Viewing angle (vertical)
- 178 degree
- Haze
- 25%
- Contrast ratio (typical)
- 1200:1
- Diagonal screen size (inch)
- 74.5 inch
Supported Display Resolution2
- Computer formats
- 1920 x 1080, 60 Hz; 1280 x 1024, 60 Hz; 1024 x 768, 60 Hz; 1280 x 720, 60 Hz; 1440 x 900, 60 Hz; 1600 x 900, 60 Hz; 1680 x 1050, 60 Hz; 3840 x 2160, 30, 60 Hz; 640 x 480, 60 Hz; 800 x 600, 60 Hz
- Video formats
- 1080p, 50, 60 Hz; 1080i, 50, 60 Hz; 480i, 60 Hz; 480p, 60 Hz; 576i, 50 Hz; 576p, 50 Hz; 720p, 50,60 Hz; 2160p, 50, 60 Hz
