75BDL5050D/00

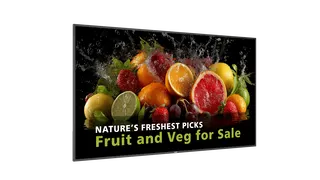

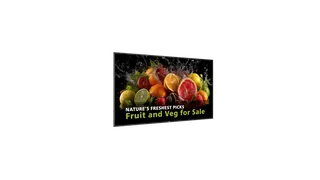

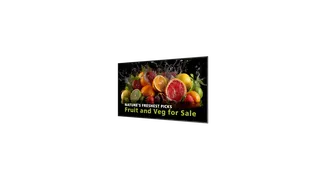

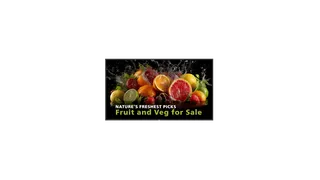

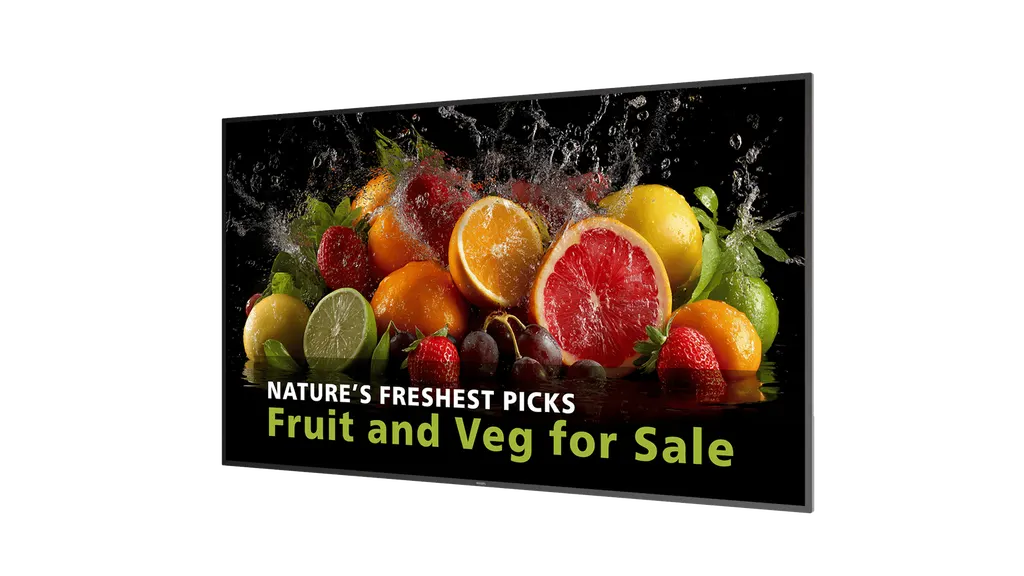

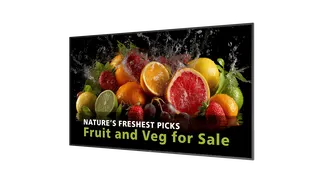

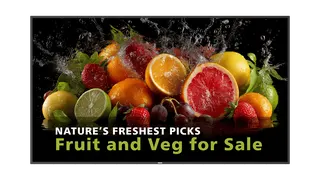

Philips 75BDL5050D/00 75-inch 4K Signage Display
- Screen size
- 66.28 inch
- Resolution
- 3840 x 2160
- Brightness
- 600 cd/m²
- System
- Android 14
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Philips 75BDL5050D/00 is a 75-inch 4K UHD signage display from the Signage 5000 Series, built to run 24/7 in landscape or portrait. It offers 600 cd/m² brightness, a 3840 x 2160 panel and an internal Android 14 player with 4 GB RAM and 32 GB storage, so many installations need no separate media box. It suits lobbies, malls, banks and corporate reception areas in Doha, West Bay and Lusail. Request a quote from SmartRooms Qatar.
What the Philips 75BDL5050D/00 is built to do
The Philips 75BDL5050D/00 is a 75-inch member of the Signage 5000 Series, a 4K UHD display made for content that stays on screen through long working hours. Its 3840 x 2160 panel is specified at 60 Hz, and the 16:9 picture suits promotional loops, room directories, visitor information and corporate messages. A built-in Android 14 player means many installations need no separate media box, which keeps equipment and cabling in the room to a minimum.
Brightness, contrast and the figures that matter for public spaces
- 600 cd/m² brightness for clearly readable content in well-lit indoor areas
- 1200:1 typical contrast ratio, alongside a dynamic contrast figure of 500,000:1
- 8 ms typical response time
- 178-degree horizontal and vertical viewing angles
- 25% haze rating
This brightness level suits lobbies, corridors and reception areas where ambient light is controlled. The wide viewing angles help people passing along a corridor or across an open-plan area still see the image clearly.
Connectivity and control for multi-screen estates
Inputs include one DisplayPort 1.4, two HDMI 2.0 and a USB-C input rated at 4.5 W. HDMI loop-through and RS232 daisy-chaining let one source or one control cable pass through several units. Network control runs over RJ45, RS232C and IR, and Wi-Fi 6 is listed alongside Bluetooth 5.2, which is provided through the included CRD32 module. Front-panel keyboard control can be hidden and locked, keeping settings away from the public.
Where it fits in Qatar
A shopping mall in West Bay might run promotional content across a row of 75-inch screens near the entrance, managed from a central office. A bank branch in Al Sadd could use one unit in the waiting area for service announcements and rate information, positioned away from sun-facing windows. A government service centre in Doha working in Arabic and English can set the on-screen language to suit staff and visitors. In each case the 0 to 40 °C operating range means the screen belongs in an air-conditioned room.
What to plan before ordering
- A site survey to confirm wall strength and mounting position for a 37 kg unit
- An air-conditioned room that holds the operating range of 0 to 40 °C
- Power at 100 to 240 VAC, 50 to 60 Hz, using the included AC power cord
- Cable routes for the chosen inputs, network control and any tiled wall layout
Request a quote from SmartRooms Qatar and we will confirm the specification, the wall and room checks, and professional installation across Qatar. Quotations are usually issued within one working day.
Highlights
- 75-inch 4K UHD panel at 3840 x 2160 resolution
- 600 cd/m² brightness with 1200:1 typical contrast
- Android 14 internal player with 4 GB RAM and 32 GB storage
- Landscape and portrait placement for 24/7 operation
- Tiled matrix up to 10 x 15 with 14.9 mm even bezel
- 100 to 240 VAC supply and 3-year manufacturer warranty
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
63 specifications · Source: manufacturer · checked Oct 2026
Connectivity5
- Video output
- HDMI 2.0
- Video input
- DisplayPort 1.4 (x 1); HDMI 2.0 (x 2); USB-C (4.5 W)
- External control
- RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack; Wi-Fi 6; Bluetooth 5.2 (via CRD32)
- Audio output
- 3.5 mm jack
- Other connections
- 4G/LTE antenna connectors; Micro USB (x 1) (OTG); USB 3.0 (x 2)
Convenience7
- Placement
- Landscape (24/7); Portrait (24/7)
- Screen-saving functions
- Pixel Shift
- Network controllable
- RS232; External 4G mPCIe slot; RJ45
- Tiled Matrix
- Up to 10 x 15
- Energy-saving functions
- Smart Power
- Signal loop through
- RS232; IR Loop through; HDMI1; HDMI 2; Android SoC
- Keyboard control
- Hidden; Lockable
Accessories1
- Included Accessories
- RS232 daisy-chain cable; Philips logo (x 1); AC Switch Cover; USB Cover (x 1); Screws; AC Power Cord; IR sensor cable (1.8 m) (x 1); Quick start guide; Remote control and AAA batteries; RS232 cable; CRD32 Wi-Fi and BT module
Internal Player4
- CPU
- 4 x A72 + 4 x A53 RK3576 + MT9800
- Storage
- 32 GB
- GPU
- ARM Mali G52 MC3
- Memory
- 4 GB RAM
Dimensions10
- Set Width (inch)
- 66.28 inch
- Product weight
- 37 kg
- Set Depth (inch)
- 3.75 (D@Handle) / 2.74 (D@Wall mount) inch
- Set Depth
- 95.3 (D@Handle)/69.5 (D@Wall mount) mm
- Product weight (lb)
- 81.48 lb
- Bezel width
- 14.9 mm (Even bezel)
- Wall Mount
- 600 (H) x 400 (V) mm, M8
- Set Height
- 961.7 mm
- Set Width
- 1683.5 mm
- Set Height (inch)
- 37.86 inch
Sound1
- Built-in speakers
- 2 x 10 W RMS
Power3
- Consumption
- EEI lot5 112 W
- Mains power
- 100 ~ 240 VAC, 50 ~ 60 Hz
- Energy Label Class
- F
Multimedia Applications3
- USB Playback Video
- MPEG; H.263; H.264; H.265; AVI; MP4; MPEG4; VP8; VP9; WEBM
- USB Playback Picture
- BMP; JPEG; PNG
- USB Playback Audio
- AAC; HEAAC; MPEG
Miscellaneous3
- Regulatory approvals
- CE; RoHS; CB
- On-Screen Display Languages
- English; French; German; Spanish; Polish; Turkish; Russian; Italian; Simplified Chinese; Traditional Chinese; Arabic; Japanese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish
- Warranty
- 3 year warranty
Operating conditions7
- Temperature range (storage)
- -20 ~ 60 °C
- Ingress protection
- IP5X
- Altitude
- 0 ~ 3000 m
- MTBF
- 50,000 hour(s)
- Humidity range (storage) [RH]
- 5–95% RH (No condensation)
- Humidity range (operation)[RH]
- 20–80% RH (No condensation)
- Temperature range (operation)
- 0 ~ 40 °C
Picture/Display17
- Operating system
- Android 14
- Response time (typical)
- 8 ms
- Panel resolution
- 3840 x 2160
- Pixel pitch
- 0.4296 x 0.4296 mm
- Optimum resolution
- 3840 x 2160 @ 60 Hz
- Dynamic contrast ratio
- 500,000:1
- Viewing angle (horizontal)
- 178 degree
- Aspect ratio
- 16:9
- Panel technology
- ADS
- Brightness
- 600 cd/m²
- Diagonal screen size (metric)
- 189.3 cm
- Picture enhancement
- 3/2 - 2/2 motion pull down; Motion compens. deinterlacing; Dynamic contrast enhancement; Progressive scan
- Display colours
- 1.07 Billion
- Viewing angle (vertical)
- 178 degree
- Diagonal screen size (inch)
- 74.5 inch
- Haze
- 25%
- Contrast ratio (typical)
- 1200:1
Supported Display Resolution2
- Video formats
- 1080p, 50, 60 Hz; 1080i, 50, 60 Hz; 480p, 60 Hz; 576i, 50 Hz; 576p, 50 Hz; 720p, 50,60 Hz; 480i, 60 Hz
- Computer formats
- 1024 x 768, 60 Hz; 1280 x 1024, 60 Hz; 1280 x 720, 60 Hz; 1440 x 900, 60 Hz; 1600 x 900, 60 Hz; 1680 x 1050, 60 Hz; 1920 x 1080, 60 Hz; 640 x 480, 60 Hz; 800 x 600, 60 Hz
Downloads
9 files from the manufacturer
PDF
Philips 75BDL5050D/00 datasheets (PDF, 410 KB)
PDF
Philips 75BDL5050D/00 manuals & guides (PDF)
PDF
Philips 75BDL5050D/00 manuals & guides (PDF, 18.3 MB)
PDF
Philips 75BDL5050D/00 manuals & guides (PDF, 3.1 MB)
PDF
Philips 75BDL5050D/00 drawings & cad (PDF, 720 KB)
PDF
Philips 75BDL5050D/00 certificates & compliance (PDF, 70 KB)
PDF
Philips 75BDL5050D/00 certificates & compliance (PDF, 222 KB)
PDF
Philips 75BDL5050D/00 certificates & compliance (PDF, 1.5 MB)
PDF
Philips 75BDL5050D/00 certificates & compliance (PDF, 1.5 MB)
Questions about 75BDL5050D/00
Is it suitable for menu boards or corporate screens in a Doha mall or office?
Yes. It is a 75-inch 4K display rated for 24/7 operation, which suits menu boards, wayfinding, promotions and corporate information screens. The panel offers 3840 x 2160 resolution and 600 cd/m² brightness, and the internal Android 14 player can run content without a separate media box. It fits well in malls in West Bay or offices in Lusail where screens must stay readable throughout the working day.
Can it be mounted in portrait orientation?
Yes. The data lists both landscape and portrait placement for 24/7 operation, which suits menu boards, digital directories and vertical wayfinding in corridors. Decide the orientation before fixing the bracket, because cable routing and bracket position depend on it. SmartRooms Qatar offers free site surveys to check the wall and the 37 kg weight before mounting.
How bright is the screen for a sunlit lobby in Doha?
The panel is rated at 600 cd/m² with 1200:1 typical contrast and 178-degree horizontal and vertical viewing angles. That suits indoor areas with controlled daylight. For a lobby with large west-facing windows, a site survey should check glare at different times of day, and the screen should be placed away from direct sun, since its operating range tops out at 40 °C.
What temperature range does it operate in, and will it cope with a Doha summer?
The operating range is 0 to 40 °C with 20 to 80% relative humidity, non-condensing. Outdoor temperatures in Doha summers can exceed 45 °C, so the display should sit inside an air-conditioned room that keeps ambient temperature within that range. Storage tolerates -20 to 60 °C. Confirm the room's cooling capacity and airflow with the SmartRooms Qatar team before installation.
Does it work with Qatar's 240 V mains supply?
Yes. The power supply is rated for 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz mains. An AC power cord is included. The data does not specify the plug type, so confirm the cord fitting with the SmartRooms Qatar team before ordering. The rated consumption figure is 112 W, and standby draw is below 0.5 W.
Which video inputs and outputs does it have?
Inputs include one DisplayPort 1.4, two HDMI 2.0 and a USB-C input rated at 4.5 W. An HDMI 2.0 output passes the signal on to a second screen. There are also two USB 3.0 ports and a Micro USB port with OTG support. Plan source devices early so the signal path matches the installation, especially where one media player feeds several screens.
How can it be controlled across a network?
Control options include RJ45 for network control, RS232C with in and out, and IR with in and out. Wi-Fi 6 is available, and Bluetooth 5.2 comes through the included CRD32 module. The panel also has an external 4G mPCIe slot and 4G/LTE antenna connectors. RS232 daisy-chaining lets facilities teams manage several screens from one control point, which suits government and corporate buildings with many displays.
Do I need an external media player for content?
Not necessarily. The display has an internal player with an eight-core processor, 4 GB RAM and 32 GB storage, running Android 14. It plays video from USB in formats including MP4, H.265, WEBM and AVI, and images in JPEG, PNG and BMP. For large content libraries, check storage needs during planning, because the internal capacity is 32 GB.
How heavy is it, and what should be planned for mounting?
The unit weighs 37 kg and measures 1683.5 mm wide and 961.7 mm high, with a depth of 69.5 mm when wall mounted. The wall mount pattern is 600 x 400 mm with M8 fixings. Plan for a structural wall or a reinforced frame, confirm load capacity through a site survey, and use at least two people to lift the unit. SmartRooms Qatar offers professional installation.
Can a retail atrium in Msheireb use several units as one video wall?
Yes. The data lists a tiled matrix of up to 10 x 15 units with an even 14.9 mm bezel. A wall in a retail atrium or the lobby of a company office in the Industrial Area would need matched units, a source for each screen, and a planned route for cables and the controller. Request a quote for a tiled layout, and include a survey of the wall before ordering.
Can an office in Doha run its screens in both Arabic and English?
The on-screen display lists Arabic among its languages, alongside English, French and many others. This suits offices where staff work in Arabic and English side by side, such as government service desks and public reception areas. Mention the language set you need when requesting a quote so the setup can be confirmed before handover.
What warranty applies, and how do I order one?
The unit carries a 3-year manufacturer warranty. SmartRooms Qatar can quote for supply and delivery to all eight municipalities of Qatar, with professional installation available. Government buyers can issue a purchase order (LPO) or respond to a Monaqasat tender, and payment can be made by bank transfer, cheque or purchase order. Quotations are usually issued within one working day.
