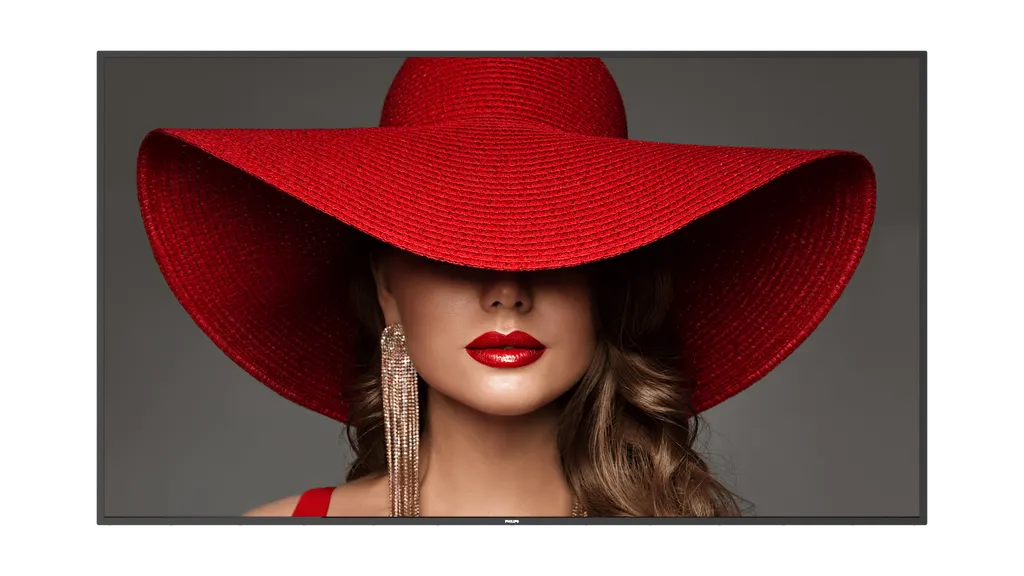

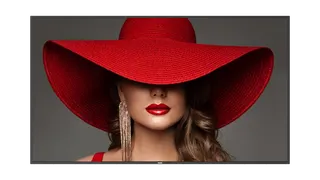

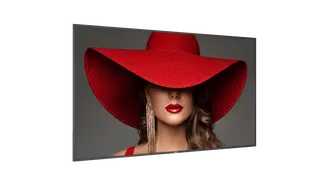

Name: Philips 86BDL4650D/00 86-inch 4K Android Digital Signage Display
Brand: Philips
SKU: philips-86bdl4650d-00
Availability: InStock

Overview

The Philips 86BDL4650D/00 is an 86-inch 4K signage display running Android 11 on an internal player with 4 GB RAM and 32 GB storage. Its 500 cd/m² panel, 178-degree viewing angles and HDMI 2.0, DisplayPort and USB inputs suit lobbies, shopping malls and corporate reception areas. It offers RS232 and RJ45 control, a slide-in Wi-Fi 6 module and a 3-year warranty. Request a quote from SmartRooms Qatar.

What this model is built to do

The Philips 86BDL4650D/00 is an 86-inch digital signage display from the Signage 4000 Series (D-Line). It pairs a 4K panel with an internal Android 11 player, so content can run on the screen itself without a separate media computer. The 3840 x 2160 resolution and 500 cd/m² brightness keep text and video sharp in busy corridors and open-plan reception areas.

Hardware facts that matter for planning

Display: 85.6-inch diagonal, 16:9 aspect ratio, 8 ms typical response time and 178-degree viewing angles horizontally and vertically.
Internal player: six-core CPU, ARM Mali-T860 MP4 graphics, 4 GB RAM and 32 GB eMMC storage.
Inputs: two HDMI 2.0 ports, one DisplayPort 1.4 input, one DVI-I port, two USB 3.0 ports and a 3.5 mm audio input.
Control: RJ45, RS232C and IR inputs and outputs, with a hidden keyboard control that can be locked.
Wireless: slide-in Wi-Fi 6 and Bluetooth 5.2 module, plus an external 4G mPCIe slot.
Power: 250 W typical consumption, under 0.5 W standby, and a supply rated 100 to 240 VAC at 50 to 60 Hz.

Where it fits in Qatar

In an office lobby in Msheireb or West Bay, the screen can present wayfinding, visitor information and company messages in English and Arabic, since the on-screen menus support Arabic. Mounted in portrait orientation for 24/7 operation, it suits a hospital corridor or clinic waiting area in Doha that needs clear directions. A hotel or serviced apartment lobby in Lusail could use it for event listings. When several units are tiled, up to 10 by 15 panels, the 15.5 mm even bezel keeps the joins less conspicuous across a shopping mall atrium.

What to plan before installation

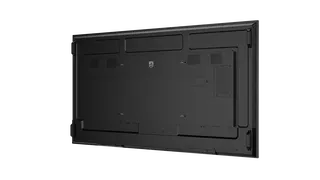

At 50.4 kg, with a width of 1929.0 mm and a height of 1100 mm, the panel needs a wall that can carry its weight. The wall mount pattern is 600 x 400 mm with M8 fixings, and the depth is 69.5 mm at the wall mount and 91.8 mm at the handles. The operating range is 0 to 40 °C with 20 to 80% humidity, without condensation, and Qatar summers regularly exceed 45 °C outside. Choose an air-conditioned room and confirm its temperature with the building services team. Our free site survey covers wall structure, power point position and cable routing before we issue the quotation.

Included accessories and warranty

The package includes a remote control with AAA batteries, an RS232 daisy-chain cable, a 1.8 m IR sensor cable, the Wi-Fi module, an AC power cord, screws and three wire clampers. A wall bracket is not listed among the included items, so it should be specified in the quotation. The manufacturer provides a 3-year warranty on this model.

Send us your room dimensions, mounting wall and expected daily operating hours, and SmartRooms Qatar will return a quotation usually within one working day. Purchase orders and LPOs are accepted. Request a quote today.

Highlights

86-inch 4K panel at 3840 x 2160 resolution
500 cd/m² brightness with 178-degree viewing angles
Android 11 internal player with 4 GB RAM and 32 GB storage
Two HDMI 2.0 inputs, DisplayPort 1.4, DVI-I and USB 3.0
Slide-in Wi-Fi 6 and Bluetooth 5.2 module included
3-year manufacturer warranty and Arabic on-screen menus

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

65 specifications · Source: manufacturer · checked Oct 2026

Connectivity7

External control: RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack
Audio input: 3.5 mm jack
Video output: DisplayPort 1.4 (x 1)
Video input: DVI-I (x 1); DisplayPort 1.4 (x 1); HDMI 2.0 (x 2); USB 3.0 (x 2); VGA (via DVI)
Other connections: 4G/LTE antenna connectors; Micro USB (x 1) (OTG); USB 2.0 (x 1)
Audio output: 3.5 mm jack
Wi-Fi: Wi-Fi 6 + Bluetooth 5.2 (slide-in module)

Convenience8

Wi-Fi protocol: a b g n, 802.11 ax, 802.11 ac
Network controllable: RS232; External 4G mPCIe slot; RJ45; Wi-Fi
Tiled Matrix: Up to 10 x 15
Energy-saving functions: Smart Power
Screen-saving functions: Pixel Shift
Placement: Landscape (24/7); Portrait (24/7)
Keyboard control: Hidden; Lockable
Signal loop through: IR Loop through; DisplayPort; RS232

Accessories1

Included Accessories: RS232 daisy-chain cable; Philips logo (x 1); AC Switch Cover; USB Cover (x 1); Screws; AC Power Cord; IR sensor cable (1.8 m) (x 1); Quick start guide; Remote control and AAA batteries; RS232 cable; Wi-Fi module; Wire Clamper (x 3)

Internal Player4

Storage: 32 GB eMMc
GPU: ARM Mali-T860 MP4
Memory: 4 GB RAM
CPU: 2 x A72 + 4 x A53

Dimensions10

Product weight: 50.4 kg
Product weight (lb): 111.11 lb
Bezel width: 15.5 mm (Even bezel)
Set Depth (inch): 2.74 (D@Wall mount)/ 3.61 (D@Handle) inch
Set Depth: 69.5 (D@Wall mount)/91.8 (D@Handle) mm
Set Width: 1929.0 mm
Set Width (inch): 75.94 inch
Set Height (inch): 43.31 inch
Set Height: 1100 mm

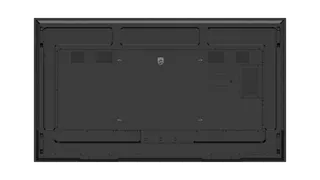

Wall Mount: 600 (H) x 400 (V) mm, M8

Sound1

Built-in speakers: 2 x 10 W RMS

Power3

Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical): 250 W
Energy Label Class: G

Multimedia Applications3

USB Playback Video: MPEG; H.263; H.264; H.265; AVI; MP4; MPEG4; VP8; VP9; WEBM
USB Playback Picture: BMP; JPEG; PNG
USB Playback Audio: AAC; HEAAC; MPEG

Miscellaneous3

Regulatory approvals: CE; RoHS; CB; EMF; FCC, Class A; Energy Star 8.0; UL
Warranty: 3 year warranty
On-Screen Display Languages: English; French; German; Spanish; Polish; Turkish; Russian; Italian; Simplified Chinese; Traditional Chinese; Arabic; Japanese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish

Operating conditions6

Temperature range (storage): -20 ~ 60 °C
MTBF: 50,000 hour(s)
Temperature range (operation): 0 ~ 40 °C
Humidity range (storage) [RH]: 5–95% RH (No condensation)
Humidity range (operation)[RH]: 20–80% RH (No condensation)
Altitude: 0 ~ 3000 m

Picture/Display17

Response time (typical): 8 ms
Operating system: Android 11
Panel technology: ADS
Pixel pitch: 0.4935 x 0.4935 mm
Panel resolution: 3840 x 2160
Viewing angle (horizontal): 178 degree
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Display colours: 1.07 Billion
Picture enhancement: 3/2 - 2/2 motion pull down; Motion compens. deinterlacing; Dynamic contrast enhancement; Progressive scan
Optimum resolution: 3840 x 2160 @ 60 Hz
Diagonal screen size (inch): 85.6 inch
Contrast ratio (typical): 1200:1
Viewing angle (vertical): 178 degree
Haze: 25%
Brightness: 500 cd/m²
Diagonal screen size (metric): 217.4 cm

Supported Display Resolution2

Computer formats: 1920 x 1080, 60 Hz; 1280 x 1024, 60 Hz; 1024 x 768, 60 Hz; 1280 x 720, 60 Hz; 1440 x 900, 60 Hz; 1600 x 900, 60 Hz; 1680 x 1050, 60 Hz; 3840 x 2160, 30, 60 Hz; 640 x 480, 60 Hz; 800 x 600, 60 Hz
Video formats: 1080p, 50, 60 Hz; 1080i, 50, 60 Hz; 480i, 60 Hz; 480p, 60 Hz; 576i, 50 Hz; 576p, 50 Hz; 720p, 50,60 Hz; 2160p, 50, 60 Hz

Downloads

5 files from the manufacturer

PDF Datasheets 86BDL4650D_00_2023-06-22_04h13m58s.pdf 340 KB PDF Datasheets 86BDL4650D_00_aen_SG_b2c_PSS.pdf 332 KB PDF Manuals & guides 65_75_86BDL4650D_DFU_V1_02_eng.pdf 22.4 MB PDF Manuals & guides · Opens on manufacturer site 1726686092-65_75_86bdl4650d_dfu_v1-00_ara-pdf.pdf PDF Drawings & CAD Outline_Drawing_Philips_86BDL4650D_V1_0_20230410.pdf 925 KB

Questions about 86BDL4650D/00

What is the Philips 86BDL4650D/00 used for?

It is an 86-inch digital signage display for public-facing spaces such as reception areas, lobbies, corridors and waiting rooms. Its 3840 x 2160 panel and 500 cd/m² brightness keep text and video readable in bright rooms, and the internal Android 11 player lets content run without a separate media PC. It suits organisations in Doha that want one screen for information, branding or wayfinding.

Does the display need a separate PC to show content?

No. The unit has an internal player with a six-core CPU, 4 GB RAM and 32 GB eMMC storage, running Android 11. Video files in formats including MP4, H.265 and WEBM, images in BMP, JPEG and PNG, and AAC audio can be played from a USB drive. Because the platform is Android, software integrations are possible, but the exact content management app should be confirmed before ordering.

Will it run on Qatar's 240 V supply?

Yes. The power specification is 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 250 W and standby draw is under 0.5 W. An AC power cord is included, and the SmartRooms Qatar team will confirm the plug arrangement against your socket when preparing the quotation.

Can it be placed near a window or outdoors in Qatar's summer heat?

No, not in those conditions. The manufacturer lists an operating temperature range of 0 to 40 °C and operating humidity of 20 to 80% without condensation. Qatar summer temperatures often pass 45 °C, so place the display indoors in an air-conditioned room, away from direct sunlight and window glare, and confirm the room stays within range.

How do I mount an 86-inch panel safely?

The wall mount pattern is 600 x 400 mm with M8 fixings, and the set weighs 50.4 kg. Depth is 69.5 mm at the wall mount and 91.8 mm at the handles. The included accessories list screws and wire clampers but no wall bracket, so a bracket rated for this weight must be specified. SmartRooms Qatar offers a free site survey to check the wall structure before the quotation is finalised.

Can several units form a video wall?

Yes, the manufacturer lists tiling of up to 10 by 15 panels. The 15.5 mm even bezel keeps the gaps between adjacent screens narrow, which suits a corporate lobby, a shopping mall atrium or a control room in the Industrial Area. Plan the matrix against the available wall width, since one panel measures 1929.0 mm wide and 1100 mm high. Confirm the layout and input routing for each panel in the quotation.

Which inputs does it have for laptops and media players?

It has two HDMI 2.0 inputs, one DisplayPort 1.4 input, one DVI-I input, two USB 3.0 ports and a 3.5 mm audio input. The DVI-I port can take VGA through an adapter, as the source data lists VGA via DVI. A DisplayPort 1.4 output allows the signal to loop through to another display. Note any adapter requirement when you place your order so presenters can connect without delay.

How is it controlled by building or AV systems?

It supports RJ45 network control, RS232C in and out through a 2.5 mm jack, and IR in and out through a 3.5 mm jack. The RS232 daisy-chain cable and IR loop-through allow several panels to be controlled from one point. Keyboard controls can be hidden and locked, so staff at a ministry reception or hospital ward can operate the screen without touching the front panel. Confirm the control protocol with your integrator before ordering.

Does it support Arabic on-screen menus?

Yes. The on-screen display languages include Arabic, along with English, French, Spanish and many others. This suits offices and schools in Qatar where staff work in Arabic and English side by side, since the menus can be set to the language your team uses. Content language is separate and depends on the files you supply.

What is the warranty, and can we order through an LPO?

The manufacturer provides a 3-year warranty on this model. SmartRooms Qatar supplies it with delivery to all eight municipalities of Qatar, and we accept purchase orders (LPOs), government tenders, and payment by bank transfer, cheque or purchase order. Send your LPO details with the quote request and we will confirm the next steps.

Is it suitable for a school classroom or lecture hall?

It suits a large lecture hall, auditorium or wide classroom better than a small room, because the 85.6-inch diagonal fills a wall and text stays readable from the back. Its 500 cd/m² brightness helps in rooms with daylight, and 178-degree viewing angles keep the picture usable from side seats. For a school in Al Wakrah fitting out several rooms, check room sizes and mounting height during the site survey before ordering.

Can it run continuously for long opening hours?

The manufacturer lists landscape and portrait placement for 24/7 operation, with an MTBF of 50,000 hours. Pixel Shift is included as a screen-saving function, and Smart Power provides energy-saving control. For a hospital waiting area or mall directory running all day, confirm that the ambient temperature stays within the 0 to 40 °C operating range.
