86BDL5050D/00
Philips 86BDL5050D 86-inch 4K Signage Display
- Screen size
- 75.94 inch
- Resolution
- 3840 x 2160
- Brightness
- 600 cd/m²
- System
- Android 14
The Philips 86BDL5050D is an 86-inch 4K signage display for content that runs for many hours a day, in landscape or portrait. It runs Android 14 on an internal player with 32 GB storage and 4 GB RAM, and offers 600 cd/m² brightness, a 3840 x 2160 panel and built-in speakers. It suits lobbies, corporate reception areas and campus information points across Qatar. Request a quote.
What the Philips 86BDL5050D is built to do
The Philips 86BDL5050D belongs to the 5000 Series (D-Line) of signage displays. It carries an 86-inch panel with a 3840 x 2160 resolution, a 16:9 aspect ratio and a pixel pitch of 0.4935 mm, so text and fine graphics stay sharp at reading distance in reception areas and corridors. Its 600 cd/m² brightness suits well-lit entrances, and the typical response time is 8 ms with a 178 degree viewing angle both horizontally and vertically, so people standing to the side can still read the content.
The display is rated for 24/7 operation in either landscape or portrait orientation, which is useful for tall wayfinding totems and corridor menu boards. The specification also lists a 50,000-hour MTBF figure and a 1.07 billion colour display capability, giving organisations a panel suited to long daily running hours.
Internal player, connectivity and control
Android 14 runs on an internal player with a quad-core A72 and quad-core A53 processor, 4 GB RAM and 32 GB of storage, so in many installations content can be scheduled without a separate PC. For external sources the panel offers one DisplayPort 1.4 input, two HDMI 2.0 inputs, a USB-C input rated at 4.5 W, two USB 3.0 ports and a Micro USB port with OTG support. The included CRD32 module adds Wi-Fi 6 and Bluetooth 5.2, and an external 4G mPCIe slot with antenna connectors is provided for sites without reliable wired networking.
Control options include RS232 in and out, IR in and out, and RJ45 network control. An RS232 daisy-chain cable and a 1.8 m IR sensor cable are included, which helps facilities teams link several panels or join the display to a central control system.
Where it fits in Qatar
- Corporate lobby in West Bay: a landscape welcome screen at the reception desk showing company messages in English and Arabic, with the on-screen menu set to Arabic for local staff.
- Campus information point in Education City: a portrait-mounted screen in a university corridor showing timetables, events and campus maps.
- Hotel or mall entrance in Lusail: a single panel for promotions, or several units tiled into a matrix of up to 10 x 15 panels for a large display wall.
Planning the installation and the environment

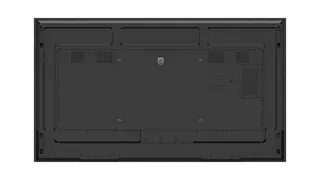

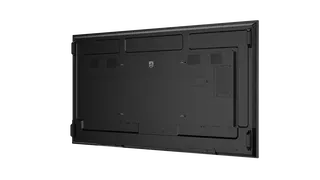

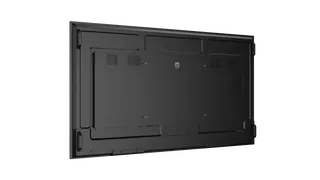

At 1929.0 mm wide, 1100 mm high and 48.31 kg, this is a large and heavy panel. The wall mount pattern is 600 x 400 mm with M8 fittings, the depth is 69.5 mm at the wall mount position, and the bezel is 15.5 mm. Because of its weight and size, SmartRooms Qatar recommends a free site survey before wall mounting to check the wall structure, cable routes and access for lifting.
The operating range is 0 to 40 °C and 20 to 80% relative humidity without condensation, with altitude up to 3000 m. Summer temperatures in Qatar can exceed 45 °C, so the panel should be placed in an air-conditioned space, and room cooling should be confirmed during planning. The mains input is rated 100 to 240 VAC at 50 to 60 Hz, which covers Qatar's 240 V, 50 Hz supply. Consumption is 153 W with an energy label class F and standby power below 0.5 W.
Schools and government bodies buying several units can request one quotation covering all panels. SmartRooms Qatar supplies against purchase orders (LPOs) and government tenders, including Monaqasat, with delivery to all 8 municipalities. Request a quote for the Philips 86BDL5050D and include the number of units, the mounting locations and the delivery municipality.
Highlights
- 86-inch 3840 x 2160 panel with 600 cd/m² brightness
- Android 14 internal player with 32 GB storage and 4 GB RAM
- Landscape and portrait placement rated for 24/7 operation
- DisplayPort 1.4, two HDMI 2.0 inputs and USB-C input
- Tiled matrix configurations up to 10 x 15 panels
- Three-year warranty with CE, RoHS and CB approvals
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Connectivity5
- Audio output
- 3.5 mm jack
- Video output
- HDMI 2.0
- Video input
- DisplayPort 1.4 (x 1); HDMI 2.0 (x 2); USB-C (4.5 W)
- Other connections
- 4G/LTE antenna connectors; Micro USB (x 1) (OTG); USB 3.0 (x 2)
- External control
- RJ45; RS232C (in/out) 2.5 mm jack; IR (in/out) 3.5 mm jack; Wi-Fi 6; Bluetooth 5.2 (via CRD32)
Convenience7
- Network controllable
- RS232; External 4G mPCIe slot; RJ45
- Tiled Matrix
- Up to 10 x 15
- Placement
- Landscape (24/7); Portrait (24/7)
- Signal loop through
- RS232; IR Loop through; HDMI1; HDMI 2; Android SoC
- Keyboard control
- Hidden; Lockable
- Screen-saving functions
- Pixel Shift
- Energy-saving functions
- Smart Power
Accessories1
- Included Accessories
- RS232 daisy-chain cable; Philips logo (x 1); AC Switch Cover; USB Cover (x 1); Screws; AC Power Cord; IR sensor cable (1.8 m) (x 1); Quick start guide; Remote control and AAA batteries; RS232 cable; CRD32 Wi-Fi and BT module
Internal Player4
- Storage
- 32 GB
- CPU
- 4 x A72 + 4 x A53 RK3576 + MT9800
- GPU
- ARM Mali G52 MC3
- Memory
- 4 GB RAM
Dimensions10
- Product weight (lb)
- 106.51 lb
- Set Height
- 1100 mm
- Wall Mount
- 600 (H) x 400 (V) mm, M8
- Set Width (inch)
- 75.94 inch
- Set Depth
- 95.3 (D@Handle)/69.5 (D@Wall mount) mm
- Set Height (inch)
- 43.31 inch
- Set Width
- 1929.0 mm
- Set Depth (inch)
- 3.75 (D@Handle) / 2.74 (D@Wall mount) inch
- Bezel width
- 15.5 mm (Even bezel)
- Product weight
- 48.31 kg
Sound1
- Built-in speakers
- 2 x 10 W RMS
Power3
- Energy Label Class
- F
- Mains power
- 100 ~ 240 VAC, 50 ~ 60 Hz
- Consumption
- EEI lot5 153 W
Multimedia Applications3
- USB Playback Video
- MPEG; H.263; H.264; H.265; AVI; MP4; MPEG4; VP8; VP9; WEBM
- USB Playback Picture
- BMP; JPEG; PNG
- USB Playback Audio
- AAC; HEAAC; MPEG
Operating conditions7
- Temperature range (storage)
- -20 ~ 60 °C
- Humidity range (operation)[RH]
- 20–80% RH (No condensation)
- MTBF
- 50,000 hour(s)
- Altitude
- 0 ~ 3000 m
- Ingress protection
- IP5X
- Temperature range (operation)
- 0 ~ 40 °C
- Humidity range (storage) [RH]
- 5–95% RH (No condensation)
Miscellaneous3
- On-Screen Display Languages
- English; French; German; Spanish; Polish; Turkish; Russian; Italian; Simplified Chinese; Traditional Chinese; Arabic; Japanese; Danish; Dutch; Finnish; Norwegian; Portuguese; Swedish
- Regulatory approvals
- CE; RoHS; CB
- Warranty
- 3 year warranty
Picture/Display17
- Response time (typical)
- 8 ms
- Brightness
- 600 cd/m²
- Diagonal screen size (metric)
- 217.4 cm
- Pixel pitch
- 0.4935 x 0.4935 mm
- Panel resolution
- 3840 x 2160
- Picture enhancement
- 3/2 - 2/2 motion pull down; Motion compens. deinterlacing; Dynamic contrast enhancement; Progressive scan
- Viewing angle (horizontal)
- 178 degree
- Dynamic contrast ratio
- 500,000:1
- Aspect ratio
- 16:9
- Contrast ratio (typical)
- 1200:1
- Viewing angle (vertical)
- 178 degree
- Diagonal screen size (inch)
- 85.6 inch
- Haze
- 25%
- Optimum resolution
- 3840 x 2160 @ 60 Hz
- Display colours
- 1.07 Billion
- Operating system
- Android 14
- Panel technology
- ADS
Supported Display Resolution2
- Computer formats
- 1024 x 768, 60 Hz; 1280 x 1024, 60 Hz; 1280 x 720, 60 Hz; 1440 x 900, 60 Hz; 1600 x 900, 60 Hz; 1680 x 1050, 60 Hz; 1920 x 1080, 60 Hz; 640 x 480, 60 Hz; 800 x 600, 60 Hz
- Video formats
- 1080p, 50, 60 Hz; 1080i, 50, 60 Hz; 480p, 60 Hz; 576i, 50 Hz; 576p, 50 Hz; 720p, 50,60 Hz; 480i, 60 Hz
