PH55F
Samsung PH55F 55-inch Professional Digital Signage Display
- Screen size
- 55"
- Resolution
- 1920 x 1080 (16:9)
- Brightness
- 700nit
- Contrast
- 4000:1
The Samsung PH55F is a 55-inch professional display with a 1920 x 1080 panel, 700 nit brightness and a non-glare front. Its embedded MagicInfo Player S4 runs on Tizen, so content plays without a separate PC, and a 29.9 mm depth with 6.9 mm side bezels suits menu boards, wayfinding screens and video walls across Qatar.
What the Samsung PH55F is built for
The Samsung PH55F is a 55-inch professional display for digital signage, also listed under the variant code LH55PHFPBGC/UE. Its embedded MagicInfo Player S4 runs on Tizen, so a playlist, schedule or video wall layout can run from the screen itself without a separate media PC. A 29.9 mm depth keeps the unit close to the wall, and a non-glare front suits entrances and bright lobbies where reflections would otherwise wash out content.
Image and panel facts that affect readability
The panel delivers 1920 x 1080 resolution at 700 nit brightness, with a 4,000:1 contrast ratio, 178/178 degree viewing angles and a 6 ms response time. Colour is processed with 10-bit dithering to 1.07 billion colours, and the colour gamut is rated at 72 percent. The 0.630 mm pixel pitch is fine enough for wayfinding text read from a short distance, while the wide viewing angle lets people standing to the side still read the message.
Connections, control and video wall options

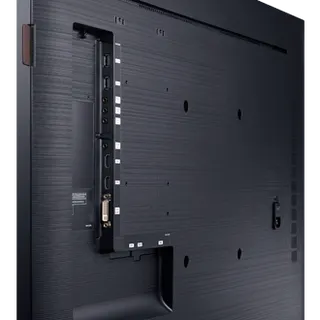

The rear panel offers two HDMI inputs, one DisplayPort 1.2 input, one DVI input, an RGB D-Sub input, two USB ports, RJ45 and RS232 connections in and out, and a DisplayPort loop-out for passing the signal to the next screen. A built-in Wi-Fi module is included. For video walls, the display supports a daisy chain of up to 16 units, and its 6.9 mm side bezels and 8.9 mm bottom bezel keep seams narrow. Pivot mode turns the panel for portrait menus.
Environment and power in Qatar
The operating temperature range is 0 to 40°C, with humidity from 10 to 80 percent, non-condensing. Summer temperatures in Doha and across Qatar can go well above 45°C, so plan for an air-conditioned room rather than a sun-exposed corridor or an unventilated cabinet. The IP5x certification addresses dust, which matters during dust storms, but it is not a heat rating. The unit draws up to 187 W and typically 134 W, with standby under 0.5 W, and carries an energy efficiency grade of B.
Where the PH55F fits
- Restaurant or food court in Msheireb: a portrait menu board rotated with the pivot function, with content changing by time of day from the internal player.
- Ministry or authority reception in West Bay: a wayfinding and announcement screen near the entrance, placed away from direct sunlight, with the non-glare front reducing reflections.
- Lobby video wall in a Lusail office development: a multi-screen wall of 55-inch units with narrow bezels, daisy-chained from a single source.
What to plan before you order
- Check the wall: the set weighs 16.3 kg and uses a 400 x 400 mm VESA pattern, so confirm that the wall and mount can take the load.
- Plan cable routing and sources: the unit has two HDMI inputs, one DisplayPort input and one DVI input.
- The foot stand (STN-L4655E) and wall mount (WMN4270SD) are optional and are not among the included accessories.
Ask SmartRooms Qatar for a free site survey before mounting, especially for a video wall. Request a quote for the Samsung PH55F and tell us the number of units, the mounting location and whether you need a foot stand or a video wall layout. Quotations are usually issued within one working day, and we supply, deliver to all eight municipalities of Qatar and arrange professional installation.
Highlights
- Embedded MagicInfo Player S4 on Tizen, no external PC needed
- 700 nit brightness with a non-glare front panel
- IP5x dust protection certification
- 29.9 mm depth and 6.9 mm top and side bezels
- Video wall daisy chain of up to 16 units
- Rated operating temperature 0 to 40°C
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Display14
- Diagonal Size
- 55"
- Panel Type
- 60Hz E-LED BLU
- Resolution
- 1920 x 1080 (16:9)
- Pixel Pitch (HxV, mm)
- 0.630(H) x 0.630(V)
- Contrast Ratio
- 4000:1
- Viewing Angle (H/V)
- 178/178
- Response Time
- 6 ms
- Display Color
- 10bit Dithering - 1.07Billion
- Color Gamut
- 72 %
- H-Scanning Frequency
- 30 ~ 81kHZ
- Maximum Pixel Frequency
- 148.5MHz
- V-Scanning Frequency
- 48 ~ 75HZ
- Brightness
- 700nit
- Contrast Ratio (Dynamic)
- Mega
Connectivity11
- HDMI In
- 2
- DP In
- 1
- DVI In
- 1
- USB
- 2
- RGB In
- D-Sub (DVI-I Common)
- Audio In
- Stereo Mini Jack, RGB/DVI/DP/HDMI
- Audio Out
- Stereo Mini Jack
- Video Out
- DP1.2(Loop-out)
- RS232 In
- Yes
- RS232 Out
- Yes
- RJ45 In
- Yes
Design1
- Stand Type
- Foot Stand (Optional)
Power4
- Power Supply
- 삼성전기 (SEM)
- Power Consumption (Off Mode, W)
- less than 0.5
- Power Consumption (On Mode, W)
- Max:187W / Typical:(EU)134, (US)134, (WW)134W / BTU(Max):637.67W
- Power Consumption (Sleep Mode, W)
- less than 0.5
Dimension2
- Set Dimension (WxHxD, mm)
- 1228.4 x 701.2 x 29.9
- Package Dimension (WxHxD)
- 1335 x 812 x 182
Weight2
- Set Weight
- 16.3
- Package Weight
- 21.8
Operation Conditions2
- Temperature
- 0~40 ℃
- Humidity
- 10~80 (non-condensing)
Mechanical Specification3
- VESA Mount (mm)
- 400 x 400
- Bezel Width (mm)
- 6.9(Top)/6.9(Side)/8.9(Bottom)
- Media Player Option Type
- SBB, PIM Ready
General Feature2
- Special
- Non Glare Panel, Temperature Sensor, Video Wall(15x15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, IP5x, Center IR
- Speaker
- 10W x 2
Optional Feature3
- Mount
- WMN4270SD
- Specialty
- CML450H
- Stand
- STN-L4655E
Internal Player (MagicInfo)2
- Special
- Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall, Multi Channel, Mobile Control, Event Schedule, Backup Player
- MagicInfo Support
- Yes
Eco1
- Energy Efficiency
- B
Accessory1
- Included
- Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover Jack
Certification and Compliance2
- EMC
- FCC (USA) Part 15, Subpart B Class A, CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003, VCCI (Japan) : VCCI V-3 /2010.04 Class A, KCC/EK (Korea) : Tuner : KN13 / KN20, Tunerless : KN22 / KN24, BSMI (Chinese Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital), C-Tick (Australia) : AS/NZS CISPR22:2009, CCC(China) : GB9254-2008, GB17625.1-2012, GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003
- Safety
- CB (Europe) : IEC60950-1/EN60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore ) : PSB+IEC60950-1, NOM (Mexico ) : NOM-001-SCFI-1993, IRAM (Argentina ) : IRAM+IEC60950-1, SASO (Saudi Arabia ) : SASO+IEC60950-1, BIS(India) : IEC60950-1 / IS13252, NOM(Mexico) : Tuner : NOM-001-SCFI-1993, Tunerless : NOM-019-SCFI-1998, KC(Korea) : K 60950-1, EAC(Russia) : EAC+IEC60950-1, INMETRO(Brazil) : INMETRO+IEC60950-1, BSMI(Chinese Taiwan) : BSMI+IEC60950-1, RCM(Australia) : IEC60950-1/AS/NZS 60950-1, UL(USA) : cUL60950-1, CSA (Canada) : cUL, TUV (Germany) : CE, NEMKO (Norway) : CE
