PM32F
Samsung PM32F 32-inch Digital Signage Display
- Screen size
- 32"
- Resolution
- 1920 x 1080 (16:9)
- Brightness
- 400nit
- Contrast
- 5,000:1
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview
The Samsung PM32F is a 32-inch 1920 x 1080 signage display with an embedded MagicInfo Player S4 running on Tizen, so content can play without a separate PC. It offers 400 nit brightness, a non-glare front panel and IP5x dust protection, with a 29.9 mm depth. It suits reception areas, clinic waiting rooms and university corridors across Qatar.
What the PM32F is and how it runs
The Samsung PM32F is a 32-inch signage display with a 1920 x 1080 panel in 16:9 format. Its MagicInfo Player S4 media player is built in and runs on Tizen, so content can be scheduled and played from the display itself rather than a PC placed nearby. A Wi-Fi module is also built in, which helps when content must be managed across more than one site.
Image quality facts that matter on the wall
The panel is rated at 400 nit brightness and a 5,000:1 contrast ratio, with an 8 ms response time and viewing angles of 178 degrees in both directions. Its 10-bit dithered output is rated at 1.07 billion colours, and it covers 72 % of the colour gamut. The front surface is non-glare, which reduces reflections from ceiling lights and windows, so menus and wayfinding messages stay readable from across a room.
Connectivity and video wall planning

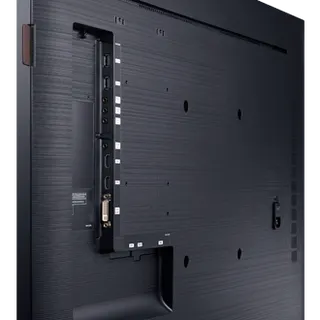

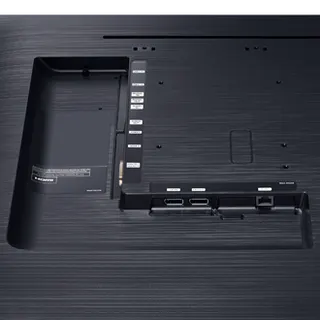

Inputs include two HDMI ports, one DisplayPort, one DVI and an analogue RGB input through D-Sub on the DVI-I connector, along with two USB ports and a stereo audio input. A DisplayPort 1.2 loop-out lets units be chained, and the video wall function supports daisy chaining of up to 16 units. RS232 in and out ports, plus an RJ45 connection, allow the displays to be controlled from a central system.
Where it fits across Qatar
At a private clinic in Al Sadd, a PM32F placed at reception can show queue numbers and department directions with bilingual content prepared by the clinic. In a university building in Education City, a row of units in a corridor can display timetables and event listings, all managed from one office. A hotel lobby in West Bay could use a unit in portrait orientation for arrival information, and a shopping mall in The Pearl could join four units into a compact video wall at its entrance.
What to check before ordering
- Set size is 721.2 x 415.6 x 29.9 mm and weight is 5.6 kg; the package measures 796 x 484 x 132 mm and weighs 7 kg.
- Wall mounting uses a 200 x 200 mm VESA pattern, and the foot stand and wall mount are optional accessories.
- The operating range is 0 to 40 °C with 10 to 80 % non-condensing humidity, so choose an air-conditioned indoor position away from direct sunlight, as Qatar summer temperatures can exceed 45 °C outdoors.
- Maximum power draw is 88 W, with typical consumption of 61 W in the EU rating and 42 W in the US rating, and an energy efficiency class of C.
Before a wall installation, SmartRooms Qatar offers a free site survey to check wall construction, cable routes and the power supply. Confirm that the supplied power cord suits Qatar's 240 V, 50 Hz mains and BS 1363 sockets. Request a quote from SmartRooms Qatar, with quotations usually provided within one working day, and purchase orders and government tenders are welcome.
Highlights
- 32-inch 1920 x 1080 panel with 400 nit brightness
- Embedded MagicInfo Player S4 running on Tizen
- Non-glare front panel with IP5x dust protection
- Video wall function with daisy chaining of up to 16 units
- Two HDMI, one DisplayPort and one DVI input
- Operating range of 0 to 40 °C, 10 to 80 % humidity
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
51 specifications · Source: manufacturer · checked Oct 2026
Display15
- Diagonal Size
- 32"
- Panel Type
- 60Hz E-LED BLU
- Resolution
- 1920 x 1080 (16:9)
- Pixel Pitch (HxV, mm)
- 0.360(H) x 0.360(V)
- Active Display Size (HxV, mm)
- 698.4(H) x 392.85(V)
- Contrast Ratio
- 5,000:1
- Viewing Angle (H/V)
- 178/178
- Response Time
- 8 ms
- Display Color
- 10bit Dithering - 1.07Billion
- Color Gamut
- 72 %
- H-Scanning Frequency
- 30 ~ 81kHZ
- Maximum Pixel Frequency
- 148.5MHz
- V-Scanning Frequency
- 48 ~ 75HZ
- Brightness
- 400nit
- Contrast Ratio (Dynamic)
- Mega
Connectivity11
- HDMI In
- 2
- DP In
- 1
- DVI In
- 1
- USB
- 2
- RGB In
- D-Sub (DVI-I Common)
- Audio In
- Stereo Mini Jack, RGB/DVI/DP/HDMI
- Audio Out
- Stereo Mini Jack
- Video Out
- DP1.2(Loop-out)
- RS232 In
- Yes
- RS232 Out
- Yes
- RJ45 In
- Yes
Design1
- Stand Type
- Foot Stand (Optional)
Power4
- Power Supply
- 삼성전기 (SEM)
- Power Consumption (Off Mode, W)
- less than 0.5 W
- Power Consumption (On Mode, W)
- Max:88W / Typical:(EU)61, (US)42, (WW)61W / BTU(Max):300.08W
- Power Consumption (Sleep Mode, W)
- less than 0.5 W
Dimension2
- Set Dimension (WxHxD, mm)
- 721.2 x 415.6 x 29.9 mm
- Package Dimension (WxHxD)
- 796 x 484 x 132 mm
Weight2
- Set Weight
- 5.6 kg
- Package Weight
- 7 kg
Operation Conditions2
- Temperature
- 0~40 ℃
- Humidity
- 10~80 (non-condensing)
Mechanical Specification3
- VESA Mount (mm)
- 200 x 200 mm
- Bezel Width (mm)
- 8.9(Even)
- Media Player Option Type
- SBB
General Feature2
- Special
- Temperature Sensor, Video Wall(15x15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, Center IR
- Speaker
- 10W x 2
Optional Feature3
- Mount
- WMN4070SD
- Specialty
- CML400XJ
- Stand
- STN-L3240E
Internal Player (MagicInfo)2
- Special
- Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall, Multi Channel, Mobile Control, Event Schedule, Backup Player
- MagicInfo Support
- Yes
Eco1
- Energy Efficiency
- C
Accessory1
- Included
- Quick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover Jack
Certification and Compliance2
- EMC
- FCC (USA) Part 15, Subpart B Class A, CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003, VCCI (Japan) : VCCI V-3 /2010.04 Class A, KCC/EK (Korea) : Tuner : KN13 / KN20, Tunerless : KN22 / KN24, BSMI (Chinese Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital), C-Tick (Australia) : AS/NZS CISPR22:2009, CCC(China) : GB9254-2008, GB17625.1-2012, GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003
- Safety
- CB (Europe) : IEC60950-1/EN60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore ) : PSB+IEC60950-1, NOM (Mexico ) : NOM-001-SCFI-1993, IRAM (Argentina ) : IRAM+IEC60950-1, SASO (Saudi Arabia ) : SASO+IEC60950-1, BIS(India) : IEC60950-1 / IS13252, NOM(Mexico) : Tuner : NOM-001-SCFI-1993, Tunerless : NOM-019-SCFI-1998, KC(Korea) : K 60950-1, EAC(Russia) : EAC+IEC60950-1, INMETRO(Brazil) : INMETRO+IEC60950-1, BSMI(Chinese Taiwan) : BSMI+IEC60950-1, RCM(Australia) : IEC60950-1/AS/NZS 60950-1, UL(USA) : cUL60950-1, CSA (Canada) : cUL, TUV (Germany) : CE, NEMKO (Norway) : CE
Downloads
10 files from the manufacturer
XLSX
Samsung PM32F datasheets (XLSX, 6 KB)
PDF
Samsung PM32F manuals & guides (PDF, 7.0 MB)
PDF
Samsung PM32F manuals & guides (PDF, 7.0 MB)
PDF
Samsung PM32F manuals & guides (PDF, 7.2 MB)
PDF
Samsung PM32F manuals & guides (PDF, 7.0 MB)
PDF
Samsung PM32F manuals & guides (PDF, 2.3 MB)
PDF
Samsung PM32F manuals & guides (PDF, 1.5 MB)
ZIP
Samsung PM32F software & firmware (ZIP)
ZIP
Samsung PM32F software & firmware (ZIP)
ZIP
Samsung PM32F software & firmware (ZIP)
Questions about PM32F
Who is the Samsung PM32F designed for?
The PM32F suits organisations that need a compact screen for reception areas, clinic waiting rooms, corridors and small meeting spaces. At 32 inches with a 1920 x 1080 panel, it works where a larger screen would overwhelm the room. A private clinic in Al Sadd might place one at the front desk for queue numbers, while a school in Al Wakrah could use one in a visitor corridor for announcements and event notices.
Do I need a separate PC to run content on the PM32F?
No. The PM32F includes an embedded MagicInfo Player S4 running on Tizen, so content can be played, scheduled and managed from the display itself. The source data also lists an embedded Wi-Fi module, event scheduling, automatic source switching and a backup player option. Firmware can be updated over the network, which simplifies maintenance across several units.
How bright is the PM32F, and can it be installed near windows?
The panel is rated at 400 nit brightness, and its non-glare front surface reduces reflections from ceiling lights and daylight. The source data does not give an outdoor rating, so avoid direct sunlight and large glass frontages. In a bank or hotel lobby in West Bay, position the screen away from the window, and confirm the exact spot during a site survey before mounting.
Can several PM32F units be combined into a video wall?
Yes. The source data lists a video wall feature with a 15 x 15 on-screen display option, daisy chaining of up to 16 units and PC-less video wall setup within MagicInfo Player S4. A row of four units at a mall entrance in The Pearl could form a compact wall. Panel layout, cable routing and mounting should be confirmed during a site survey before installation.
Will the PM32F cope with Qatar's summer heat?
The stated operating range is 0 to 40 °C, with humidity of 10 to 80 % non-condensing. Outdoor temperatures in Qatar can exceed 45 °C in summer, so the display should sit in an air-conditioned room rather than a sun-heated corridor, a car park or an unconditioned storeroom. A site survey can check the room temperature and airflow near the intended wall position.
Is the PM32F dust-resistant for industrial or dusty sites?
The PM32F carries an IP5x certification, which indicates protection against dust. This helps in dusty indoor areas such as a warehouse office or logistics hall. The source data does not give an outdoor rating or water protection rating, so for a site in the Industrial Area or Mesaieed, check the enclosure and mounting with SmartRooms Qatar before deciding on the location.
What inputs and ports does the PM32F have?
It has two HDMI inputs, one DisplayPort input, one DVI input, an RGB input through D-Sub on the DVI-I connector, two USB ports, and stereo audio input and output. It also provides a DisplayPort 1.2 loop-out, RS232 in and out ports, and an RJ45 input. These ports allow several sources, such as a laptop, media player or control system, to connect to one display.
Can the PM32F be used in portrait orientation?
Yes. The source data lists pivot display support and image rotation within the media player. Portrait orientation suits queue management screens, digital menus at a cafe counter and directory boards in building lobbies, where tall content reads more naturally than a wide layout. Set the orientation before mounting, and confirm that the bracket or stand suits a rotated installation.
How can facilities staff control several PM32F displays?
The PM32F offers RS232 in and out ports, an RJ45 connection, an embedded Wi-Fi module, mobile control through MagicInfo and a centrally placed infrared receiver. A remote controller is included in the box. In a university building in Education City, a facilities team could manage a row of corridor displays from one office and change content at set times using event schedules.
What is the power consumption of the PM32F?
Maximum consumption is 88 W, with typical consumption of 61 W in the EU rating and 42 W in the US rating. Off mode and sleep mode each draw less than 0.5 W, and the energy efficiency class is C. Before ordering a multi-unit installation, ask SmartRooms Qatar to confirm that the supplied power cord and supply suit Qatar's 240 V, 50 Hz mains and BS 1363 sockets.
What mounting and stand options are available for the PM32F?
The PM32F uses a 200 x 200 mm VESA mounting pattern. The foot stand STN-L3240E and the wall mount WMN4070SD are optional. The set weighs 5.6 kg and the package weighs 7 kg, so the wall must be solid enough to carry the load. SmartRooms Qatar offers free site surveys to check wall construction, cable routes and viewing height before installation.
Can a government office or school buy the PM32F through an LPO or tender?
Yes. SmartRooms Qatar accepts purchase orders (LPOs) and supplies against government tenders, including Monaqasat. A school or ministry ordering several PM32F units can request one quotation covering the displays, any optional stands or wall mounts, and professional installation. Payment can be made by bank transfer, cheque or purchase order. Request a quote and state the quantity and mounting type.
