QB65H

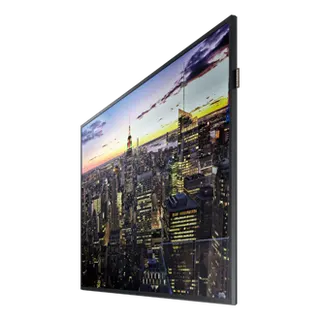

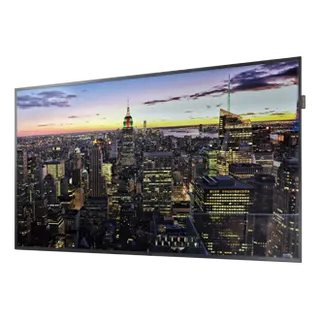

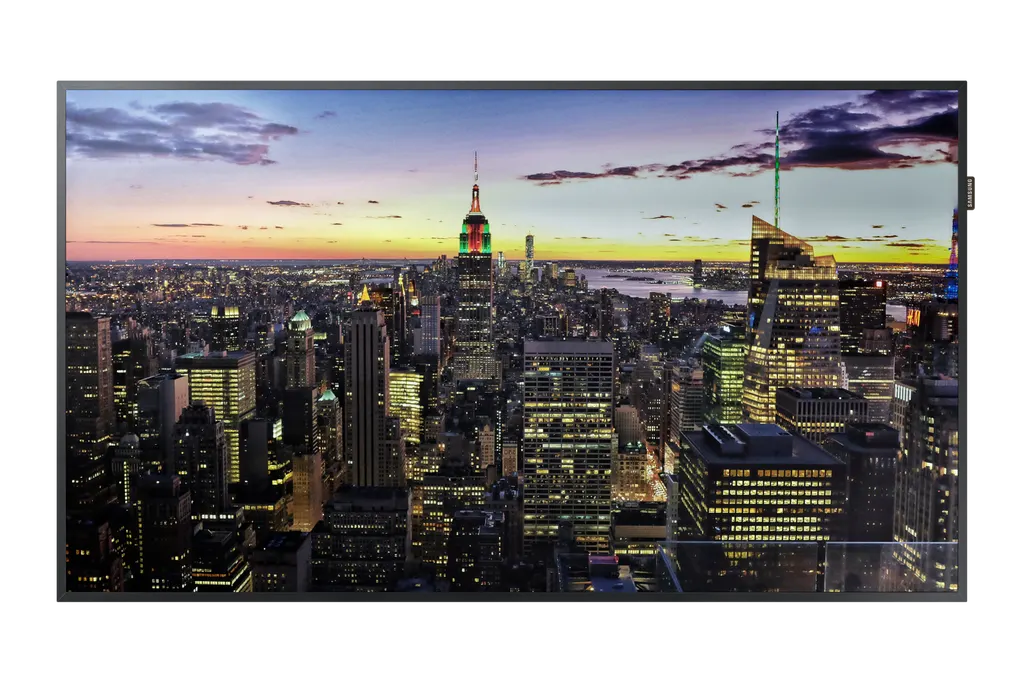

Samsung QB65H 65-inch UHD 4K Digital Signage Display
- Screen size
- 65"
- Resolution
- 3,840 x 2,160
- Brightness
- 300 nit
- Contrast
- 4700:1
The Samsung QB65H is a 65-inch UHD 4K display made for digital signage that runs long daily hours. Its 3,840 x 2,160 Edge LED panel has an anti-glare screen and an embedded Tizen 3.0 media player, so content can play from the display itself. It suits lobbies, malls and corridors in Doha, Lusail and Al Sadd where screen glare and daytime use matter. Request a quote today.
What the QB65H is built to do
The Samsung QB65H is a 65-inch display from the QBH series, designed for public-facing digital signage rather than video meetings. It uses a 3,840 x 2,160 UHD panel with Edge LED backlighting and a 60Hz refresh rate. An embedded media player running Tizen 3.0 means playlists, menus and promotional loops can run from the display itself, and the platform supports remote management from a central location.
Screen facts that matter for public viewing
Content in a lobby or corridor is often seen from a distance and from the side, under mixed lighting. These specifications address that directly:
- Anti-glare screen: a glass haze of 2.3 percent helps reduce reflections from windows and ceiling lights.
- Contrast: a 4,700:1 contrast ratio and a typical brightness rating of 300 keep images readable.
- Viewing angle: 178 degrees horizontal and vertical, so the picture holds up when viewers walk past.
- Colour and response: a 72 percent colour gamut and 8ms typical response time for moving content.
Connectivity and control

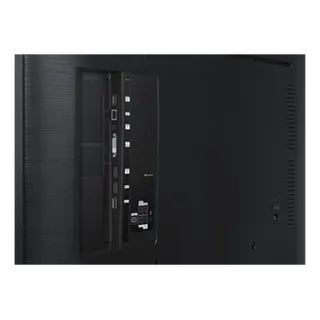

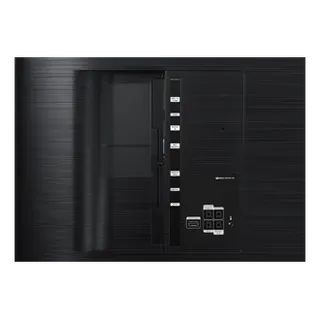

Two HDMI inputs, one DisplayPort input, one DVI-D input, two USB ports, an RJ45 input and Wi-Fi allow the display to join a signage network or take feeds from an external player. RS232 input and output and an IR input allow control from a building management system or central controller, and the stereo mini jack output can feed a separate speaker. The QB65H has no HDBaseT input and no Bluetooth, so check cable routes and wireless plans before ordering.
Where the QB65H fits in Qatar
- A shopping mall in West Bay running promotional loops in a main corridor through long opening hours.
- A government ministry lobby in Msheireb showing visitor directions and service information in Arabic and English.
- A private school in Al Wakrah placing a panel in reception or a corridor for announcements and student work.
Planning power, mounting and the Qatar climate

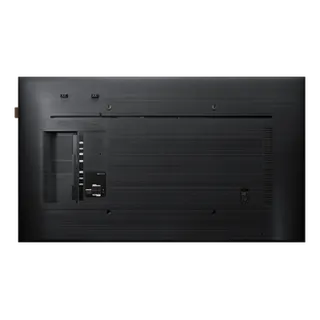

The power supply is rated 100 to 240 V, 50/60 Hz, which covers the 240 V mains used in Qatar. Power consumption is 165 W in on mode and 0.5 W in sleep mode. The set measures 1456.1 x 835.6 x 37.5 mm with 12.2 mm bezels and a 400 x 400 mm VESA mounting pattern. The manufacturer lists an optional WMN6575SD wall mount and STN-L6500E stand. The operating range is 0 to 40 degrees Celsius at 10 to 80 percent humidity, and Qatar summer temperatures can exceed 45 degrees, so the display should sit in an air-conditioned space away from direct sun and window heat. Confirm the location with the SmartRooms Qatar team before installation.
Ordering and installation
SmartRooms Qatar supplies the QB65H with delivery to all 8 municipalities, professional installation and a free site survey. The survey checks wall strength, cable routes and ventilation before mounting a panel of this size. Quotations are usually issued within one working day, and we accept purchase orders and government tenders, including Monaqasat. The product is covered by the manufacturer's warranty. Request a quote for the QB65H and tell us your room, mounting type and number of units.
Highlights
- 65-inch UHD panel at 3,840 x 2,160 resolution
- Anti-glare screen with 2.3% glass haze
- Rated for 16 hours a day, seven days a week
- Embedded media player running Tizen 3.0 OS
- Two HDMI, DisplayPort, DVI-D, RS232 in and out
- Operating range 0 to 40 degrees Celsius, indoor use
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Display14
- Diagonal Size
- 65"
- Panel Type
- Edge LED, 60Hz
- Resolution
- 3,840 x 2,160
- Pixel Pitch (HxV, mm)
- 0.105 x 0.315
- Brightness (Typical)
- 300
- Contrast Ratio
- 4700:1
- Viewing Angle (H/V)
- 178/178
- Response Time
- 8ms(Typ.)
- Color Gamut
- 72%
- Glass Haze
- 2.3%
- H-Scanning Frequency
- 30~81kHz
- Maximum Pixel Frequency
- 594Mhz
- V-Scanning Frequency
- 48~75Hz
- Contrast Ratio (Dynamic)
- Mega
Connectivity15
- HDMI In
- 2
- DP In
- Yes
- DVI In
- 1 (DVI-D)
- USB
- 2
- IR In
- Yes
- HDBaseT In
- No
- Audio In
- Yes
- Audio Out
- Stereo Mini Jack
- RS232 In
- Yes
- RS232 Out
- Yes
- RJ45 In
- Yes
- RJ45 Out
- No
- WiFi
- Yes
- 3G Dongle
- No
- Bluetooth
- No
Power3
- Power Supply
- AC 100~240V 50/60Hz
- Power Consumption (On Mode, W)
- 165
- Power Consumption (Sleep Mode, W)
- 0.5
Dimension2
- Set Dimension (WxHxD, mm)
- 1456.1 x 835.6 x 37.5
- Package Dimension (WxHxD)
- 1571 x 212 x 956
Weight2
- Set Weight
- 22.8
- Package Weight
- 30.80
Operation Conditions2
- Temperature
- 0℃~ 40℃
- Humidity
- 10~80%
Mechanical Specification3
- VESA Mount (mm)
- 400 x 400
- Bezel Width (mm)
- 12.2 (Top/Side), 12.2 (Bottom)
- Frame Material
- Non-Glossy
Optional Feature2
- Mount
- Yes (WMN6575SD)
- Stand
- Yes (STN-L6500E)
Certification and Compliance2
- EMC
- FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003VCCI (Japan) : VCCI V-3 /2010.04 Class AKCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24BSMI (Chinese Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital)C-Tick (Australia) : AS/NZS CISPR22:2009CCC(China) :GB9254-2008 GB17625.1-2012GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007
- Safety
- CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Chinese Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE
