Samsung QH49R 49-inch UHD 4K Digital Signage Display

Name: Samsung QH49R 49-inch UHD 4K Digital Signage Display
Brand: Samsung
SKU: samsung-qh49r
Availability: InStock

Overview

The Samsung QH49R is a 49-inch UHD 4K digital signage display from the QHR series, rated at 700 cd/m2 typical brightness on a 3,840 x 2,160 panel. It includes built-in WiFi and Bluetooth, two HDMI inputs, a DisplayPort input and MagicInfo daisy-chain videowall support. It suits retail units, corporate lobbies and school corridors in Qatar that need a slim, bright screen for indoor use. Request a quote for supply and installation.

What the QH49R is and where it fits

The Samsung QH49R is a 49-inch display from the QHR series, built for digital signage rather than desk use. Its 3,840 x 2,160 panel delivers UHD 4K detail, and a typical brightness of 700 cd/m2 keeps offers, wayfinding and event information readable in well-lit retail and hospitality spaces. The unit is rated for indoor operation between 0 and 40 degrees Celsius, so the room it goes into matters as much as the screen itself.

Built-in UHD upscaling raises lower-resolution clips to fill the 4K panel, so older promotional files still look sharp. The 10-bit processing and a 92% DCI-P3 colour gamut suit brand-led content where colour accuracy is part of the message.

Brightness, contrast and viewing angles

A 4,000:1 contrast ratio and 178/178 horizontal and vertical viewing angles make the QH49R practical for a mall walkway where shoppers approach from several directions, or a hotel lobby where guests read the screen while standing beside each other. The 8ms response time handles moving video and animated menus without visible smearing. The frame has a non-glossy finish, and the narrow bezel of 9.2 mm on the sides and 11.2 mm at the bottom keeps the screen edge tidy in a group of panels.

Summer conditions in Qatar need careful planning. Outdoor temperatures regularly pass 45 degrees Celsius, so the QH49R should sit inside an air-conditioned space, away from direct sun through glazing. The IP5x dust rating makes it more tolerant of dusty indoor areas, but Samsung notes that operation is not guaranteed in the presence of certain dust types, such as metal dust. Sites near the Industrial Area or Mesaieed should be checked before installation.

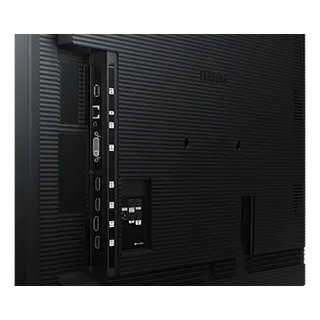

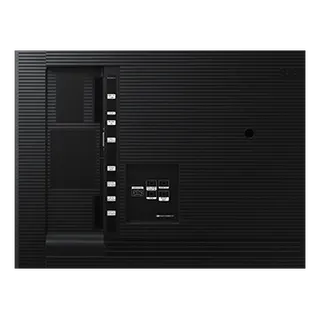

Connectivity and control for mixed sources

Video inputs: two HDMI inputs, one DisplayPort input and one DVI input
Data and control: two USB ports, RJ45 input, RS232 input and output, and IR input
Wireless: built-in WiFi and Bluetooth
Audio: audio input, stereo mini jack audio output and video output

There is no HDBaseT input and no RJ45 output, so long-distance distribution must be planned around HDMI, DisplayPort or network connections. The internal MagicInfo player and Samsung Workspace, protected by Knox, let a PC be reached and controlled wirelessly without a cable at the screen, which suits boardrooms that share one display.

Planning mounting, power and installation

The set measures 1099.2 x 631.5 x 46.3 mm and weighs 14.6 kg, with a VESA pattern of 200 x 200 mm. Samsung lists the WMN4070SE wall mount and STN-L4355F stand as optional accessories, so the mounting method can be decided at quotation stage. Power is rated AC 100 to 240 V at 50/60 Hz, which covers the 240 V mains supply used in Qatar. Typical on-mode consumption is 143 W and sleep mode draws 0.5 W.

Book a free site survey to confirm wall structure, sightlines and cable routes before mounting
Plan the panel height for the viewing distance in corridors, lobbies and classrooms
Confirm the environment with the SmartRooms Qatar team if the screen will face a window

SmartRooms Qatar supplies the QH49R across all 8 municipalities, arranges professional installation and accepts purchase orders, LPOs and government tenders. For a school ordering several panels for a corridor refit, or a retailer planning matching screens along a walkway, send your quantity, mounting location and accessory preferences to request a quote and receive a quotation, usually within one working day.

Highlights

49-inch UHD 4K panel at 3,840 x 2,160 resolution
700 cd/m2 typical brightness for well-lit indoor spaces
Built-in WiFi and Bluetooth with RS232 and RJ45 control
MagicInfo daisy-chain videowall support
Operating range 0 to 40 degrees Celsius, indoor use
143 W typical on-mode power and 0.5 W sleep mode

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

46 specifications · Source: manufacturer · checked Oct 2026

Display14

Diagonal Size: 49"
Panel Type: New Edge, 60Hz
Resolution: 3,840 x 2,160
Pixel Pitch (HxV, mm): 0.093 x 0.279 (mm)
Brightness (Typical, cd/m2): 700
Contrast Ratio: 4,000:1
Viewing Angle (H/V): 178/178
Response Time: 8ms
Color Gamut: 92% (DCI-P3, CIE 1976)
Glass Haze: 0.25 %
H-Scanning Frequency: 30 ~ 135kHZ
Maximum Pixel Frequency: 594MHz
V-Scanning Frequency: 48 ~ 75HZ
Contrast Ratio (Dynamic): Mega

Connectivity15

HDMI In: 2
DP In: Yes
DVI In: 1
USB: 2
IR In: Yes
HDBaseT In: No
Audio In: Yes
Audio Out: Stereo Mini Jack
Video Out: Yes
RS232 In: Yes
RS232 Out: Yes
RJ45 In: Yes
RJ45 Out: No
WiFi: Yes
Bluetooth: Yes

Power3

Power Supply: AC100-240V 50/60Hz
Power Consumption (On Mode, W): 143
Power Consumption (Sleep Mode, W): 0.5 W

Dimension2

Set Dimension (WxHxD, mm): 1099.2 x 631.5 x 46.3 mm
Package Dimension (WxHxD, mm): 1247 x 772 x 152 mm

Weight2

Set Weight (kg): 14.6 kg
Package Weight: 19.1 kg

Operation Conditions2

Temperature: 0℃~ 40℃
Humidity: 10 ~ 80%, non-condensing

Mechanical Specification3

VESA Mount (mm): 200 x 200 mm
Bezel Width (mm): 9.2(U/L/R), 11.2(D)
Frame Material: Non-Glossy

Optional Feature2

Mount: WMN4070SE
Stand: STN-L4355F

Internal Player (MagicInfo)1

MagicInfo Daisychain Videowall Support: Yes

Certification and Compliance2

EMC: Class B FCC (USA) Part 15, Subpart B 　 KCC/EK (Korea) Tuner : KN32 / KN35 　 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 　 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 　 CCC(China) GB/T9254-2008 　 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) 　 C-Tick (Australia) AS/NZS CISPR32:2015 　 GOST(Russia/CIS) ROCT CISPR 24-2013 　 ROCT CISPR 22:2005
Safety: CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950

Downloads

5 files from the manufacturer

XLSX Datasheets QH49R_Specifications_ae.xlsx 5 KB PDF Manuals & guides BN68-09889C-00_QSG_QHR_ASIA_MENA_L06_190917.0.pdf 2.7 MB ZIP Software & firmware · Opens on manufacturer site LFDQHRMA-00_BY-MODEL_QHR_ASIA_MENA_AFRICA_L03_191024.0.zip ZIP Software & firmware · Opens on manufacturer site T-KTM2ELAKUC_BEM.zip ZIP Software & firmware · Opens on manufacturer site T-KTM2ELAKUC_USB.zip

Questions about QH49R

What is the Samsung QH49R designed for?

The QH49R is a 49-inch UHD 4K display built for digital signage, such as promotional loops, wayfinding and information screens. It suits retail units in West Bay, hotel lobbies in Msheireb and school corridors where a slim, bright screen runs content for long hours. It is not designed as a desk monitor, and it is rated for indoor use only.

How bright is the QH49R for a lit indoor space?

The QH49R has a typical brightness of 700 cd/m2. That level keeps menus and offers readable in a mall walkway or lobby with strong overhead lighting. Because it is rated for indoor operation, avoid positioning it where direct sunlight falls on the screen through large windows, and confirm the spot during the site survey.

Can the QH49R be used outdoors or in a sun-facing atrium in summer?

The operating temperature range is 0 to 40 degrees Celsius, with humidity between 10 and 80 percent, non-condensing. Outdoor temperatures in Qatar often exceed 45 degrees Celsius in summer, so the panel should be placed in an air-conditioned indoor area. For a sun-facing atrium, confirm the environment with the SmartRooms Qatar team before installation.

Which inputs does the QH49R offer for laptops and media players?

The QH49R provides two HDMI inputs, one DisplayPort input, one DVI input and two USB ports. Those connections cover most laptops, presentation PCs and media players used for signage. There is also an RJ45 network input and an audio input, so content can be fed from a local player or over a network.

Does the QH49R support videowall setups with several panels?

Yes, the QH49R supports MagicInfo daisy-chain videowall configurations. Its bezel is 9.2 mm on the left, right and top sides and 11.2 mm at the bottom, which helps keep the gap between panels small. Plan the panel count, rows and columns with the SmartRooms Qatar team, and note that the set has no RJ45 output for passing network signals onward.

Does the QH49R have HDBaseT for long cable runs?

No, the QH49R does not have an HDBaseT input. For runs over long distances, such as from a server room in a large office building to a reception screen, plan around standard HDMI or DisplayPort cabling, a network connection or a separate media player placed close to the display. The team can recommend a layout during the site survey.

How much power does the QH49R use, and does it suit Qatar mains?

Typical on-mode power consumption is 143 W, and sleep mode draws 0.5 W. The power supply is rated for AC 100 to 240 V at 50/60 Hz, which covers the 240 V mains used in Qatar. The power cable and socket arrangement should be confirmed in the quotation so the installer can plan the outlet position behind the wall mount.

What do I need to plan before wall-mounting a QH49R?

The set measures 1099.2 x 631.5 x 46.3 mm and weighs 14.6 kg, with a VESA pattern of 200 x 200 mm. Check the wall structure, the outlet position and the cable route before drilling. SmartRooms Qatar offers free site surveys, and the optional WMN4070SE wall mount or STN-L4355F stand can be specified in the quotation.

Is the QH49R suitable for dusty areas such as warehouses or the Industrial Area?

The QH49R carries an IP5x dust rating, which means it is designed to operate with a certain level of dust inside the product. Samsung notes that operation is not guaranteed when exposed to particular dust types, such as metal dust. For dusty sites in the Industrial Area or Mesaieed, confirm the environment with the SmartRooms Qatar team before choosing a location.

Does the QH49R include security features for a corporate boardroom?

The QH49R includes Samsung Workspace secured by Knox, which allows wireless cloud access and control of a PC without a physical connection to the screen. Built-in WiFi and Bluetooth are also included. A boardroom in Doha with a shared display can use this to present from several laptops, and the network setup can be agreed during installation planning.

Can a school in Al Wakrah order several QH49R panels through an LPO?

Yes, SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, and delivers to all 8 municipalities. A school refitting corridors with several panels can send the quantity, mounting positions and accessory choices with its LPO details. Payment can be made by bank transfer, cheque or purchase order, and the team will confirm the quotation before the order is placed.

How does the QH49R handle lower-resolution content?

The QH49R uses built-in UHD upscaling to improve lower-resolution sources, adjusting edges and reducing noise so that content fills the 3,840 x 2,160 panel with better detail. This helps when a retail chain or hotel uses older promotional clips alongside new 4K material on the same screen.

Do I get a warranty and a quotation for the QH49R?

The QH49R is covered by the manufacturer's warranty. To request a quote, send SmartRooms Qatar the quantity, the room type and whether you need a wall mount or stand. Quotations are usually issued within one working day, and the team can confirm lead times, which depend on stock, at that stage.
