QM65H

What the QM65H is built to do

Organisations use the QM65H to show wayfinding, announcements, menus and promotional content on a screen that runs through working hours. It belongs to the QMH Series of signage displays, so it is intended for content viewed by visitors and staff rather than for hands-on annotation at a classroom desk.

Picture quality and brightness for public viewing

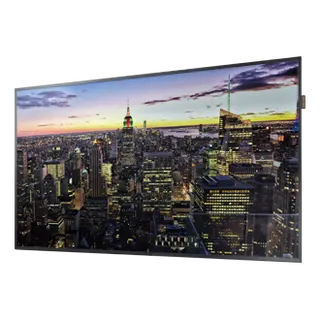

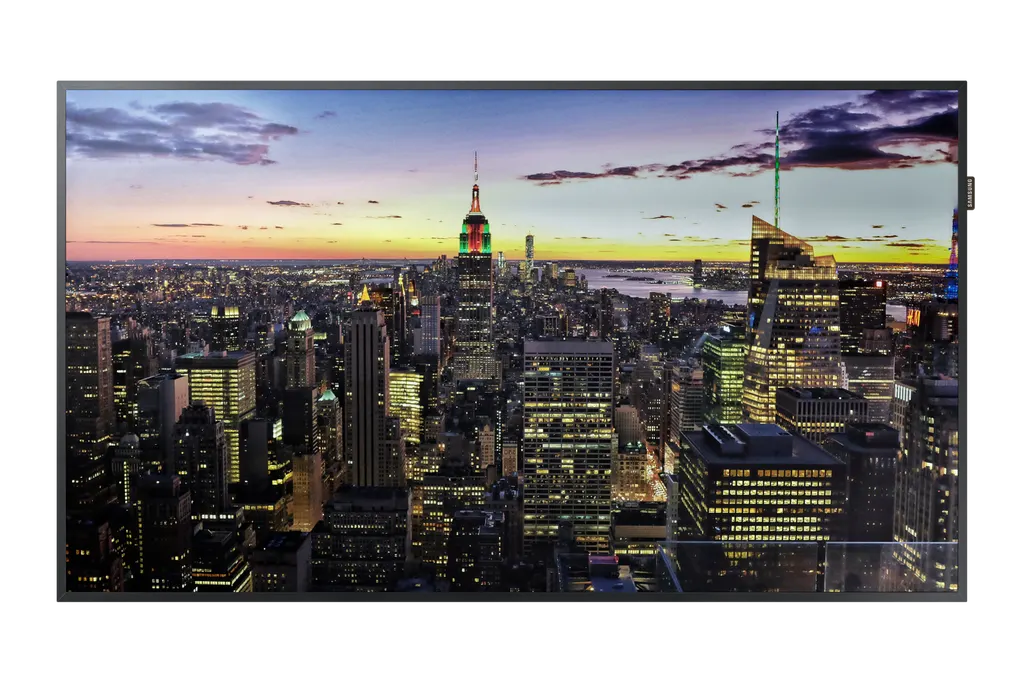

The 3,840 x 2,160 panel carries four times the pixel count of Full HD, which keeps text and fine graphics sharp at 65 inches. Typical brightness is rated at 500 and contrast at 4,700:1, while the 178/178 viewing angle keeps content readable from the side of a lobby or corridor. The front uses a non-glare panel with 25% glass haze, which helps where daylight from windows or ceiling lights would otherwise wash out the picture.

Connectivity and video wall planning

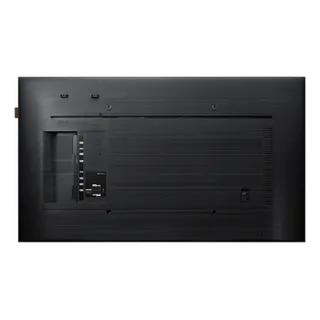

The rear panel provides two HDMI inputs, one DisplayPort input, one DVI input, two USB ports, an RJ45 input, an IR input and an audio input, along with a stereo mini jack audio output and video out. RS232 in and out allow control from a building management or AV system, and Wi-Fi and Bluetooth are built in. The MagicInfo daisy-chain function supports multi-display UHD layouts up to 2x2. Each panel has a 12.0 mm bezel on all sides, which keeps the gaps narrow when several units are tiled together. The unit has no HDBaseT input and no RJ45 output, so plan long cable runs and daisy-chain cabling carefully.

Power, heat and placement in Qatar

The power input is rated at 100 to 240 V at 50/60 Hz, which covers Qatar mains at 240 V and 50 Hz. Typical on-mode consumption is 198 W, sleep mode draws 0.5 W, and the energy efficiency rating is A+. The operating range is 0 to 40 °C with 10 to 80% humidity. Summer temperatures in Qatar regularly rise above 45 °C, so the QM65H should sit inside air-conditioned space, out of direct sunlight and away from open entrances. The manufacturer states IP5x dust validation, which helps in dusty conditions, but operation is not guaranteed against certain dust types such as metal dust.

Where it fits in Qatar

• Government service centre in West Bay: one unit at the reception area showing queue information and service guidance.
• Private school in Al Rayyan: a 2x2 wall of four units in a foyer for event schedules and student achievements.
• Hotel lobby in Lusail: a single panel beside the check-in desk for arrival information and local offers.

What to plan before ordering

• Check the VESA 400 x 400 mm pattern against your wall bracket or stand.

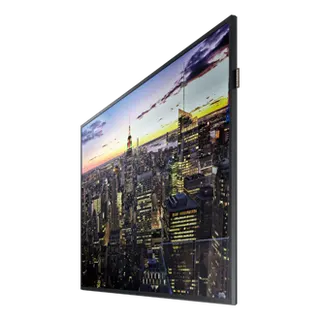

• Allow for the set size of 1456.1 x 835.6 x 37.5 mm and cable clearance behind the panel.
• Choose the optional stand or wall mount if the screen will not be fixed directly to a wall.
• Book a free site survey before drilling walls or ceilings, especially for a multi-panel wall.
• Share the room environment, daily running hours and power route when you request a quote.

To confirm whether the QM65H suits your lobby, corridor or video wall, request a quote from SmartRooms Qatar. Quotations are usually issued within one working day, and we supply, deliver and install across all eight municipalities of Qatar.
