Samsung Digital Signage Current

QM65N

Samsung QM65N 65-inch UHD 4K Digital Signage Display

Screen size: 65"
Resolution: 3,840 x 2,160
Brightness: 500 nit
Contrast: 5000:1

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

XLSXDownload datasheet

Overview

The Samsung QM65N is a 65-inch UHD 4K signage display with a 3,840 x 2,160 resolution, a 5000:1 contrast ratio and a typical brightness rating of 500. It runs an embedded MagicINFO S6 player on Tizen OS, so content can be scheduled without a PC. Two HDMI 2.0 inputs and DisplayPort 1.2 support videowall builds up to 2x2. Rated for 0 to 40 degrees C, it suits air-conditioned lobbies, retail floors and meeting areas in Doha, Lusail and Education City.

What the QM65N does on a busy site

The Samsung QM65N is a 65-inch UHD signage display built to show content continuously in public and commercial areas. Its 3,840 x 2,160 panel carries four times the pixels of Full HD, so menus, timetables and small text stay sharp at close viewing distance. A typical brightness rating of 500, a 5000:1 contrast ratio and 178-degree horizontal and vertical viewing angles help staff and visitors read the screen from the side of a corridor or across a lobby.

Playback, content and security

An embedded MagicINFO S6 player runs on Tizen OS, so the display can play scheduled content on its own without an external PC. The network options include an RJ45 LAN input, built-in WiFi and Bluetooth. Samsung's KNOX platform controls what can pass through the USB ports and the network connection, which matters to IT managers at banks, hospitals and government offices who need to limit what connects to a screen.

Videowall and connectivity planning

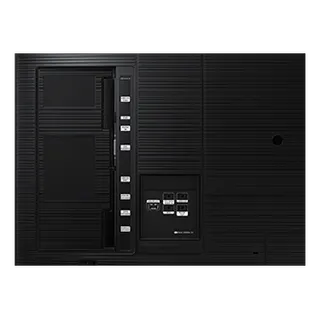

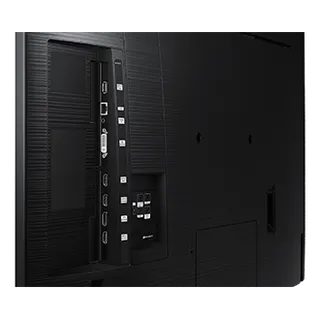

The QM65N supports MagicINFO daisy-chain videowall configurations, and the manufacturer data lists UHD daisy chains up to 2x2 through the HDMI 2.0 port. Its inputs include two HDMI 2.0 ports, one DisplayPort 1.2, one DVI-D, two USB ports, audio in and RS232 in and out, plus IR in and video out. The bezel measures 10.5 mm at the top and sides and 11.8 mm at the bottom, which keeps seams narrow when panels are arranged in a grid. HDBaseT is not supported, so long cable runs need planning before installation.

Where it fits in Qatar

Hospital or clinic reception in Doha: wayfinding, queue numbers and health awareness content in Arabic and English, placed in an air-conditioned waiting area.
Bank or government service hall in West Bay or Msheireb: service hours, forms guidance and branch announcements that run without staff intervention.
University atrium or training centre in Education City: event listings, timetables and campus news shown through the working week from Sunday to Thursday.

What to plan before ordering

The listed operating range is 0 to 40 degrees C with 10 to 80 percent humidity, non-condensing. Summer temperatures in Qatar can exceed 45 degrees C, so the QM65N belongs in an indoor, air-conditioned room away from direct sunlight through windows. The set measures 1457.5 x 837.3 x 59.4 mm and weighs 25.3 kg, or 33.4 kg packed. It has a 400 x 400 mm VESA pattern, no stand is included, and the optional WMN6575SE mount is listed. The power supply is rated AC 100-240 V at 50/60 Hz, with typical consumption of 176 W in on mode and 0.5 W in sleep mode. SmartRooms Qatar offers a free site survey before a 65-inch panel is wall-mounted.

Request a quote from SmartRooms Qatar for the QM65N, with delivery to all eight municipalities of Qatar, professional installation, and purchase orders or government tenders accepted. Products are covered by the manufacturer's warranty.

Highlights

65-inch UHD panel with 3,840 x 2,160 resolution at 60Hz
Embedded MagicINFO S6 player running on Tizen OS
Daisy-chained videowall configurations up to 2x2 via HDMI 2.0
Two HDMI 2.0 inputs, DisplayPort 1.2, DVI-D and WiFi
Operating range of 0 to 40 degrees C, 10 to 80% humidity
Typical consumption of 176 W on, 0.5 W in sleep mode

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

47 specifications · Source: manufacturer · checked Oct 2026

Display14

Diagonal Size: 65"
Panel Type: New Edge, 60Hz
Resolution: 3,840 x 2,160
Pixel Pitch (HxV, mm): 0.372(H) x 0.372(W)
Brightness (Typical): 500
Contrast Ratio: 5000:1
Viewing Angle (H/V): 178/178
Response Time: ‎8ms(Typ.)‎
Color Gamut: ‎72%‎
Glass Haze: ‎44%‎
H-Scanning Frequency: 30~81kHz
Maximum Pixel Frequency: 594Mhz
V-Scanning Frequency: 48~75Hz
Contrast Ratio (Dynamic): Mega

Connectivity15

HDMI In: 2
DP In: Yes
DVI In: 1(DVI-D)
USB: 2
IR In: Yes
HDBaseT In: No
Audio In: Yes
Audio Out: Stereo Mini Jack
Video Out: Yes
RS232 In: Yes
RS232 Out: Yes
RJ45 In: Yes
RJ45 Out: No
WiFi: Yes
Bluetooth: Yes

Power3

Power Supply: AC100-240V 50/60Hz
Power Consumption (On Mode, W): ‎176‎
Power Consumption (Sleep Mode, W): ‎0.5‎

Dimension2

Set Dimension (WxHxD, mm): ‎1457.5 x 837.3 x 59.4‎
Package Dimension (WxHxD): ‎1601 x 970 x 178‎

Weight2

Set Weight: ‎25.3‎
Package Weight: ‎33.4‎

Operation Conditions2

Temperature: ‎0℃~ 40℃‎
Humidity: ‎10 ~ 80%, non-condensing‎

Mechanical Specification3

VESA Mount (mm): ‎400 x 400‎
Bezel Width (mm): 10.5(top,side), 11.8(bottom)
Frame Material: Non-Glossy

Optional Feature2

Mount: WMN6575SE
Stand: No

Internal Player (MagicInfo)1

MagicInfo Daisychain Videowall Support: Yes

Eco1

Energy Efficiency: A

Certification and Compliance2

EMC: FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003VCCI (Japan) : VCCI V-3 /2010.04 Class AKCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24BSMI (Chinese Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital)C-Tick (Australia) : AS/NZS CISPR22:2009CCC(China) :GB9254-2008 GB17625.1-2012GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007
Safety: CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Chinese Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE

Downloads

10 files from the manufacturer

XLSX Datasheets QM65N_Specifications_levant.xlsx 6 KB PDF Datasheets VESA_Spec_Table.pdf 457 KB PDF Manuals & guides BN68-09134B-00_QSG_QMN_EU_L25_180426.0.pdf 2.3 MB PDF Manuals & guides By-model_QBN_QEN_QMN_WebManual_EU_Fre-01_20181019.0.pdf 631 KB PDF Manuals & guides By-model_QBN_QEN_QMN_WebManual_Eng_01_20181019.0.pdf 627 KB PDF Manuals & guides LFDQMREN-05_BY-MODEL_QBR QMR QER QMR-T_EU_ENG_210223.0.pdf 923 KB ZIP Software & firmware · Opens on manufacturer site LFDCOMNEN-07_COMMON_2018-2019_EU_L25_210607.0.zip ZIP Software & firmware · Opens on manufacturer site LFDQMREN-05_BY-MODEL_QBR_QMR_QER_QMR-T_EU_L25_210224.0.zip ZIP Software & firmware · Opens on manufacturer site T-KTM2ELAKUC_BEM.zip ZIP Software & firmware · Opens on manufacturer site T-KTM2ELAKUC_USB.zip

Questions about QM65N

What is the Samsung QM65N designed for?

The QM65N is a 65-inch UHD 4K signage display for content that plays all day, such as menus, wayfinding, schedules and announcements. It suits reception areas, retail floors and corridors where one screen must be read clearly. In Doha, a hotel lobby in West Bay or a clinic waiting area in Al Sadd are typical placements. Its 3,840 x 2,160 resolution and 5000:1 contrast ratio keep text and imagery crisp in those settings.

Can the QM65N be installed outdoors or near a sunny window in Qatar?

No, it is not designed for outdoor use. The listed operating range is 0 to 40 degrees C with 10 to 80 percent humidity, non-condensing, while Qatar summer temperatures can exceed 45 degrees C. Install it in an air-conditioned indoor room and keep it out of direct sunlight from windows. If your site has large glazing, dust exposure or uncertain cooling, confirm the environment with the SmartRooms Qatar team before requesting a quote.

How many QM65N panels can be joined into a video wall?

The QM65N supports MagicINFO daisy-chain videowall configurations, and the manufacturer data lists UHD daisy chains up to 2x2 through the HDMI 2.0 port. A 2x2 arrangement of four panels is the largest layout listed. The bezel is 10.5 mm at the top and sides and 11.8 mm at the bottom. For a university atrium in Education City or a similar wall, the SmartRooms Qatar team can confirm wiring, mounting and layout before you order.

Can I manage the content without a separate PC?

Yes. The QM65N has an embedded MagicINFO S6 player backed by Tizen OS, so it can run scheduled content on the display itself. An office in Lusail that updates notices weekly can do so without buying a media player. Remote updates depend on a network connection, and the RJ45 LAN input, WiFi and Bluetooth are all listed. Ask the SmartRooms Qatar team to confirm the content workflow for your department before ordering.

What inputs and outputs does the QM65N have?

The panel offers two HDMI 2.0 inputs, one DisplayPort 1.2 input, one DVI-D input, two USB ports, audio in, a stereo mini-jack audio output and video output. Control options include RS232 in and out, IR in and an RJ45 input. There is no RJ45 output and no HDBaseT input. Check your media player's outputs against these ports before placing an order, especially if the player sits in a separate control room.

Does the QM65N support HDBaseT for long cable runs?

No. The source data lists HDBaseT input as not supported, so the QM65N relies on its HDMI, DisplayPort and DVI-D inputs for video. If your media player is far from the screen, plan the cable route and distance before buying. A school corridor or hotel lobby with long runs should be surveyed first, so the SmartRooms Qatar team can recommend a suitable connection approach in the quotation.

What mounting space and weight does the QM65N need?

The set measures 1457.5 x 837.3 x 59.4 mm and weighs 25.3 kg, or 33.4 kg in its package. It has a 400 x 400 mm VESA pattern, and no stand is included, although the optional WMN6575SE mount is listed. Measure the wall, confirm it can carry the load and allow room for cables before ordering. SmartRooms Qatar offers a free site survey before wall-mounting a 65-inch panel.

What power does the QM65N need in Qatar?

The power supply is rated AC 100 to 240 V at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 176 W in on mode and 0.5 W in sleep mode, and the energy efficiency rating is A. For a video wall of several screens, ask an electrician to confirm the socket positions and circuit capacity in your building before installation, so the setup is safe and tidy.

Is the QM65N a touch screen for classrooms?

No. The QM65N is a signage display for one-way content, and the source data lists no touch input. It suits school corridors, cafeteria boards and reception screens. A school in Al Wakrah that wants interactive teaching should look at a touch-enabled interactive display instead. SmartRooms Qatar supplies interactive flat panels as well, so you can request a quote for both types in one enquiry.

Can a government ministry buy the QM65N through a tender or purchase order?

Yes. SmartRooms Qatar supplies government tenders, including Monaqasat, and accepts purchase orders (LPOs). Payment can be made by bank transfer, cheque or purchase order. For a multi-unit order, state the number of QM65N panels, the mounts and any videowall layout in your request, so the quotation can be compared directly. Quotations are usually issued within one working day.

Is the QM65N covered by warranty, and how is security managed?

Products supplied by SmartRooms Qatar are covered by the manufacturer's warranty, and you should ask the team for the warranty terms in writing when requesting a quote. For security, the QM65N uses Samsung's KNOX platform to control USB and network exchange through signage device management. Facilities and IT teams can use this to restrict what connects to the screen across several sites.

Is LH65QMNEBGC/UE the same as this QM65N model?

Yes, LH65QMNEBGC/UE is the model variant code listed for this 65-inch QM65N product. Quote the full code when you request a quote, so the correct regional version is supplied. The series is the QMN Series, and the product is listed as current. The SmartRooms Qatar team can confirm the exact variant and accessories for your order before the purchase order is raised.
