QM85N
Samsung QM85N 85-inch UHD 4K Digital Signage Display
- Screen size
- 85"
- Resolution
- 3,840 x 2,160
- Brightness
- 500 nit
- Contrast
- 3,000 : 1
The Samsung QM85N is an 85-inch UHD 4K display from the QMN Series, built on a slim direct LED panel with 3,000:1 contrast and an embedded MagicINFO S6 player on Tizen OS. Two HDMI inputs, DisplayPort, RS232 control and network management suit lobby, corridor and meeting-area signage in Doha offices, malls and clinics. Request a quote.
An 85-inch UHD panel for always-on indoor signage
The Samsung QM85N is part of the QMN Series and is built for organisations that need a large screen running information, wayfinding or promotional content for long hours. Its 85-inch slim direct LED panel offers 3,840 x 2,160 resolution, a typical brightness rating of 500, a 3,000:1 contrast ratio and 178/178 degree viewing angles. The panel covers 72% of the colour gamut, has a 44% glass haze rating and a typical response time of 8ms, with a 60Hz refresh rate.
Connectivity and on-screen content management

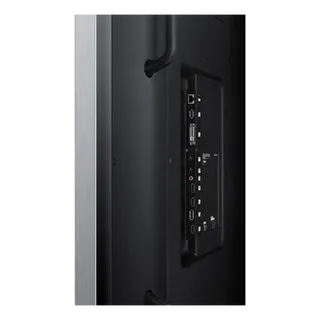

The QM85N provides two HDMI inputs, a DVI input and a DisplayPort input, so media players, laptops and existing AV sources can be connected without changing your setup. Serial control is available through RS232 in and out, and an RJ45 network input supports remote management, alongside two USB ports, Wi-Fi, Bluetooth and an IR input. Content is played by an embedded MagicINFO S6 player running on Tizen OS, so content can run from the display itself without a separate PC for each screen.
Where the QM85N fits in Qatar
Three situations show where the size and connectivity pay off:
- Hotel lobby in West Bay: arrival details, event schedules and conference room directions on one large screen near the reception desk.
- Clinic waiting area in Al Rayyan: queue information and health messages that are managed centrally and kept running through long opening hours.
- University building in Education City: corridor wayfinding and announcements with bilingual content, using a 1,903.4 mm wide panel that suits a long hallway wall.
Planning the mounting, power and climate
Plan the wall and the room before ordering. The set measures 1,903.4 x 1,090.5 x 105.1 mm and weighs 50.7 kg, so the wall structure and bracket must be checked. It uses a VESA 600 x 400 mm mounting pattern, and the manufacturer lists an optional WMN8200SD mount for this model. Bezels measure 13.2 mm at the sides and top and 19.3 mm at the bottom.
The power supply is rated AC 100-240 V, 50/60 Hz and draws 495 W in on mode and 0.5 W in sleep mode. The operating range is 0 to 40 degrees C with 10 to 80% humidity, non-condensing. Qatar summers often exceed 45 degrees C, so install the QM85N in an air-conditioned indoor room, away from direct sunlight and window glare, and confirm the environment with the SmartRooms Qatar team before fixing it in any space that is not climate-controlled.
Ordering from SmartRooms Qatar
Share your room layout, mounting wall, number of screens and whether you need a video wall, and the team will prepare a quotation, usually within one working day. Delivery covers all 8 municipalities of Qatar and professional installation is available, with a free site survey arranged before wall mounting. We accept purchase orders (LPOs), government tenders including Monaqasat, and payment by bank transfer, cheque or purchase order. Request a quote for the Samsung QM85N today.
Highlights
- 85-inch UHD 4K panel at 3,840 x 2,160 resolution
- Slim direct LED panel with 3,000:1 contrast ratio
- Embedded MagicINFO S6 player running on Tizen OS
- HDMI, DisplayPort, DVI, RS232 and RJ45 connectivity
- Daisy-chain UHD video walls up to 2x2 via HDMI 2.0
- Operating range 0 to 40 degrees C; 100-240 V power supply
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Display14
- Diagonal Size
- 85"
- Panel Type
- Slim Direct LED
- Resolution
- 3,840 x 2,160
- Pixel Pitch (HxV, mm)
- 0.4875(W) x 0.4875(H)
- Brightness (Typical)
- 500
- Contrast Ratio
- 3,000 : 1
- Viewing Angle (H/V)
- 178/178
- Response Time
- 8ms(Typ.)
- Color Gamut
- 72%
- Glass Haze
- 44%
- H-Scanning Frequency
- 60Hz
- Maximum Pixel Frequency
- 594MHz
- V-Scanning Frequency
- 135kHz
- Contrast Ratio (Dynamic)
- Mega Contrast
Connectivity15
- HDMI In
- 2
- DP In
- Yes
- DVI In
- 1
- USB
- 2
- IR In
- Yes
- HDBaseT In
- No
- Audio In
- Yes
- Audio Out
- Stereo Mini Jack
- Video Out
- Yes
- RS232 In
- Yes
- RS232 Out
- Yes
- RJ45 In
- Yes
- RJ45 Out
- No
- WiFi
- Yes
- Bluetooth
- Yes
Power3
- Power Supply
- AC100-240V 50/60Hz
- Power Consumption (On Mode, W)
- 495
- Power Consumption (Sleep Mode, W)
- 0.5
Dimension2
- Set Dimension (WxHxD, mm)
- 1903.4 x 1090.5 x 105.1
- Package Dimension (WxHxD)
- 2050 x 1265 x 472
Weight2
- Set Weight
- 50.7
- Package Weight
- 66.0
Operation Conditions2
- Temperature
- 0℃~ 40℃
- Humidity
- 10 ~ 80%, non-condensing
Mechanical Specification3
- VESA Mount (mm)
- 600 x 400
- Bezel Width (mm)
- (T)13.2/(S)13.2/(B)19.3
- Frame Material
- Non-Glossy
Optional Feature1
- Mount
- WMN8200SD
Internal Player (MagicInfo)1
- MagicInfo Daisychain Videowall Support
- Yes
Certification and Compliance2
- EMC
- FCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003VCCI (Japan) : VCCI V-3 /2010.04 Class AKCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24BSMI (Chinese Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital)C-Tick (Australia) : AS/NZS CISPR22:2009CCC(China) :GB9254-2008 GB17625.1-2012GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007
- Safety
- CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Chinese Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE
