QP105DX-5K
Samsung QP105DX-5K 105-inch 5K UHD Signage Display
- Screen size
- 105"
- Resolution
- 5,120 x 2,160
- Brightness
- 500 nit
- Operation
- 24/7
The Samsung QP105DX-5K is a 105-inch signage display with a 21:9 ultra-wide panel at 5,120 x 2,160 resolution and a depth of 48.1 mm for flush wall mounting. It suits Qatari boardrooms, control rooms and lobbies that need one continuous picture. Built-in Wi-Fi, Bluetooth and an OPS slot for Windows software add flexibility. Request a quote for supply, professional installation and delivery across Qatar.
A 105-inch, 21:9 canvas for rooms that need one continuous picture
The Samsung QP105DX-5K is a 105-inch signage-class display with a 21:9 ultra-wide panel at 5,120 x 2,160 resolution. Instead of tiling two or three smaller screens and accepting the gap between them, a room gets one uninterrupted surface. Its VA panel is rated at 500 nit typical brightness with a 4,000:1 contrast ratio and a 178/178 viewing angle, so people seated at the sides of a long table see the same detail as those in front of it.
The facts that shape the decision
Three numbers matter most before ordering. The set is 48.1 mm deep, the VESA pattern is 1000 x 400 mm, and the set weighs 55.6 kg. Those figures set the wall structure, the bracket and the number of people needed to lift it. The bezel is 14.8 mm on all four sides, which keeps the image even when content is rotated between landscape and portrait.
- Inputs: three HDMI 2.1 inputs, one DisplayPort 1.4 input, two USB Type-A ports and one USB Type-C port
- Control: RS232 in and out, IR input and RJ45 network connection
- Wireless: Wi-Fi and Bluetooth
- Software: Tizen 8.0 with 16GB flash memory; OPS slot for Windows software (module and bracket sold separately)
- Power: AC 100-240V, 50/60Hz; 550 W in on mode and 0.5 W in sleep mode
There is no audio input, and the stereo mini-jack is an output only, so plan external audio routing before the display is fixed to the wall.
Where it fits in Qatar

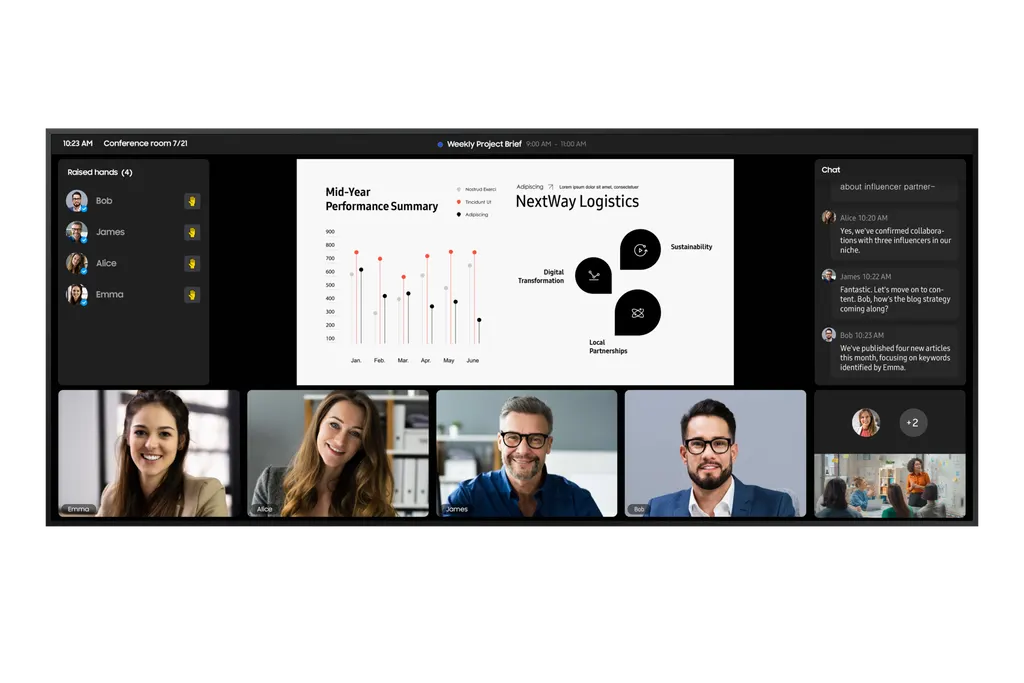

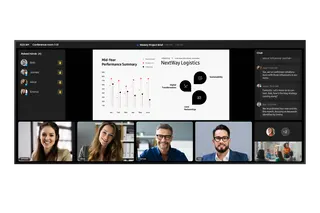

A boardroom in West Bay or Lusail running meetings that connect Doha with teams in other countries is a strong case. The 21:9 layout gives a wide video conference view with participants and shared content on screen together, and the USB Type-C input lets presenters connect without running cables across the table.
A university meeting or teaching space in Education City can use the panel for hybrid sessions, where in-room and remote students need equal visibility of the same material. A hotel conference room or a corporate lobby in The Pearl or Msheireb can use it for event information, provided the space is air-conditioned. Those are the locations where the 0 to 40 °C operating range matters most.
What to plan before ordering
The operating range is 0 to 40 °C with 10 to 80 percent non-condensing humidity. Qatar summers can pass 45 °C outdoors, so install the unit only inside a cooled room and keep it away from direct sunlight. Our team can check the room during the free site survey before a set of this weight is wall-mounted.
Ask for an OPS module and bracket in the quotation if you want Windows applications running on the panel, and include Samsung VXT if you want remote management across several units. Schools and government entities can issue a purchase order (LPO) or reference a tender, and payment is possible by bank transfer, cheque or purchase order.
Send your room dimensions, mounting wall and intended sources, then request a quote. Our team usually responds within one working day.
Highlights
- 105-inch 21:9 panel at 5,120 x 2,160 (5K) resolution

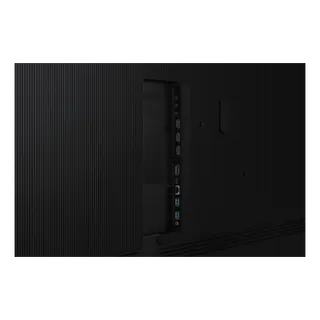

- 48.1 mm depth with outward-facing ports for flush wall mounting
- Three HDMI 2.1 inputs, DisplayPort 1.4 and USB Type-C
- OPS slot for Windows software, module sold separately
- Operating temperature 0 to 40 °C, 24/7 operation support
- AC 100-240V, 50/60Hz; 550 W on mode, 0.5 W sleep
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Display15
- Diagonal Size
- 105"
- Panel Type
- VA(Direct)
- Resolution
- 5,120 x 2,160
- Pixel Pitch (HxV, mm)
- 0.1595 x 0.4785 mm
- Brightness (Typ)
- 500 nit
- Contrast Ratio
- 4,000:1
- Viewing Angle (H/V)
- 178/178
- Response Time
- 6ms(Typ.)
- Color Gamut
- 72%(NTSC)
- Glass Haze
- 25%
- H-Scanning Frequency
- 30~81kHz
- Maximum Pixel Frequency
- 742.5MHz
- V-Scanning Frequency
- 48~75Hz
- Contrast Ratio (Dynamic)
- Mega
- Operation Time Support
- 24/7
Connectivity14
- HDMI In
- 3
- DP In
- 1
- Version of HDMI
- 2.1
- Version of DP
- 1.4
- Version of HDCP
- 2.2
- USB
- Type-A(2), Type-C(1)
- IR In
- Yes
- Audio In
- No
- Audio Out
- Stereo Mini Jack
- RS232 In
- Yes
- RS232 Out
- Yes
- RJ45 In
- Yes
- WiFi
- Yes
- Bluetooth
- Yes
Power3
- Power Supply
- AC100-240V 50/60Hz
- Power Consumption (On Mode, W)
- 550 W
- Power Consumption (Sleep Mode, W)
- 0.5 W
Dimension2
- Set Dimension (WxHxD, mm)
- 2484.3 x 1068.0 x 48.1 mm
- Package Dimension (WxHxD, mm)
- 2668.0 x 1190.0 x 275.0 mm
Weight2
- Set Weight (kg)
- 55.6 kg
- Package Weight
- 78.1 kg
Operation Conditions2
- Temperature
- 0 - 40 ℃
- Humidity
- 10 ~ 80%, non-condensing
Mechanical Specification4
- VESA Mount (mm)
- 1000 x 400 mm
- Bezel Width (mm)
- 14.8mm (Even)
- Bezel Color
- Slate Black
- Frame Material
- Non-Glossy(Metal)
SoC2
- OS Version
- Tizen 8.0
- Flash Memory Size
- 16GB
Eco1
- Energy Efficiency Class
- A+
Certification and Compliance2
- EMC
- Class A
- Safety
- 60950-1, 62368-1
