PN-E329

A 32-inch Full HD display for indoor information and signage

The Sharp PN-E329 is a 32-inch large format display with an IPS panel, a native resolution of 1920 x 1080 and a 16:9 aspect ratio. It suits organisations that need a dependable screen for a meeting room, a reception desk or a corridor, and that want the screen to run content without a separate media computer. The 698 x 393 mm active area and 0.364 mm pixel pitch keep text and fine graphics readable at the close viewing distances typical of a desk or waiting area.

Brightness is rated at 350 cd/m², contrast at 1200:1 typical, and viewing angles at 178 degrees horizontally and vertically. The spec sheet gives a standard haze rating of 25 percent, so place the screen away from direct sunlight falling on the glass.

Built-in media player and the connections that matter

The integrated USB media player is the feature most buyers use first. Load JPG images and MP4, TS or WMV video onto a FAT16 or FAT32 USB drive, and the display plays it with auto-start, so content begins without anyone at the screen. MP4 and TS files with H.264 or HEVC play up to 3840 x 2160 at 60 Hz, although the panel itself shows 1920 x 1080. A scheduler handles playback times.

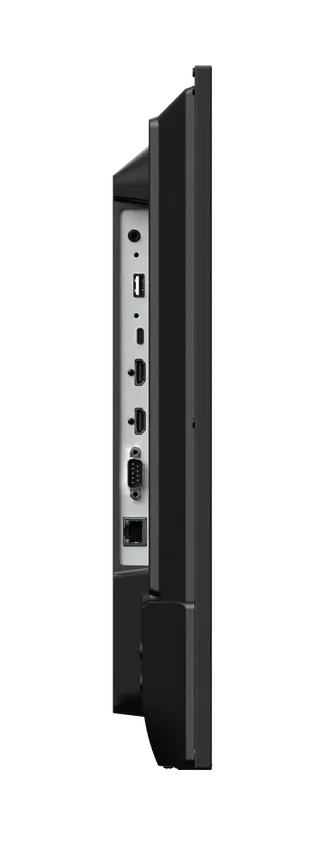

• HDMI IN 1 supports UHD at 60 Hz with HDCP 2.2, audio input, ARC and CEC control.
• HDMI IN 2 supports UHD at 60 Hz with HDCP 2.2 and CEC control.
• USB-C accepts video at UHD 60 Hz with DisplayPort Alt Mode 1.2 and delivers 15 W.
• USB-A provides a powered port rated at 4.5 W for storage or peripherals.
• LAN at 100 Mbit/s and RS-232C at 9600 bps allow network and serial control.
• A 3.5 mm line output and integrated 5 W + 5 W speakers.

Where it fits in Qatar

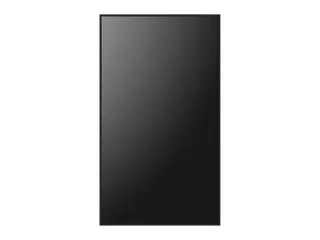

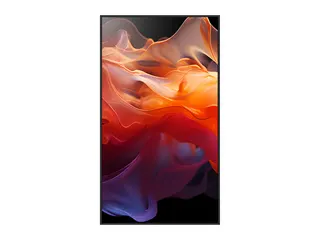

A private school in Al Wakrah fitting out classrooms could place one unit in each room for timetables and lesson material, sending sound to an external system through HDMI ARC where needed. A clinic in Msheireb could use one screen in the waiting room looping health information and queue notices from a USB drive. A logistics company in the Industrial Area could mount a unit in portrait orientation beside a dispatch door to show rotas and safety notices.

What to plan before you order

The display measures 724 x 418 x 59 mm and weighs 4.7 kg, with packaging of 824 x 554 x 119 mm at 7 kg. The rear VESA pattern is 200 x 200 mm with four M6 holes. The bezel is 10.5 mm on all sides, which keeps a multi-screen or portrait layout neat. Listed options include the PDW T XS wall mount, the PD04 Tipster trolley and ST-32M feet.

The internal power supply accepts 100-240 V AC at 50/60 Hz. Operating temperature is 0 to +40°C with 20 to 80 percent humidity, so keep the unit indoors in air-conditioned space, away from outdoor kiosks and sun-exposed glazing, where Qatar summer heat can exceed 45°C. Energy efficiency class is G, rated at 44 kWh per 1,000 hours, which is worth weighing in long-running lobby installations.

Sharp provides a 3-year warranty that includes the backlight. The box contains the display, power cable, remote control, two AAA batteries, cable clamps and a setup manual. SmartRooms Qatar offers a free site survey before wall mounting, quotations usually within one working day, purchase orders and government tenders, and delivery across all 8 municipalities. Request a quote to confirm the mounting method and quantity for your site.
