PN-ME432
Sharp MultiSync PN-ME432 43-inch 4K Signage Display
- Screen size
- 43 / 108
- Resolution
- 3840 x 2160
- Brightness
- 450 nit
- Operation
- 18/7
Priceon request
QuotationWithin 1 working day
DeliveryConfirmed with your quote, based on stock
Overview

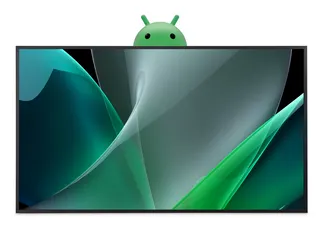

The Sharp PN-ME432 is a 43-inch 4K UHD display for digital signage and meeting rooms. An integrated Android 13 system-on-chip runs apps and content directly on the screen, so no external media player is needed. A single USB-C cable carries video and data from a laptop, and the high-haze panel reduces glare from windows. It suits reception areas, retail units and small meeting rooms across Qatar. Request a quote.

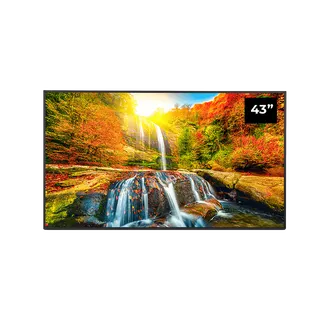

A 43-inch 4K display that runs its own content

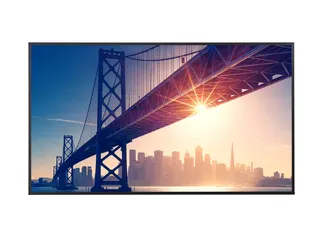

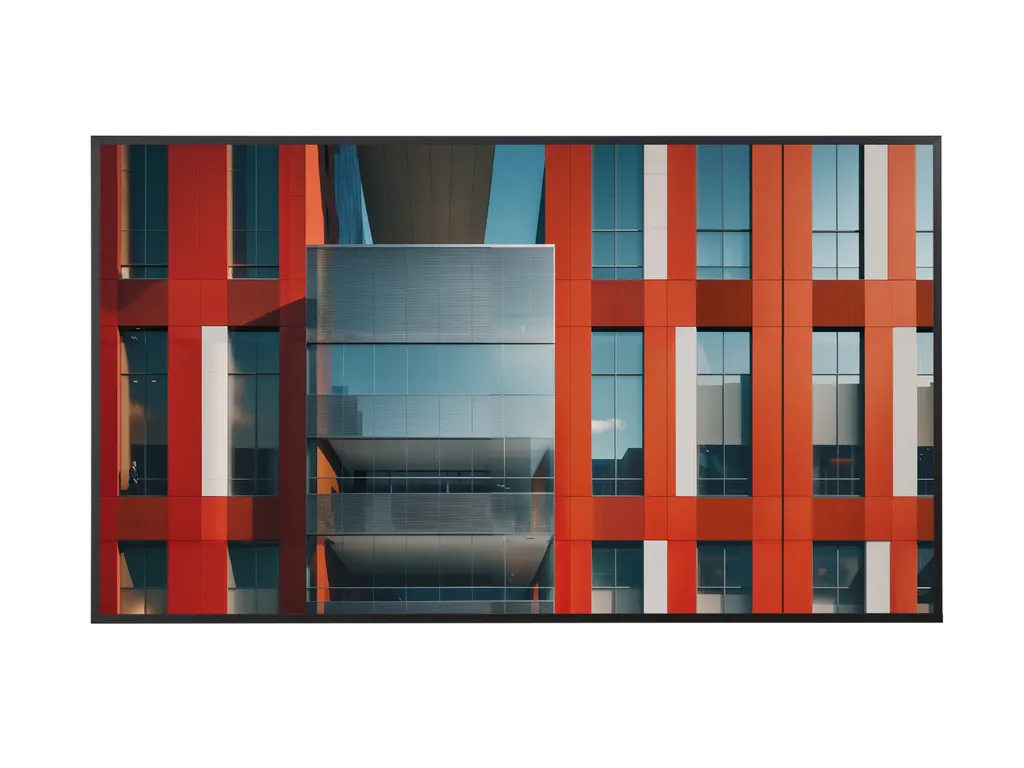

The Sharp PN-ME432 is a 43-inch class professional display with a 3840 x 2160 IPS panel, direct LED backlighting and an integrated Android 13 system-on-chip. It covers two jobs that often share one screen in Qatari offices and retail spaces: showing signage content and supporting meetings. Because the operating system runs on the display, you can use the built-in browser and file manager or install apps without buying an external media player.
Specifications that drive the decision
Brightness is rated at 450 cd/m² and typical contrast at 1,200:1. The panel offers 178° horizontal and vertical viewing angles (typical at 10:1 contrast), an 8 ms typical response time and a 60 Hz refresh rate. HDR support covers HLG and PQ. The high-haze filter, rated Pro (25), matters most if the screen faces a window.
- Panel: IPS with direct LED backlight, 16:9 aspect ratio

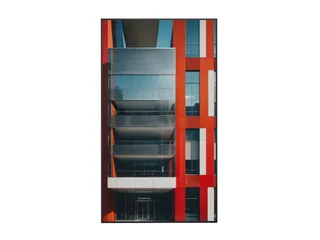

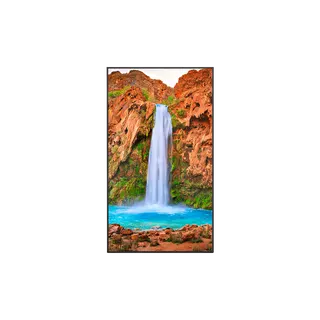

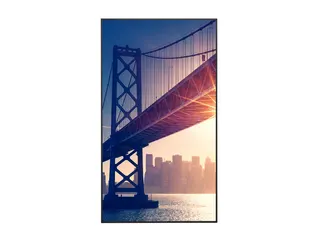

- Orientation: landscape or portrait, useful for directories and menus
- Audio: integrated 10 W + 10 W speakers and a 3.5 mm line output
- Warranty: three years, including the backlight

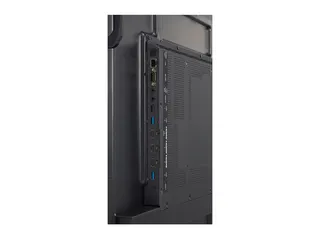

Connectivity for laptops, players and control systems
Three HDMI inputs accept UHD at 60 Hz with HDCP 2.2, and HDMI IN 3 also supports ARC. The USB-C 1 input carries video through DisplayPort alternate mode 1.4 and USB 2.0/3.0 data, and it is listed at 15 W, so a visiting presenter can connect one cable and start sharing. USB-A ports handle peripherals and USB storage. LAN at 100 Mbit/s, RS-232C at 9600 bps and an IR extender input support control, and input detection can prioritise a custom, last or first source.
Where it fits across Qatar

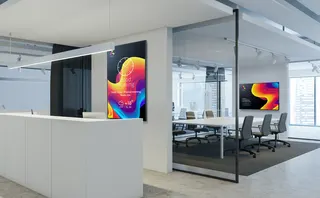

- Reception and lobbies: a glass-fronted office reception in West Bay or Msheireb, shown in portrait for directories and wayfinding, with the high-haze filter cutting reflections from daylight.
- Meeting rooms: a small boardroom in Lusail where staff plug in their own notebooks and the display switches to the new source as soon as it is connected.
- Retail and schools: a shop in Al Rayyan running promotions from the built-in player, or a private school in Al Wakrah placing several units in corridors and classrooms, ordered on a purchase order.
What to plan for before installation

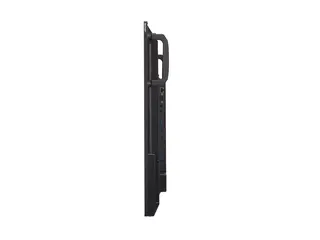

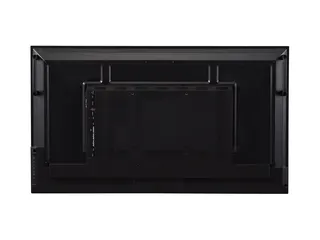

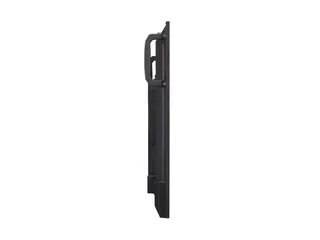

The panel weighs 9.4 kg and measures 964.6 x 552.5 x 62 mm, with a 200 x 200 mm VESA pattern using M6 holes. The manufacturer lists a wall mount (PDW S 32-62 L), a trolley (PD04-Tipster Trolley) and feet (ST-43M) as options. Operating temperature is rated 0 to +40 °C at 20 to 80% humidity. Qatar summer temperatures can exceed 45 °C, so install the display in an air-conditioned indoor area away from direct sun and keep its ventilation clear.
The warranty is three years including the backlight, with optional fourth and fifth year extensions offered by the manufacturer. SmartRooms Qatar offers free site surveys, so we can check wall structure, sightlines and sun exposure before you commit. Request a quote and we will usually respond within one working day.
Highlights
- 43-inch 4K UHD panel at 3840 x 2160 resolution
- 450 cd/m² brightness with high-haze Pro (25) filter
- Integrated Android 13 system-on-chip with 32GB internal storage
- USB-C input with 15 W power listed
- Landscape and portrait orientation supported
- Three-year warranty including the backlight
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
65 specifications · Source: manufacturer · checked Oct 2026
Display12
- Panel Technology
- IPS with Direct LED backlights
- Screen Size [inch/cm]
- 43 / 108
- Aspect Ratio
- 16:9
- Brightness [cd/m²]
- 450
- Contrast Ratio (typ.)
- 1200:1
- Viewing Angle [°]
- 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
- Colour Depth [bn]
- 1.073 (8bit + FRC)
- HDR
- HLG; PQ
- Response Time (typ.) [ms]
- 8
- Panel Refresh Rate [Hz]
- 60
- Haze Level [%]
- Pro (25)
- Supported Orientation
- Landscape; Portrait
Resolution2
- Native Resolution
- 3840 x 2160
- Supported Resolutions
- 1024 x 768;; 1280 x 1024;; 1280 x 720;; 1280 x 800;; 1360 x 768;; 1366 x 768;; 1400 x 1050;; 1440 x 900;; 1600 x 1200;; 1680 x 1050;; 1920 x 1080;; 1920 x 1200;; 1920 x 2160;; 3840 x 2160;; 4096 x 2160;; 640 x 480;; 720 x 480;; 720 x 576;; 800 x 600
Synchronisation Rate2
- Horizontal Frequency [kHz]
- 15 - 135
- Vertical Frequency [Hz]
- 23 - 76
Connectivity13
- HDMI IN 1
- Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
- HDMI IN 2
- Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
- HDMI IN 3
- ARC; Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
- USB-A 1
- USB (2.0); Peripherals
- USB-A 2
- USB (3.0); Peripherals; USB Storage
- USB-A 3
- USB (3.0); Peripherals; USB Storage
- USB-A (Service)
- Service
- USB-C 1
- Video Input; UHD (60 Hz); DP alt. 1.4; HDCP (2.2); Audio Input; USB 2.0 / 3.0; 15 W
- Audio Output (3.5 mm)
- Audio Output; Line Out
- LAN 1
- 100 MBit/s
- RS-232C
- 9600 bps
- Remote In (3.5 mm)
- IR-Extender
- Input Detect
- Custom; Last; First
Electrical4
- Power Consumption [W]
- 90 shipping
- Power Savings Mode [W]
- < 0.5; < 2 (Networked Standby)
- Power Management
- VESA DPMS
- Power Supply
- 100-240 V AC; 50/60 Hz; internal
Environmental Conditions4
- Operating Temperature [°C]
- +0 to +40
- Operating Humidity [%]
- 20 to 80
- Storage Humidity [%]
- 10 to 90
- Storage Temperature [°C]
- -20 to 60
Mechanical9
- Dimensions (W x H x D) [mm]
- 964.6 x 552.5 x 62
- Weight [kg]
- 9.4
- Bezel Width [mm]
- 9.9 (symmetrical)
- VESA Mounting [mm]
- 200 x 200 (FDMI); 4 holes; M6
- Ingress Protection
- IP5x (front); IP5x (back)
- Packaging Dimensions (W x H x D) [mm]
- 1,056 x 632 x 156
- Packaging Weight [kg]
- 14.2
- Colour Bezel
- Pantone (Process Black M)
- Material
- Metal
Mediaplayer1
- Supported Video Formats
- MPG (Mpeg1/2 Layer1/2/3, max res 4096x2160@60fps); MP4 (Mpeg1/2 Layer1/2/3, H.264, HEVC/H.265, max res 4096x2160@60fps)
Embedded Computing4
- System Version
- Android 13
- System Memory
- 4G RAM
- Internal Storage
- 32GB ROM
- Built-in Applications
- File Manager; Web Browser
Available Options1
- Accessories
- Feet (ST-43M); Presence Sensor (KT-RC3); Soundbar (PN-ZCMS1); Speaker (SP-RM3a); Trolley (PD04-Tipster Trolley); Wall mount (PDW S 32-62 L); WiFi Dongle SI07B
Regulatory2
- Safety and Ergonomics
- BSMI; CE; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
- Resistance to Fire
- Metal backcover, plastic material certified acc. to UL94-5VB
Green Features2
- Energy Efficiency
- Energy Consumption: 77 kWh/1000 h; Energy Efficiency Class: G; LED Backlight
- Ecological Standards
- EnergyStar 8.0
3Rd Party Certifications3
- Cisco
- Verified for Cisco Collaboration Devices
- Crestron
- Certified for Crestron CCV2 and XiO Cloud
- Q-Sys
- Q-Sys Plug-in
Additional Features6
- Special Characteristics
- DICOM Simulation; HDMI ARC; Powered USB Port (15 W); Removable Logo
- Audio
- Integrated Speakers (10 W + 10 W)
- Shipping Content
- 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
- Warranty
- 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 1
- Operating Hours
- 18/7
- External Control
- AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; Scheduled Timer
Downloads
22 files from the manufacturer
PDF
Sharp PN-ME432 datasheets (PDF, 948 KB)
PDF
Sharp PN-ME432 manuals & guides (PDF, 2.7 MB)
PDF
Sharp PN-ME432 manuals & guides (PDF, 1.6 MB)
PDF
Sharp PN-ME432 manuals & guides (PDF, 10.1 MB)
PDF
Sharp PN-ME432 manuals & guides (PDF, 342 KB)
PDF
Sharp PN-ME432 manuals & guides (PDF, 13.4 MB)
PDF
Sharp PN-ME432 manuals & guides (PDF, 455 KB)
PDF
Sharp PN-ME432 manuals & guides (PDF, 1.4 MB)
PDF
Sharp PN-ME432 manuals & guides (PDF, 4.3 MB)
PDF
Sharp PN-ME432 manuals & guides (PDF, 344 KB)
PDF
Sharp PN-ME432 brochures (PDF, 4.6 MB)
PDF
Sharp PN-ME432 brochures (PDF, 2.3 MB)
PDF
Sharp PN-ME432 brochures (PDF, 1.0 MB)
URL
Sharp PN-ME432 brochures (URL)
PDF
Sharp PN-ME432 drawings & cad (PDF, 572 KB)
RFA
Sharp PN-ME432 drawings & cad (RFA)
DWG
Sharp PN-ME432 drawings & cad (DWG)
DXF
Sharp PN-ME432 drawings & cad (DXF)
PDF
Sharp PN-ME432 certificates & compliance (PDF, 1.6 MB)
PDF
Sharp PN-ME432 certificates & compliance (PDF, 338 KB)
PDF
Sharp PN-ME432 certificates & compliance (PDF, 239 KB)
PDF
Sharp PN-ME432 certificates & compliance (PDF, 337 KB)
Questions about PN-ME432
What is the Sharp PN-ME432 designed for?
The PN-ME432 is a 43-inch 4K display for digital signage and meeting rooms. Its built-in Android 13 system-on-chip runs apps and content on the screen itself, so you do not need an external media player. It suits reception areas, retail units and small meeting rooms in Qatar. SmartRooms Qatar usually issues quotations within one working day.
Can it be mounted in portrait orientation for directories or wayfinding?
Yes. The display supports both landscape and portrait orientation, which suits directories, menus and wayfinding boards in a building lobby or clinic entrance. In portrait the panel stands about 964.6 mm tall, so check ceiling and wall height during the site survey. It uses a 200 x 200 mm VESA pattern, and the manufacturer lists a wall mount option (PDW S 32-62 L).
How well does it cope with glare from windows in a bright Doha office?
The panel carries a high-haze filter rated Pro (25), which the manufacturer positions to reduce glare and reflections from windows and other light sources. It is rated at 450 cd/m² brightness with 1,200:1 typical contrast. In a glass-fronted lobby in West Bay or Msheireb, place the screen away from direct sunlight where possible and confirm sightlines during a site survey.
How does a visitor connect a laptop to the screen in a meeting room?
The USB-C 1 input accepts UHD video at 60 Hz through DisplayPort alternate mode 1.4, carries USB 2.0/3.0 data, and is listed at 15 W. A single cable from a notebook can carry the picture and connect peripherals. Input detection can be set to custom, last or first, and the display responds when a device is connected, which suits Doha teams who bring their own devices to meetings.
How many HDMI inputs does it have, and which one supports ARC?
There are three HDMI inputs. HDMI IN 1, 2 and 3 each support UHD at 60 Hz with HDCP 2.2, audio input and CEC control. HDMI IN 3 also supports Audio Return Channel (ARC), which lets the display send audio back to a compatible soundbar or amplifier. If a large room needs more volume, the manufacturer lists a soundbar (PN-ZCMS1) and a speaker (SP-RM3a) as options.
What content formats and storage does the built-in player support?
The Android 13 system has 4GB RAM and 32GB internal storage, with a built-in web browser and file manager. The media playback supports MP4 with H.264 and HEVC, and MPG, up to 4096 x 2160 at 60 fps. USB-A storage ports can be used to load files. Test your own video files on the display before building a long playlist for a retail or reception screen.
Will it work with our content management system?
The manufacturer states that the SoC platform is compatible with popular workplace and content management systems. Its listed third-party certifications include Cisco verified for Cisco Collaboration Devices, Crestron certified for CCV2 and XiO Cloud, and a Q-Sys plug-in. Before ordering, ask SmartRooms Qatar to confirm your exact CMS and software version, because compatibility depends on the combination you run.
How can the screen be controlled by a building or AV control system?
Control options include RS-232C at 9600 bps, LAN at 100 Mbit/s and an IR extender input. External control support covers AMX NetLinx, ASCII control commands, Crestron Connected and HDMI CEC, and the display has a scheduled timer. For a meeting room in Lusail with a control processor, confirm the protocol mapping with your integrator before installation.
Can it be installed in a semi-outdoor area or near a window in summer?
The manufacturer rates operating temperature at 0 to +40 °C, with 20 to 80% humidity, and lists IP5x protection on the front and back. Qatar summers can push outdoor temperatures above 45 °C, and dust storms are common, so install the display in an air-conditioned indoor space rather than a semi-outdoor foyer, and keep it out of direct sun. If the environment is unclear, ask SmartRooms Qatar to review it during the site survey.
What power supply does it need in Qatar?
The internal power supply accepts 100 to 240 V AC at 50/60 Hz, and the box includes a power cable. Qatar mains is 240 V at 50 Hz, which falls within that range. The manufacturer lists power savings below 0.5 W and below 2 W in networked standby. Energy consumption is listed at 77 kWh per 1000 hours with an energy efficiency class G, which is useful when comparing running costs across several units.
What are the dimensions and weight, and what mounting options exist?
The panel measures 964.6 x 552.5 x 62 mm and weighs 9.4 kg, and the packaged unit weighs 14.2 kg. It uses a 200 x 200 mm VESA pattern with M6 holes. Listed options are a wall mount (PDW S 32-62 L), a trolley (PD04-Tipster Trolley) and feet (ST-43M). A site survey before wall mounting confirms wall strength and cable routes, especially in reception areas and corridors.
We are a school in Al Wakrah ordering several units. How do we buy?
SmartRooms Qatar supplies the PN-ME432 with delivery to all eight municipalities of Qatar and professional installation. Schools and government bodies can issue a purchase order (LPO), and payment is by bank transfer, cheque or purchase order. Send your room list and quantities, and we will send a quotation usually within one working day. The product is covered by the manufacturer's three-year warranty, including the backlight.
