PN-ME752

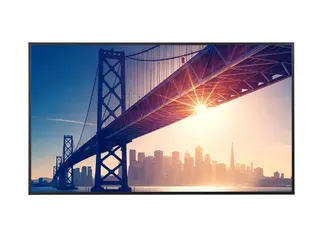

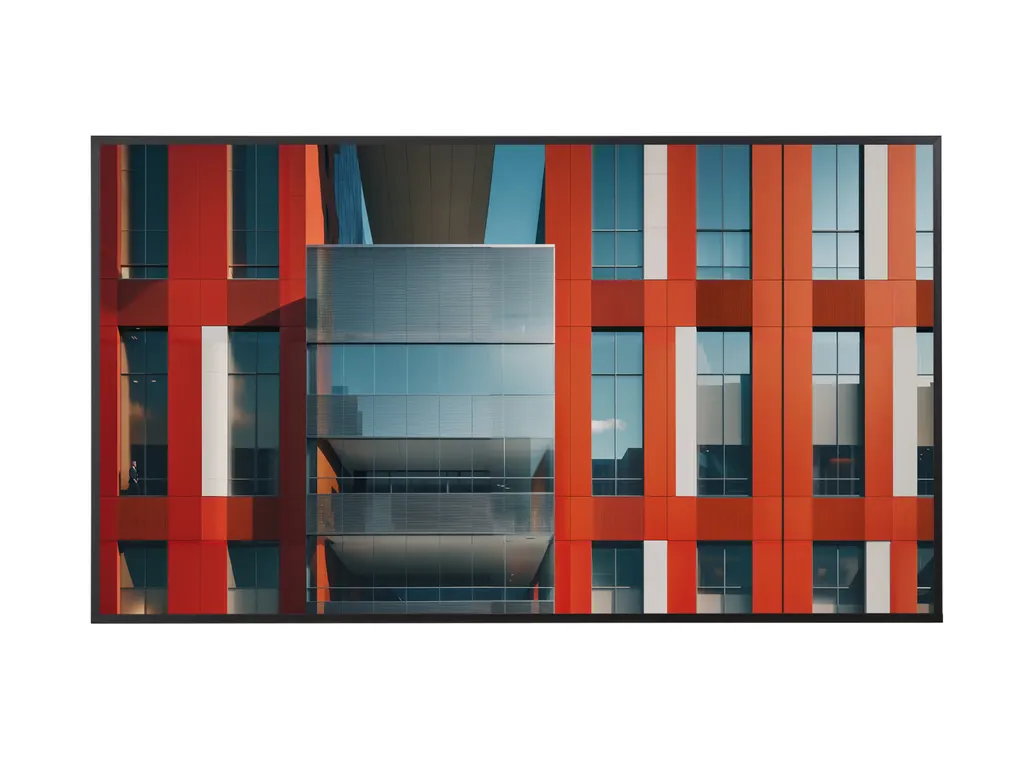

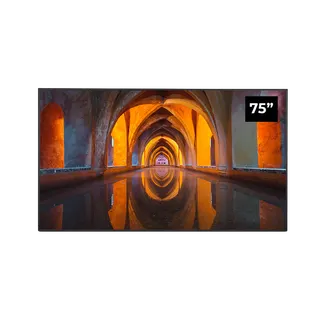

Sharp PN-ME752 75-inch 4K Large Format Display for Signage and Meetings

Screen size: 75 / 189.3
Resolution: 3840 x 2160
Brightness: 450 nit
Operation: 18/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

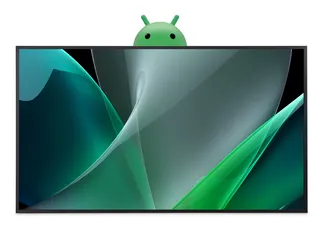

The Sharp PN-ME752 is a 75-inch 4K UHD large format display with an integrated Android 13 system-on-chip, so it can run signage without an external media player. It offers 450 cd/m² brightness, a Pro (25) high-haze panel, native USB-C input and landscape or portrait mounting. Suited to meeting rooms, schools and retail signage across Qatar. Request a quote from SmartRooms Qatar.

What the PN-ME752 is built to do

The Sharp PN-ME752 is a 75-inch display from the MultiSync ME Series, designed for meeting rooms and digital signage in the same unit. It pairs a 4K UHD panel with an integrated system-on-chip running Android 13, so presentations and content playlists can run without a separate media player. The 16:9 IPS panel uses direct LED backlighting and supports both landscape and portrait mounting.

The specifications that matter on a purchase order

Resolution: 3840 x 2160 native, with 4K input at 60 Hz over HDMI and USB-C.
Brightness and contrast: 450 cd/m² with a typical contrast ratio of 1,200:1, and 178° horizontal and vertical viewing angles.
Reflections: a high-haze panel rated Pro (25), which reduces glare from windows and other light sources.
HDR: HLG and PQ formats are supported.
Computing: Android 13 with 4GB RAM and 32GB internal storage, plus a built-in web browser and file manager.

Connectivity for hybrid meetings and signage

The USB-C input carries video, audio and USB 2.0 or 3.0 data from a laptop over a single cable, and is rated at 15 W. Three HDMI inputs cover other sources, and one of them offers an audio return channel (ARC). CEC control lets the display respond to other room equipment. Three USB-A ports support peripherals, with USB storage available on the two USB 3.0 ports. A LAN port at 100 Mbit/s, an RS-232C port, and a 3.5 mm line-out complete the connections. Input detection can be set to custom, last or first source, which helps the display switch quickly when a presenter connects.

Where it fits in Qatar

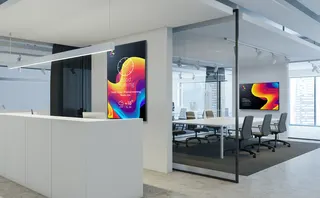

Three situations suit this model well. A private school in Al Wakrah fitting out a staff room or a secondary classroom gets a screen large enough for a small group without overwhelming the space. A consultancy office in West Bay or Lusail running board meetings with teams abroad benefits from the single-cable USB-C connection and the 4K picture for document-heavy sessions. A retail outlet in The Pearl or Msheireb can use portrait orientation and the built-in player for menus, wayfinding or promotions, with the display rated for operation 18 hours a day, seven days a week.

What to plan before installation

Weight: the unit weighs 34.3 kg and the packaged unit 51 kg, so plan for safe lifting and a wall or trolley rated for the load.

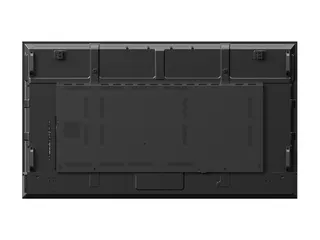

Mounting: VESA 800 x 600 with M8 holes. The SF680P wall mount and the PD02MHA-CB86 and PD03MHA-CB86 trolleys are listed as available options.
Temperature: the operating range is 0 to +40°C at 20 to 80% humidity. Qatar summers can push a sunlit or poorly cooled space beyond that, so confirm the environment before mounting.
Dust: the IP5x rating on front and back offers dust protection only, so keep the display indoors.
Power: the internal supply accepts 100 to 240 V AC at 50/60 Hz, which covers Qatar's 240 V mains. Power consumption is listed at 132 W in the shipping setting and under 0.5 W in power saving mode.

SmartRooms Qatar offers a free site survey, which we recommend before fixing a 75-inch panel to a wall to check the wall structure and the position of the power point.

Warranty, options and next step

The manufacturer provides a three-year warranty that includes the backlight, with an optional fourth and fifth year extension. Accessories listed include a presence sensor, soundbar, speaker and the SI07B WiFi dongle. Remote management uses NaViSet Administrator 2 with automated email alerts. Certifications listed include Energy Star 8, Crestron CCV2 and XiO Cloud, Cisco collaboration devices and a Q-Sys plug-in. Request a quote from SmartRooms Qatar and we will confirm the accessories, mounting and delivery to your municipality. Quotations are usually issued within one working day, and we accept purchase orders (LPOs) and government tenders.

Highlights

75-inch 4K UHD panel at 3840 x 2160 resolution
450 cd/m² brightness with direct LED backlighting
Integrated Android 13 system-on-chip with 4GB RAM and 32GB storage
Native USB-C input rated at 15 W
High-haze panel rated Pro (25) for bright rooms
Landscape or portrait use with a 3-year warranty including backlight

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

68 specifications · Source: manufacturer · checked Oct 2026

Display12

Panel Technology: IPS with Direct LED backlights
Screen Size [inch/cm]: 75 / 189.3
Aspect Ratio: 16:9
Brightness [cd/m²]: 450
Contrast Ratio (typ.): 1200:1
Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]: 1.073 (8bit + FRC)
HDR: HLG; PQ
Response Time (typ.) [ms]: 8
Panel Refresh Rate [Hz]: 60
Haze Level [%]: Pro (25)

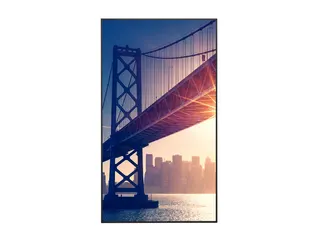

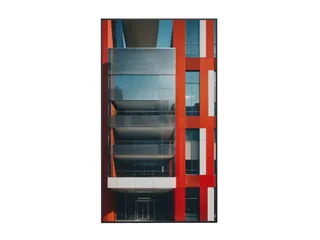

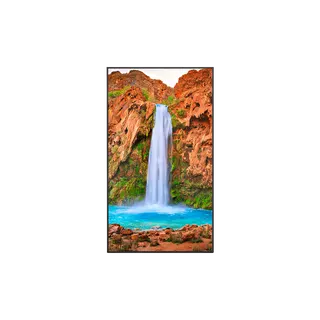

Supported Orientation: Landscape; Portrait

Resolution2

Native Resolution: 3840 x 2160
Supported Resolutions: 1024 x 768;; 1024 x 768;; 1280 x 1024;; 1280 x 1024;; 1280 x 720;; 1280 x 800;; 1360 x 768;; 1366 x 768;; 1400 x 1050;; 1440 x 900;; 1600 x 1200;; 1680 x 1050;; 1920 x 1080;; 1920 x 1200;; 1920 x 2160;; 3840 x 2160;; 4096 x 2160;; 640 x 480;; 720 x 480;; 720 x 576;; 800 x 600

Synchronisation Rate2

Horizontal Frequency [kHz]: 15 - 135
Vertical Frequency [Hz]: 23 - 76

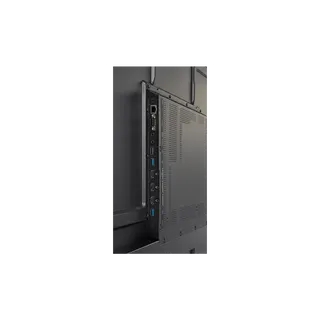

Connectivity13

HDMI IN 1: Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
HDMI IN 2: Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
HDMI IN 3: ARC; Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
USB-A 1: USB (2.0); Peripherals
USB-A 2: USB (3.0); Peripherals; USB Storage
USB-A 3: USB (3.0); Peripherals; USB Storage
USB-A (Service): Service
USB-C 1: Video Input; UHD (60 Hz); DP alt. 1.4; HDCP (2.2); Audio Input; USB 2.0 / 3.0; 15 W
Audio Output (3.5 mm): Audio Output; Line Out
LAN 1: 100 MBit/s
RS-232C: 9600 bps
Remote In (3.5 mm): IR-Extender
Input Detect: Custom; Last; First

Electrical3

Power Consumption [W]: 132 shipping
Power Savings Mode [W]: < 0.5; < 2 (Networked Standby)
Power Supply: 100-240 V AC; 50/60 Hz; internal

Environmental Conditions4

Operating Temperature [°C]: +0 to +40
Operating Humidity [%]: 20 to 80
Storage Humidity [%]: 10 to 90
Storage Temperature [°C]: -20 to 60

Mechanical9

Dimensions (W x H x D) [mm]: 1,686 x 964 x 68
Weight [kg]: 34.3
Bezel Width [mm]: 15.9 (symmetrical)

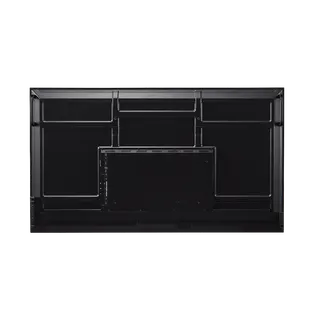

VESA Mounting [mm]: 4 holes; 800 x 600 (FDMI); M8
Ingress Protection: IP5x (front); IP5x (back)
Packaging Dimensions (W x H x D) [mm]: 1,863 x 1,090 x 225
Packaging Weight [kg]: 51
Colour Bezel: Pantone (Process Black M)
Material: Metal

Mediaplayer3

Supported File Storage / File System: FAT16 / FAT32 @ USB 2.0
Supported Video Formats: MKV (Mpeg1/2/3 Layer1/2/3, max res 4096x2160@60fps); MP4 (Mpeg1/2 Layer1/2/3, H.264, HEVC/H.265, max res 4096x2160@60fps)
Supported Audio Formats: .mp3 max. Bit Rate 320 kbps

Embedded Computing4

System Version: Android 13
System Memory: 4G RAM
Internal Storage: 32GB ROM
Built-in Applications: File Manager; Web Browser

Available Options1

Accessories: Feet (ST-801); Presence Sensor (KT-RC3); Soundbar (PN-ZCMS1); Speaker (SP-RM3a); Trolley (PD02MHA-CB86, PD03MHA-CB86); Wall mount (SF680P); WiFi Dongle SI07B

Regulatory2

Safety and Ergonomics: BSMI; CE; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Resistance to Fire: Metal backcover, plastic material certified acc. to UL94-5VB

Green Features2

Energy Efficiency: Energy Consumption: 110 kWh/1000 h; Energy Efficiency Class: F; LED Backlight
Ecological Standards: EnergyStar 8.0

3Rd Party Certifications3

Cisco: Verified for Cisco Collaboration Devices
Crestron: Certified for Crestron CCV2 and XiO Cloud
Q-Sys: Q-Sys Plug-in

Additional Features8

Special Characteristics: DICOM Simulation; HDMI ARC; Powered USB Port (15 W); Removable Logo
Audio: Integrated Speakers (10 W + 10 W)
Shipping Content: 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty: 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 1
Operating Hours: 18/7
External Control: AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; Scheduled Timer
Remote Management: Automated Email Alerts; NaViSet Administrator 2
Security: Disable HW Buttons; Disable IR Functionality

Downloads

16 files from the manufacturer

PDF Datasheets PN-ME752_Datasheet.pdf 804 KB PDF Manuals & guides EShare_Wireless_Casting_UserGuide_1_5.pdf 2.7 MB PDF Manuals & guides External_Control_ME2_Series_EN_Rev2.0.pdf 1.6 MB PDF Manuals & guides ME862_ME752_Setup Manual_V1-r2t1.pdf 7.6 MB PDF Manuals & guides Manual_EN_V1.1.pdf 13.4 MB PDF Manuals & guides OperationGuidelines-LargeFormat.pdf 455 KB PDF Manuals & guides Web-browser_manual_English_v3-11.pdf 344 KB PDF Brochures Sharp PN-ME Series_Brochure Ver 2.0 June 2025.pdf 4.6 MB PDF Brochures Warranty-and-Services_Interactive_Computing.pdf 1.0 MB URL Brochures · Opens on manufacturer site Sharp Product Overview PDF Drawings & CAD ME752_OUTLINE_V1_0.pdf 727 KB DWG Drawings & CAD · Opens on manufacturer site me752_outline_v1_0.dwg DXF Drawings & CAD · Opens on manufacturer site me752_outline_v1_0.dxf PDF Certificates & compliance CE_DoC_PN-ME752.pdf 376 KB PDF Certificates & compliance EU EEI Label ME752.pdf 77 KB PDF Certificates & compliance UK_EEI_Label_ME752.pdf 337 KB

Questions about PN-ME752

Is the PN-ME752 meant for meeting rooms or digital signage?

It is built for both. The PN-ME752 suits a boardroom or training room that needs a 4K display with USB-C input, and it also runs signage from its own content. Its Android 13 system-on-chip runs the built-in browser and apps, so meeting tools and content can share one screen. In a secondary classroom or staff room in Al Wakrah, a 75-inch screen gives a small group a clear view from across the room.

Do I need an external media player to run signage?

No. The display has an integrated Android 13 system-on-chip with 4GB RAM and 32GB internal storage, plus a web browser and file manager. It plays MP4 and MKV video up to 4096 x 2160 at 60 fps, and MP3 audio up to 320 kbps. It reads USB storage formatted as FAT16 or FAT32. Removing an external player means one fewer box, cable and power point in a hotel lobby or mall corridor.

How does a laptop connect with one cable?

Use the USB-C input. It carries UHD video at 60 Hz, audio and USB 2.0 or 3.0 data over a single cable, and the port is rated at 15 W. For Bring Your Own Device meetings in a West Bay office, staff connect their own laptops without swapping cables. The three HDMI inputs cover other sources, and input detection can be set to custom, last or first source.

Will it read clearly in a meeting room with windows?

The panel has a high-haze filter rated Pro (25), which reduces reflections from windows and other light sources. Brightness is 450 cd/m² with a typical contrast ratio of 1,200:1. In a bright room with a glass wall, position the screen away from direct sun on the glass. Our team can check sightlines and light levels during the free site survey before the quotation is finalised.

Can it go in a sunny lobby or a space without air conditioning?

The operating range is 0 to +40°C at 20 to 80% humidity, and storage is rated from -20 to +60°C. Qatar summers can exceed 45°C, so a sunlit lobby or unventilated space can push the display beyond its range. Install it in an air-conditioned area and confirm the room temperature with the SmartRooms Qatar team before the quotation is issued.

Does it work with Qatar's 240 V mains supply?

The internal power supply is rated 100 to 240 V AC at 50/60 Hz, which covers Qatar's 240 V mains. Power consumption is listed at 132 W in the shipping setting and under 0.5 W in power saving mode. The source does not specify the plug type of the included power cable, so we will confirm it suits BS 1363 sockets. A dedicated outlet is advisable for signage running 18 hours a day.

How heavy is it, and what mounting does it need?

The unit weighs 34.3 kg and the packaged unit weighs 51 kg, so plan for at least two people and proper lifting equipment. It has VESA 800 x 600 mounting with M8 holes. The SF680P wall mount and the PD02MHA-CB86 and PD03MHA-CB86 trolleys are listed as available options. A free site survey checks wall structure and power point position before a 75-inch panel is fixed in a school or office.

Which control systems does it integrate with?

Certifications listed include Crestron CCV2 and XiO Cloud, Cisco collaboration devices, and a Q-Sys plug-in. Control options include AMX NetLinx, ASCII commands over RS-232C at 9600 bps, LAN at 100 Mbit/s, HDMI CEC and a scheduled timer. If a ministry or bank already runs one of these systems, we will confirm the match with your integrator before you raise a purchase order.

What warranty comes with it, and can it be extended?

The manufacturer provides a three-year warranty that includes the backlight, and an optional fourth and fifth year extension is available. Products supplied by SmartRooms Qatar are covered by the manufacturer warranty. Ask for the extension to be included in the quotation so the cover period is clear in your purchase order. This is useful for schools and government entities that plan their asset life over several years.

Can it run 18 hours a day in a shopping mall?

The source lists operating hours as 18/7, meaning up to 18 hours a day across seven days. In a mall in The Pearl or Msheireb, set playlists to match trading hours and use the scheduled timer for switch-on and switch-off. Portrait orientation suits directory boards and wayfinding. Ask us to confirm the mounting location, because a shopfront in direct sun is a different environment from an indoor corridor.

How do IT teams manage several units across a campus?

Remote management uses NaViSet Administrator 2, which can send automated email alerts. The display also supports a scheduled timer, and its hardware buttons and IR functionality can be disabled to stop changes in public areas. A facilities team running several screens across an Education City campus can use these controls to keep content consistent and lock the settings once the display is installed.
