PN-ME862
Sharp PN-ME862 86-inch MultiSync ME Series Large Format Display
- Screen size
- 86 / 217.4
- Resolution
- 3840 x 2160
- Brightness
- 450 nit
- Operation
- 18/7

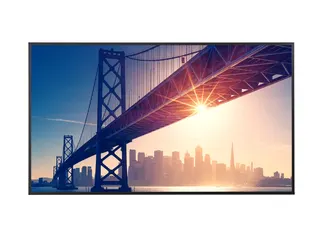

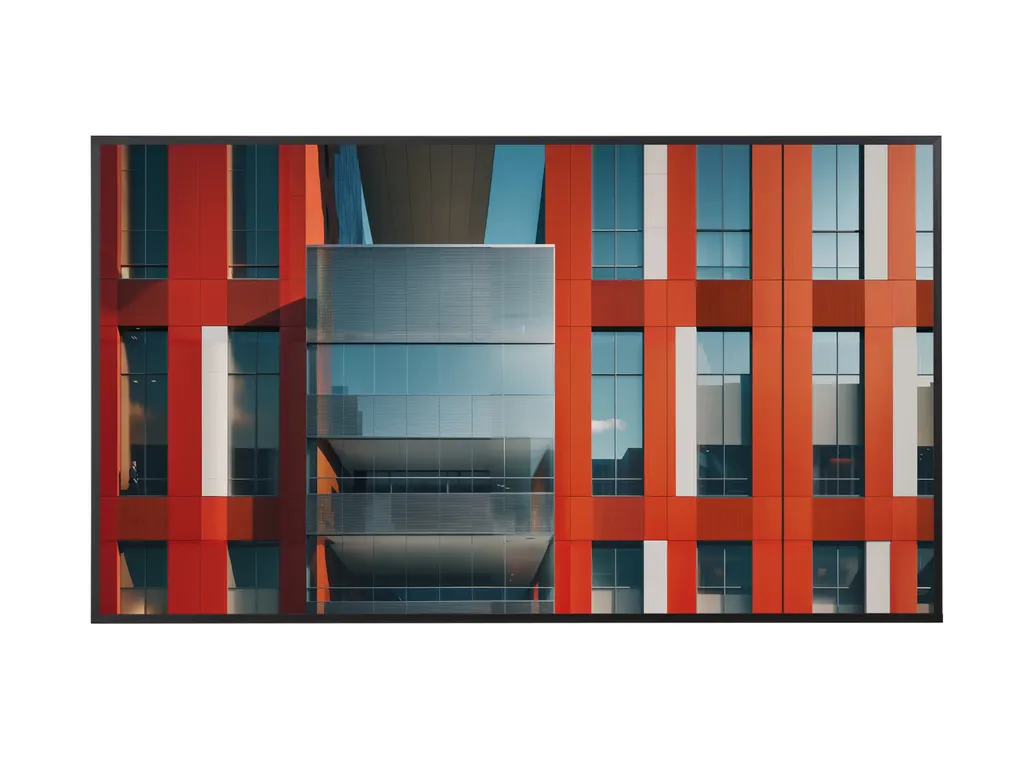

The Sharp PN-ME862 is an 86-inch 4K UHD display with a built-in Android 13 system-on-chip, so apps and signage content run directly on the screen without an external media player. It delivers 450 cd/m² brightness through a high-haze Pro panel that cuts reflections, and its USB-C input carries video and audio over a single cable. Well suited to Doha offices, schools and retail entrances needing a dependable meeting room or indoor signage display.
What the PN-ME862 is built to do

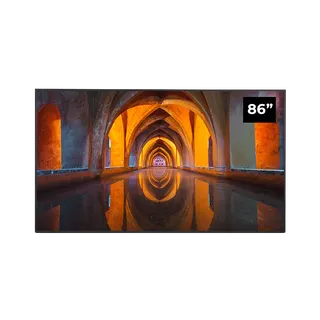

The PN-ME862 is an 86-inch large format display from the MultiSync ME Series, aimed at meeting rooms and digital signage. Its 3840 x 2160 native resolution gives 4K UHD detail, and the 16:9 IPS panel uses direct LED backlighting with a 1,200:1 typical contrast ratio and 178-degree viewing angles both horizontally and vertically.

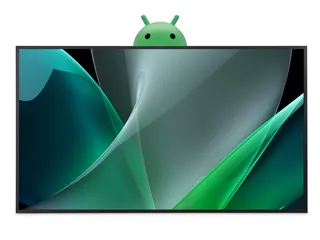

What sets this model apart is its built-in System-on-Chip running Android 13. A signage playlist, a web page or an app can run directly on the screen, so simple stand-alone deployments do not need a separate external media player. The unit includes 4GB RAM, 32GB internal storage, a web browser and a file manager.
Brightness and inputs for bright rooms
- 450 cd/m² brightness with a high-haze Pro panel (haze level 25) that reduces reflections from windows and overhead lights.
- Native USB-C input carrying video, audio and USB 2.0/3.0 data over one cable, with a powered port rated at 15 W.
- Selectable input detection set to first, last or custom, so the display chooses the source when a device is connected.
- HDR support for HLG and PQ content, with 8 ms typical response time at 60 Hz.
Where it fits across Qatar

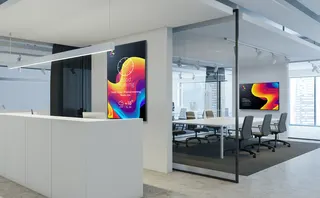

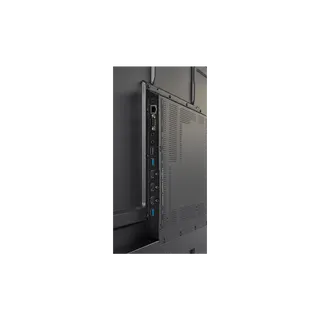

In a Msheireb or West Bay office, the panel suits a boardroom where Arabic and English teams join the same call. Three HDMI inputs, including one with ARC, and three USB-A ports, one reserved for service, let you connect conferencing equipment and peripherals.
At a retail entrance or mall atrium in Lusail or The Pearl, a store team can schedule promotional content from a content management system without buying an extra player for each screen. The 450 cd/m² output keeps content clear in brightly lit indoor areas.

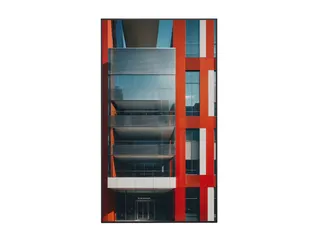

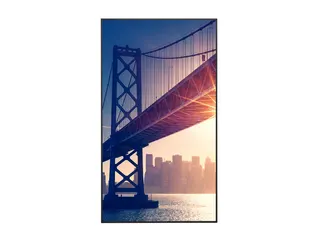

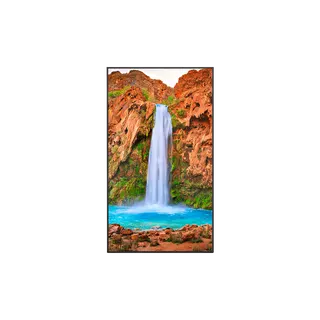

In a school in Al Rayyan fitting out a lecture hall or new classrooms, the 86-inch screen gives large groups a clear view, and the portrait mode suits timetables and notices in corridors.
Planning the installation

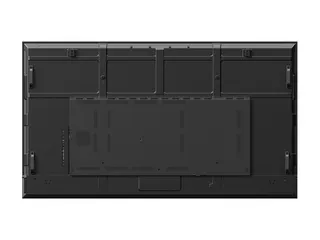

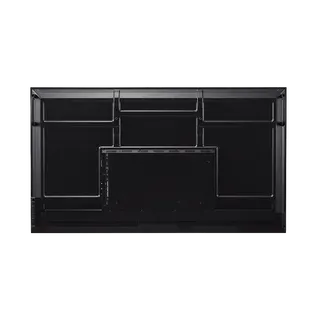

At 1,931 x 1,102 x 68 mm and 42 kg, the panel needs a sound wall or a suitable trolley. It has four VESA holes at 800 x 600 mm with M8 fixings, and the SF680P wall mount is listed as an option. SmartRooms Qatar offers a free site survey to check wall loading, viewing distance and cable routes before mounting.
The rated operating range is 0 to +40 °C with 20 to 80% humidity, so install it in air-conditioned indoor spaces. Summer temperatures in Qatar can exceed 45 °C, so check the room climate before placing it near glazed or semi-open areas. The IP5x dust rating front and back is not a substitute for an outdoor enclosure.
The internal power supply accepts 100 to 240 V AC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Standby draw is below 0.5 W, and the manufacturer lists 157 kWh per 1,000 hours with energy efficiency class G, so include running costs in any tender comparison.
Request a quote and the SmartRooms Qatar team will confirm stock, delivery to any of Qatar's eight municipalities, installation and mounting options with your quotation, usually within one working day.
Highlights
- 86-inch 4K UHD panel at 3840 x 2160 pixels
- 450 cd/m² brightness with high-haze Pro panel
- Built-in Android 13 SoC with 4GB RAM and 32GB storage
- Native USB-C input with 15 W powered port
- Landscape and portrait orientation supported
- 3-year warranty including the backlight
Estimated timeline
Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.
Specifications
Display12
- Panel Technology
- IPS with Direct LED backlights
- Screen Size [inch/cm]
- 86 / 217.4
- Aspect Ratio
- 16:9
- Brightness [cd/m²]
- 450
- Contrast Ratio (typ.)
- 1200:1
- Viewing Angle [°]
- 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
- Colour Depth [bn]
- 1.073 (8bit + FRC)
- HDR
- HLG; PQ
- Response Time (typ.) [ms]
- 8
- Panel Refresh Rate [Hz]
- 60
- Haze Level [%]
- Pro (25)
- Supported Orientation
- Landscape; Portrait
Resolution2
- Native Resolution
- 3840 x 2160
- Supported Resolutions
- 1024 x 768;; 1024 x 768;; 1280 x 1024;; 1280 x 1024;; 1280 x 720;; 1280 x 800;; 1360 x 768;; 1366 x 768;; 1400 x 1050;; 1440 x 900;; 1600 x 1200;; 1680 x 1050;; 1920 x 1080;; 1920 x 1200;; 1920 x 2160;; 3840 x 2160;; 4096 x 2160;; 640 x 480;; 720 x 480;; 720 x 576;; 800 x 600
Synchronisation Rate2
- Horizontal Frequency [kHz]
- 15 - 135
- Vertical Frequency [Hz]
- 23 - 76
Connectivity13
- HDMI IN 1
- Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
- HDMI IN 2
- Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
- HDMI IN 3
- ARC; Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
- USB-A 1
- USB (2.0); Peripherals
- USB-A 2
- USB (3.0); Peripherals; USB Storage
- USB-A 3
- USB (3.0); Peripherals; USB Storage
- USB-A (Service)
- Service
- USB-C 1
- Video Input; UHD (60 Hz); DP alt. 1.4; HDCP (2.2); Audio Input; USB 2.0 / 3.0; 15 W
- Audio Output (3.5 mm)
- Audio Output; Line Out
- LAN 1
- 100 MBit/s
- RS-232C
- 9600 bps
- Remote In (3.5 mm)
- IR-Extender
- Input Detect
- Custom; Last; First
Electrical3
- Power Consumption [W]
- 162 shipping
- Power Savings Mode [W]
- < 0.5; < 2 (Networked Standby)
- Power Supply
- 100-240 V AC; 50/60 Hz; internal
Environmental Conditions4
- Operating Temperature [°C]
- +0 to +40
- Operating Humidity [%]
- 20 to 80
- Storage Humidity [%]
- 10 to 90
- Storage Temperature [°C]
- -20 to 60
Mechanical9
- Dimensions (W x H x D) [mm]
- 1,931 x 1,102 x 68
- Weight [kg]
- 42
- Bezel Width [mm]
- 15.9 (symmetrical)
- VESA Mounting [mm]
- 4 holes; 800 x 600 (FDMI); M8
- Ingress Protection
- IP5x (front); IP5x (back)
- Packaging Dimensions (W x H x D) [mm]
- 2,110 x 1,247 x 225
- Packaging Weight [kg]
- 63
- Colour Bezel
- Pantone (Process Black M)
- Material
- Metal
Mediaplayer3
- Supported File Storage / File System
- FAT16 / FAT32 @ USB 2.0
- Supported Video Formats
- MKV (Mpeg1/2/3 Layer1/2/3, max res 4096x2160@60fps); MP4 (Mpeg1/2 Layer1/2/3, H.264, HEVC/H.265, max res 4096x2160@60fps)
- Supported Audio Formats
- .mp3 max. Bit Rate 320 kbps
Embedded Computing4
- System Version
- Android 13
- System Memory
- 4G RAM
- Internal Storage
- 32GB ROM
- Built-in Applications
- File Manager; Web Browser
Available Options1
- Accessories
- Feet (ST-801); Presence Sensor (KT-RC3); Soundbar (PN-ZCMS1); Speaker (SP-RM3a); Trolley (PD02MHA-CB86, PD03MHA-CB86); Wall mount (SF680P); WiFi Dongle SI07B
Regulatory2
- Safety and Ergonomics
- BSMI; CE; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
- Resistance to Fire
- Metal backcover, plastic material certified acc. to UL94-5VB
Green Features2
- Energy Efficiency
- Energy Consumption: 157 kWh/1000 h; Energy Efficiency Class: G; LED Backlight
- Ecological Standards
- EnergyStar 8.0
3Rd Party Certifications3
- Cisco
- Verified for Cisco Collaboration Devices
- Crestron
- Certified for Crestron CCV2 and XiO Cloud
- Q-Sys
- Q-Sys Plug-in
Additional Features8
- Special Characteristics
- DICOM Simulation; HDMI ARC; Powered USB Port (15 W); Removable Logo
- Audio
- Integrated Speakers (10 W + 10 W)
- Shipping Content
- 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
- Warranty
- 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 1
- Operating Hours
- 18/7
- External Control
- AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; Scheduled Timer
- Remote Management
- Automated Email Alerts; NaViSet Administrator 2
- Security
- Disable HW Buttons; Disable IR Functionality
