Sharp Digital Signage Current

PN-P436

Sharp PN-P436 43-inch Professional Large Format Display

Screen size: 42.5 / 108
Resolution: 3840 x 2160
Brightness: 700 nit
Operation: 24/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sharp PN-P436 is a 42.5-inch (43-inch class) 4K UHD professional display for places that run screens for many hours each day. It delivers 700 cd/m² brightness and a high-haze panel that softens reflections from windows, with portrait, landscape, face-up and face-down orientations. HDMI, DisplayPort, USB-C and LAN ports make it practical for corporate reception areas, control rooms and school corridors in Qatar. Request a quote from SmartRooms Qatar.

What the Sharp PN-P436 is built to do

The Sharp PN-P436 is a 42.5-inch professional display with a 4K UHD panel of 3840 x 2160 pixels. It is sold in the 43-inch class and suits organisations that need one screen running for many hours each day. Its IPS panel with direct LED backlight produces 700 cd/m² brightness, which keeps content visible in rooms with daylight or bright ceiling lighting.

The specification lists 24/7 operation, so the display can run continuous playlists, live information or room schedules without being switched off each evening.

Panel and image quality that matter on site

The screen uses a high-haze panel graded Pro (25). Reflections from windows and overhead lights are softened, so text and graphics stay readable from the viewing distance of a reception desk or a corridor. Contrast is rated at 8,000:1 or higher, the viewing angle is 178 degrees both horizontally and vertically, and the colour gamut covers 86% of DCI. The 0.245 mm pixel pitch suits content read at close range, such as menus and wayfinding text.

A SpectraView Engine controls colour, gamma and uniformity, and the Display Wall Calibrator software can adjust uniformity when several screens are installed side by side.

Where it fits in Qatar

Corporate reception in West Bay or Msheireb: a portrait-mounted directory or welcome screen that stays bright behind a glass entrance.
Control room in Mesaieed or Ras Laffan: a screen that runs around the clock, with network authentication through IEEE802.1X on the LAN port.
Private school in Al Wakrah: an indoor notice display in a corridor, placed in an air-conditioned area away from direct sunlight.

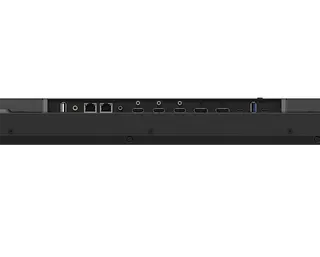

Connectivity and control

Two HDMI inputs, one DisplayPort input and a USB-C input rated at 65 W for video, audio and power give flexible source connection. HDMI OUT and DP OUT loop the signal through, so one media player can feed a chain of displays. Two LAN ports, RS-232C and infrared allow control from third-party systems. The display is certified for Crestron CCV2 and XiO Cloud, and a Q-Sys plug-in is available for integrators working on meeting rooms across Doha.

Planning the installation

Dimensions 965 x 557.2 x 66.5 mm and weight 13.5 kg
VESA 300 x 300 mm pattern with M6 mounting holes
Bezel 13.9 mm at the bottom and 9.9 mm on the other sides
Operating temperature 0 to +40°C and operating humidity 20 to 80%
Power supply 100-240 V AC, 50/60 Hz, with 80 W typical consumption

Mounting a 13.5 kg panel needs a wall that can carry the load and a bracket suited to it. Manufacturer accessories include wall mounts PDW S 32-65 L and PDW S 32-65 P, a PD04 Tipster trolley and ST-43M feet. SmartRooms Qatar carries out a free site survey before installation, so wall structure, cable routes and viewing angles are checked before the order is placed.

Warranty and next steps

The manufacturer warranty covers three years including the backlight, with an optional fourth and fifth year extension. Integrated 10 W + 10 W speakers and a remote control are included. Request a quote from SmartRooms Qatar with your quantity, mounting type and location, and we will usually return a quotation within one working day. Purchase orders (LPO) and government tender purchases are welcome.

Highlights

42.5-inch 4K UHD panel at 3840 x 2160 pixels
700 cd/m² brightness with a high-haze Pro (25) panel
Portrait, landscape, face-up and face-down orientations
24/7 operation and 3-year warranty including backlight
HDMI, DisplayPort, USB-C 65 W, LAN and RS-232C ports
Crestron CCV2 and XiO Cloud certified; Q-Sys plug-in

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

75 specifications · Source: manufacturer · checked Oct 2026

Display14

Panel Technology: IPS with Direct LED backlights
Active Screen Area (W x H) [mm]: 941.2 x 529.4
Screen Size [inch/cm]: 42.5 / 108
Aspect Ratio: 16:9
Pixel Pitch [mm]: 0.245
Brightness [cd/m²]: 700
Contrast Ratio: ≥ 8000:1 1
Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]: 1.073 (10bit)
Colour Gamut: 86% of DCI
Response Time (typ.) [ms]: 8 (grey-to-grey)
Panel Refresh Rate [Hz]: 60
Haze Level [%]: Pro (25)
Supported Orientation: Face Down; Face Up 2 ; Landscape; Portrait

Resolution2

Native Resolution: 3840 x 2160
Supported Resolutions: 1024 x 768;; 1270 x 720;; 1280 x 1024;; 1280 x 720;; 1280 x 800;; 1360 x 768;; 1366 x 768;; 1400 x 1050;; 1440 x 900;; 1600 x 1200;; 1680 x 1050;; 1920 x 1080;; 1920 x 1200;; 1920 x 1200;; 1920 x 2160;; 3840 x 2160;; 4096 x 2160;; 640 x 480;; 720 x 400;; 720 x 480;; 720 x 576;; 800 x 600

Synchronisation Rate2

Horizontal Frequency [kHz]: 15 - 135
Vertical Frequency [Hz]: 23 - 76

Connectivity16

HDMI IN 1: Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC
HDMI IN 2: Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
HDMI OUT: Video Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: HDMI IN 2, Option, Compute module
DP IN 1: Video Input; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Input
DP OUT: Video Output; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Output; Loop Through: DisplayPort IN, USB-C 2
USB-A 1: USB (2.0 / 3.2); 4.5 W; Peripherals; USB Storage
USB-A (Service): 2.5 W; Service
USB-C 1: Video Input; UHD (60 Hz); DP alt. 1.2; HDCP (2.2); Audio Input; USB 2.0 / 3.2; 65 W
USB-C 2: USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
Audio Output (3.5 mm): Audio Output; Line Out
LAN 1: 100 MBit/s
LAN 2: Loop Through: LAN 1, RS-232C, IR; 100 MBit/s
RS-232C: 9600 bps
Remote In (3.5 mm): Eco Sensor (IR-Extender, Ambient and Presence)
Input Detect: Custom; Last; First
PiP / PbP: 2-Split; Scalable picture size

Calibration3

Factory Calibration: Gamma; Intensity; RGB; Uniformity; White Point
Calibration with Software: Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
Calibration Software: Display Wall Calibrator

Open Modular Intelligence2

Intel® SDM: accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot: MPi4 and MPi5 Kit (powered by Raspberry Pi)

Sensors3

Ambient Light Sensor: Integrated, triggered actions programmable
Human Sensor: optional via Eco Sensor (KTES1)
Temperature Sensor: Integrated, 3 sensors, triggered actions programmable

Electrical4

Power Consumption [W]: 80 (typ.)
Power Savings Mode [W]: < 0.5; < 2 (Networked Standby)
Power Management: VESA DPMS
Power Supply: 100-240 V AC; 50/60 Hz; internal

Environmental Conditions4

Operating Temperature [°C]: +0 to +40
Operating Humidity [%]: +20 to +80
Storage Humidity [%]: 10 to 80
Storage Temperature [°C]: -20 to 60

Mechanical8

Dimensions (W x H x D) [mm]: 965 x 557.2 x 66.5
Weight [kg]: 13.5
Bezel Width [mm]: 13.9 (bottom); 9.9 (left/right/top)
VESA Mounting [mm]: 300 x 300 (FDMI); 4 holes; M6
Ingress Protection: IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm]: 1,070 x 675 x 161
Packaging Weight [kg]: 18
Material: Metal

Available Options1

Accessories: Eco Sensor (KTES1); Feet (ST-43M); Remote control kit (KTRC3); Soundbar (PN-ZCMS1); Speaker (SP-RM3a); Trolley (PD04 Tipster); USB-C cable (USB-C 5M, USB-C 7M); Wall mount (PDW S 32-65 L, PDW S 32-65 P)

Regulatory3

Safety and Ergonomics: CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA
Pixel Failure Class: ISO 9241-307, Class 1
Resistance to Fire: Metal backcover, plastic material certified acc. to UL94-5VB

Green Features2

Energy Efficiency: Energy Consumption: 67 kWh/1000 h; Energy Efficiency Class: G; LED Backlight
Ecological Standards: EnergyStar 8.0

3Rd Party Certifications2

Crestron: Certified for Crestron CCV2 and XiO Cloud
Q-Sys: Q-Sys Plug-in

Additional Features9

Special Characteristics: CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler
Colour Versions: Black Front Bezel, Black Back Cabinet
Audio: Integrated Speakers (10 W + 10 W)
Shipping Content: 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty: 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 3
Operating Hours: 24/7
External Control: AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management: NaViSet Administrator 2
Security: Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)

Downloads

16 files from the manufacturer

PDF Datasheets PN-P436_Datasheet.pdf 708 KB PDF Datasheets SHARP PN-P436 Datasheet.pdf 369 KB PDF Manuals & guides External_control_Sharp_M2_P6_N_format_manual.pdf 737 KB PDF Manuals & guides External_control_Sharp_M2_P6_S_format_manual.pdf 439 KB PDF Manuals & guides M652_M552_M502_M432_P656_P556_P506_P436_Manual_EN_V1.pdf 9.6 MB PDF Manuals & guides OperationGuidelines-LargeFormat.pdf 455 KB PDF Manuals & guides Option-Board-Installation-Guide_EN_V1-3_SNDSE.pdf 2.1 MB PDF Brochures Warranty-and-Services_Interactive_Computing.pdf 1.0 MB URL Brochures · Opens on manufacturer site Sharp Product Overview PDF Drawings & CAD PN-P436_outline_ver3-0.pdf 187 KB DWG Drawings & CAD · Opens on manufacturer site PN-P436_outline_ver1-0.dwg DXF Drawings & CAD · Opens on manufacturer site PN-P436_outline_ver3-0.dxf PDF Certificates & compliance CE-DoC-2025-04-1292-PN-M432-PN-P436.pdf 506 KB PDF Certificates & compliance EU_EEI-Label-P436.pdf 334 KB PDF Certificates & compliance UK-EEI-Label-P436.pdf 352 KB PDF Certificates & compliance UKCA-DoC-2025-04-1293-PN-M432-PN-P436.pdf 385 KB

Questions about PN-P436

What is the Sharp PN-P436 designed for?

The PN-P436 suits organisations that need a screen running for long hours, such as control rooms, passenger information points, corporate reception areas and retail signage. Its 24/7 operation, 4K resolution and 700 cd/m² brightness keep content readable all day. For a Doha office or school that needs one dependable display for information, it is a sound choice, and SmartRooms Qatar can advise on the best mounting for your space.

Can it be installed in portrait orientation for digital signage?

Yes. The specification lists landscape, portrait, face-up and face-down support, so the panel can serve as a vertical menu board or a wayfinding sign in a mall corridor. Before ordering, check the content layout and mounting position, because the screen measures 965 x 557.2 x 66.5 mm and weighs 13.5 kg, which affects both the bracket and the wall.

Will the screen stay readable near windows?

The panel uses a high-haze finish rated Pro (25), which diffuses light from windows and ceiling fittings so content remains readable. Combined with 700 cd/m² brightness, this helps in a lobby in West Bay or an entrance hall in Msheireb where daylight falls on the display for much of the day. SmartRooms Qatar can review the position during a free site survey before you commit to a layout.

Can it be used in a hot or outdoor location in Qatar?

No, not in those conditions. The operating temperature is 0 to +40°C with operating humidity of 20 to 80%, while summer temperatures in Qatar can exceed 45°C. Install it in an indoor, air-conditioned area away from direct sunlight and heaters. Confirm the exact environment with the SmartRooms Qatar team during the site survey, before the quotation is finalised.

Which ports are available for connecting laptops and media players?

The display provides two HDMI inputs, one DisplayPort input and a USB-C input rated at 65 W for video, audio and power, plus USB-A and USB-C peripheral ports. HDMI OUT and DP OUT loop the signal through to the next screen. The two LAN ports and RS-232C connector support network and serial control, which suits a meeting room where a presenter connects from a laptop.

Can several PN-P436 displays show the same content?

Yes. Video loop-through on HDMI OUT and DP OUT lets one source feed a chain of displays, and the Clone Settings feature copies configuration between units. A private school in Al Wakrah fitting out new corridors with several screens could manage content from one player this way, though the number of units and cable routes should be checked during planning.

Does it support secure connections on corporate networks?

Yes. The LAN connection supports IEEE802.1X, which lets IT teams authenticate the display on a corporate or government network. Security options also include disabling the hardware buttons, disabling infrared functionality and an emergency notification feature. IT managers in Doha can review these settings before the displays are deployed in offices or public areas.

Is it compatible with Crestron and Q-Sys control systems?

The source data states that the display is certified for Crestron CCV2 and XiO Cloud and offers a Q-Sys plug-in. It also supports external control through AMX NetLinx, Crestron V2, PJLink and SNMP. Before purchase, agree the control design with your system integrator, particularly for boardroom projects in Lusail or operations centres where control behaviour must be predictable.

What warranty comes with the PN-P436?

The manufacturer data lists a 3-year warranty that includes the backlight, with an optional fourth and fifth year extension. SmartRooms Qatar supplies the product under the manufacturer warranty, so ask for the full warranty terms with your quotation. Schools or ministries ordering several units can ask whether the optional extension applies to their purchase order.

What wall and space do I need to plan for?

The display measures 965 x 557.2 x 66.5 mm and weighs 13.5 kg, with a VESA 300 x 300 mm pattern and M6 holes. The bezel is 13.9 mm at the bottom and 9.9 mm on the other sides. Because of the weight, SmartRooms Qatar offers a free site survey to check wall structure, cable routes and clearance before installation in a new building or refurbished room.

Does it need external speakers for a boardroom or lobby?

The display includes integrated speakers rated 10 W + 10 W and a 3.5 mm line-out for external audio. For a larger boardroom or event area, the manufacturer lists a PN-ZCMS1 soundbar and an SP-RM3a speaker as options. Built-in speakers may be enough for a small meeting room, while the external options suit larger spaces where audio must reach the back of the room.
