PN-P506

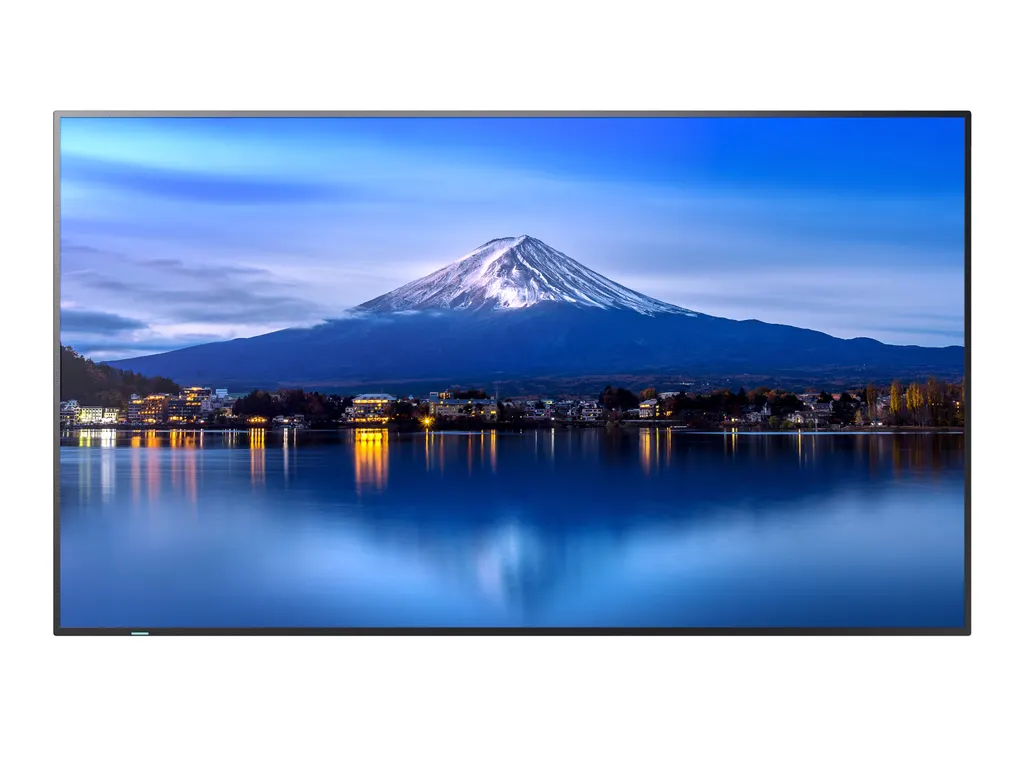

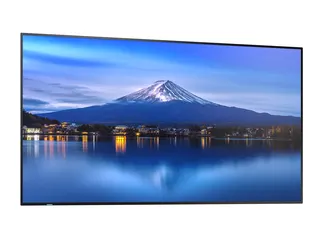

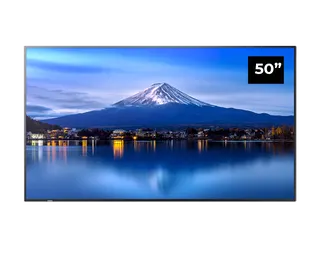

Sharp MultiSync PN-P506 50-inch 4K Professional Large Format Display

Screen size: 50 / 125.7
Resolution: 3840 x 2160
Brightness: 700 nit
Operation: 24/7

Priceon request

QuotationWithin 1 working day

DeliveryConfirmed with your quote, based on stock

PDFDownload datasheet

Overview

The Sharp PN-P506 is a 50-inch 4K professional display built for continuous use. It offers 700 cd/m² brightness and a high-haze panel that cuts glare from windows, inside a metal chassis suited to heavy-traffic spaces. Its USB-C 1 port is rated 65 W, and it runs in portrait or landscape. It suits control rooms, passenger information and corporate reception walls. Request a quote from SmartRooms Qatar.

The Sharp PN-P506 is a 50-inch professional display from the MultiSync P Series, built for screens that stay on through long working days. Its 3840 x 2160 native 4K panel uses VA technology with direct LED backlights, and the listed operating mode is 24/7. For IT managers and facilities teams, the value lies in consistent image quality and a metal chassis rather than consumer-style features.

Image and panel facts for bright rooms

Brightness is rated at 700 cd/m², and the high-haze panel (listed as Pro, 25) reduces reflections from windows and ceiling lights, so content stays readable in lobbies and control rooms with glass frontages. Contrast is rated at 8000:1 or higher, with viewing angles of 178 degrees horizontally and vertically and a colour gamut of 86% of DCI. A 10-bit colour depth and factory calibration for gamma, uniformity, white point and RGB help brand colours match across several screens. Further calibration can be run with the Display Wall Calibrator software.

Ports and network control

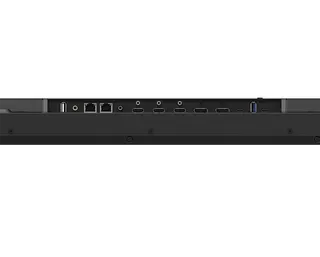

The panel provides two HDMI inputs, an HDMI output for loop-through, a DisplayPort input and output, a USB-C 1 port rated at 65 W with DisplayPort alternate mode, USB-A ports, a 3.5 mm audio output, two LAN ports and RS-232C. Loop-through lets one source feed the next display in a row, which simplifies multi-screen signage. Both LAN ports support IEEE 802.1X security, and external control covers Crestron, AMX NetLinx, PJLink and SNMP.

Where this 50-inch panel fits in Qatar

Control rooms for energy and industrial operators in Mesaieed or Ras Laffan, where the screen runs through shifts and must be read from a distance.
Passenger information in transport hubs or visitor areas close to Hamad International Airport, where portrait or landscape mounting suits the layout of the information board.
Corporate reception and retail walls in West Bay or Lusail, where the high-haze surface keeps content visible near large windows.

Heat matters here. The operating range is 0 to +40 °C, so the PN-P506 belongs in an air-conditioned indoor space, not an unshaded lobby or outdoor pavilion where Qatar's summer heat can exceed that range.

Planning weight, power and mounting before installation

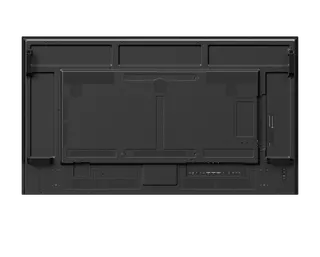

At 18 kg with a body of 1,121.6 x 645.2 x 66.5 mm, the panel needs a wall that can carry its weight. The VESA pattern is 300 x 300 mm with M6 holes, and listed options include the PDW S 32-65 L and PDW S 32-65 P wall mounts and the PD04 Tipster trolley. Its internal power supply accepts 100-240 V AC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains, and typical consumption is 95 W. We recommend a free site survey before wall-mounting, so the bracket, cable route and viewing height are confirmed in advance.

Ready to specify the PN-P506 for your room or project? Tell SmartRooms Qatar how many units you need, the room layout and any mounting or accessory requirements, then request a quote. Quotations usually follow within one working day, and we supply against purchase orders or government tenders.

Highlights

50-inch 4K UHD panel at 3840 x 2160 native resolution
700 cd/m² brightness with high-haze anti-glare panel
Rated for 24/7 operation with three-year warranty including backlight

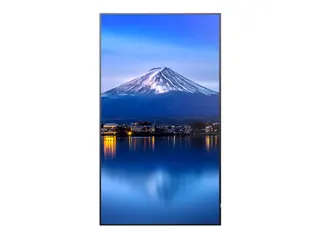

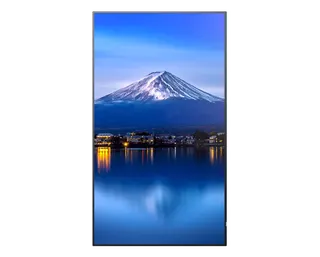

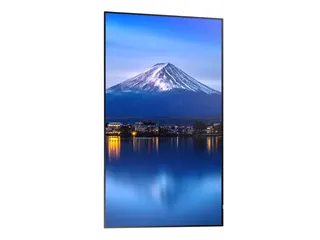

Landscape, portrait, face-up and face-down orientation supported
USB-C 1 port rated 65 W; HDMI and DisplayPort loop-through
Operating range 0 to +40 °C; 100-240 V AC power supply

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

75 specifications · Source: manufacturer · checked Oct 2026

Display14

Panel Technology: VA with Direct LED backlights
Active Screen Area (W x H) [mm]: 1,095.8 x 616.4
Screen Size [inch/cm]: 50 / 125.7
Aspect Ratio: 16:9
Pixel Pitch [mm]: 0.0.285
Brightness [cd/m²]: 700
Contrast Ratio: ≥ 8000:1 1
Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]: 1.073 (10bit)
Colour Gamut: 86% of DCI
Response Time (typ.) [ms]: 8 (grey-to-grey)
Panel Refresh Rate [Hz]: 60
Haze Level [%]: Pro (25)
Supported Orientation: Face Down; Face Up 2 ; Landscape; Portrait

Resolution2

Native Resolution: 3840 x 2160
Supported Resolutions: 1024 x 768;; 1270 x 720;; 1280 x 1024;; 1280 x 720;; 1280 x 800;; 1360 x 768;; 1366 x 768;; 1400 x 1050;; 1440 x 900;; 1600 x 1200;; 1680 x 1050;; 1920 x 1080;; 1920 x 1200;; 1920 x 1200;; 1920 x 2160;; 3840 x 2160;; 4096 x 2160;; 640 x 480;; 720 x 400;; 720 x 480;; 720 x 576;; 800 x 600

Synchronisation Rate2

Horizontal Frequency [kHz]: 15 - 135
Vertical Frequency [Hz]: 23 - 76

Connectivity16

HDMI IN 1: Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC
HDMI IN 2: Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
HDMI OUT: Video Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: HDMI IN 2, Option, Compute module
DP IN 1: Video Input; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Input
DP OUT: Video Output; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Output; Loop Through: DisplayPort IN, USB-C 2
USB-A 1: USB (2.0 / 3.2); 4.5 W; Peripherals; USB Storage
USB-A (Service): 2.5 W; Service
USB-C 1: Video Input; UHD (60 Hz); DP alt. 1.2; HDCP (2.2); Audio Input; USB 2.0 / 3.2; 65 W
USB-C 2: USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
Audio Output (3.5 mm): Audio Output; Line Out
LAN 1: 100 MBit/s
LAN 2: Loop Through: LAN 1, RS-232C, IR; 100 MBit/s
RS-232C: 9600 bps
Remote In (3.5 mm): Eco Sensor (IR-Extender, Ambient and Presence)
Input Detect: Custom; Last; First
PiP / PbP: 2-Split; Scalable picture size

Calibration3

Factory Calibration: Gamma; Intensity; RGB; Uniformity; White Point
Calibration with Software: Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
Calibration Software: Display Wall Calibrator

Open Modular Intelligence2

Intel® SDM: accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot: MPi4 and MPi5 Kit (powered by Raspberry Pi)

Sensors3

Ambient Light Sensor: Integrated, triggered actions programmable
Human Sensor: optional via Eco Sensor (KTES1)
Temperature Sensor: Integrated, 3 sensors, triggered actions programmable

Electrical4

Power Consumption [W]: 95 (typ.)
Power Savings Mode [W]: < 0.5; < 2 (Networked Standby)
Power Management: VESA DPMS
Power Supply: 100-240 V AC; 50/60 Hz; internal

Environmental Conditions4

Operating Temperature [°C]: +0 to +40
Operating Humidity [%]: 20 to 80
Storage Humidity [%]: 10 to 80
Storage Temperature [°C]: -20 to 60

Mechanical8

Dimensions (W x H x D) [mm]: 1,121.6 x 645.2 x 66.5
Weight [kg]: 18
Bezel Width [mm]: 10.9 (left/right/top); 13.9 (bottom)
VESA Mounting [mm]: 300 x 300 (FDMI); 4 holes; M6
Ingress Protection: IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm]: 1,245 x 785 x 188
Packaging Weight [kg]: 23
Material: Metal

Available Options1

Accessories: Eco Sensor (KTES1); Feet (ST-43M); Remote control kit (KTRC3); Soundbar (PN-ZCMS1); Speaker (SP-RM3a); Trolley (PD04 Tipster); USB-C cable (USB-C 5M, USB-C 7M); Wall mount (PDW S 32-65 L, PDW S 32-65 P)

Regulatory3

Safety and Ergonomics: CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA
Pixel Failure Class: ISO 9241-307, Class 1
Resistance to Fire: Metal backcover, plastic material certified acc. to UL94-5VB

Green Features2

Energy Efficiency: Energy Consumption: 85 kWh/1000 h; Energy Efficiency Class: G; LED Backlight
Ecological Standards: EnergyStar 8.0

3Rd Party Certifications2

Crestron: Certified for Crestron CCV2 and XiO Cloud
Q-Sys: Q-Sys Plug-in

Additional Features9

Special Characteristics: CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler
Colour Versions: Black Front Bezel, Black Back Cabinet
Audio: Integrated Speakers (10 W + 10 W)
Shipping Content: 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty: 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 3
Operating Hours: 24/7
External Control: AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management: NaViSet Administrator 2
Security: Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)

Downloads

15 files from the manufacturer

PDF Datasheets PN-P506_Datasheet.pdf 708 KB PDF Datasheets SHARP PN-P506 Datasheet.pdf 306 KB PDF Manuals & guides External_control_Sharp_M2_P6_N_format_manual.pdf 737 KB PDF Manuals & guides External_control_Sharp_M2_P6_S_format_manual.pdf 439 KB PDF Manuals & guides M652_M552_M502_M432_P656_P556_P506_P436_Manual_EN_V1.pdf 9.6 MB PDF Manuals & guides OperationGuidelines-LargeFormat.pdf 455 KB PDF Manuals & guides Option-Board-Installation-Guide_EN_V1-3_SNDSE.pdf 2.1 MB PDF Brochures Warranty-and-Services_Interactive_Computing.pdf 1.0 MB URL Brochures · Opens on manufacturer site Sharp Product Overview PDF Drawings & CAD PN-P436_outline_ver.3.0.pdf 187 KB DXF Drawings & CAD · Opens on manufacturer site PN-P436_outline_ver.3.0.dxf DWG Drawings & CAD · Opens on manufacturer site PN-P506_outline_ver.1.0.dwg PDF Certificates & compliance CE-DoC-2025-05-1310-PN-M502-PN-P506.pdf 514 KB PDF Certificates & compliance P506_EU_EEI_LABEL.pdf 335 KB PDF Certificates & compliance P506_UK_EEI_LABEL.pdf 350 KB

Questions about PN-P506

What is the Sharp PN-P506 designed for?

The PN-P506 is a 50-inch 4K professional display for continuous signage and control room use. Its 700 cd/m² brightness and high-haze panel suit rooms with windows, while its 24/7 operation rating suits screens that stay on through long shifts. It is aimed at IT managers, facilities teams and corporate communications staff who need dependable screens rather than consumer televisions.

Is it suitable for a control room that runs around the clock?

Yes, continuous operation is one of its listed uses. The panel is rated for 24/7 operation with a typical power draw of 95 W, which helps when estimating the electrical load of a room. If several panels are tiled into a video wall, plan carefully for brightness matching and mounting, since the side bezels are 10.9 mm and the bottom bezel is 13.9 mm.

Does it work on Qatar's 240 V mains supply?

Yes. The internal power supply accepts 100-240 V AC at 50/60 Hz, which covers Qatar's 240 V, 50 Hz mains. Typical consumption is 95 W, and power savings mode drops below 0.5 W. The box includes a power cable. A qualified electrician should still confirm the socket arrangement on site before installation.

Can I install it outdoors or in a sunlit lobby without air conditioning?

No, not in those conditions. The listed operating temperature is 0 to +40 °C with 20 to 80% humidity. Qatar summer temperatures can exceed 45 °C, so the panel should sit in an air-conditioned indoor space. Confirm the exact location with the SmartRooms Qatar team before ordering, especially for lobbies with large windows facing the sun.

How well does it handle glare from windows?

Its high-haze panel, listed as Pro with a haze level of 25, diffuses reflections from windows and ceiling lights so content stays readable. Combined with 700 cd/m² brightness, this helps screens in West Bay offices or Lusail reception areas remain legible during the day. Placement still matters, because direct sunlight on the screen face reduces contrast regardless of the panel finish.

Can it be mounted in portrait orientation for menus or information boards?

Yes. The panel supports landscape, portrait, face-up and face-down orientation, so it can suit a narrow corridor sign or a tall information board. Portrait mounting needs a bracket that fits the 300 x 300 mm VESA pattern with M6 holes. At 18 kg, the wall structure should be checked during planning, and a site survey helps confirm the fixing points.

Which mounts and accessories are available for this model?

Listed accessories include the PDW S 32-65 L and PDW S 32-65 P wall mounts, the PD04 Tipster trolley, feet ST-43M, the PN-ZCMS1 soundbar, the SP-RM3a speaker, the KTES1 Eco Sensor and the KTRC3 remote control kit. Confirm compatibility with the panel before ordering. SmartRooms Qatar can suggest the right combination for your room.

What ports are available for connecting laptops and media players?

The panel has HDMI IN 1 and HDMI IN 2, a DisplayPort IN 1, and a USB-C 1 port with video input, DisplayPort alternate mode and a 65 W rating. It also has USB-A 1 for peripherals and storage, a USB-C 2 port, two LAN ports and RS-232C. The HDMI and DisplayPort outputs pass the same source onward to the next display in a chain.

Can it be managed over the network and integrated with control systems?

Yes. Both LAN ports run at 100 Mbit/s and support IEEE 802.1X for network security. The panel is certified for Crestron CCV2 and XiO Cloud and carries a Q-Sys plug-in. External control options include AMX NetLinx, PJLink and SNMP, and remote management uses NaViSet Administrator 2. Confirm the integration scope with your systems integrator before ordering.

Does it support Intel SDM or Raspberry Pi compute modules?

The open modular slot accepts Intel Smart Display Modules, large and small, up to 66 W. A compute module slot also takes the MPi4 and MPi5 kit powered by Raspberry Pi. This lets IT teams add playback hardware inside the display. Ask SmartRooms Qatar to confirm which module suits your content setup before ordering.

What warranty is included?

The panel carries a three-year warranty that includes the backlight, and an optional fourth and fifth year extension is available. The product is covered by the manufacturer's warranty. SmartRooms Qatar supplies it with delivery to all eight municipalities of Qatar and professional installation, so the warranty and installation can be arranged together.

Can a school or government office order several units through an LPO or tender?

Yes. SmartRooms Qatar accepts purchase orders (LPOs) and government tenders, including Monaqasat, with payment by bank transfer, cheque or purchase order. Send the number of units, the room list and the intended mounting plan. Quotations are usually issued within one working day, and the quotation confirms lead times, which are estimates based on stock.
