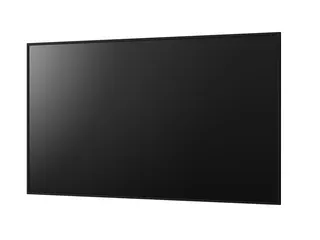

Name: Sharp PN-P756 75-inch Professional Large Format Display
Brand: Sharp
SKU: sharp-pn-p756
Availability: InStock

Overview

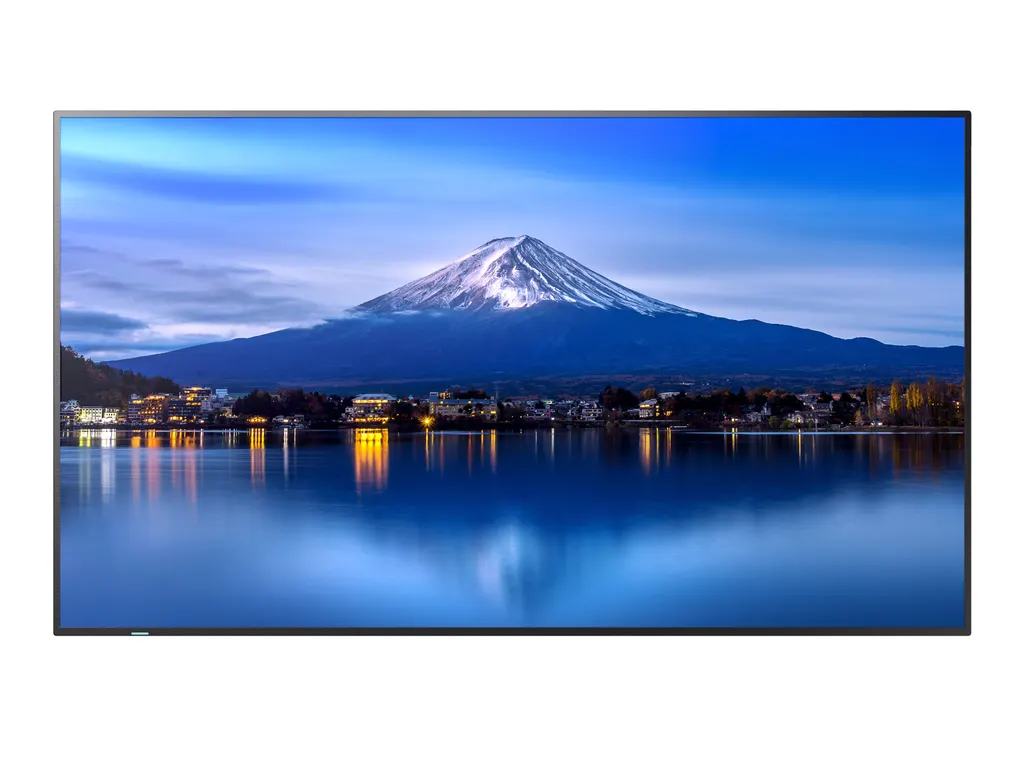

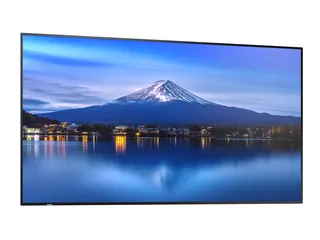

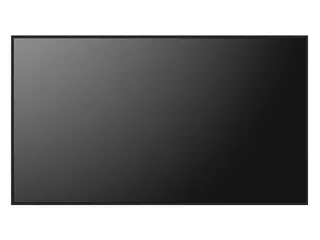

The Sharp PN-P756 is a 75-inch professional large format display with a 3840 x 2160 native 4K panel, 700 cd/m² brightness and a high-haze Pro finish that cuts reflections from windows. It is rated for 24/7 operation, carries a 3-year warranty including the backlight, and passes HDMI and DisplayPort signal onward for daisy chaining. Suited to control rooms, lobbies and corporate signage across Doha and beyond. Request a quote.

The Sharp PN-P756 is a 75-inch member of the MultiSync P Series, aimed at control rooms, public lobbies, passenger information areas and corporate signage. It pairs a 3840 x 2160 native 4K IPS panel with direct LED backlighting and is rated for 24/7 operation. For organisations in Qatar that run screens through the full working day, the difference between a consumer screen and a professional panel shows up in uptime, warranty cover and remote control, and this model is built around all three.

Clear pictures in bright Qatari rooms

Large glazed façades and daylight-filled atriums can wash out a standard screen. The PN-P756 is rated at 700 cd/m² and uses a high-haze Pro panel with a haze level of 25, which reduces reflections from windows and overhead lights. Its 178-degree horizontal and vertical viewing angles keep text readable for people seated to the side, which matters in a lobby or training room with a wide seating layout.

Resolution: 3840 x 2160 native, with support for 1920 x 1080 and other common formats
Colour: 10-bit colour depth (1.073 billion colours) and 72% of the NTSC gamut
Contrast and response: contrast ratio of 8000:1 or higher and 8 ms typical grey-to-grey response

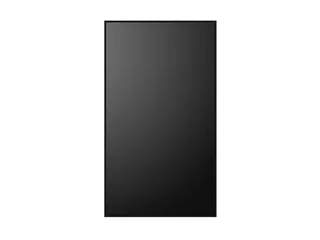

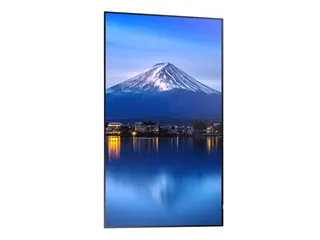

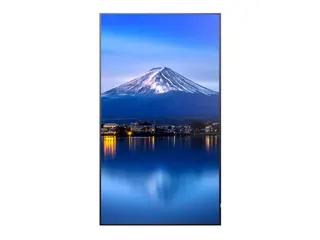

Orientation: landscape or portrait, with face-up and face-down mounting supported

Connectivity, control and remote management

The display offers two HDMI inputs, one DisplayPort 1.2 input and a USB-C input that carries video and audio and supplies up to 65 W. HDMI and DisplayPort outputs pass the signal onward to the next screen in a row. A LAN port with loop-through, RS-232C and infrared control allow building systems and control processors to manage the panel. For Crestron and Q-Sys environments, the model is certified for Crestron Connected and offers a Q-Sys plug-in. Remote management runs through NaViSet Administrator 2, with IEEE 802.1X authentication on the LAN and options to disable front buttons and infrared control.

Where the PN-P756 fits in Qatar

In a control room at an energy or industrial site in Ras Laffan or Mesaieed, the panel can show operational dashboards around the clock, while its integrated temperature sensors can trigger programmed actions. In a government or corporate lobby in Msheireb or West Bay, it can run wayfinding and announcements, positioned away from direct sun. In a retail setting in The Pearl or Lusail, the portrait orientation suits menu boards and directional signage.

Planning power, heat and mounting

The PN-P756 has an internal 100-240 V AC, 50/60 Hz power supply, which covers Qatar's 240 V, 50 Hz mains, and it draws 170 W typically. The operating range is 0 to +40°C at 20 to 80% humidity. Qatar's outdoor summer temperatures often exceed 45°C, so plan for an air-conditioned indoor location with clear ventilation, and confirm the environment with the SmartRooms Qatar team before choosing a spot near a window or in a plant space. At 38 kg with a 600 x 400 mm VESA pattern using M8 holes, plan the mounting with a suitable wall mount or trolley. Wall mount options L20PNWALL90EU and SF680P are listed, and we offer a free site survey to check wall structure and cable routes.

Each unit ships with a remote control, two AAA batteries, a power cable, an HDMI cable and a setup manual. The 3-year warranty covers the backlight, with an optional fourth and fifth year extension. Request a quote for the PN-P756 and we will confirm the accessories and delivery arrangements to all eight municipalities of Qatar.

Highlights

75-inch panel with 3840 x 2160 native 4K resolution
700 cd/m² brightness with a high-haze Pro panel
Rated for 24/7 operation with 3-year warranty including backlight
HDMI and DisplayPort loop-through for daisy chaining
Certified for Crestron Connected; Q-Sys plug-in available
Remote management via NaViSet Administrator 2 and IEEE 802.1X

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

73 specifications · Source: manufacturer · checked Oct 2026

Display12

Panel Technology: IPS with Direct LED backlights
Screen Size [inch/cm]: 75 / 189.3
Aspect Ratio: 16:9
Brightness [cd/m²]: 700
Contrast Ratio: ≥ 8000:1 1
Viewing Angle [°]: 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]: 1.073 (10bit)
Colour Gamut: 72% of NTSC
Response Time (typ.) [ms]: 8 (grey-to-grey)
Panel Refresh Rate [Hz]: 60
Haze Level [%]: Pro (25)
Supported Orientation: Face Down; Face Up 2 ; Landscape; Portrait

Resolution2

Native Resolution: 3840 x 2160
Supported Resolutions: 1024 x 768;; 1270 x 720;; 1280 x 1024;; 1280 x 720;; 1280 x 800;; 1360 x 768;; 1366 x 768;; 1400 x 1050;; 1440 x 900;; 1600 x 1200;; 1680 x 1050;; 1920 x 1080;; 1920 x 1200;; 1920 x 1200;; 1920 x 2160;; 3840 x 2160;; 4096 x 2160;; 640 x 480;; 720 x 400;; 720 x 480;; 720 x 576;; 800 x 600

Synchronisation Rate2

Horizontal Frequency [kHz]: 15 - 135
Vertical Frequency [Hz]: 23 - 76

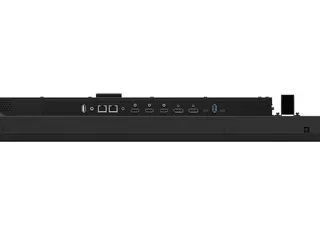

Connectivity16

HDMI IN 1: Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC
HDMI IN 2: Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC
HDMI OUT: Video Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: HDMI IN 2, Option, Compute module
DP IN 1: Video Input; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Input
DP OUT: Video Output; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Output; Loop Through: DisplayPort IN, USB-C 2
USB-A 1: USB (2.0 / 3.2); 4.5 W; Peripherals; USB Storage
USB-A (Service): 2.5 W; Service
USB-C 1: Video Input; UHD (60 Hz); DP alt. 1.2; HDCP (2.2); Audio Input; USB 2.0 / 3.2; 65 W
USB-C 2: USB 2.0 / 3.2; 7.5 W; Peripherals; Storage
Audio Output (3.5 mm): Audio Output; Line Out
LAN 1: 100 MBit/s
LAN 2: Loop Through: LAN 1, RS-232C, IR; 100 MBit/s
RS-232C: 9600 bps
Remote In (3.5 mm): Eco Sensor (IR-Extender, Ambient and Presence)
Input Detect: Custom; Last; First
PiP / PbP: 2-Split; Scalable picture size

Calibration3

Factory Calibration: Gamma; Intensity; RGB; Uniformity; White Point
Calibration with Software: Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point
Calibration Software: Display Wall Calibrator

Open Modular Intelligence2

Intel® SDM: accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot: RPi Compute Module 4

Sensors3

Ambient Light Sensor: optional via Eco Sensor (KTES1)
Human Sensor: optional via Eco Sensor (KTES1)
Temperature Sensor: Integrated, 3 sensors, triggered actions programmable

Electrical4

Power Consumption [W]: 170 (typ.)
Power Savings Mode [W]: < 0.5; < 2 (Networked Standby)
Power Management: VESA DPMS
Power Supply: 100-240 V AC; 50/60 Hz; internal

Environmental Conditions4

Operating Temperature [°C]: +0 to +40
Operating Humidity [%]: 20 to 80
Storage Humidity [%]: 10 to 90
Storage Temperature [°C]: -20 to 60

Mechanical8

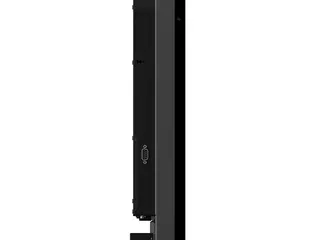

Dimensions (W x H x D) [mm]: 1,682.3 x 961.1 x 83.2
Weight [kg]: 38
Bezel Width [mm]: 14.3 (left/right/top); 14.8 (bottom)

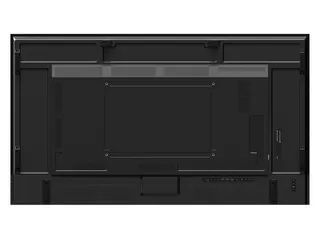

VESA Mounting [mm]: 4 holes; 600 x 400 (FDMI); M8
Ingress Protection: IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm]: 1,830 x 1,070 x 225
Packaging Weight [kg]: 51
Material: Metal

Available Options1

Accessories: Eco Sensor (KTES1); Feet (ST-801); Remote control kit (KTRC3); Speaker (SP-RM3a); Trolley (L20PNSR780MEU); USB-C cable (USB-C 5M, USB-C 7M); Wall mount (L20PNWALL90EU, SF680P)

Regulatory3

Safety and Ergonomics: CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA
Pixel Failure Class: ISO 9241-307, Class 1
Resistance to Fire: Metal backcover, plastic material certified acc. to UL94-5VB

Green Features2

Energy Efficiency: Energy Consumption: 180 kWh/1000 h; Energy Efficiency Class: G; LED Backlight
Ecological Standards: EnergyStar 8.0

3Rd Party Certifications2

Crestron: Certified for Crestron Connected
Q-Sys: Q-Sys Plug-in

Additional Features9

Special Characteristics: CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler
Colour Versions: Black Front Bezel, Black Back Cabinet
Audio: Integrated Speakers (10 W + 10 W)
Shipping Content: 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual
Warranty: 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 3
Operating Hours: 24/7
External Control: AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management: NaViSet Administrator 2
Security: Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN)

Downloads

8 files from the manufacturer

PDF Datasheets PN-P756_Datasheet.pdf 706 KB PDF Manuals & guides OperationGuidelines-LargeFormat.pdf 455 KB PDF Manuals & guides P756_M752_M862_M982_Manual_EN_V2.pdf 10.7 MB PDF Brochures Warranty-and-Services_Interactive_Computing.pdf 1.0 MB URL Brochures · Opens on manufacturer site Sharp Product Overview PDF Drawings & CAD PN-P756_outline_0715.pdf 506 KB PDF Certificates & compliance EU_EEI_Label_PN-P756.pdf 333 KB PDF Certificates & compliance UK_EEI_Label_PN-P756.pdf 336 KB

Questions about PN-P756

What is the Sharp PN-P756 designed for?

The PN-P756 is a 75-inch professional large format display for continuous use in control rooms, lobbies, passenger information areas and corporate signage. Its 3840 x 2160 native panel, 700 cd/m² brightness and 24/7 operating rating suit screens that run all day. A typical fit in Qatar is a control room at an energy or industrial site in Ras Laffan or Mesaieed, where operators need dashboards readable from a distance at any hour.

Will the screen be readable near windows and in bright Doha lobbies?

The panel is rated at 700 cd/m² and uses a high-haze Pro finish with a haze level of 25, which reduces reflections from glazing and overhead lights. Viewing angles are 178 degrees horizontally and vertically. For a lobby in Msheireb or West Bay with floor-to-ceiling glass, we recommend a site survey to choose the wall position, because direct sun falling on the screen face will still affect any display.

What resolution and colour performance does it deliver?

The native resolution is 3840 x 2160, which is 4K UHD, and the panel accepts lower formats including 1920 x 1080 and 1280 x 720. It shows 10-bit colour depth, equal to 1.073 billion colours, and covers 72% of the NTSC colour gamut. Typical grey-to-grey response is 8 ms at a 60 Hz panel refresh rate, which suits presentations, signage and video playback in a meeting room or showroom.

Can it run 24 hours a day, and what warranty applies?

It is rated for 24/7 operation and includes a scheduler for timed switching on and off. The 3-year warranty covers the backlight, and an optional fourth and fifth year extension is available. The operating temperature is 0 to +40°C, so a unit running continuously should sit in a ventilated, air-conditioned room. Typical power draw is 170 W, and the power saving mode draws under 0.5 W.

Which inputs does the PN-P756 have for laptops and media players?

It has two HDMI inputs with UHD at 60 Hz and HDCP 2.2 support, one DisplayPort 1.2 input, and a USB-C 1 input that accepts video and audio with up to 65 W of power. The audio output is a 3.5 mm line out, and the integrated speakers are rated 10 W plus 10 W. Two USB-A ports and a USB-C 2 port serve peripherals and storage. In a boardroom in The Pearl, a laptop can connect through a single USB-C cable.

Can I connect several units in a row or show two sources on one screen?

Yes. The HDMI OUT and DisplayPort OUT ports pass the signal onward to the next display, so one source can feed a chain of screens with content cloned across them. The display supports two-split picture-by-picture layouts and scalable picture sizes. Clone Settings copies configuration between units, which saves time when a school or government office sets up several identical screens for one programme.

Does it work with Crestron, Q-Sys and other control systems?

The model is certified for Crestron Connected and has a Q-Sys plug-in. It also supports external control through AMX NetLinx, Crestron V2, PJLink, SNMP and an HTTP browser, plus RS-232C at 9600 bps and infrared. For a conference suite in Doha that already runs a Crestron or Q-Sys processor, ask the SmartRooms Qatar team to confirm which control profile matches your system before ordering.

How do we manage several displays remotely and securely?

NaViSet Administrator 2 lets IT or facilities staff control units remotely and manage maintenance tasks. For security, the display supports IEEE 802.1X authentication on the LAN, can disable front hardware buttons and infrared control, and offers an emergency notification feature. LAN 1 and LAN 2 run at 100 Mbit/s, with LAN 2 looping the connection through to the next unit. A government office in Doha with a central IT team can lock settings on public-facing screens.

How heavy is it and what do we need for wall mounting?

The display weighs 38 kg and measures 1,682.3 x 961.1 x 83.2 mm, with a metal back cover. It has four VESA holes at 600 x 400 mm with M8 fittings. Wall mount options L20PNWALL90EU and SF680P are listed as accessories, alongside a trolley and feet. Because of its size and weight, we offer a free site survey to check wall structure, mounting height and cable routes before installation in a building in Lusail or Al Sadd.

Will it cope with Qatar's summer heat and dust?

Its operating range is 0 to +40°C at 20 to 80% humidity, and storage is rated from -20 to 60°C. Qatar summers often push outdoor temperatures above 45°C, so the display should be installed in an air-conditioned indoor space rather than an unshaded or poorly ventilated area. The front is rated IP5x and the back IP2x, so confirm the environment with the SmartRooms Qatar team before choosing a location near doors or entrances.

We are buying several units for a school or government tender. How do we order?

Multi-unit orders can be placed with a purchase order or LPO, and government tenders are supported, including those published on Monaqasat. Payment can be made by bank transfer, cheque or purchase order. Send the quantity, mounting type and delivery location within Qatar's eight municipalities, and the SmartRooms Qatar team will issue a quotation usually within one working day. Each unit carries the manufacturer's 3-year warranty, including the backlight.
