Sharp Wall Mount PDW T XL-2

Name: Sharp Wall Mount PDW T XL-2 for 55 to 65-inch Displays
Brand: Sharp
SKU: sharp-wall-mount-pdw-t-xl-2
Availability: InStock

Overview

The Sharp PDW T XL-2 is a single wall mount accessory, order code L50PDW-TXL-2, for 55 to 65-inch displays. It supports landscape and portrait orientation with a 158 kg load rating. Its tilt runs from -5 to +15 degrees, adjusted without tools. It suits schools, offices and retail sites across Qatar fitting out large screens. Request a quote from SmartRooms Qatar.

What this Sharp wall mount does

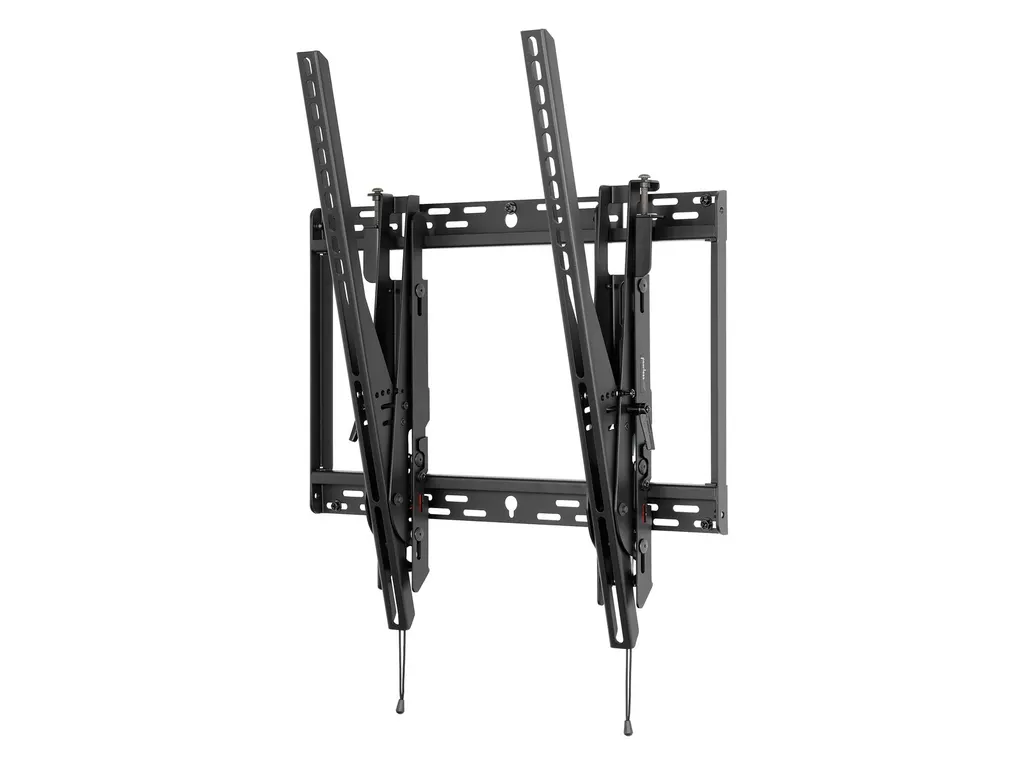

The Sharp PDW T XL-2, order code L50PDW-TXL-2, is a single wall mount accessory from the Sharp digital signage range. It is built for displays from 55 to 65 inches, which the manufacturer gives as the recommended size range, and it can hold a screen in either landscape or portrait orientation. The kit consists of a wall plate that fixes to the wall and two adapter brackets, one for each side, that hook onto the plate and carry the display.

Facts that matter before you order

Load and VESA: rated for 158 kg, with a VESA pattern of up to 400 x 400 mm.
Tilt: adjustable from -5 to +15 degrees, with preset positions at -5, 0, 5, 10 and 15 degrees.

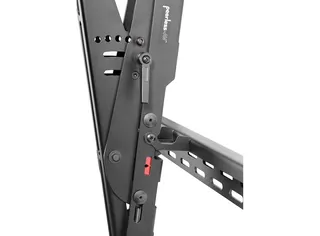

Tool-free adjustment: pre-tensioned adapters change the angle without tools, and an easy-grip lever locks the position in place.
Dimensions: 559 x 673 x 86 to 269 mm, with a minimum depth of 77 mm and a weight of 6.25 kg.
Warranty: 5 years, as listed by the manufacturer.

Where it fits in Qatar

A private school in Al Wakrah fitting out new classrooms can use 65-inch panels with this mount, and the tilt range helps teachers angle the screen when it is mounted higher than eye level. In a meeting room in West Bay, a 55-inch panel on the wall gives a clear view from the far end of the table. In a clinic corridor in Al Sadd or a retail entrance in The Pearl, portrait mode suits wayfinding and promotional content that runs top to bottom.

What to plan for

Confirm the display's weight, size and VESA pattern against the mount before ordering, because the manufacturer presents the 55 to 65-inch range as a recommendation only. The 158 kg rating applies to the mount, so have the wall structure checked separately. The manufacturer lists compatibility with PN-ME652, PN-ME552, PN-P556, PN-M552, PN-M652, PN-P656 and PN-P756 displays, so confirm your exact model. Integrated security options are available; confirm which one suits your display. The source data gives no operating temperature for this accessory, so for lobby or window-facing walls, where dust storms and summer heat are a concern, have the environment confirmed with the SmartRooms Qatar team before installation.

SmartRooms Qatar offers free site surveys to check wall type, height and cable routing before any mounting. Send your display model, room layout and wall details, and the team will return a quotation, usually within one working day. Schools and government buyers can order against an LPO or tender, and payment is by bank transfer, cheque or purchase order. Request a quote for the Sharp PDW T XL-2 today.

Highlights

Single wall plate with pre-tensioned tilt display adapters
Supports landscape and portrait orientation
Tilt from -5 to +15 degrees with tool-free adjustment
158 kg load capacity and VESA pattern up to 400 x 400 mm
Recommended for 55 to 65-inch displays
Manufacturer warranty listed at 5 years

Estimated timeline

Quotation within 1 working day · delivery timing depends on stock availability, and we confirm it with your quotation.

Specifications

13 specifications · Source: manufacturer · checked Oct 2026

Mount4

Installation: Single
Orientation: Landscape; Portrait
Max. Load Capacity [kg]: 158
Recommended Display Size [inch]: 55 to 65; This is just a recommendation. Please check desired size, weight and VESA pattern.

Mechanical1

Tilt Function [°]: -5 to +15

Weight And Dimensions5

Dimensions (W x H x D) [mm]: 559 x 673 x 86 to 269
Weight [kg]: 6.25
Min. Depth [mm]: 77
Shipping Weight [kg]: 6.3
Shipping Dimensions (W x H x D) [mm]: 725 x 105 x 395

Vesa1

VESA Pattern [mm]: up to 400 x 400

Additional Features2

Warranty: 5 years
Shipping Content: 1x Wall Plate; 2x Display Adapter Brackets (right/left); Screws incl. Spacers and Washers and Wrench

Downloads

1 file from the manufacturer

PDF Datasheets NEC_Datasheet_PDW-T-XL-2_en.pdf 273 KB

Questions about Wall Mount PDW T XL-2

What is the Sharp PDW T XL-2 used for?

The Sharp PDW T XL-2 is a single wall mount accessory for holding a display on a wall in either landscape or portrait orientation. The manufacturer recommends it for displays from 55 to 65 inches and rates it for a 158 kg load. It suits classrooms, meeting rooms and lobbies that need a large screen on a fixed, adjustable mounting point rather than a freestanding stand.

Which Sharp displays is this mount compatible with?

The manufacturer lists compatibility with the PN-ME652, PN-ME552, PN-P556, PN-M552, PN-M652, PN-P656 and PN-P756 displays. Compatibility is not the same as a guaranteed fit for every unit, so check the exact model, weight and VESA pattern. SmartRooms Qatar can confirm the fit against your display before you order, and a site survey helps if the wall type is unclear.

What tilt range does the mount offer and how is it adjusted?

The mount tilts from -5 to +15 degrees, with preset positions at -5, 0, 5, 10 and 15 degrees. Pre-tensioned display adapters let you change the angle without tools, and an easy-grip lever locks the display once it is set. This is useful when a screen hangs above eye level and needs to be angled toward seated viewers.

Can I mount a display in portrait orientation for signage in Qatar?

Yes, the mount supports both landscape and portrait orientation. Portrait suits wayfinding boards in a hospital corridor in Al Sadd, a directory in a Lusail office tower lobby, or promotional loops at a shop entrance in The Pearl. Before ordering, confirm the display's weight and VESA pattern fit the mount, since the 55 to 65-inch range is a recommendation.

Does the 158 kg load rating mean any wall can take it?

No. The 158 kg figure is the mount's maximum load capacity, not a rating for your wall. Plasterboard, block walls and reinforced concrete behave differently, so the wall must be checked for the combined weight of the mount, display and cable hardware. SmartRooms Qatar offers free site surveys, which include checking wall construction, before any installation is booked.

What VESA pattern does the mount support?

The wall plate and adapters support VESA patterns up to 400 x 400 mm, according to the manufacturer's data. Check the rear pattern on your display, usually listed in its spec sheet, and make sure its size and weight also match the recommended 55 to 65-inch range. A mismatch in any one of these can prevent a safe mount.

What dimensions and depth should I plan for?

The wall plate measures 559 x 673 mm, and the mount's depth ranges from 86 to 269 mm, with a minimum depth of 77 mm. The mount weighs 6.25 kg. Shipping packaging measures 725 x 105 x 395 mm and weighs 6.3 kg. Measure the distance from the wall to the back of the display, including cable clearance, before choosing fixing points in a narrow meeting room.

What is included in the box?

The shipping contents list one wall plate, two display adapter brackets (right and left), and screws with spacers and washers, plus a wrench. The display itself is not part of this item, so it must be sourced separately. When ordering for several rooms, check the number of plates and brackets against the number of displays you plan to mount.

Are security options available for this mount?

The manufacturer states that integrated security options are available for this mount. Confirm which option suits your model and site before ordering, especially in public areas such as a ministry reception, a university foyer or a mall retail floor where screens are exposed to passers-by. SmartRooms Qatar can advise on what your installation needs.

Is this mount suitable for a meeting room in West Bay?

It suits a meeting room using a 55 or 65-inch panel, both within the recommended range. Mount the screen so the tilt range lets you angle it toward seated attendees while keeping the top edge at a comfortable height. If the panel will hang on a glass or partition wall, request a site survey first to confirm the wall can take the load.

Can a school order several mounts for its classrooms?

Yes. Schools and government entities in Qatar can order against a purchase order or LPO, and SmartRooms Qatar supplies and delivers to all eight municipalities. Quotations are usually issued within one working day. Ask for a single quotation covering every room, and list the display model for each classroom so the plates and brackets match the screens being installed.

What warranty applies to this mount?

The manufacturer lists a 5-year warranty for the Sharp PDW T XL-2, and products are covered by the manufacturer's warranty. If you buy several mounts, record the order code L50PDW-TXL-2 in your asset records so any warranty claim can be traced. Ask the SmartRooms Qatar team to confirm the terms for your order when you request a quote.
